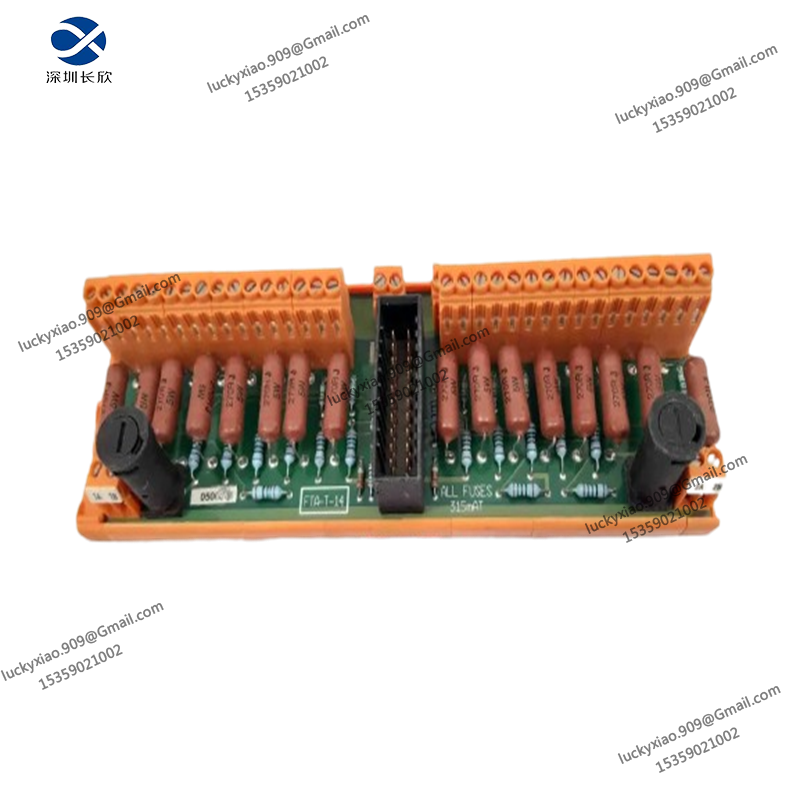

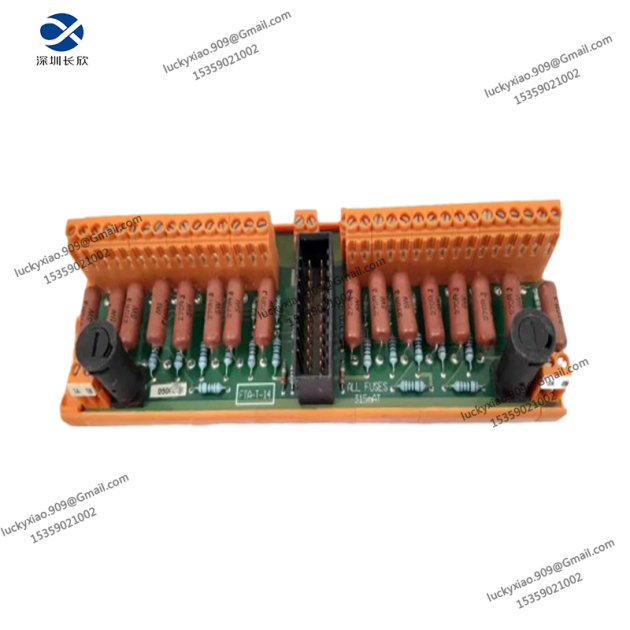

Introduction to HONEYWELL FTA-T-14
FTA-T-14 Product Introduction
The HONEYWELL FTA-T-14 is a high-performance fail-safe analog input module under the Honeywell FTA-T series, specifically designed for safety instrumented systems (SIS) and industrial automation control applications. As a key signal processing component, it efficiently collects analog signals (e.g., temperature, pressure, flow) from field sensors and converts them into digital signals compatible with Honeywell controllers. Featuring 4 dedicated input channels, this module ensures high-precision and real-time signal acquisition, critical for safety-critical industrial processes. It incorporates channel-to-channel and power isolation technology to resist electrical noise interference, along with a built-in self-diagnostic function that promptly identifies channel faults, enhancing system reliability. With a compact design and convenient screw terminal connections, it facilitates easy installation, maintenance, and seamless integration into existing control systems. It is widely used in petroleum and natural gas, power generation, chemical, and factory automation industries where reliable analog signal processing is essential.
FTA-T-14 Technical Parameters
-
Product Model: FTA-T-14
-
Product Type: Fail-Safe Analog Input Module (Honeywell FTA-T Series)
-
Core Functions: 4-channel analog signal acquisition; Analog-to-digital conversion; Channel-to-channel & power isolation; Real-time self-diagnosis; Fail-safe protection for SIS
-
Connection Specifications: Screw terminal connections; Compatible with Honeywell SIS and industrial control systems; Compliant with IEC 61131-2 standard
-
Electrical Specifications: Input Type: Configurable current (4-20mA) & voltage (0-10V) signals; Precision: 0.1%; Resolution: 16-bit; Response Time: < 2ms; Certifications: CE, UL, SIL 3 compliant
-
Environmental Ratings: Operating Temperature: -25°C to 70°C; Storage Temperature: -40°C to 85°C; Relative Humidity: 5% – 95% (non-condensing)
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Dimensions: Approximately 14.5 cm × 7 cm × 5.7 cm; Weight: Approximately 0.2 kg (0.44 lbs); Installation: DIN rail mounting
-
System Compatibility: Fully compatible with Honeywell safety instrumented systems (SIS) and Experion PKS; Suitable for petroleum and natural gas, power generation, chemical, and factory automation industries
Recommended Honeywell Same-Series Models
-
FTA-T-21: FTA-T series fail-safe digital input module for discrete signal collection
-
FTA-T-02: FTA-T series fail-safe digital output module with 24 channels
-
FTA-T-04: FTA-T series safety manager system module for critical control applications
-
FS-TSAI-1620m: FTA series fail-safe analog input module with 16 channels
-
FS-TSDI-16UNI: FTA series universal digital input module
-
FS-TSDO-0824: FTA series fail-safe digital output module with 8 channels
-
MC-TAMT04 (51305890-175): FTA series low-level analog input multiplexer module for temperature signals
-
51304476-175: FTA series analog output module with compatible terminals
-
51309218-175: FTA series RTD input module with compatible terminals
-
80366177-250: FTA series redundant analog output module
-
FS-TPSU-2430: FTA series 24Vdc to 30Vdc/1A power converter module
-
FTA-T-01: FTA-T series fail-safe digital output module with 16 channels
-
FTA-T-03: FTA-T series fail-safe digital output module with 32 channels
-
TC-CEN021: FTA compatible Ethernet interface module (10/100MB)
-
TC-FPDXX2: FTA compatible 24Vdc power supply module
