Introduction to HONEYWELL R7247C1001
R7247C1001 Product Overview

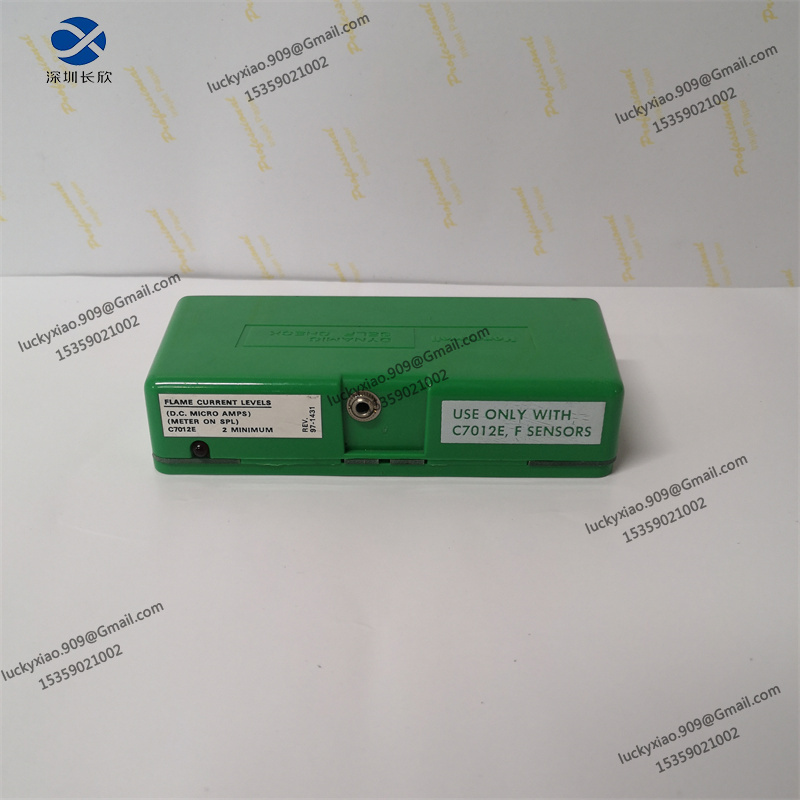

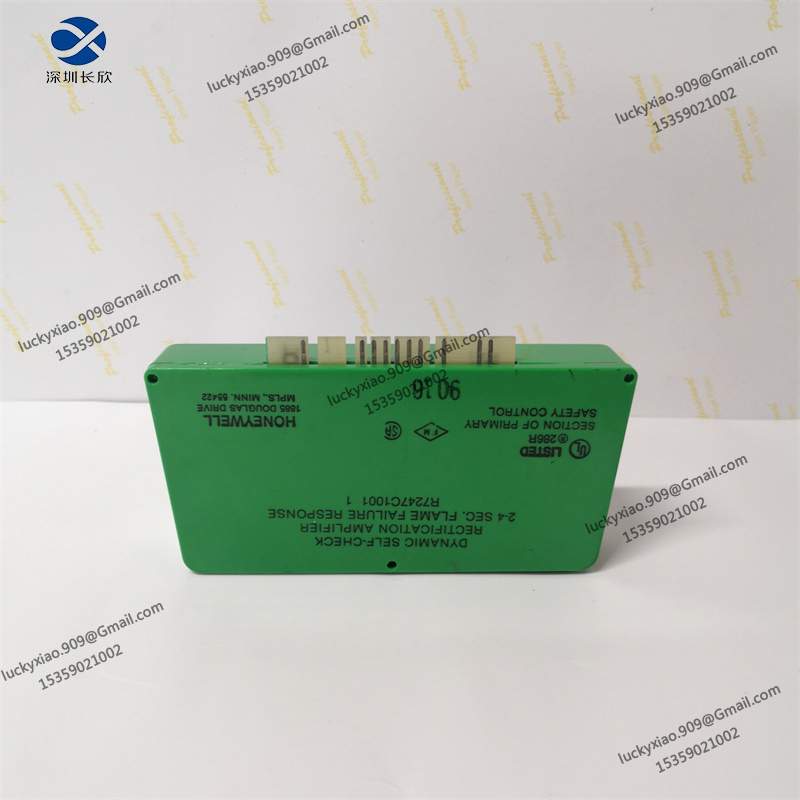

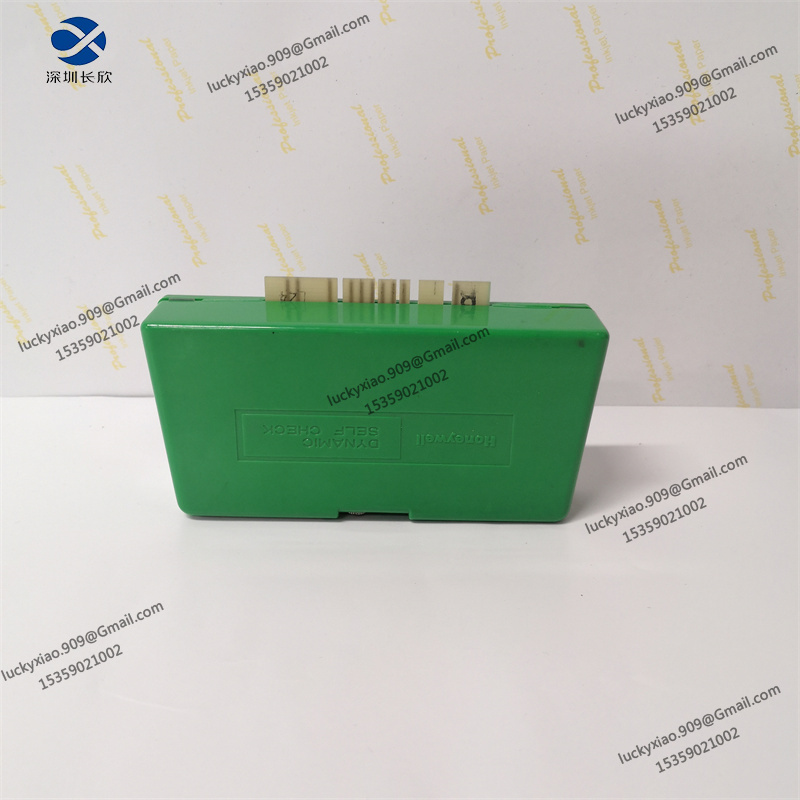

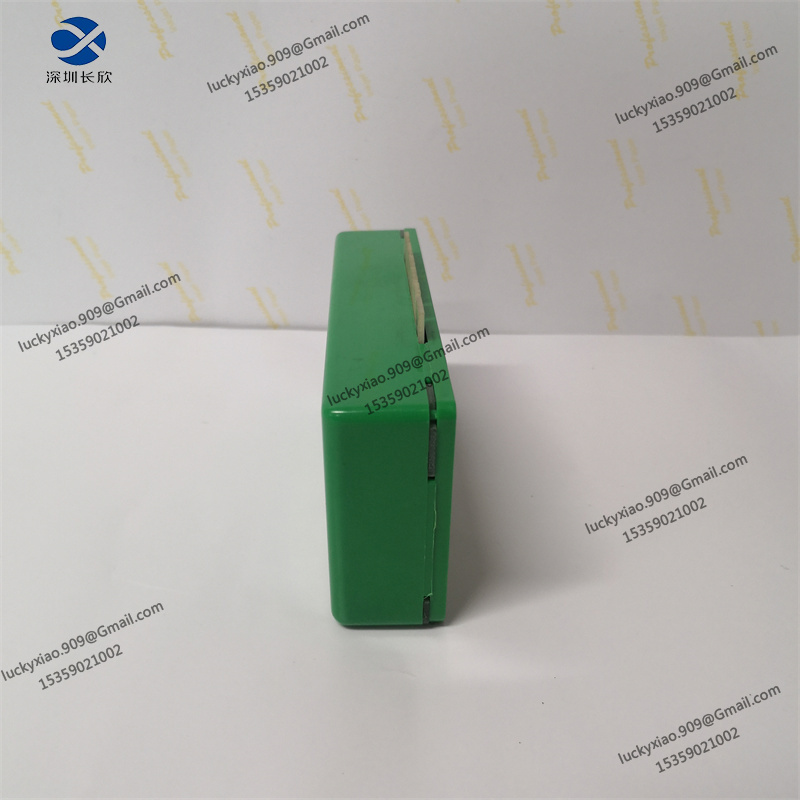

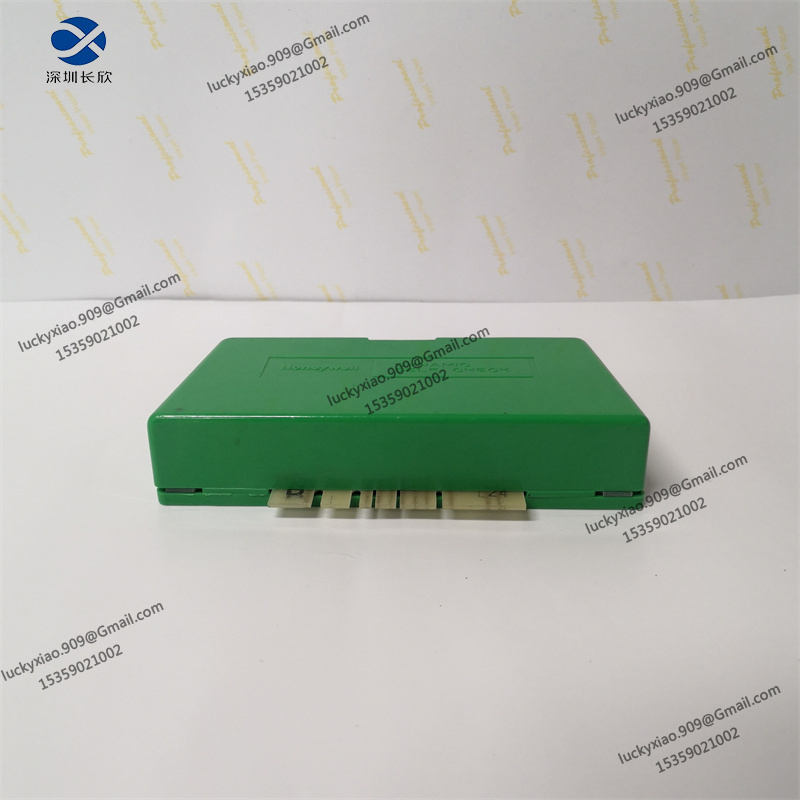

The HONEYWELL R7247C1001 is a high-performance flame safeguard control module belonging to the R7247 series, specifically engineered for industrial and commercial combustion systems. As a critical safety component, it monitors flame presence, controls ignition sequences, and triggers shutdown protocols in case of flame loss, ensuring the safe and reliable operation of boilers, furnaces, and other combustion equipment. This module features a built-in flame rectification circuit that accurately detects flame signals even in harsh combustion environments, minimizing false alarms and missed detections. Its compact and durable design allows for easy integration into existing control panels, while intuitive LED status indicators facilitate quick troubleshooting and maintenance. Compatible with a wide range of burners and ignition systems, the R7247C1001 is widely applied in heating, power generation, and industrial processing sectors, providing essential safety protection for combustion processes.
R7247C1001 Technical Specifications
-
Product Model: R7247C1001
-
Product Type: Flame Safeguard Control Module (Honeywell R7247 Series)
-
Core Functions: Flame detection and monitoring; Ignition sequence control; Flame loss protection and shutdown; Status indication and fault diagnosis
-
Input/Output Specifications: Flame Input: Rectified flame signal; Ignition Output: Relay contact, 5A @ 240VAC; Control Output: Single-pole double-throw (SPDT) relay
-
Power Supply: Operating Voltage: 120VAC, 50/60Hz; Power Consumption: Maximum 8VA
-
Environmental Ratings: Operating Temperature: 0°C to +60°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing)
-
Mechanical Details: Dimensions (L×W×H): Approx. 114mm × 76mm × 51mm; Net Weight: Approx. 0.2kg; Mounting Type: Panel mount or DIN rail mount; Housing Material: Flame-retardant plastic
-
System Compatibility: Compatible with most industrial burners and ignition transformers; Complies with UL and CSA safety standards
Recommended HONEYWELL Similar Series Models
-
R7247A1004: Flame safeguard control module with automatic reset function
-
R7247B1005: Flame safeguard control with manual reset and remote start capability
-
R7247D1002: Enhanced flame safeguard module with extended temperature range (-20°C to +70°C)
-
R7248A1006: Dual-channel flame safeguard control for multi-burner systems
-
R7847A1013: UV flame detector compatible with R7247 series controllers
-
R7510A1012: Ignition transformer matching R7247C1001 for reliable ignition
-
R7247E1003: Flame safeguard control with digital status display for precise monitoring
-
R7249A1007: Flame safeguard module with additional alarm relay output
-
R7800A1002: Flame amplifier for weak flame signal enhancement in R7247 series
-
R7247F1001: Explosion-proof flame safeguard control for hazardous environment applications
