Introduction to HONEYWELL SC-TCMX01 51307198-175
SC-TCMX01 51307198-175 Product Introduction

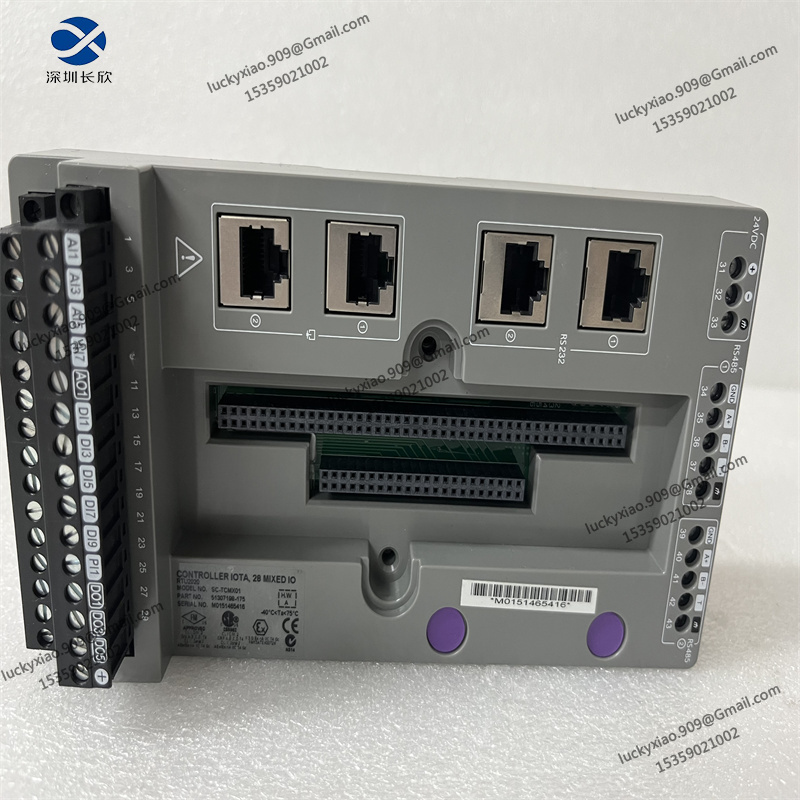

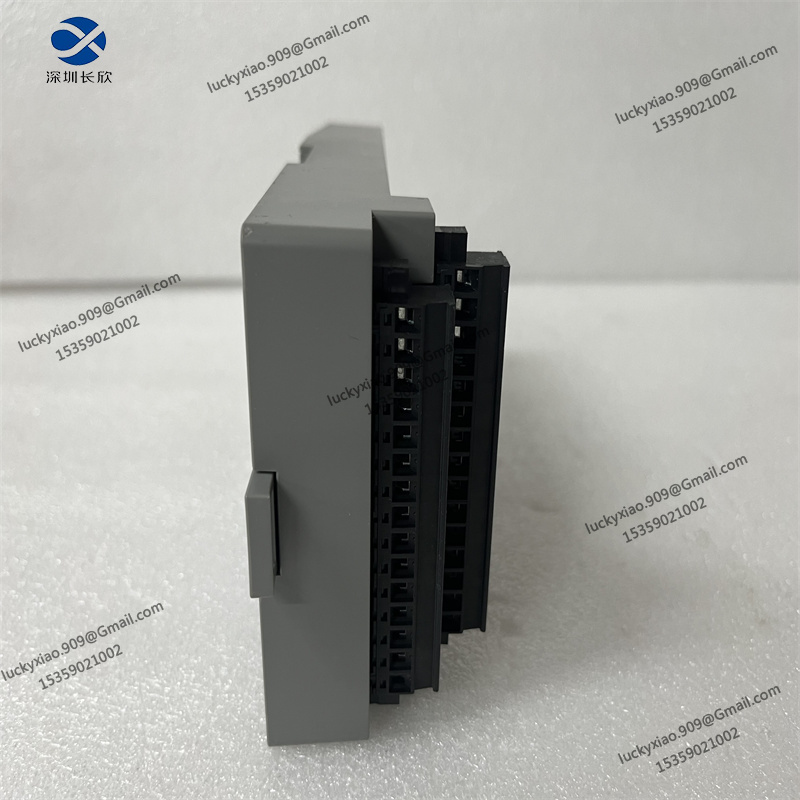

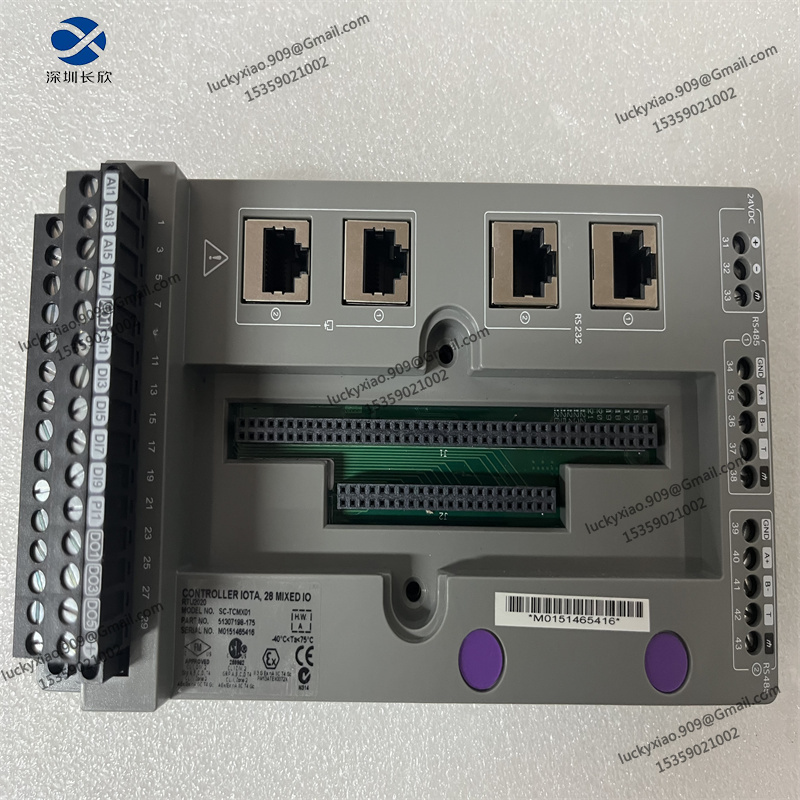

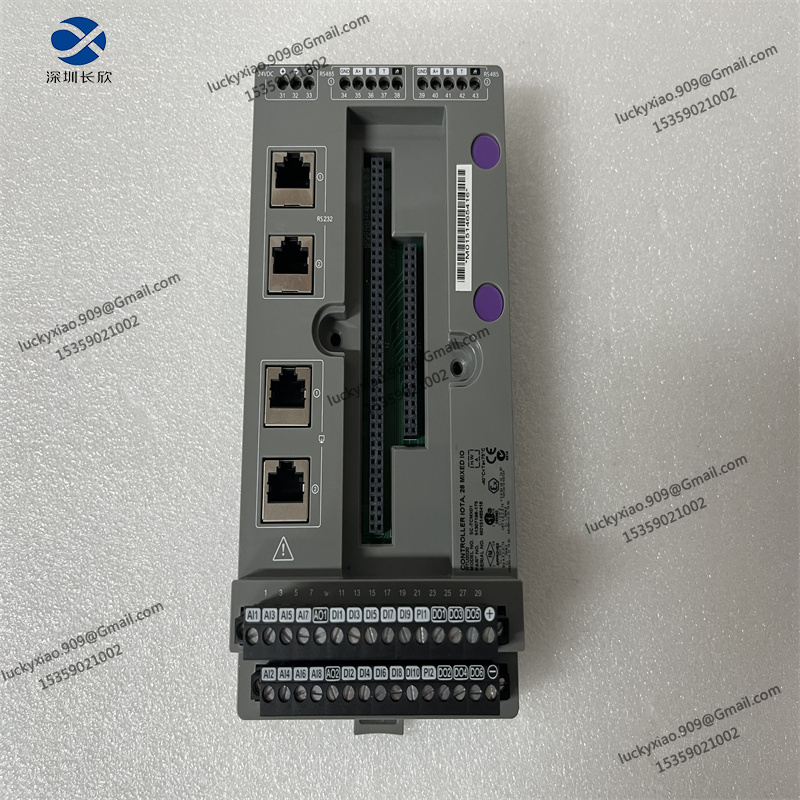

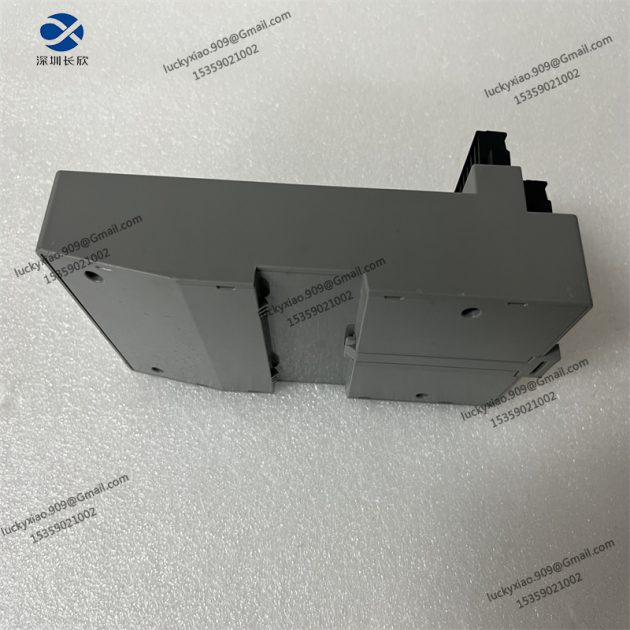

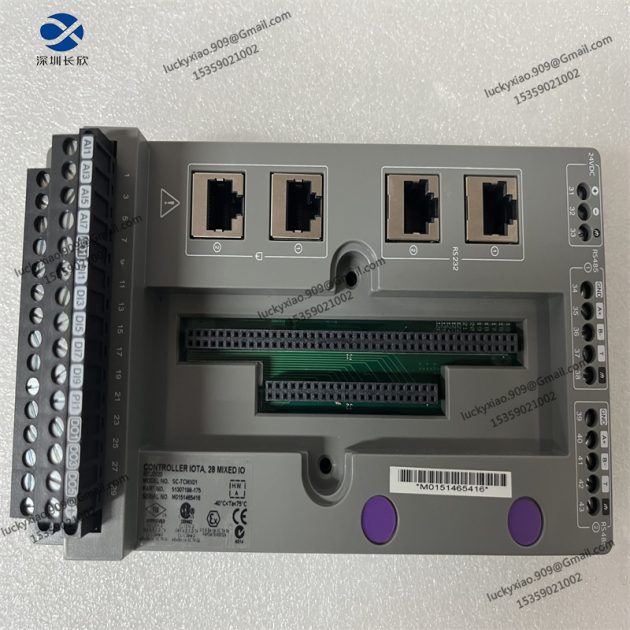

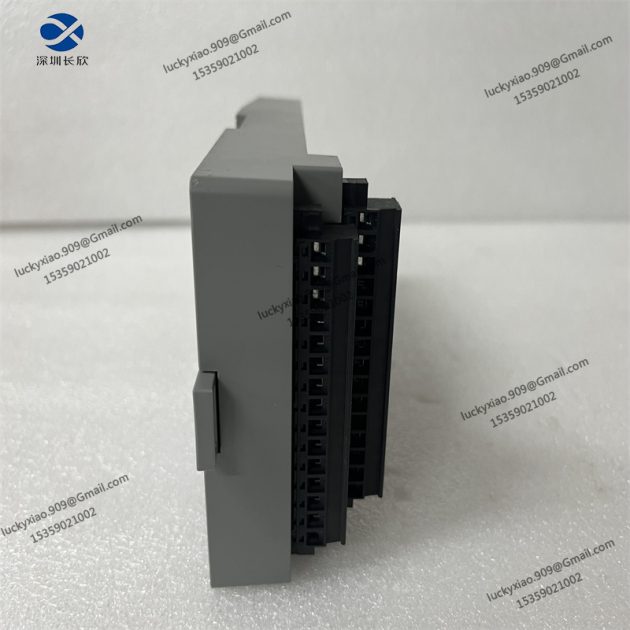

The HONEYWELL SC-TCMX01 51307198-175 is a high-reliability digital output module, specifically engineered for industrial automation and PLC/DCS control systems. As a key component in industrial control loops, it converts digital signals from the main controller into physical outputs, enabling precise control of external field devices such as actuators, valves, and motors. This module supports multiple communication protocols including Modbus RTU, ensuring seamless data exchange with upper-level control systems and facilitating flexible system integration. Equipped with 8 output channels and available in relay or transistor drive types, it offers versatile configuration options to meet diverse industrial application needs. Adopting a modular and compact design with DIN rail mounting capability, it allows for easy installation, maintenance, and system expansion. Built with industrial-grade components, it exhibits excellent anti-interference performance and stability, maintaining reliable operation in harsh environments with wide temperature fluctuations and electromagnetic interference.
SC-TCMX01 51307198-175 Technical Specifications
-
Product Model: SC-TCMX01 51307198-175
-
Product Type: Digital Output Module (Honeywell SC Series)
-
Core Functions: Digital signal to physical output conversion; External field device control; Multiple communication protocol support; Real-time data exchange with control systems; Modular configuration
-
Signal & Connection: Output Channels: 8 channels; Output Type: Relay drive, Transistor drive; Communication Protocol: Modbus RTU; Connection Mode: DIN rail mounting
-
Electrical Specifications: Operating Voltage: 24VDC; Loop Power Supply Output: Isolated 24VDC±5% regulated, max 25mA; Maximum Power Consumption: 8.3W (typical 7.5W); Maximum Input Current: 2A
-
Environmental Ratings: Operating Temperature: -40°C to +85°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP20
-
Mechanical Details: Housing Material: Industrial-grade anti-corrosion plastic; Mounting Type: DIN rail; Dimensions: 100mm × 50mm × 30mm; Net Weight: Approx. 2kg
-
System Compatibility: Fully compatible with Honeywell PLC/DCS systems and other industrial automation setups; Suitable for integration into petroleum, chemical, power, building automation, food processing, and pharmaceutical industry control systems
Recommended Honeywell Models
-
SC-UCMX01 51307198-175: SC series RTU/controller module with energy management and remote monitoring functions
-
SC-UCMX02 51307198-276: SC series RTU module with 24 digital input and 16 digital output points, supporting Modbus/DNP3 protocols
-
SC500 Series Signal Conditioner: SC series sensor signal conditioning module with automatic calibration function
-
CC-PDIL01: 32-channel digital I/O module for discrete signal acquisition and control
-
CC-PAIH01: Analog input module with HART protocol for intelligent sensor data collection
-
CC-PAOX01: Analog output module for stable actuator control signal transmission
-
51305072-200: CLCN series communication module for LCN network connection
-
TC-CCR014: Redundant network interface module ensuring continuous system communication
-
51196655-100 ACX633: ACX series power supply module for stable system power supply
-
CC-PWRR01: 20A redundant DC power module for cabinet-level power supply protection
-
CC-PCNT01: C300 control processor module for core industrial process control
-
TC-FTEB01: FTE bridge module for C300 system network redundancy
-
CC-PDIS01: Digital input module with SOE function for event sequence recording
-
MC-PFBS01: Fieldbus interface processor module for multi-network integration
