Introduction to HONEYWELL SC-UCMX01 51307195-175

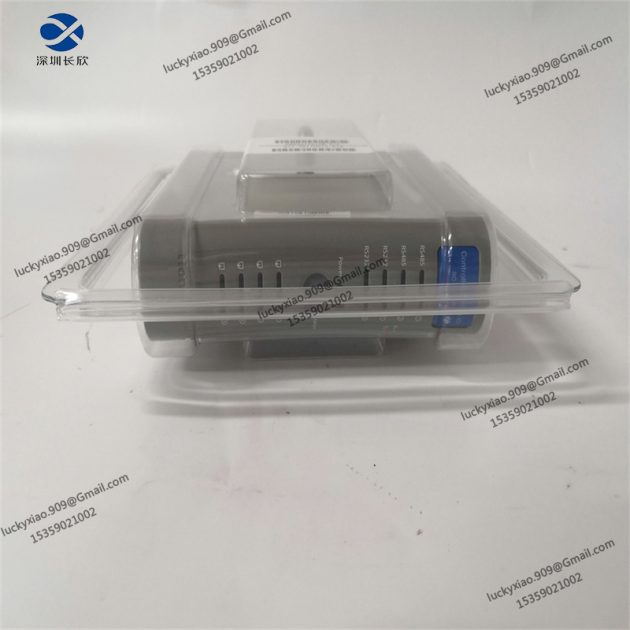

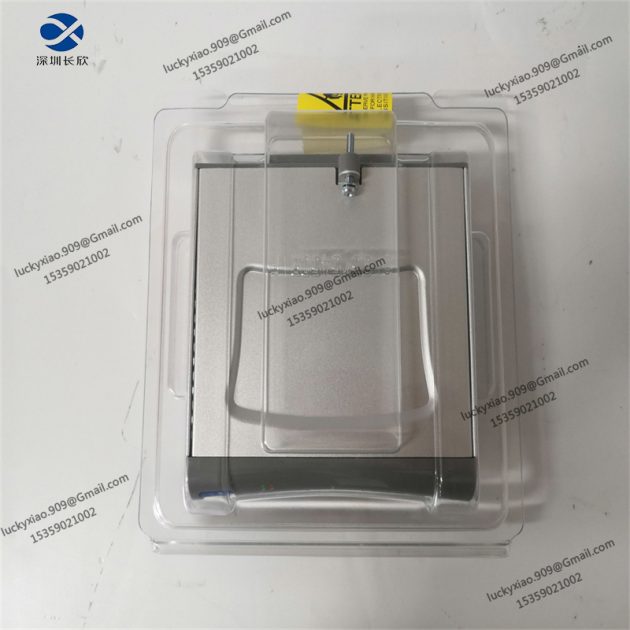

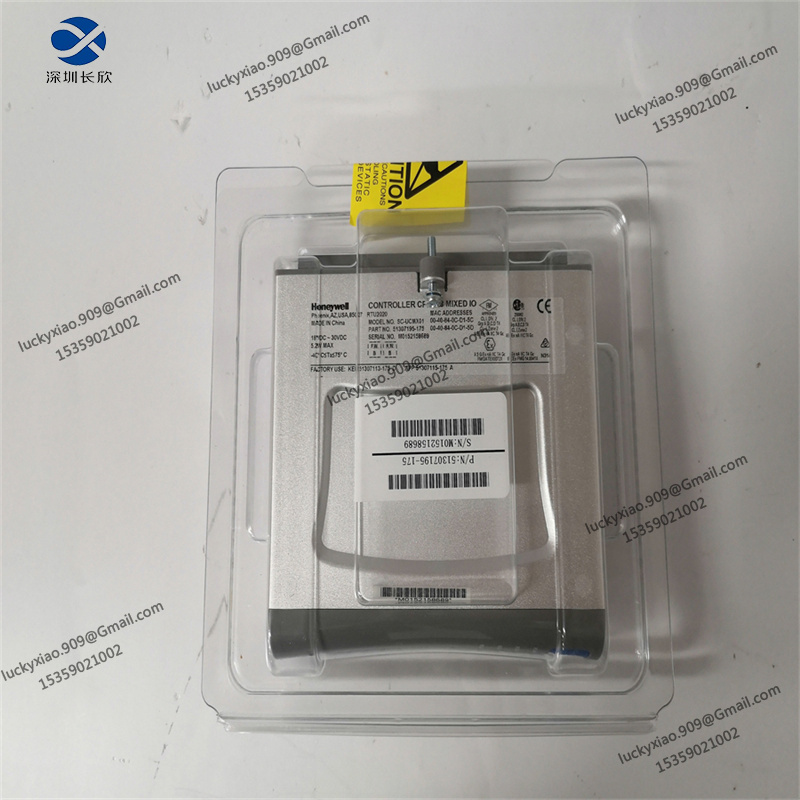

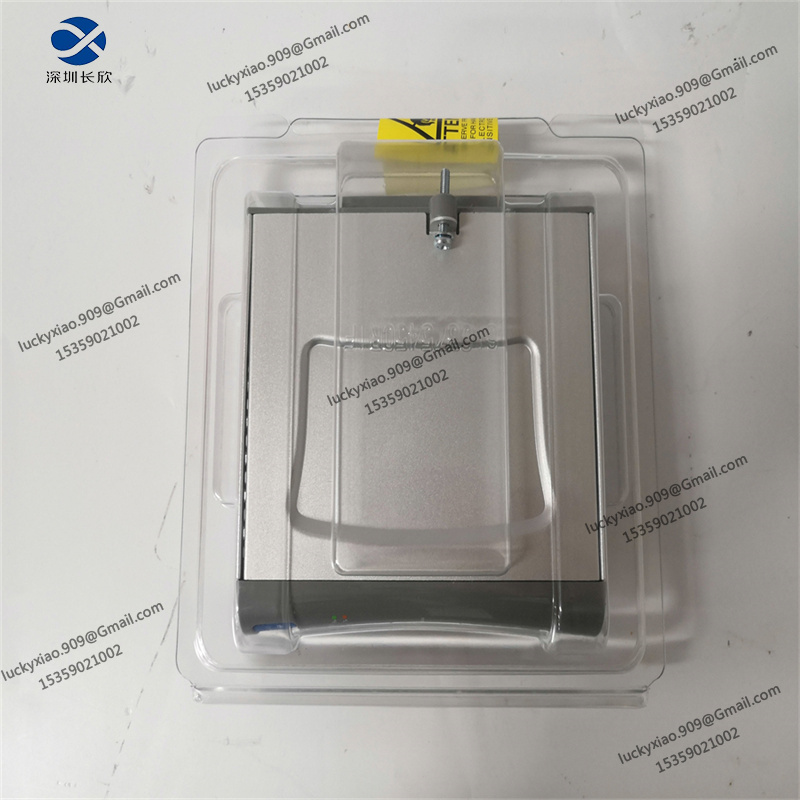

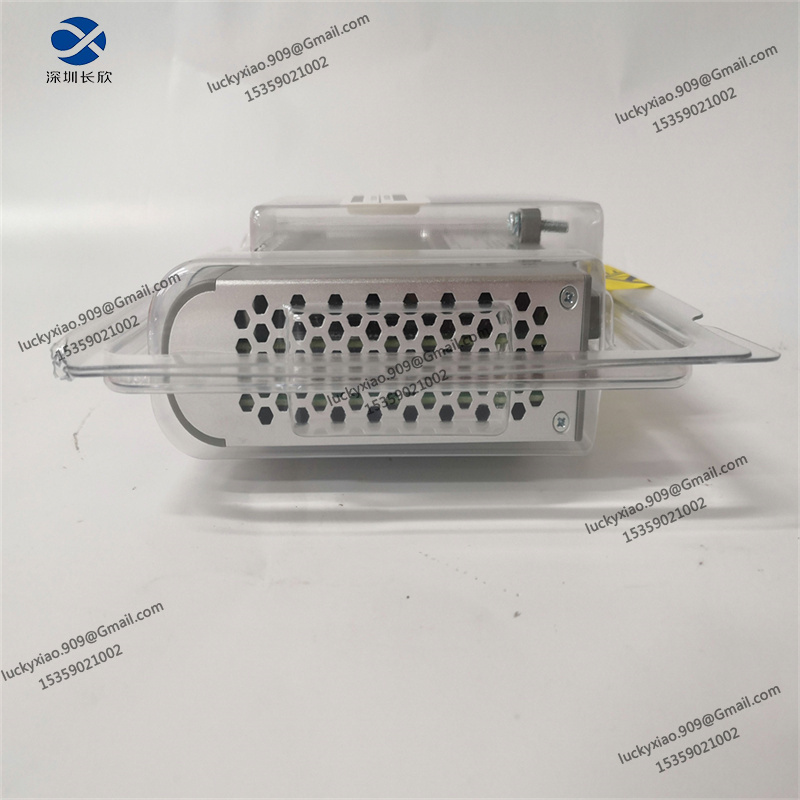

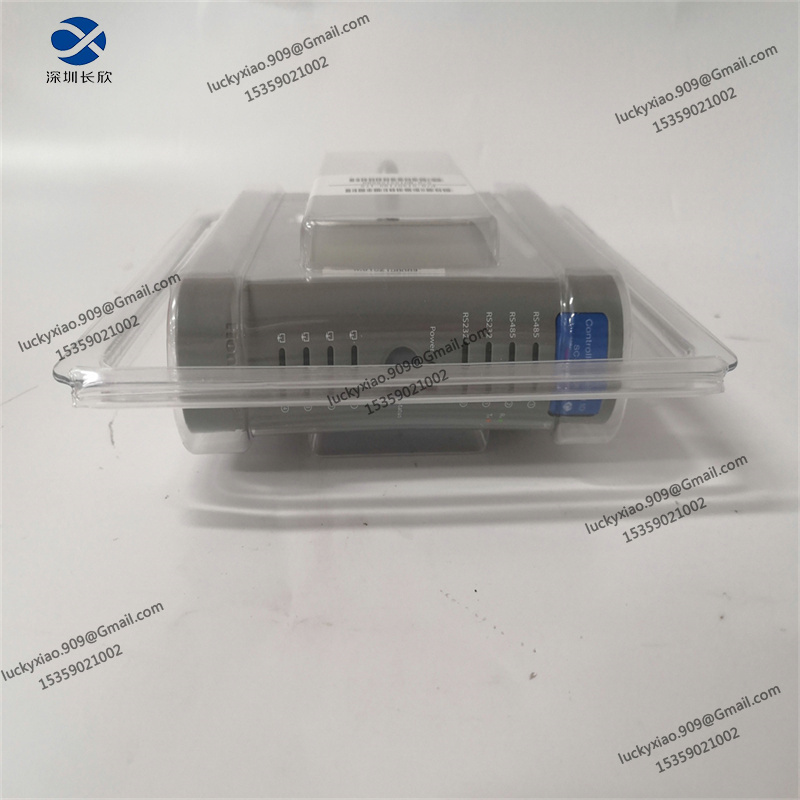

SC-UCMX01 51307195-175 Product Introduction
The HONEYWELL SC-UCMX01 (Part Number: 51307195-175) is a high-reliability universal control module designed for Honeywell’s industrial automation and control systems. As a versatile core component, it is engineered to handle multi-channel signal processing, logic control, and seamless communication with various I/O modules, ensuring precise and efficient operation of industrial processes. This module features a flexible configuration design that supports multiple signal types, making it adaptable to diverse industrial application scenarios. Its standardized structure enables easy integration with other Honeywell system components, simplifying system setup, expansion, and maintenance. Equipped with robust industrial-grade protection mechanisms, it maintains stable performance in harsh operating environments with electromagnetic interference, temperature fluctuations, and high humidity. It is widely applied in industries such as chemical processing, power generation, petroleum refining, and manufacturing, where reliable and flexible control of critical processes is essential.
SC-UCMX01 51307195-175 Technical Parameters
-
Product Model: SC-UCMX01 (51307195-175)
-
Product Type: Universal Control Module (Honeywell Industrial Automation Series)
-
Core Functions: Multi-channel signal processing and conversion; Logic control and sequence management; Seamless communication with I/O modules; Flexible configuration for diverse signal types; Fault diagnosis and monitoring
-
Connection Specifications: Compatible with Honeywell I/O modules and peripheral components; Standard industrial communication interfaces; Installation Mode: Rack-mounted (system chassis compatible); Terminal Type: Industrial-grade standard terminals
-
Electrical Specifications: Power Supply: Compatible with Honeywell industrial control system power (24VDC typical); Operating Voltage Range: 20-28VDC; Power Consumption: Low power design for energy efficiency; Certifications: Compliant with industrial safety and EMC standards (CE, UL)
-
Environmental Ratings: Operating Temperature: -40°C to +70°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Electromagnetic Interference Resistance: Excellent
-
Mechanical Details: Housing Material: Industrial-grade high-strength plastic; Dimensions: Standard rack-mounted module size; Protection Rating: IP20
-
System Compatibility: Fully compatible with Honeywell industrial automation and control systems (e.g., Experion PKS); Suitable for integration into chemical processing, power generation, petroleum refining, and manufacturing industry control setups
Recommended Honeywell Same-Series Models
-
SC-UCMX02: Enhanced universal control module with extended channel capacity
-
SC-UCMX11: Redundant universal control module for critical process control with high availability requirements
-
SC-UMCX01: Multi-protocol communication module for seamless data exchange between control systems
-
CC-TAIX01 (51308363-175): Analog input IOTA terminal board for high-precision sensor signal acquisition
-
CC-TAOX11 (51308353-175): Redundant analog output IOTA terminal board for enhanced system availability
-
CC-TDOB11 (51308373-175): Redundant digital output IOTA terminal board for reliable field device control
-
SC-UIMX01: Universal input module for multi-type sensor signal collection
-
SC-UOMX01: Universal output module for flexible actuator control
-
CC-PWRR01: 20A redundant DC power module for module power supply protection
-
SC-SCMB01: Memory backup module for system data protection and recovery
-
SC-UCMX21: High-performance universal control module with advanced control algorithms
-
CC-PCF901: Control firewall module for system security protection
-
SC-UTMX01: Universal terminal board compatible with SC-UCMX series modules
-
CC-TAON11: Redundant analog input/output combination terminal board
-
SC-UCMX31: Universal control module with enhanced anti-interference capability for harsh environments
-
SC-UMCX11: Redundant communication module for continuous data transmission
-
CC-TDOR11: Relay output terminal board for high-load field device control
