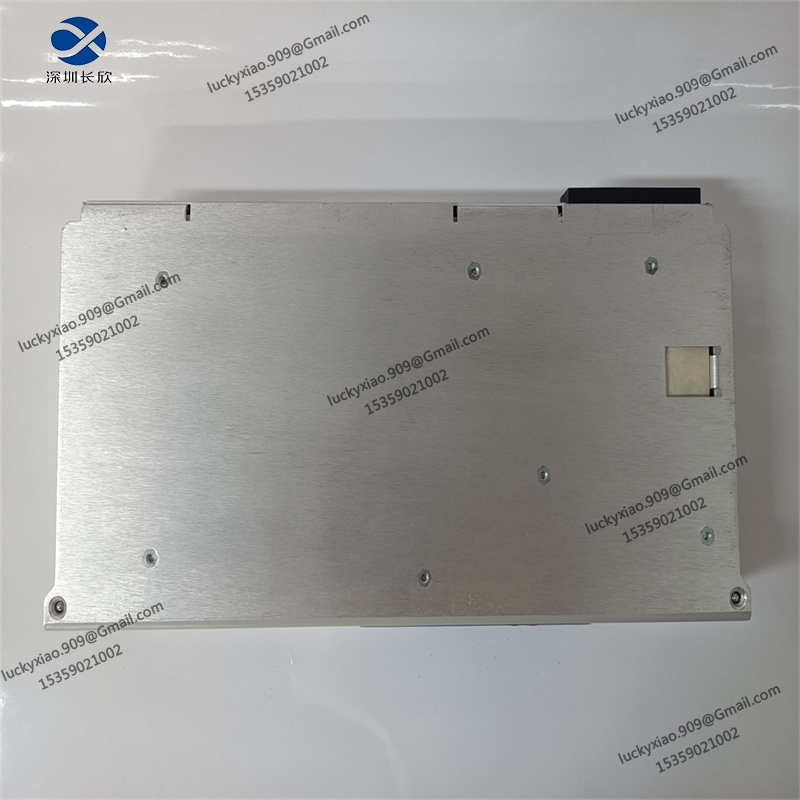

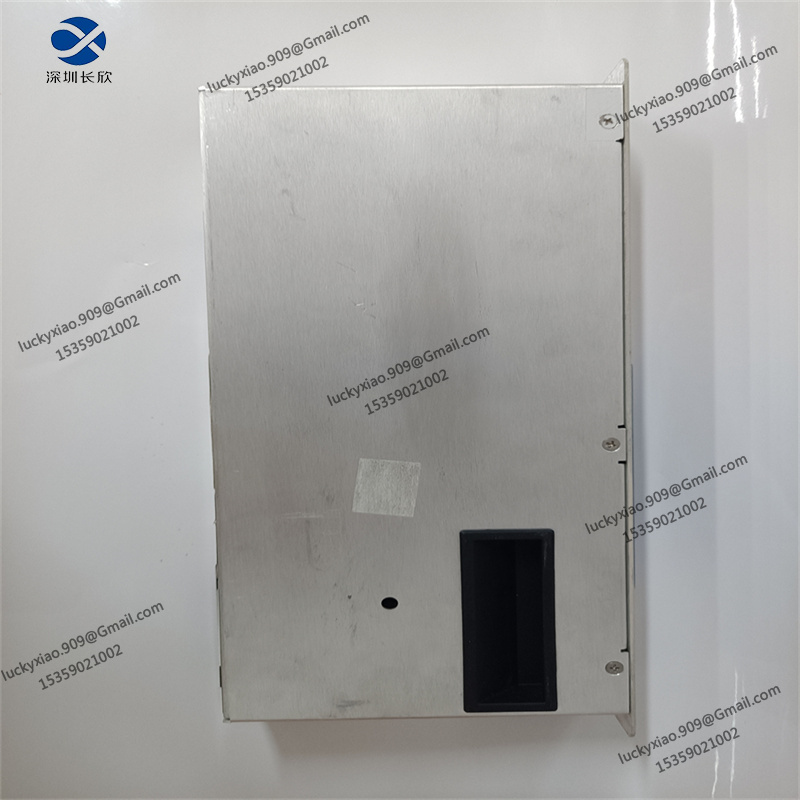

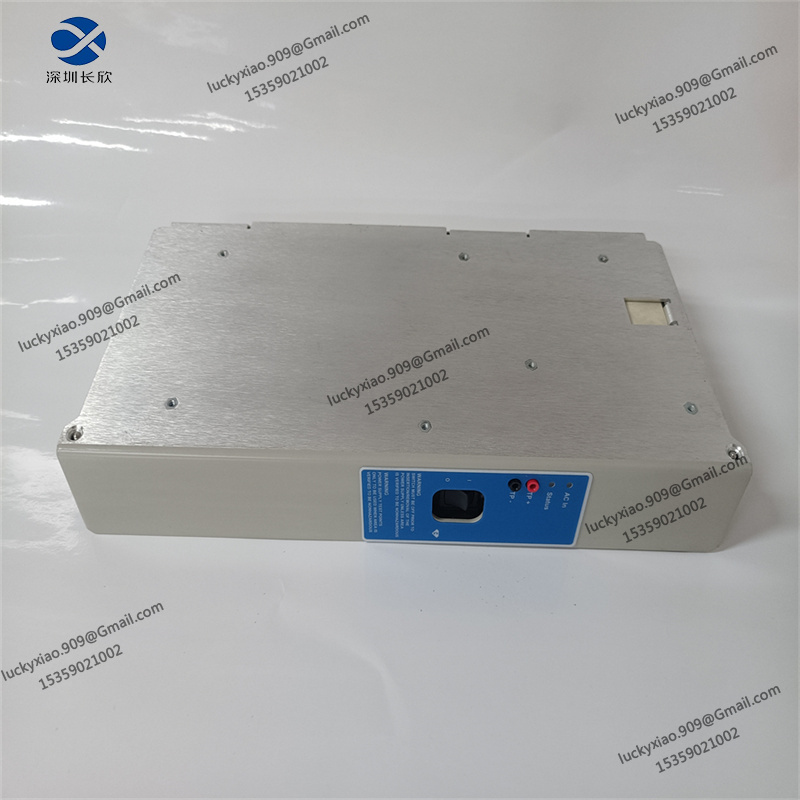

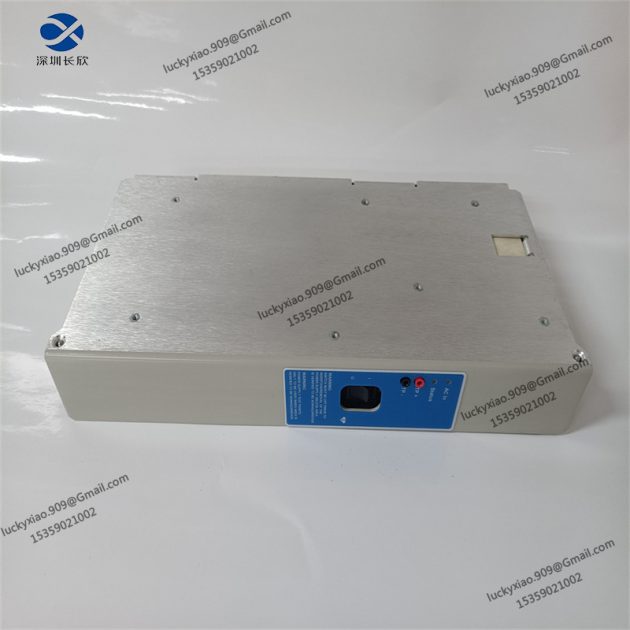

Introduction to HONEYWELL SPS5710 51199929-100
SPS5710 51199929-100 Product Overview
The HONEYWELL SPS5710 (Material Code: 51199929-100) is a high-reliability redundant power supply module belonging to the SPS5710 product family, specifically designed for industrial automation control systems. As a critical power component, it provides stable 24VDC power to compatible system assemblies and supports redundant configuration with two power supplies, significantly enhancing system reliability and reducing downtime. Featuring a wide input voltage range (100-240VAC) and advanced protection mechanisms, this module adapts well to global deployment and harsh industrial environments with voltage fluctuations and electromagnetic interference. Its compact and modular design facilitates easy installation into existing control panels, seamlessly integrating with Honeywell’s industrial control platforms. It is widely applied in petrochemical, power generation, and manufacturing sectors to ensure uninterrupted power supply for core control components.
SPS5710 51199929-100 Technical Specifications
-
Product Model: SPS5710 (Material Code: 51199929-100)
-
Product Type: Redundant Power Supply Module (SPS5710 Series)
-
Core Functions: Stable 24VDC power supply for industrial control components, redundant configuration support, power distribution, overcurrent/overvoltage/short-circuit protection, power system alarm
-
Power Specifications: Input voltage: 100-240VAC, 47-63Hz; Input current: 10A; Output voltage: 24-26VDC; Output current: 20A; Power rating: 100W; High-efficiency operation to minimize power losses
-
Protection Features: Overcurrent protection, overvoltage protection, short-circuit protection; Certified for Class I, Division 2, Zone 2 hazardous environments
-
Environmental Limits: Operating temperature: -20°C to +60°C; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing); Protection rating: IP20
-
Mechanical Details: Mounting type: Control panel installation; Dimensions (L×W×H): 5.2cm × 16.5cm × 34.3cm; Net weight: Approx. 2.16kg; Modular metal enclosure
-
System Interface: 8-connector interface for power distribution, C300 controller memory battery backup, and power system alarm contacts; Supports separate AC power sources for each redundant supply
-
Compatibility & Certifications: Seamlessly integrates with Honeywell industrial control systems and C300 controllers; Certifications: CE, RoHS Compliant; 12-month warranty
Recommended HONEYWELL Same-Series Models
-
HONEYWELL SPS5710-2-LF 51198685-100: 2-channel safety monitoring module for real-time industrial parameter monitoring
-
HONEYWELL SPS5710-4-LF 51198685-101: 4-channel safety monitoring module for multi-parameter simultaneous monitoring
-
HONEYWELL SPS5720-2-LF 51198686-100: Dual-channel flame detection module for industrial fire safety monitoring
-
HONEYWELL SPS5730-1-LF 51198687-100: Single-channel gas detection module for combustible gas leak monitoring
-
HONEYWELL SPS5740-8-LF 51198688-100: 8-channel universal safety input module for diverse industrial safety scenarios
-
HONEYWELL SPS5750-2-LF 51198689-100: Dual-channel temperature monitoring module with high-precision thermal sensor compatibility
-
HONEYWELL CC-PWRR02: Redundant power supply module with 24V backup assembly for AC power failure scenarios
-
HONEYWELL CU-PWPR20: 20A redundant power supply module for stable power supply of system components
-
HONEYWELL 05701-A-0405: 16-way AC-DC power supply unit for powering industrial control components
-
HONEYWELL CC-PWRS01: Single power supply module for non-redundant industrial control applications
-
HONEYWELL SPS5760-1-LF 51198690-100: Single-channel pressure monitoring module for industrial process pressure control
-
HONEYWELL SPS5770-4-LF 51198691-100: 4-channel current monitoring module for electrical system current detection
