Introduction to HONEYWELL SPS5785 51198651-100
SPS5785 51198651-100 Product Overview

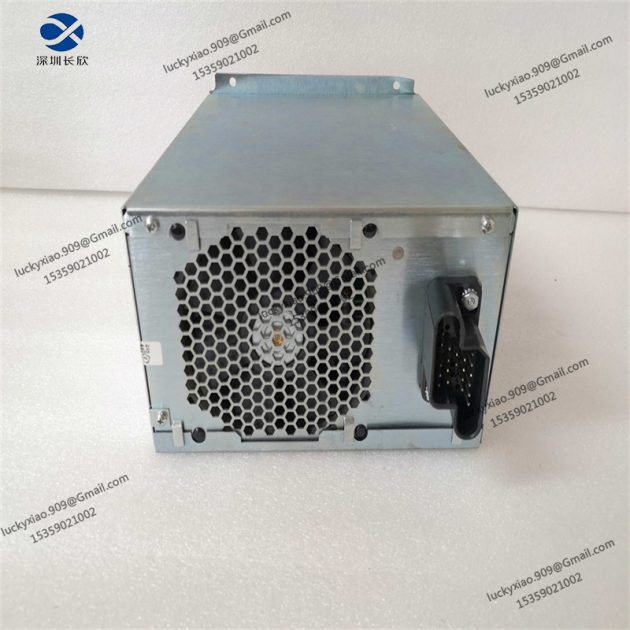

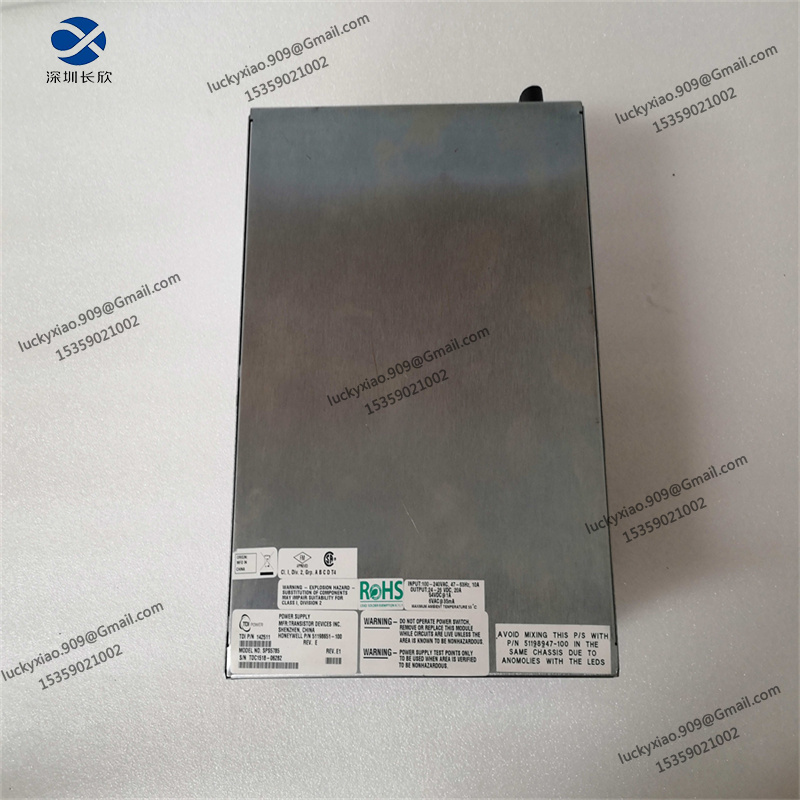

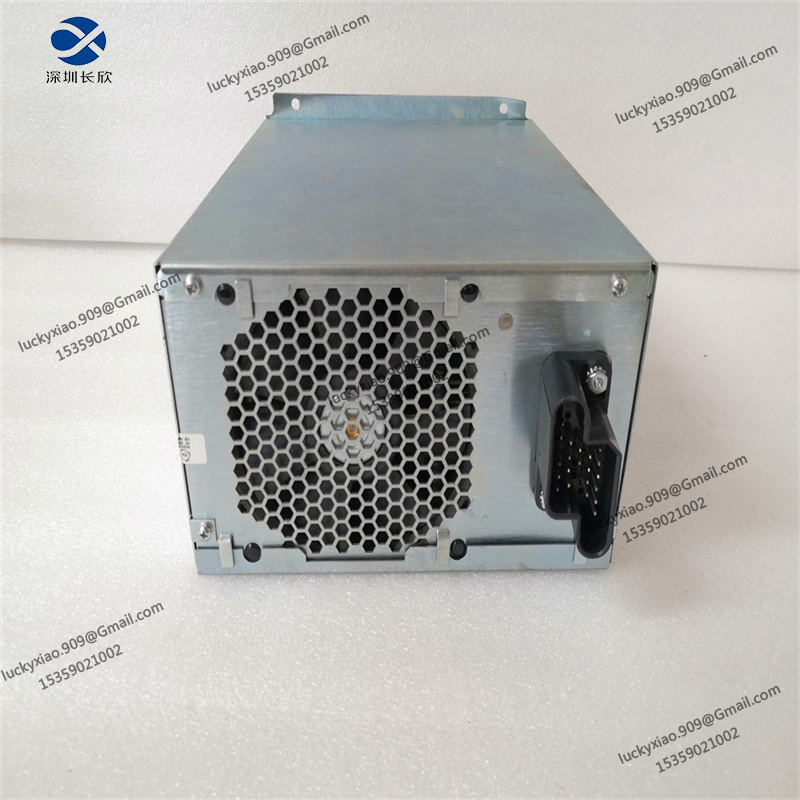

The HONEYWELL SPS5785 (Material Code: 51198651-100) is a high-reliability HPM power supply module specifically designed for Honeywell’s Universal Control Network (UCN) equipment cabinets. As a critical power component in industrial distributed control systems (DCS), it converts AC input to regulated DC output, providing stable and consistent power to High-Performance Process Manager (HPM) systems, Process Manager (PM), and Advanced Process Manager (APM) modules. Engineered with robust construction, this module ensures reliable performance in harsh industrial environments with high temperatures and vibrations, effectively reducing the risk of system interruptions. It also serves as a direct replacement for the Honeywell 51198947-100 model, ensuring seamless continuity in system operation. Widely applied in manufacturing and process industries, it plays a vital role in maintaining the stability of DCS operations.
SPS5785 51198651-100 Technical Specifications
-
Product Model: SPS5785 (Material Code: 51198651-100)
-
Product Type: HPM Power Supply Module (SPS Series)
-
Core Functions: AC-to-regulated DC power conversion, stable power supply for HPM/PM/APM systems, replacement for 51198947-100, ensuring system operation continuity
-
Power Specifications: Input voltage: AC 120V/240V (compatible with wide range); Output voltage: Regulated DC (detailed range per data sheet); Converts AC input to reliable DC power for industrial components
-
Protection Features: Robust construction for durability in harsh environments; Designed to resist high temperatures and vibrations
-
Environmental Limits: Operating temperature: Suitable for industrial high-temperature environments; Storage temperature: -40°C to +85°C; Relative humidity: 5% – 95% (non-condensing)
-
Mechanical Details: Mounting type: UCN equipment cabinet installation; Dimensions (L×W×H): 21.6cm × 29.6cm × 14cm; Net weight: Approx. 5.18kg; Country of origin: USA
-
Compatibility: Seamlessly integrates with Honeywell UCN equipment cabinets, HPM, PM, and APM systems; Direct replacement for Honeywell 51198947-100
-
Quality & Warranty: New or used options available; Quality assurance period: 365 days; Reliable performance validated for industrial applications
