Introduction to HONEYWELL TC-CCN014
TC-CCN014 Product Overview

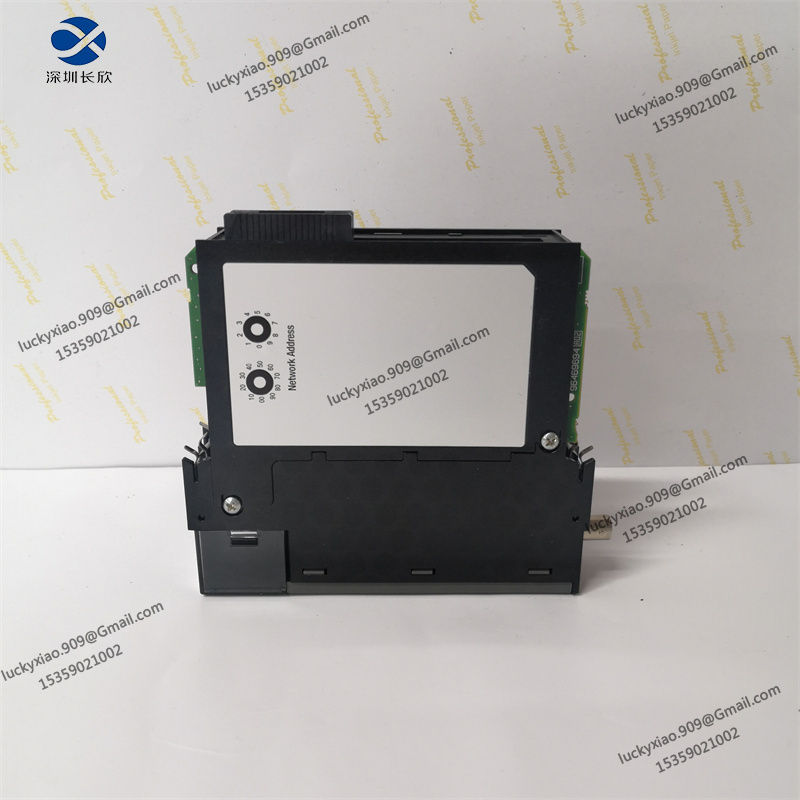

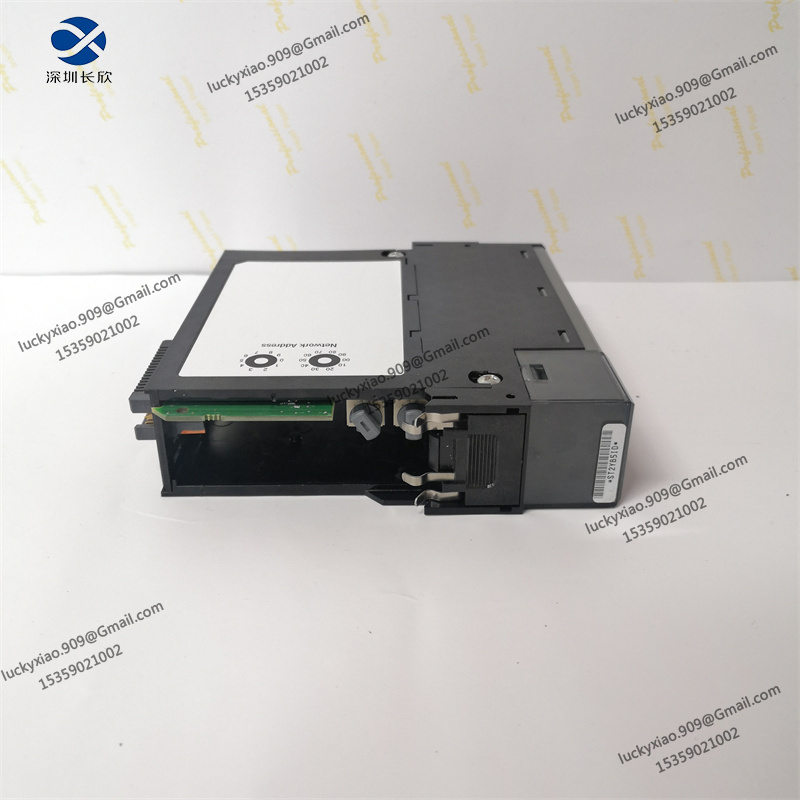

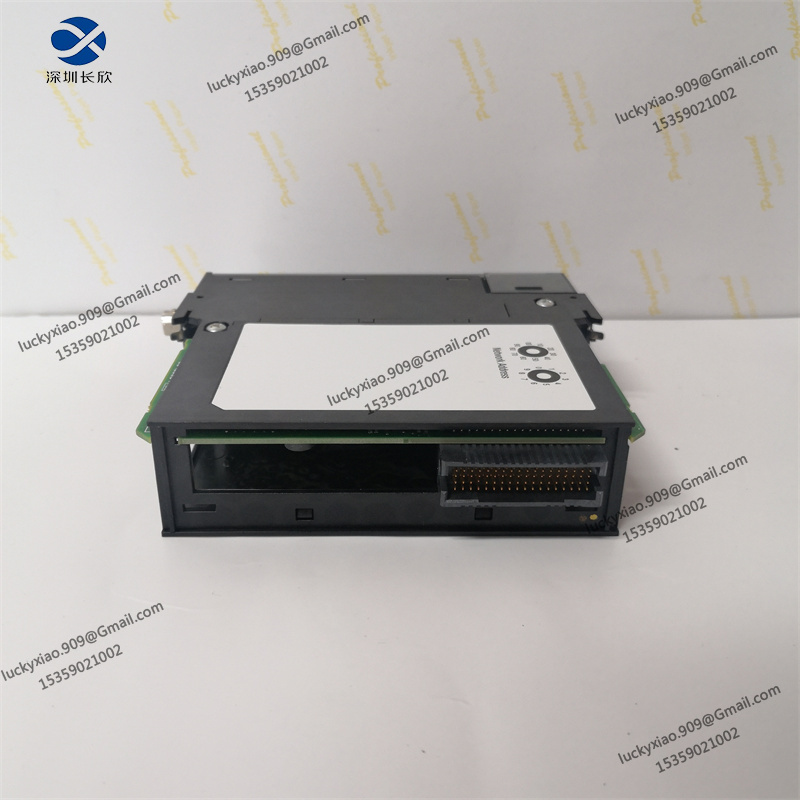

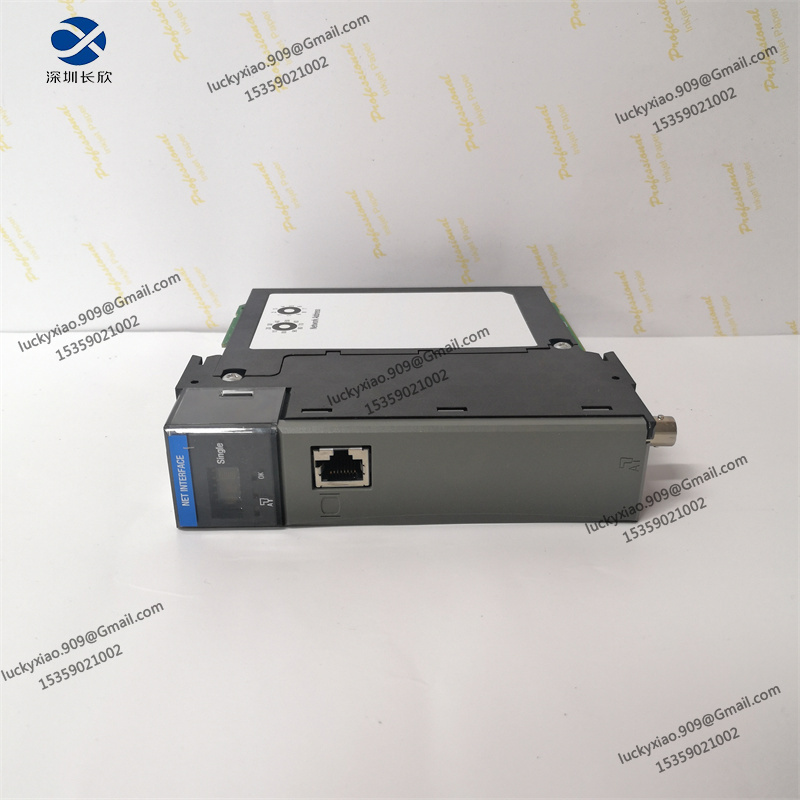

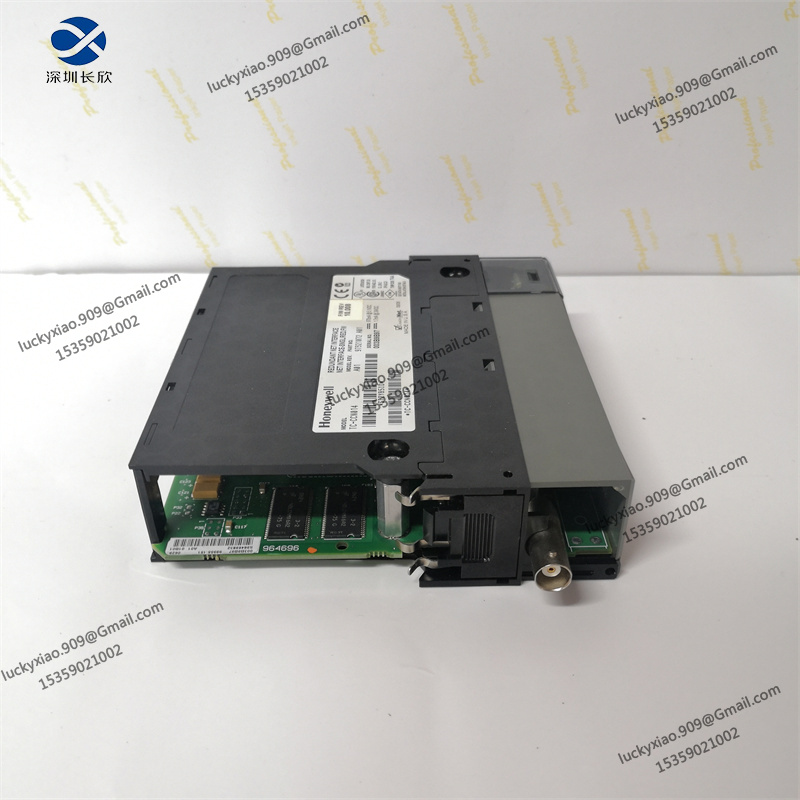

The HONEYWELL TC-CCN014 is a high-reliability redundant network interface module tailored for the Honeywell C200 series distributed control system (DCS). As a pivotal communication component in industrial automation, it establishes a stable data exchange bridge between controllers, PLCs, HMIs, and sensors, ensuring uninterrupted information transmission. Its core advantage lies in the redundant design with two independent network interfaces, enabling automatic switching to the standby network when a single-point failure occurs, thus significantly enhancing system availability and fault tolerance. Engineered for harsh industrial environments, it features excellent anti-electromagnetic interference performance and can operate stably amid voltage fluctuations, humidity, and dust. The plug-and-play design simplifies installation and maintenance, while overload and short-circuit protection mechanisms safeguard both the module and connected devices. Widely applied in manufacturing, energy, and petrochemical sectors, it provides a robust communication guarantee for critical industrial control processes.
TC-CCN014 Technical Specifications
-
Product Model: TC-CCN014
-
Product Type: Redundant Network Interface Module (Honeywell TC Series for C200 DCS)
-
Core Functions: Redundant network communication; Automatic fault switching; Multi-protocol data exchange; Real-time network status monitoring; Overload and short-circuit protection
-
Communication Specifications: Network Interfaces: 2 independent RJ-45 interfaces; Supported Protocols: Modbus, EtherNet/IP, RS-485, CAN, Profibus; Anti-RF Interference: Error < 2.0% of range at 10V/m, 27-1000MHz
-
Power Supply: Operating Voltage: 24VDC; Power Consumption: < 5W
-
Environmental Ratings: Operating Temperature: -40°C to +85°C; Storage Temperature: -40°C to +85°C; Relative Humidity: 5% – 95% (non-condensing); Protection Rating: IP67
-
Mechanical Details: Dimensions (L×W×H): Approx. 144mm × 96mm × 22mm; Net Weight: Approx. 0.5kg; Mounting Type: Plug-in design for easy installation; Housing Material: ABS plastic
-
System Compatibility: Seamlessly compatible with Honeywell C200 series DCS; Compatible with Honeywell PLCs, HMIs, and industrial sensors
Recommended HONEYWELL Similar Series Models
-
TC-CCN015: Enhanced redundant network interface module with extended protocol support and improved diagnostic functions
-
TC-IXR061: 8-channel RTD input module for high-precision temperature measurement (-200℃ to +850℃) in C200 DCS
-
TC-TAOX01: Analog output module supporting 4-20mA signal output for field actuator control
-
TC-TDIL01: Digital input module with high noise immunity, suitable for harsh industrial environment applications
-
TC-PDOD01: Digital output module with relay switching capability for heavy-load field device control
-
TC-PAIH01: Analog input module with HART communication for accurate process parameter collection
-
TC-CCN020: High-speed redundant network communication module with 1Gbps interface for large data volume transmission
-
TC-TSTX13: Serial communication module compatible with TC-CCN014 for RS-232/RS-485 data expansion
-
TC-PWRR01: Redundant power supply module for C200 series system, ensuring stable 24VDC power input
-
TC-HCAR01: Backplane module for C200 series, facilitating module integration and signal bus transmission
-
TC-OAV081: 8-channel analog output module with ±10.4V voltage output and overvoltage protection
-
TC-TBNH: 20-position terminal board matching TC series modules for reliable wiring connection
