Introduction to HONEYWELL TC-CCR014
Product Overview
The HONEYWELL TC-CCR014 is a high-reliability redundant network interface module specifically engineered for industrial control systems. It is designed to enhance system reliability and stability by providing redundant communication and power supply solutions, ensuring uninterrupted operation even in the event of primary device or power failure. As a critical communication hub in industrial automation architectures, this module enables seamless data transmission between control systems and field devices, supporting multiple industrial communication protocols such as Modbus TCP/IP, EtherNet/IP, and PROFINET. Its robust design incorporates DC voltage isolation and reverse connection protection, effectively safeguarding the module and connected devices from electrical faults. With an IP65 protection rating, it is dustproof and waterproof, making it suitable for harsh industrial environments with complex working conditions.
Technical Specifications
-

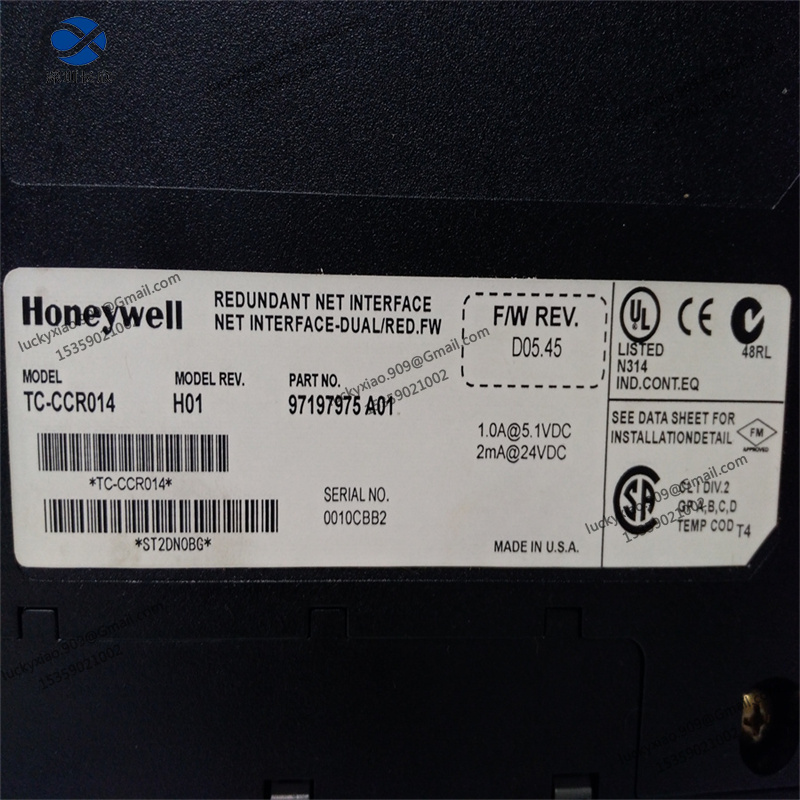

Product Model: TC-CCR014
-
Product Type: Redundant Network Interface Module
-
Core Functions: Redundant network communication; Dual power supply redundancy; DC voltage isolation; Reverse connection protection; Network bonding and redundancy; Uninterrupted data transmission guarantee
-
Network Specifications: Interface Type: Redundant Ethernet ports; Supported Protocols: Modbus TCP/IP, EtherNet/IP, PROFINET; Compliance Standard: IEC 61131-2
-
Power Supply: Power Supply Mode: Dual power supply redundancy; Input Voltage: Compatible with industrial standard DC power supply
-
Protection Performance: Isolation: DC voltage isolation; Protection Rating: IP65 (dustproof and waterproof); Anti-interference: Effective resistance to electromagnetic interference
-
Environmental Limits: Operating Temperature: -40°C to +70°C; Relative Humidity: ≤90% (non-condensing)
-
Mechanical Details: Dimensions (L×W×H): 132mm × 105mm × 52mm; Net Weight: Approx. 0.45kg; Installation: Standard industrial mounting design
-
Compatibility: Seamlessly compatible with Honeywell industrial control systems and related field devices
