Introduction to Honeywell USI-0002
USI-0002 Product Introduction

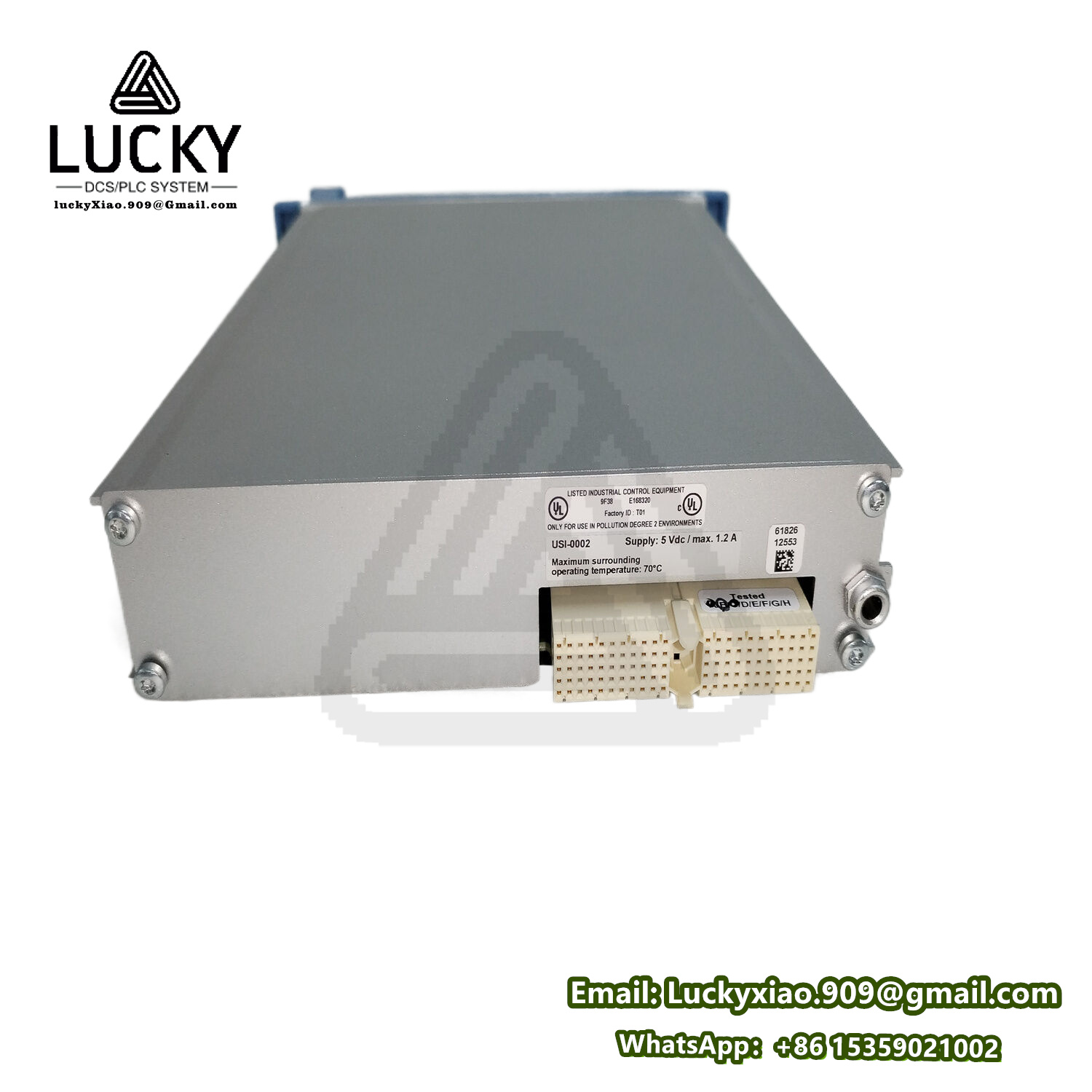

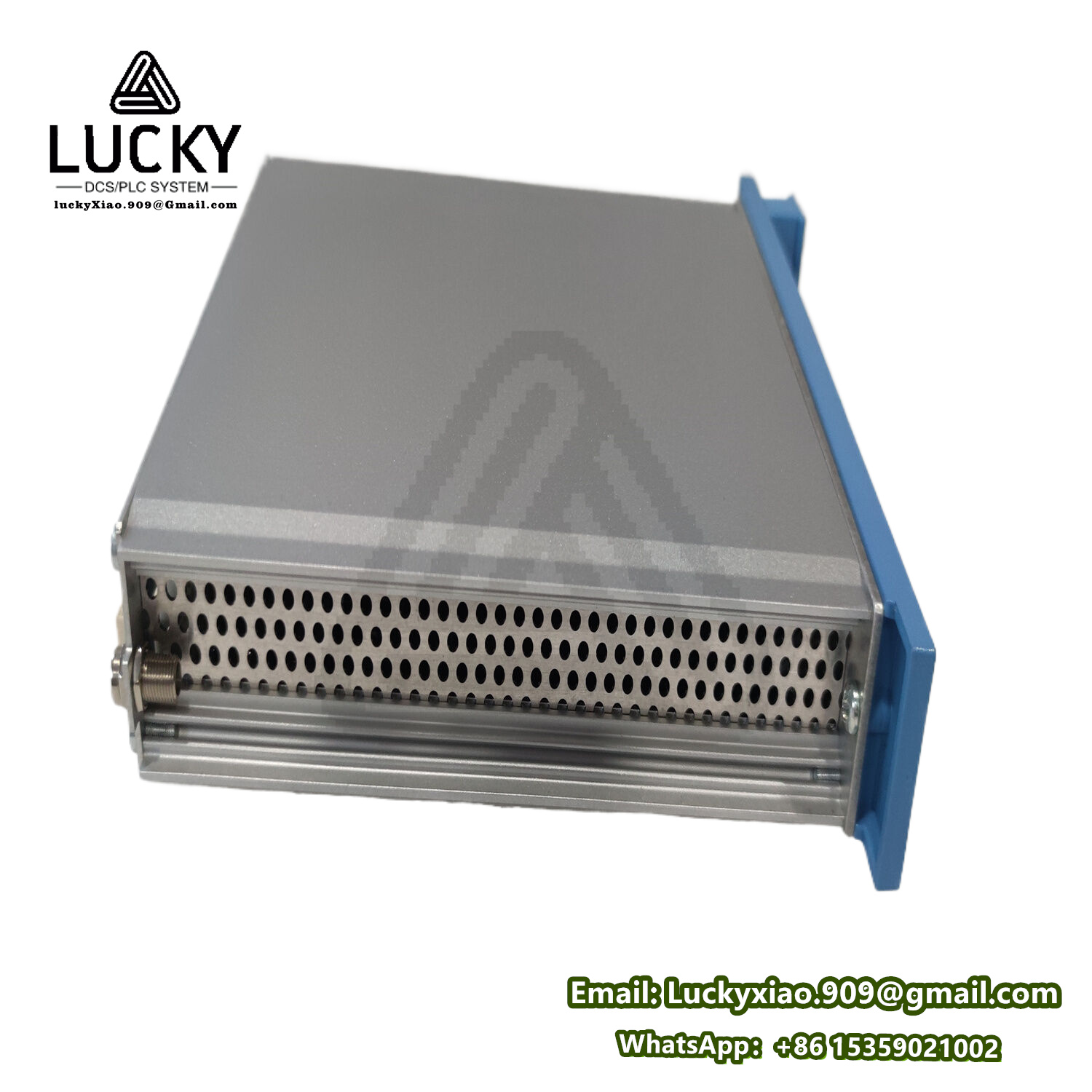

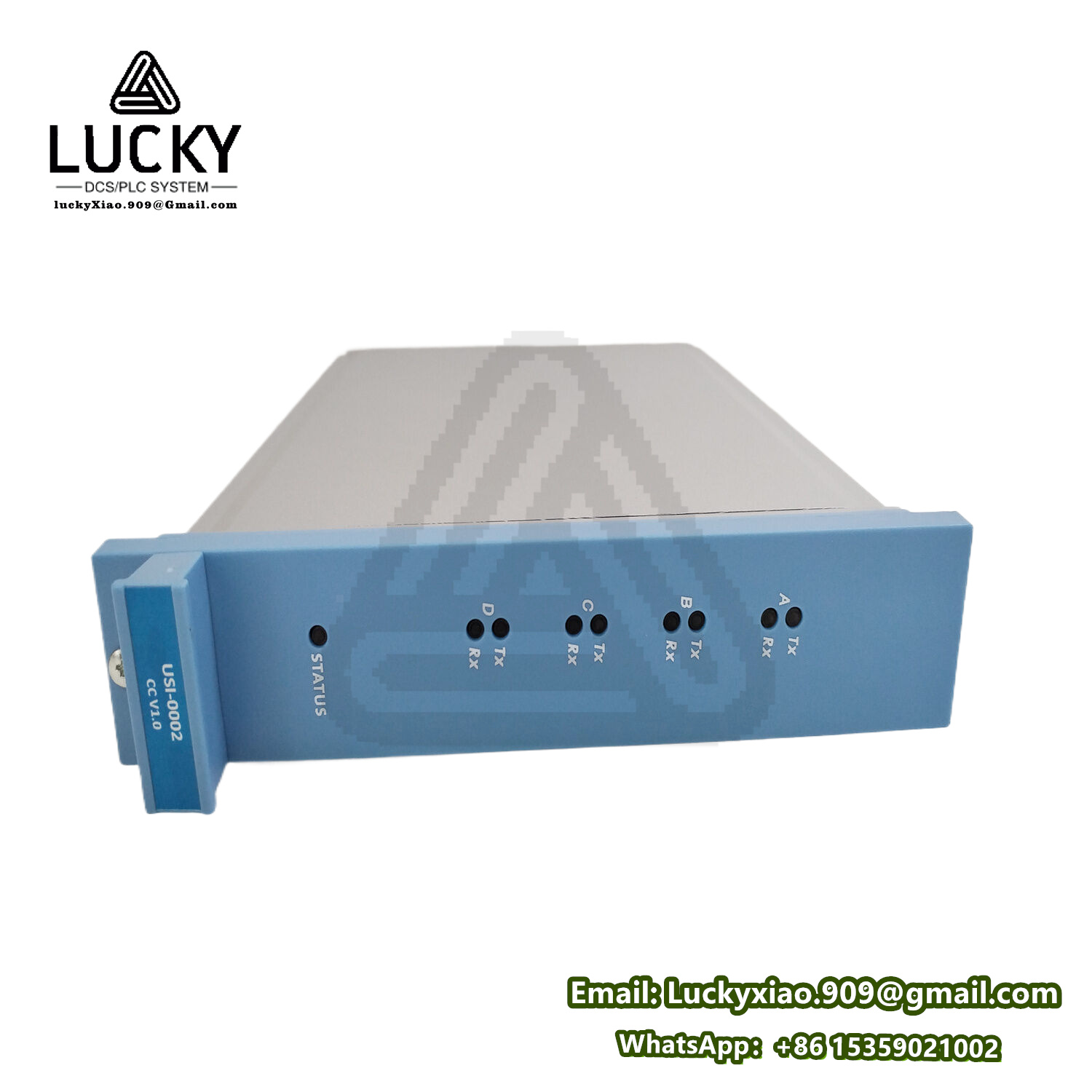

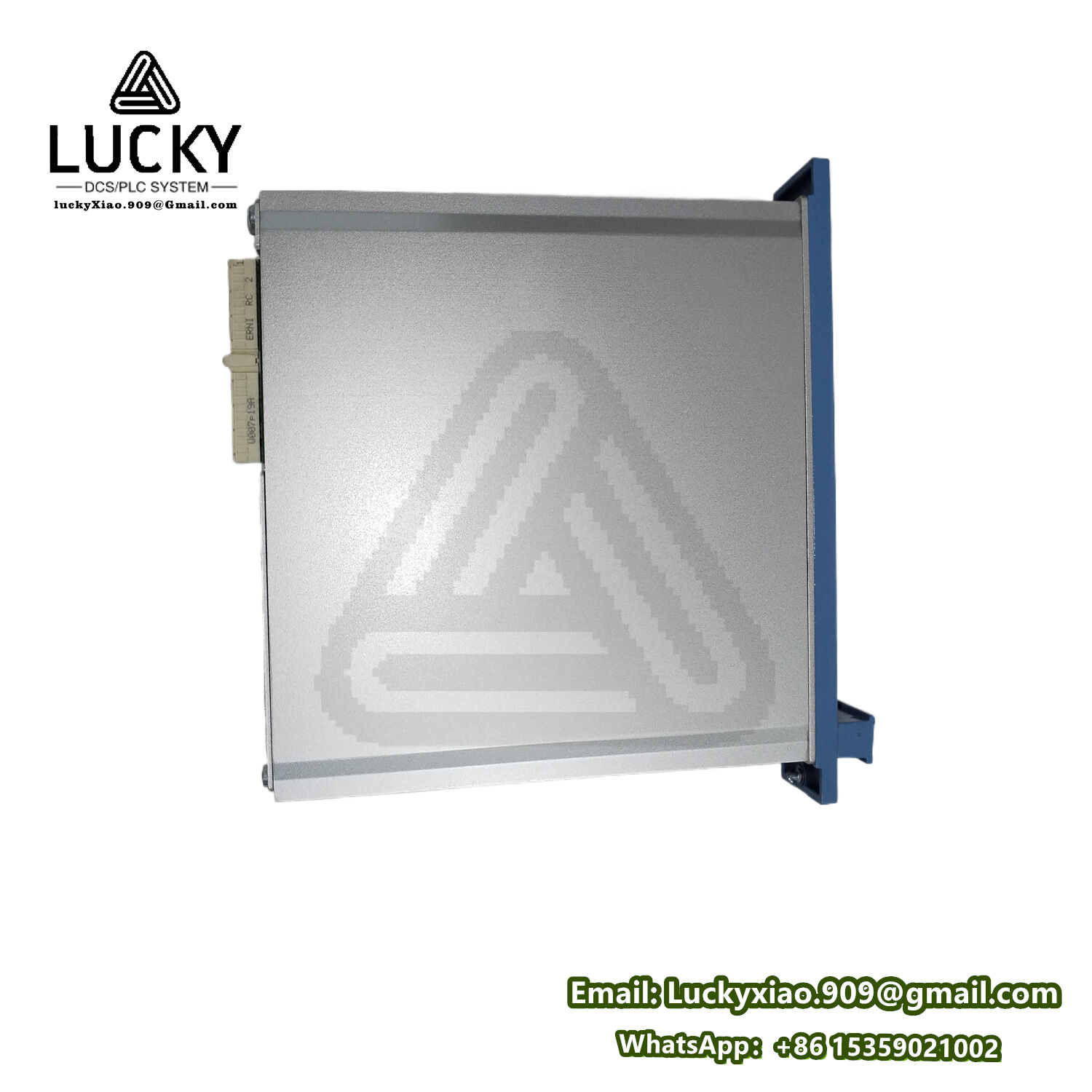

Honeywell USI-0002 is a high-reliability universal safety interface module, specifically engineered as a core component of Honeywell Safety Manager systems. It plays a crucial role in realizing interconnection and intercommunication of safety systems, serving as a bridge between various on-site safety devices and Honeywell safety controllers. Designed to handle both input and output signals, the module can connect with a wide range of field devices such as sensors, actuators, and emergency stop buttons, enabling functions like safety monitoring, safety interlocking, and emergency shutdown. Equipped with advanced fault detection and diagnostic capabilities, it can real-time monitor the operating status of the system, promptly identify potential faults and issue early warnings, significantly enhancing the reliability and safety of the entire industrial control system.
USI-0002 Technical Parameters
-
Product Model: USI-0002
-
Product Type: Universal Safety Interface Module (Honeywell Safety Manager Series)
-
Core Functions: Safety system interconnection; 16 input & 16 output channels support; Safety monitoring & interlocking; Emergency shutdown control; Real-time fault detection and diagnosis; Event recording; Communication integration
-
Connection & Installation: Compatible with Honeywell Safety Manager systems; DIN rail mounting; Supports multiple safety protocols; Standard industrial terminal interfaces
-
Electrical Specifications: Power Supply: 24VDC; Power Current: 2A per channel; Communication Protocols: Modbus, Profinet; Certifications: CE, UL, ATEX compliant
-
Environmental Ratings: Operating Temperature: -20°C to 60°C; Storage Temperature: -40°C to 85°C; Relative Humidity: 10% – 95% (non-condensing); Protection Rating: IP67
-
Mechanical Details: Housing Material: Industrial-grade high-strength metal; Dimensions: 21.2 cm × 17.6 cm × 3.52 cm; Weight: Approximately 0.5kg
Recommended Honeywell Same-Series Models
-
FC-USI-0002: Enhanced universal safety interface module with optimized digital output performance
-
FE-USI-0002: Universal safety interface module with extended compatibility for non-Honeywell devices
-
FC-TSAI-1620M: 16-channel safety analog input module with TMR redundancy architecture
-
FC-TSRO-0824: 8-channel safety relay output module with signal isolation function
-
SDI-1624: 16-channel safety digital input module for high-density signal collection
-
SDO-0824: 8-channel fail-safe digital output module for safety-critical applications
-
SAI-810m: 8-channel safety analog input module for small-scale SIS applications
-
SAO-0824: 8-channel safety analog output module for control signal transmission
-
FC-SPWR-2405: 24VDC redundant power supply module for safety systems
-
FC-SCOM-01: Communication module for safety system & DCS data exchange
-
FC-SDIAG-01: Real-time fault monitoring and alarm diagnostic module
-
FC-RUSIO-3224: 32-input 24-output remote universal safety I/O module
-
FC-LNK-01: Communication link module for redundant safety systems
-
HiCTB08-HON-0220-4S-PL: Termination board matched with safety interface modules
-
P0926GU FBM230: 16DI+8DO mixed I/O module for FSC safety system (SIL3 certified)
-
FC-USI-0001: Basic universal safety interface module for small-scale safety systems
