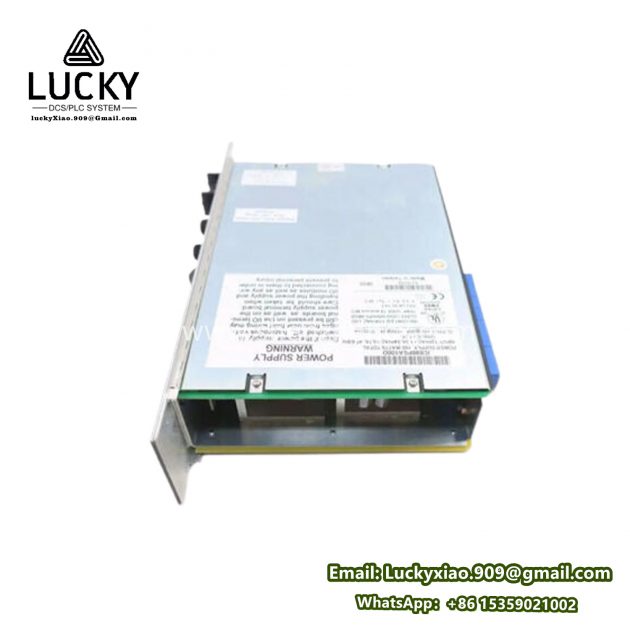

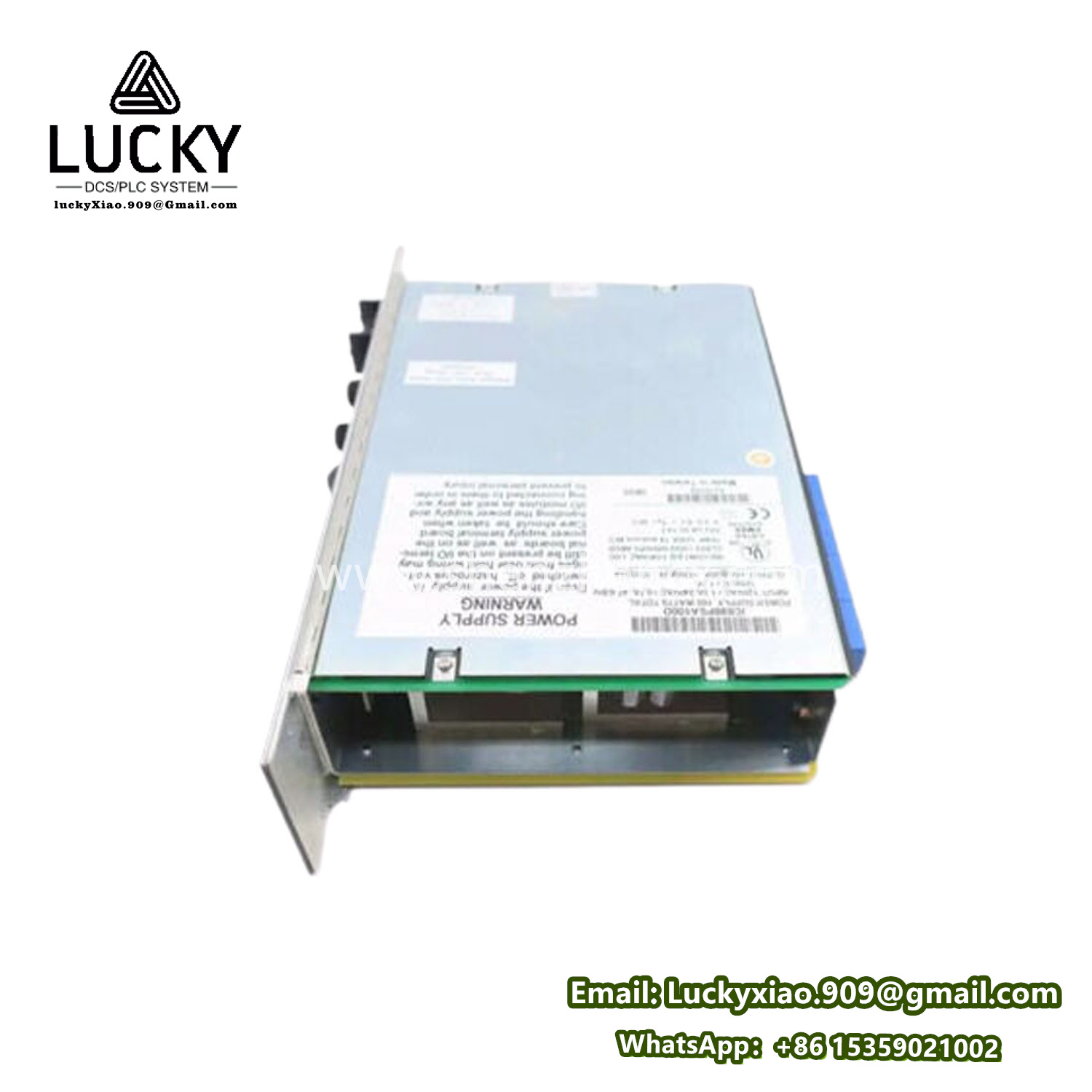

IC698PSA100D | GE Electric DC-input power supply module
Product Function
The IC698PSA100D is a 24V DC-input power supply module for PACSystems™ RX3i PLC racks. It converts 18-32V DC input voltage to regulated +5V DC backplane power, featuring hot-swappable redundancy and integrated diagnostics to maintain uninterrupted operation in industrial environments with DC power infrastructure.
Product Specifications & Parameters
|
Category
|
Specification
|
|---|---|
|
Manufacturer
|
GE Intelligent Platforms (Emerson Automation Solutions)
|
|
Series
|
PACSystems™ RX3i
|
|
Module Type
|
Power Supply (24V DC Input)
|
|
Input Voltage
|
18–32V DC
|
|
Output Voltage
|
+5V DC (±1%)
|
|
Output Power
|
100W continuous (140W peak for 500ms)
|
|
Redundancy Support
|
Yes (N+1 with IC698PSD100D)
|
|
Efficiency
|
>88% (typical at full load)
|
|
Protections
|
Reverse polarity, over-voltage, over-current, short-circuit
|
|
Status Indicators
|
DC Input OK, Output OK, Fault LEDs
|
|
Backplane Connection
|
RX3i Universal Backplane (IC698CHSxxx series)
|
|
Operating Temp.
|
-40°C to 70°C (derated above 40°C)
|
|
Dimensions
|
Single-slot module (HxWxD: 132 x 40 x 125 mm)
|
|
Certifications
|
UL 508, CE, cULus, ATEX/IECEx Zone 2
|
|
Surge Immunity
|
EN 61000-4-5: 1kV line-to-earth
|
Series Information
Part of the PACSystems™ RX3i modular control platform. The “D” suffix denotes 24V DC input specialization for battery-backed or DC-distributed systems. Compatible with all RX3i CPUs (e.g., IC698CPE010) and I/O modules.
Key Features
- 24V DC Optimization: Designed for industrial DC power grids and UPS-backed systems.
- Reverse Polarity Protection: Safeguards against wiring errors.
- Redundancy-Ready: ≤1ms switchover with IC698PSD100D backup module.
- Wide Temp. Range: Operates in extreme conditions (-40°C to 70°C).
- Hot-Swappable: Field-replaceable without system shutdown.
- High Efficiency: >88% conversion minimizes heat buildup.
- Universal Backplane: Compatible with all RX3i chassis (5-15 slots).
Role & Purpose
- DC Power Conversion: Converts 24V DC input to backplane +5V DC.
- System Stabilizer: Provides clean power for CPU and I/O modules.
- Redundancy Enabler: Critical for fail-safe operation in power-sensitive applications.
- Electrical Protection: Filters noise and suppresses surges in DC networks.
Applications & Use Cases
|
Industry
|
Application
|
|---|---|
|
Transportation
|
Railway signaling control, tunnel ventilation systems
|
|
Renewable Energy
|
Solar farm controllers, battery storage management
|
|
Mining
|
Conveyor safety systems, underground equipment control
|
|
Marine
|
Shipboard automation, navigation system PLCs
|
|
Discrete Mfg.
|
Robotic cell controllers with DC UPS backup
|
|
Utilities
|
Substation RTUs, grid protection relays
|
Technical Notes
- 🔋 Battery Compatibility: Ideal for 24V battery/UPS-backed installations.
- ⚡ Redundancy Wiring: Requires IC698CBLxxx cables for parallel operation.
- 📉 Derating Curve: Output reduces to 75W at 60°C ambient.
- 🔌 Terminal Type: Screw-clamp connectors for 8-14 AWG wires.
- ️ Voltage Note: “D” variant not interchangeable with AC-input models (e.g., IC698PSA100).
Design Advisory:
For new installations, consider the higher-capacity IC698PSD350D (350W). Maintain IC698PSA100D for legacy DC systems via Emerson’s lifecycle support. Always pair with matched redundancy module (IC698PSD100D) for critical processes.
