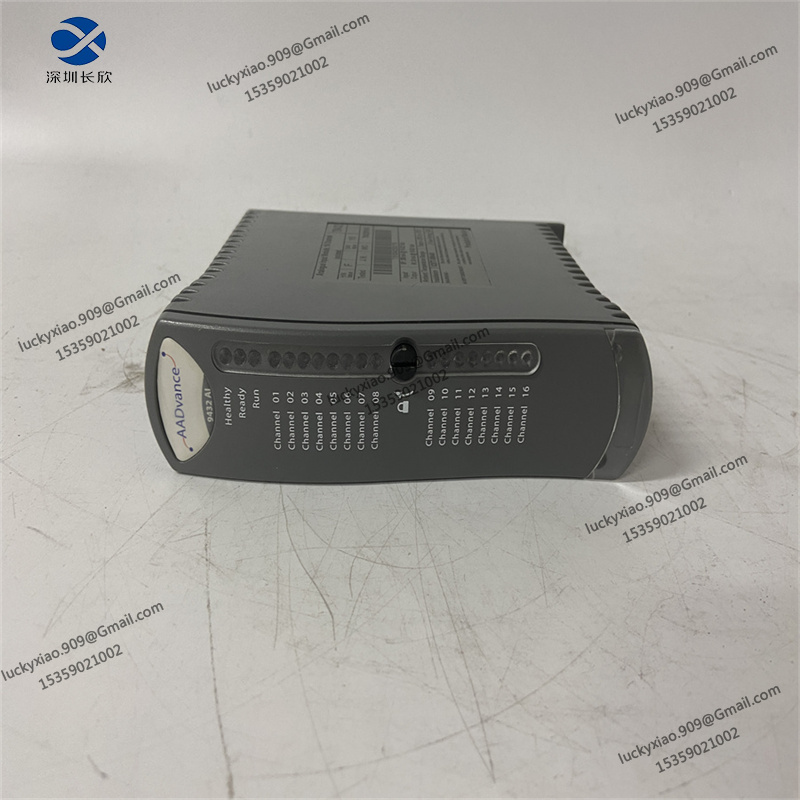

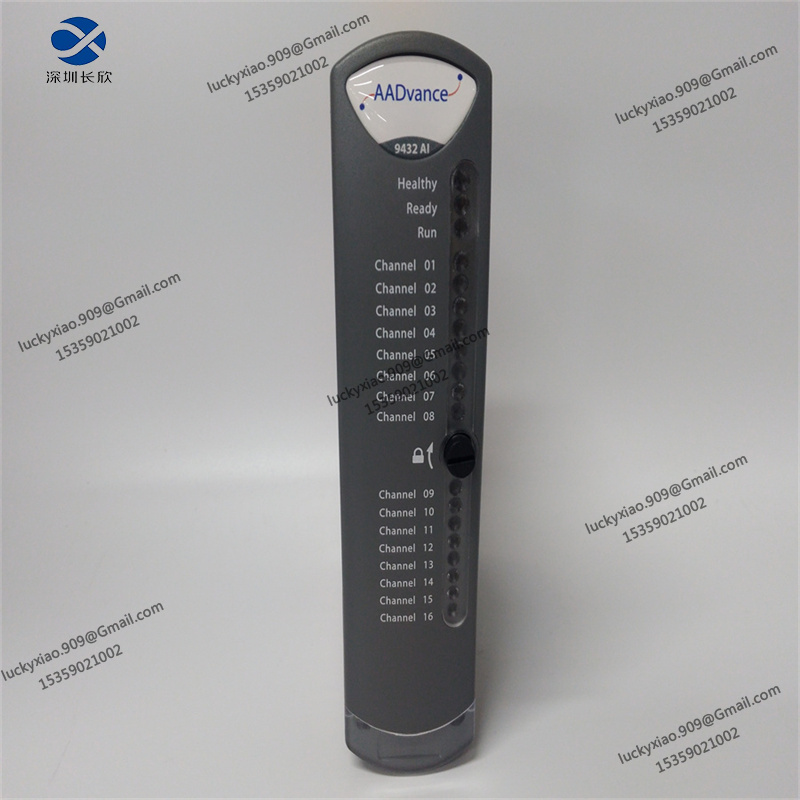

The ICS TRIPLEX T9432 is an isolated analog input module featuring a triple modular redundant (TMR) architecture, which meets IEC 61508 SIL 3 safety standards and is well-suited for safety-critical industrial scenarios. It is powered by 24V DC (with an input voltage range of 18 – 32V DC) and equipped with 16 analog input channels that support diverse signal types like voltage, current, thermocouple, and resistance temperature detector. With scan times of 1.170ms (simplex), 1.965ms (dual), and 2.656ms (triple), it ensures rapid signal acquisition, while its robust anti-interference design enables stable operation in the temperature range of -40°C to 70°C. The module supports dual redundant Ethernet and protocols such as Modbus TCP/IP and OPC UA, allowing seamless integration with mainstream DCS and PLC systems. It is widely applied in oil and gas, petrochemicals, and nuclear power industries, serving as a key component for data collection in safety instrumented systems and emergency shutdown systems.
- Manufacturer : ICS Triplex
- Product No. : T9432
- Product type : Trusted TMR Processor
- Voltage Range : 20 to 32V dc
- Heat Dissipation : 80 W
- Use with Chassis : T8100
- Maximum Load : 80 W
- Processor Clock : 100 MHz
- I/O Interface : Triple redundant Inter-Module Bus
- SOE Buffer Size : 1000 events, transferred to CI buffer of 4000 events
- Operating Temperature : 0 °C to 60 °C (32 °F to 140 °F)
- Non-operating Temperature : -25 °C to 70 °C (-13 °F to 158 °F)
- Dimensions (LxWxH) : 30.3 cm x 9.3 cm x 26.6cm
- Weight : 2.94 Kg
- Shipping weight : 4 Kg
