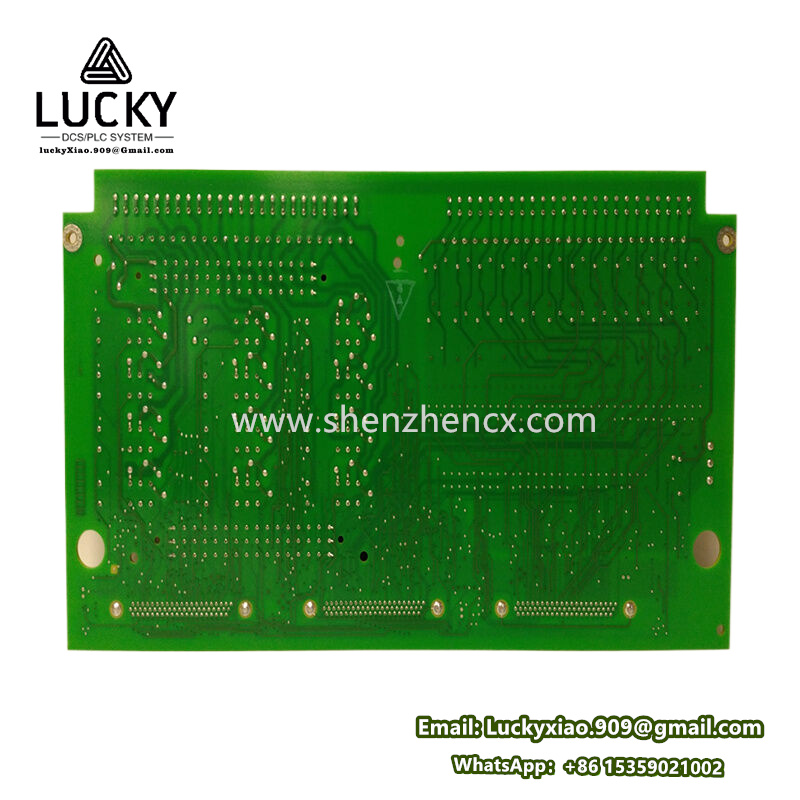

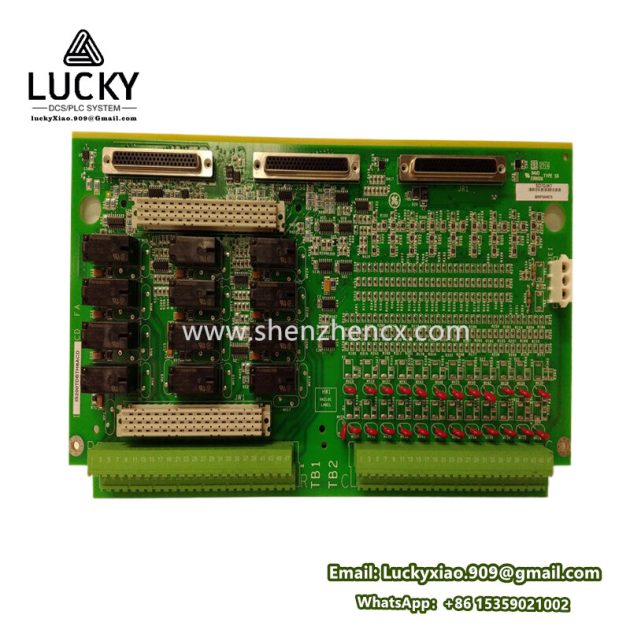

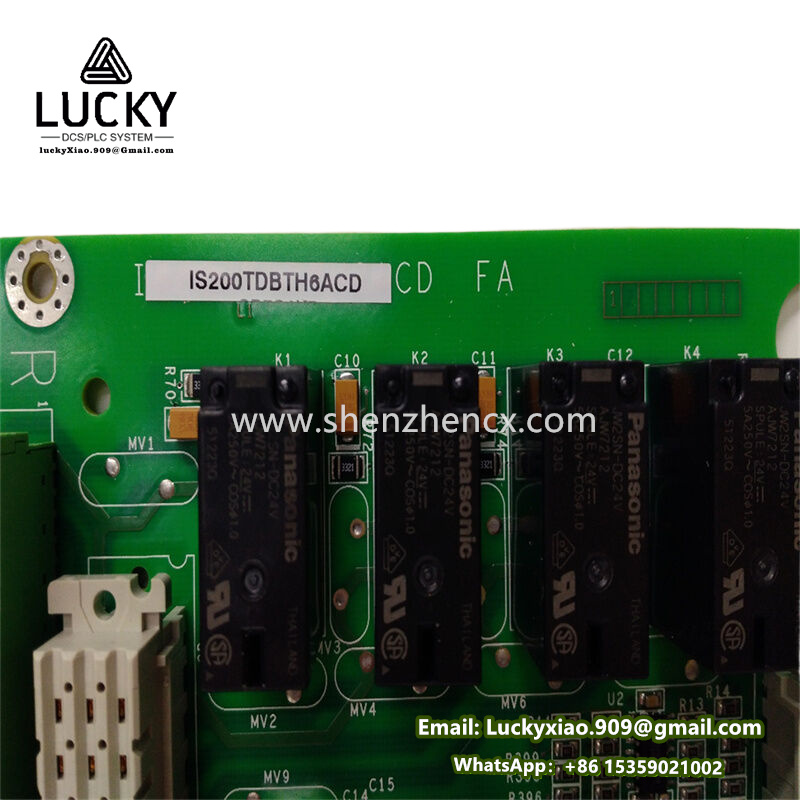

IS200TDBTH6ACD GE Mark VIe Steam Turbine Control Terminal Board Components
Product Description
The IS200TDBTH6ACD is a Terminal Board Assembly designed for GE’s Mark VIe Gas/Steam Turbine Control System. It interfaces thermocouple sensors with the turbine controller, providing signal conditioning and isolation for critical temperature monitoring.
Key Specifications
|
Parameter
|
Specification
|
|---|---|
|
Part Number
|
IS200TDBTH6ACD
|
|
Series
|
GE Mark VIe Speedtronic™ Turbine Control System
|
|
Input Type
|
Thermocouple (Type J, K, T, E, N, R, S, B supported)
|
|
Channels
|
8 isolated thermocouple input channels
|
|
Isolation Voltage
|
250V AC continuous (channel-to-channel & channel-to-ground)
|
|
Accuracy
|
±0.1% full scale (typical)
|
|
Operating Temp.
|
-40°C to +85°C (-40°F to +185°F)
|
|
Compatibility
|
Interfaces with IS200TBCIHx Control I/O Pack
|
|
Certifications
|
UL, CE, RoHS compliant; Designed for IEC 61000 EMC standards
|
|
Revision
|
“ACD” suffix denotes hardware revision & firmware compatibility
|
Key Features
- High-Density Signal Conditioning
- Converts low-voltage thermocouple signals to isolated analog outputs for the controller.
- Cold Junction Compensation (CJC)
- Integrated temperature sensors ensure accurate thermocouple readings.
- EMI/RFI Protection
- Shielding and filtering against electromagnetic interference in harsh industrial environments.
- Hot-Swappable Design
- Supports online replacement without turbine shutdown (reduces downtime).
- Diagnostic LEDs
- Per-channel status indicators for fault detection (open circuit, out-of-range).
Functional Role
- Primary Function: Translates thermocouple temperature data into digital signals for the Mark VIe controller.
- Critical Safeguard: Enables real-time monitoring of exhaust gases, bearing temperatures, and combustion zones to prevent turbine damage.
Applications & Industries
|
Industry
|
Use Case
|
|---|---|
|
Power Generation
|
Gas/steam turbine temperature monitoring (combustors, blades, bearings).
|
|
Oil & Gas
|
Compressor stations, pump turbines, flare stack monitoring.
|
|
Marine Propulsion
|
Shipboard turbine control systems.
|
|
Industrial Energy
|
Combined-cycle plants, cogeneration facilities.
|
Integration Notes
- Mounting: Installed in a Mark VIe I/O Pack Carrier (e.g., IC693CHSxxx series).
- Wiring: Uses shielded twisted-pair cables for noise immunity.
- Configuration: Calibrated via ToolboxST™ Software (GE’s engineering tool).
- Redundancy: Supports dual-redundant thermocouple inputs for critical measurements.
Precautions
⚠️ Obsolescence Alert: Part of legacy Mark VIe systems; verify compatibility with newer Mark VIeS controllers.
⚠️ ESD Sensitivity: Handle with anti-static precautions during installation.
⚠️ Radiation Note: Some variants (e.g., IS200TDBTH6ACD) are radiation-hardened for nuclear applications.
