Introduction to GE IS215WETAH1BA
IS215WETAH1BA Product Overview

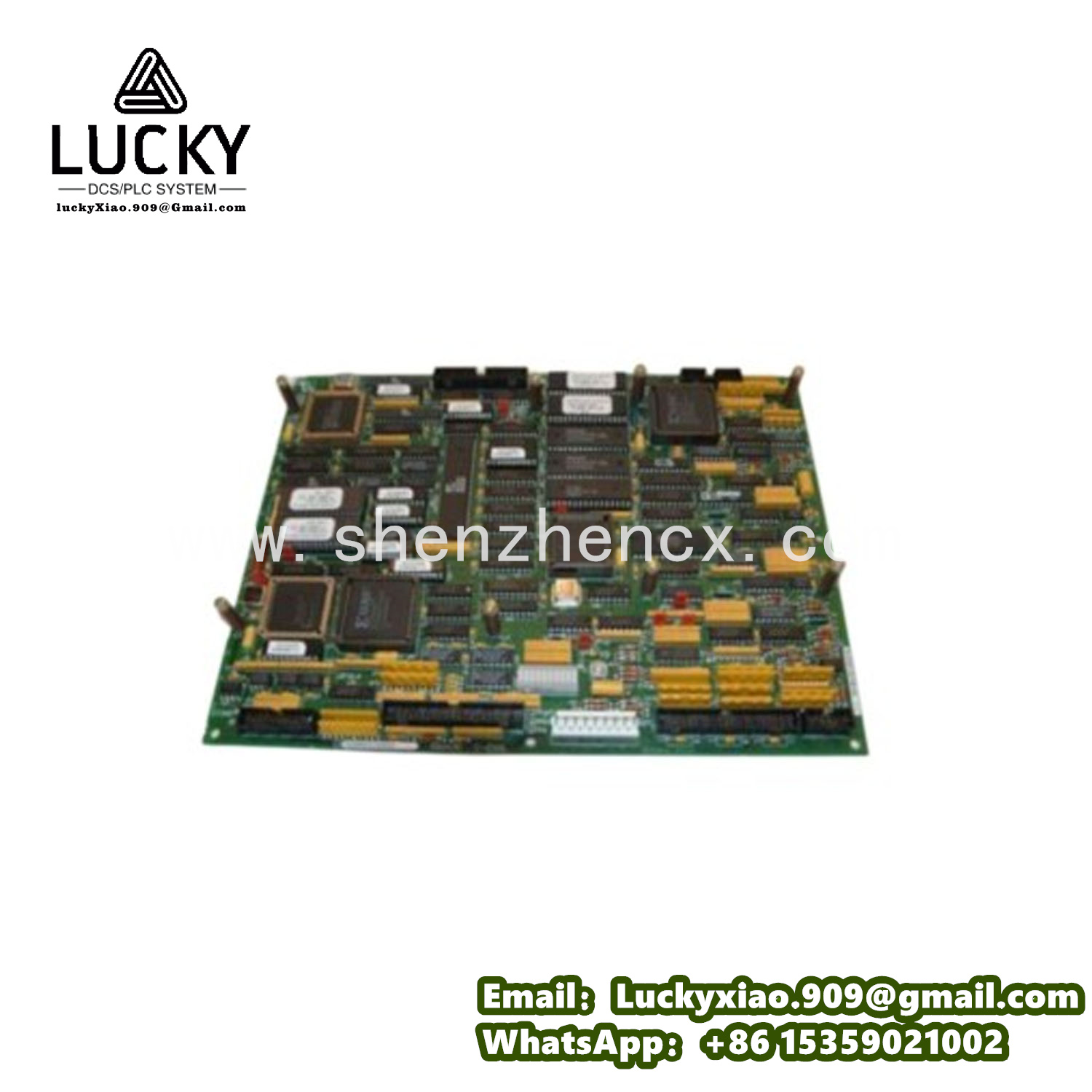

The GE IS215WETAH1BA is a high-performance analog input/output (I/O) module, specifically engineered for GE’s Mark VIe distributed control system (DCS)—a flagship solution in power generation, oil & gas, and heavy industrial automation. As a critical signal processing component, it serves as the “bridge” between field sensors/actuators and the central controller, converting analog process signals (such as temperature, pressure, and flow) into digital data for system analysis, while transmitting control commands back to executive devices like valves and pumps. A standout advantage is its native support for GE’s TMR (Triple Modular Redundancy) architecture, ensuring fault-tolerant operation that meets SIL 3 safety standards—essential for critical applications like gas turbine control and nuclear power auxiliary systems. It integrates advanced signal conditioning technology to suppress electromagnetic interference (EMI) common in industrial environments, maintaining measurement accuracy even amid voltage fluctuations.
IS215WETAH1BA Technical Specifications
-
Product Model: IS215WETAH1BA
-
Product Type: Analog I/O Module for GE Mark VIe Control System
-
Core Functions: Analog signal acquisition/transmission, signal conditioning, fault diagnosis, TMR redundancy support
-
Compatible Systems: GE Mark VIe DCS; GE Fanuc 90-70 PLC (with adapter); GE Power Flex 755 drives
-
Input Specifications: 8 differential analog input channels; Supports 4-20mA DC, 0-10V DC, ±5V DC signals
-
Output Specifications: 4 analog output channels; Output range 4-20mA DC (load resistance 0-600Ω); 0-10V DC (load resistance ≥1kΩ)
-
Measurement Performance: Input accuracy ±0.1% FS; Output accuracy ±0.2% FS; Sampling rate 100 samples/sec per channel
-
Redundancy Features: Supports TMR triple modular redundancy; Automatic fault detection and signal voting
-
Communication Capability: GE proprietary Genius Bus; Compatible with Profibus DP via gateway; Supports OPC UA for IIoT integration
-
Power Supply: 24V DC ±10% (redundant power input); Power consumption ≤30W
-
Protection Features: Channel-to-channel isolation (500V AC); Overvoltage protection (30V DC); ESD protection (±15kV contact)
-
Operating Environment: Temperature -40°C to +70°C; Humidity 5-95% (non-condensing); Vibration resistance 5g (10-2000Hz)
-
Mechanical Dimensions: 160mm (W) × 100mm (H) × 80mm (D); DIN rail or rack mount; Weight ~1.2kg
-
Additional Features: Hot-swappable design; LED status indicators per channel; Built-in self-test (BIST) function
-
Certifications: CE, UL, IEC 61508 (SIL 3), ISO 9001, IEEE 1474.1 compliant
Recommended GE Products
-
GE IS215WEMIH1B: Digital I/O module pairing with IS215WETAH1BA for mixed-signal control in gas turbine systems.
-
GE IC697CPX935: High-performance CPU for 90-70 PLCs, processing data from IS215WETAH1BA in industrial automation lines.
-
GE Mark VIe Controller: Central control unit that integrates IS215WETAH1BA for power plant boiler combustion control.
-
GE IC697PWR711: 100W redundant power supply, ensuring stable energy for IS215WETAH1BA in critical applications.
-
GE IS215UCVEH1A: VME bus interface module, expanding IS215WETAH1BA’s connectivity in legacy control systems.
-
GE Fanuc IC697MDL240: 120V AC input module, complementing IS215WETAH1BA for discrete signal acquisition in refineries.
-
GE Predix APM: Asset performance management software, analyzing IS215WETAH1BA data to predict equipment failures.
-
GE IS215WETBH1B: High-density analog I/O module, working with IS215WETAH1BA for large-scale process monitoring.
