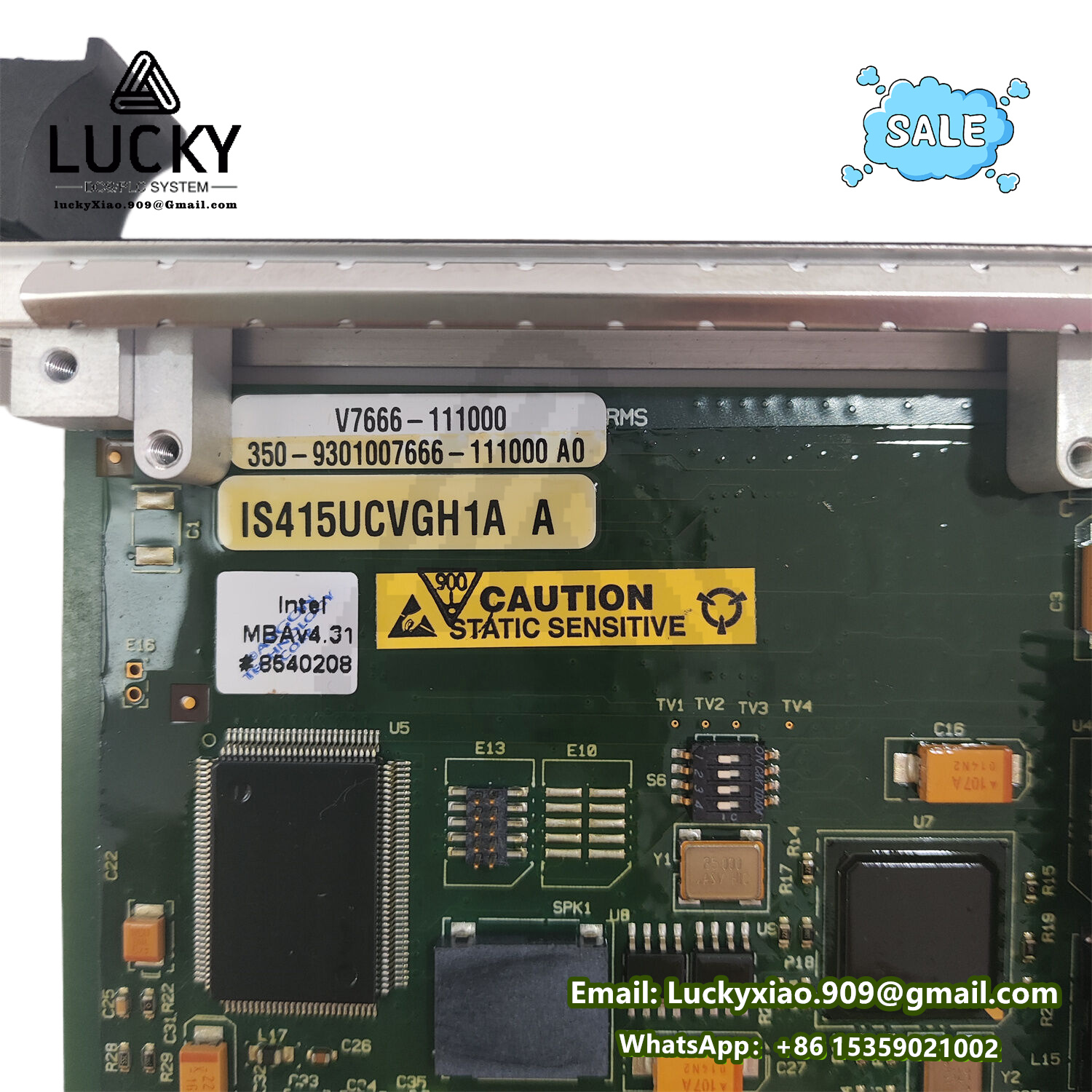

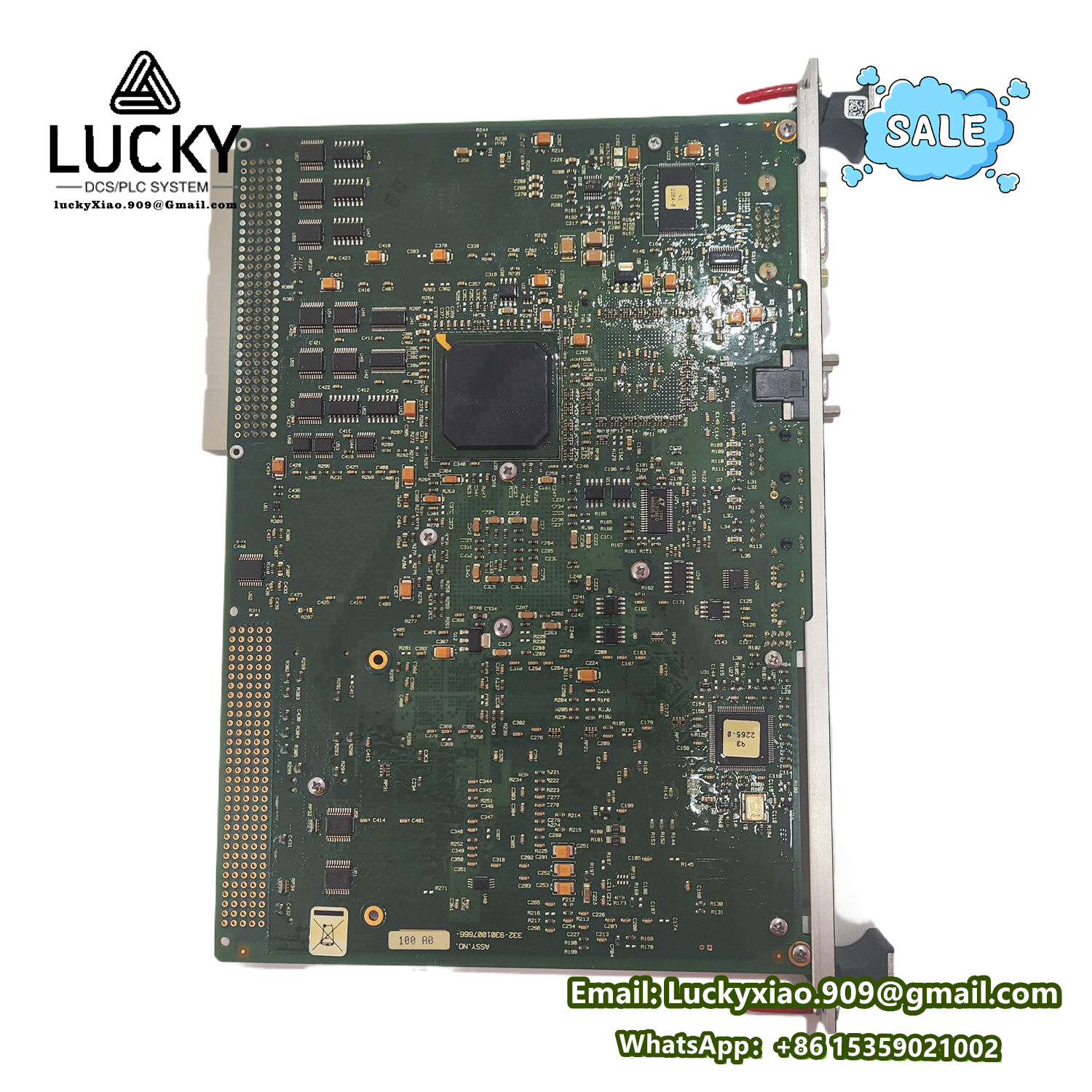

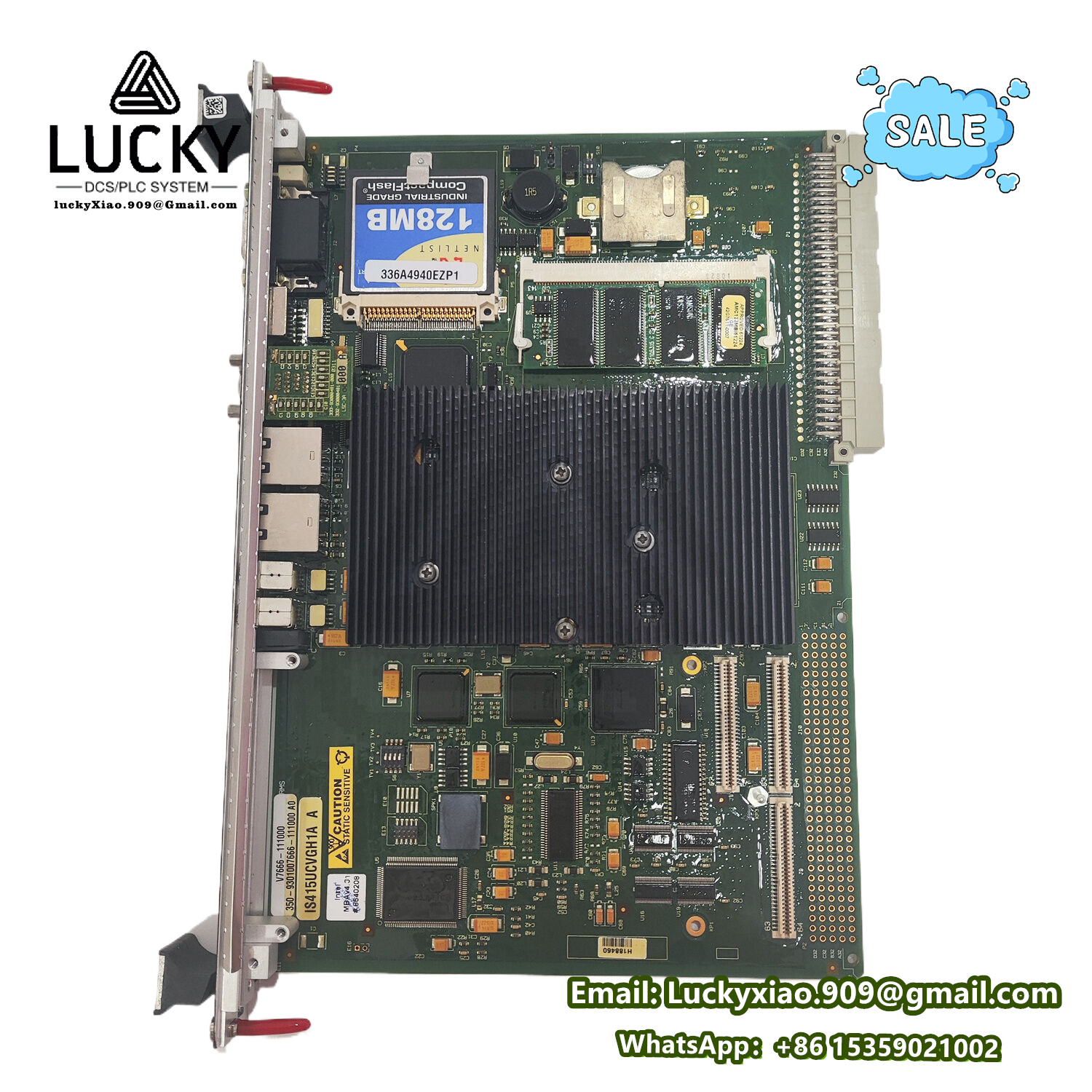

IS415UCVGH1A V7666-111000 | GE Electric PACSystems RX3i Dual CPU Controller
Product Description
The GE IS415UCVGH1A (V7666-111000) is a High-Availability Dual-CPU Controller for GE’s PACSystems RX3i platform, designed for mission-critical industrial automation where continuous operation is essential. It features redundant processors operating in hot standby mode, ensuring seamless failover (<50ms) during hardware faults or maintenance, while supporting SIL 2 safety applications.
Key Features
- Dual-CPU Redundancy: Synchronized processors with automatic switchover.
- Advanced Diagnostics: Real-time health monitoring of CPU, memory, and I/O.
- Cybersecurity: IEC 62443-3-3 compliant (encrypted firmware/communications).
- High-Speed Backplane: Supports 1Gbps PCIe for high-density I/O.
- Extended Memory: 128MB user program + 256MB data storage.
- Flexible Networking: Dual Ethernet ports (IP67-rated RJ45) + serial port.
Product Specifications
|
Parameter
|
Specification
|
|---|---|
|
CPU Architecture
|
Dual ARM Cortex-A9 @ 800MHz (lockstep)
|
|
Redundancy Switchover
|
<50ms (zero process interruption)
|
|
Memory
|
128MB Flash / 256MB DDR3 RAM
|
|
Safety Rating
|
SIL 2 (IEC 61508)
|
|
Ethernet Ports
|
2x 10/100/1000 Mbps (Modbus TCP, SRTP)
|
|
Serial Port
|
1x RS-232/485 (Modbus RTU/ASCII)
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Power Consumption
|
5W @ 24V DC (typical)
|
|
Certifications
|
UL 508, cULus, CE, ATEX Cat 3
|
|
Firmware Compatibility
|
PACSystems v9.0+
|
Series Overview
Part of GE’s RX3i High-Availability Series:
- IS415UCVGH1A: Redundant CPU module (V7666-111000 = firmware bundle).
- IC695PSA140: 40W redundant power supply.
- IC694ACC901: RX3i redundant backplane.
- IS420ESWBH3A: Ethernet safety switch.
Applications
- Power Generation: Turbine control backup systems.
- Oil & Gas: Subsea control pods & pipeline SCADA.
- Chemical Plants: Batch reactor safety interlocks.
- Water Treatment: Critical pump station control.
- Transportation: Tunnel ventilation control (SIL 2).
Functional Role
- Continuous Operation: Maintains control during CPU faults/maintenance.
- Data Integrity: Mirrored memory ensures no data loss during failover.
- Safety Logic Execution: Runs SIL 2 safety programs (e.g., burner management).
- Secure Remote Access: Supports VPN tunnels for encrypted engineering access.
Why Choose IS415UCVGH1A?
- Zero Downtime: >99.999% uptime with redundant architecture.
- Scalable I/O: Supports up to 512 modules via RX3i backplane.
- Legacy Integration: Compatible with VersaMax/Series 90-30 I/O.
- Lifecycle Management: 15-year product support guarantee.
- Migration Path: Direct replacement for IC695CPE310 CPUs.
Critical Notes:
- Requires redundant power supplies (e.g., IC695PSA140 + IC695PSB140) for full failover.
- SIL 2 compliance needs certified logic (GE Safety Builder v9.5+).
- Firmware V7666-111000 includes CVE-2024 patched libraries.
