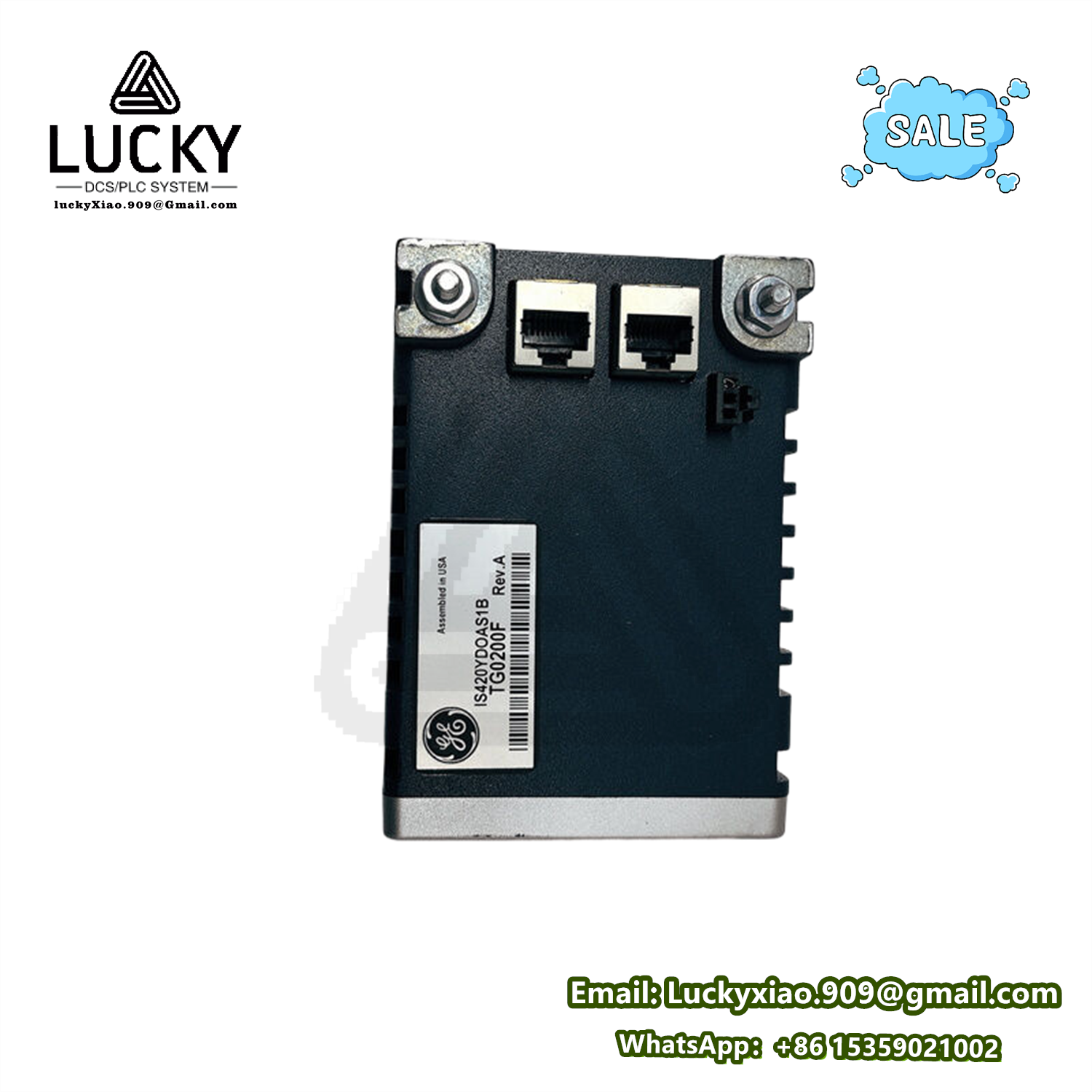

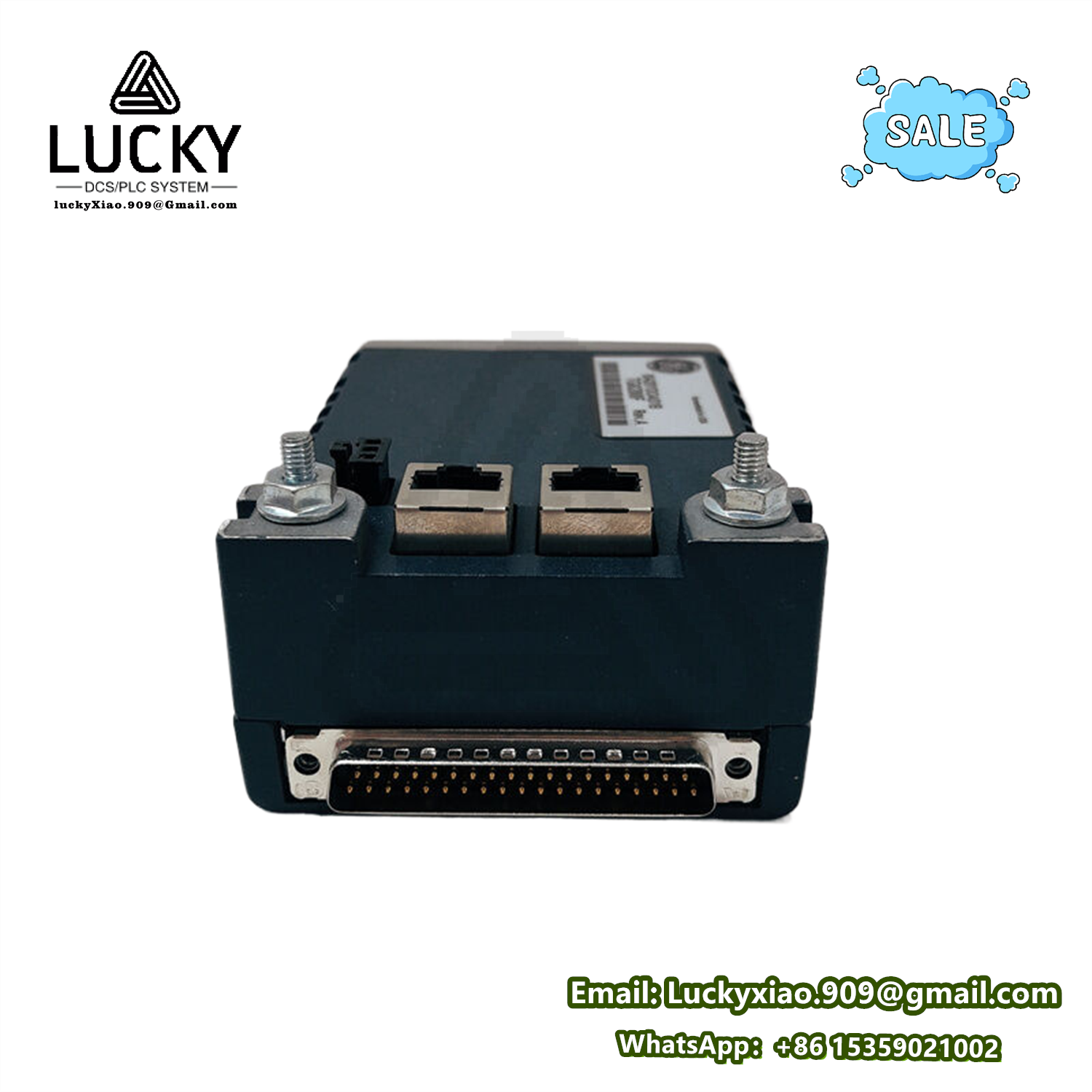

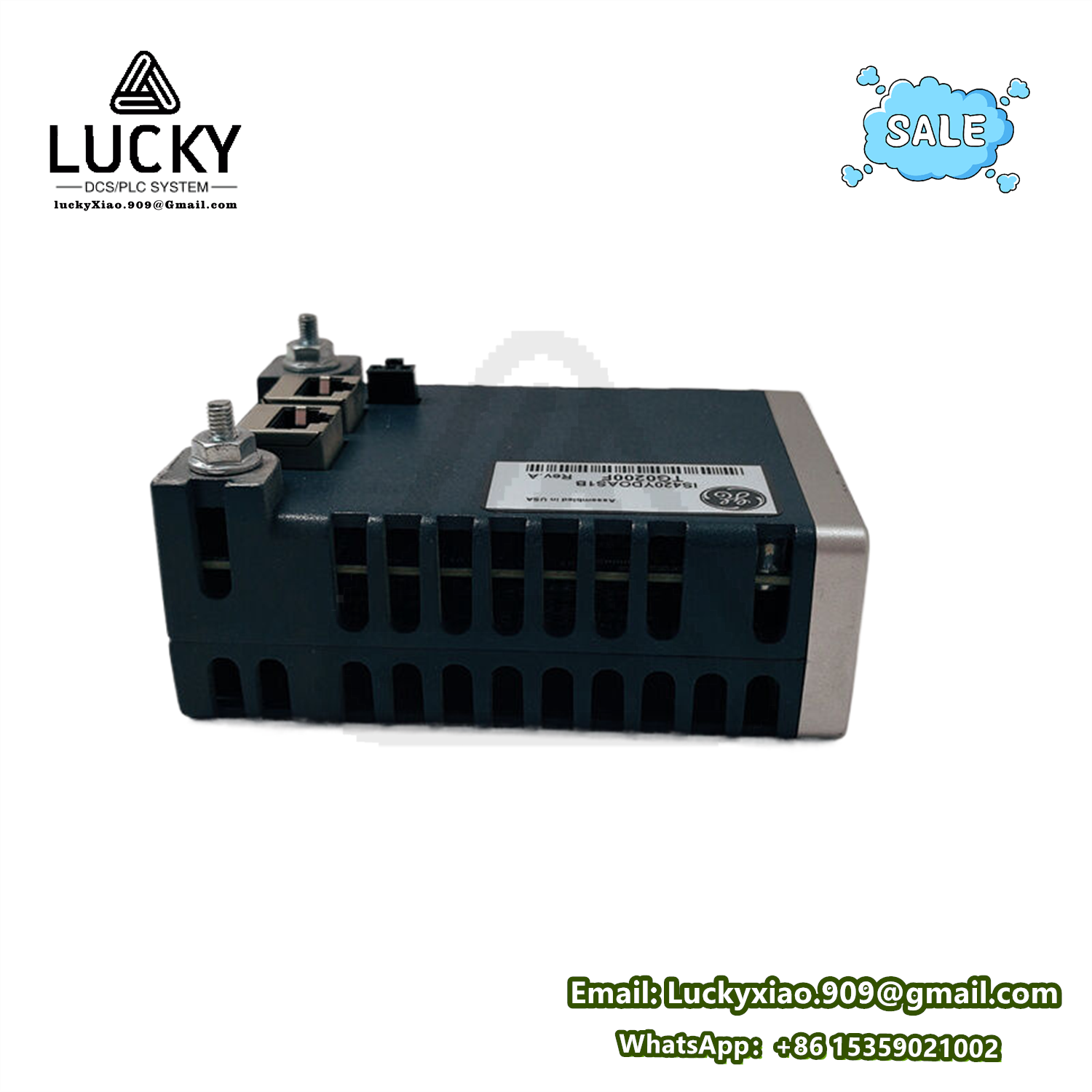

Brief Introduction to GE IS420YDOAS1B Digital Output Module
In industrial automation systems—such as power plant turbine control, industrial robot operation, and smart manufacturing production lines—digital output modules serve as the “execution hands” of control systems, translating electrical signals into physical actions. The GE IS420YDOAS1B is a high-reliability digital output module designed for these critical scenarios, ensuring precise and timely control of on-site actuators to maintain stable production operations.
1. Product Overview
The GE IS420YDOAS1B is an industrial-grade high-density digital output module, belonging to GE’s well-known Mark VIe series which is widely used in power generation and heavy industry automation. It is specially engineered for large-scale industrial control systems, and is a core component in fields like thermal power, hydropower, and metallurgy.
Its core advantages lie in “high density + strong stability”. The module integrates 32 independent digital output channels in a compact size, which greatly saves the installation space of the control cabinet compared with low-density modules. It adopts high-quality relay output design, with each channel having independent protection circuits to prevent mutual interference between channels. For example, in a thermal power plant’s turbine control system, the IS420YDOAS1B can precisely control the opening and closing of multiple valves and the start-stop of auxiliary pumps at the same time, and even if one channel fails, it will not affect the normal operation of other channels.

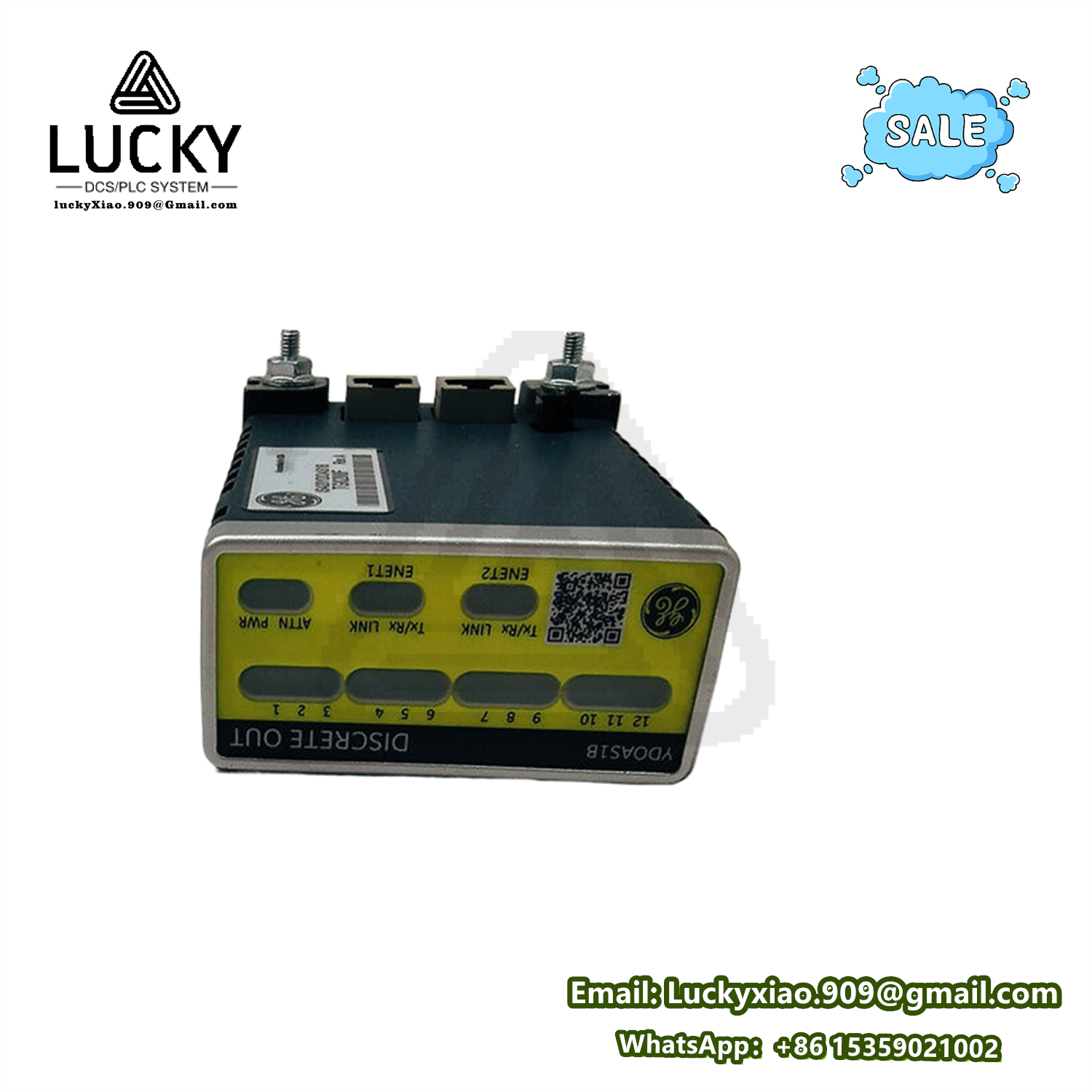

The module also features excellent maintainability and compatibility: its front panel is equipped with dual-color LED indicators for each channel, clearly showing the “power-on” and “output active” status. It supports hot-swappable operation, allowing maintenance personnel to replace the module without shutting down the control system. In addition, it is fully compatible with GE Mark VIe controllers and uses GE’s proprietary Genius Bus communication protocol to ensure fast and stable data transmission with the upper controller.
2. Technical Specifications
The IS420YDOAS1B is designed to adapt to the harsh working conditions of industrial sites, with technical parameters balancing performance and practicality:
-
Module Type: High-density digital output module
-
Safety Standard: Complies with IEC 61131-2, IEC 60068—meets industrial environmental adaptability requirements
-
Channel Configuration: 32 independent digital output channels, each channel with independent relay
-
Output Type: Relay output, normally open (NO) contact
-
Output Rating: AC 250V/5A, DC 30V/5A—supports most industrial actuators
-
Communication Protocol: GE Genius Bus—high-speed industrial bus, baud rate up to 57.6kbps
-
Power Supply: DC 24V (20–28V DC), with overvoltage and reverse polarity protection
-
Operating Temperature: 0°C to +60°C—adapts to indoor control room and on-site cabinet environments
-
Isolation Performance: Channel-to-channel isolation ≥ 1kVrms, signal-to-power isolation ≥ 2kVrms—strong anti-interference
-
Dimensions: 160mm × 100mm × 220mm (rack-mounted)—fits GE Mark VIe standard cabinets
-
Protection Level: IP20 (front panel)—suitable for cabinet-mounted installation
-
Response Time: ≤ 10ms—meets the response requirements of general industrial control
3. System Integration & Application
The IS420YDOAS1B is a key component of GE’s “Mark VIe Turbine Control System”, which consists of GE Mark VIe controllers (such as IC698CPE030), IS series I/O modules, HMI operation interfaces, and CIMPLICITY configuration software. This system is widely used in the control of gas turbines, steam turbines, and combined cycle units, providing a one-stop automation solution for power plants.
Take the control system of a thermal power plant’s steam turbine as an example to understand its working process:
-
The GE Mark VIe controller calculates the control commands according to the turbine’s speed, load, and pressure signals collected by the input module, and sends the digital output signals to the IS420YDOAS1B via the Genius Bus.
-
The IS420YDOAS1B converts the received electrical signals into relay actions, and controls the opening of the steam inlet valve, the start-stop of the lubricating oil pump, and the operation of the cooling fan through different output channels.
-
When the turbine load needs to increase, the controller sends a signal to the corresponding channel of the module, the relay is closed, and the steam inlet valve is driven to open larger to increase the steam intake.
-
If the turbine speed exceeds the safety threshold, the controller immediately sends an emergency stop signal. The module quickly cuts off the steam inlet valve through the dedicated emergency channel and stops the fuel supply pump, ensuring the turbine is shut down safely.
-
During the whole process, the module’s self-diagnosis function continuously detects the relay status. If a relay fails, the module immediately sends a fault signal to the controller, and the controller switches to the standby channel to avoid control failure.
This system is trusted by power plants around the world due to its mature technology, stable performance, and rich application experience. The IS420YDOAS1B, as a cost-effective product in the series, not only has high reliability but also supports online debugging. Engineers can monitor the working status of each channel in real time through the CIMPLICITY software, which greatly improves the maintenance efficiency.
4. Recommended GE Related Models
GE’s IS series and IC series have a complete product matrix, covering digital input/output, analog input/output, and special function modules, to meet the diverse needs of industrial control. Here are the most practical related models for various scenarios:
-
GE IS420YDOAS2B: Enhanced version of IS420YDOAS1B—64 digital output channels, suitable for large-scale control nodes (e.g., thermal power plant central control room)
-
GE IS420YDIAS1B: High-density digital input module—32 channels, for massive on-site signal collection (e.g., hydropower plant generator set status monitoring)
-
GE IS420YDIAS2B: Extended digital input module—64 channels, for large-scale sensor signal access (e.g., industrial park energy monitoring system)
-
GE IS420YAOAS1B: Analog output module—16 channels (4–20mA), for continuous parameter control (e.g., boiler water level and pressure regulation)
-
GE IS420YAIAS1B: Analog input module—16 channels (4–20mA), for collecting temperature, pressure, flow signals (e.g., gas turbine exhaust temperature monitoring)
-
GE IS420YAOAS2B: High-precision analog output module—8 channels, 0.1% accuracy, for precision control scenarios (e.g., industrial robot motion control)
-
GE IC698DIA320: Compact digital input module—32 channels, suitable for small control systems (e.g., small-scale waste incineration power plants)
-
GE IC698DOA320: Compact digital output module—32 channels, matching IC698 series controllers (e.g., food processing plant automation lines)
-
GE IS420YDOAS1B-EX: Explosion-proof variant (ATEX Zone 2 certified)—for hazardous areas (e.g., oil refinery power generation units)
-
GE IS420YCOM01: Communication conversion module—supports Genius Bus to Modbus TCP, for connecting with third-party systems (e.g., smart factory MES platforms)
-
GE IC698CPE030: Matching controller—GE Mark VIe entry-level controller, suitable for small and medium-sized power generation units
-
GE IC698CPE040: High-performance controller—supports multiple I/O modules, for large-scale integrated control systems (e.g., combined cycle power plants) View more.
