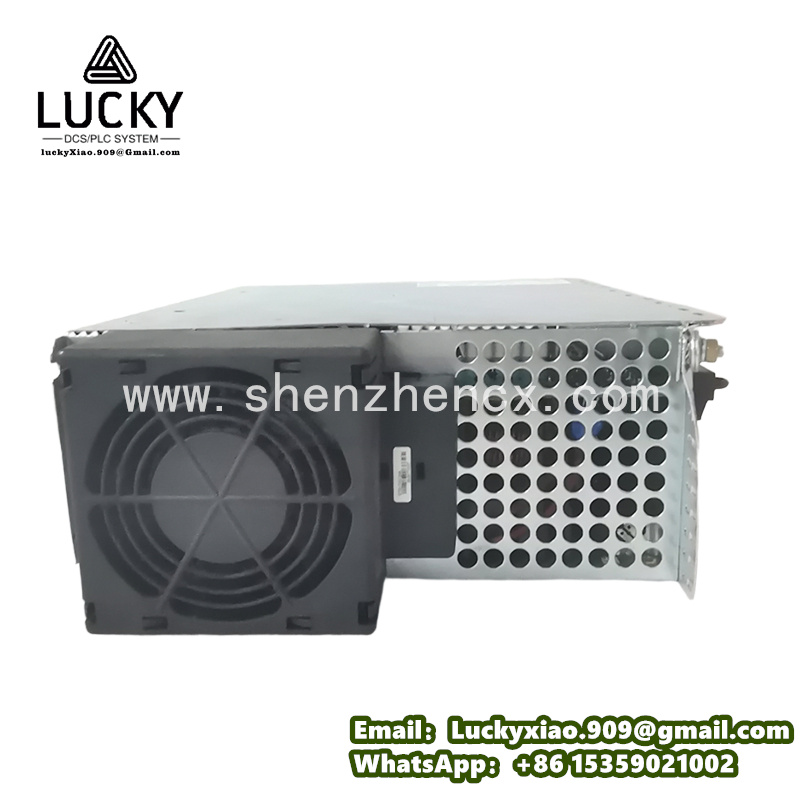

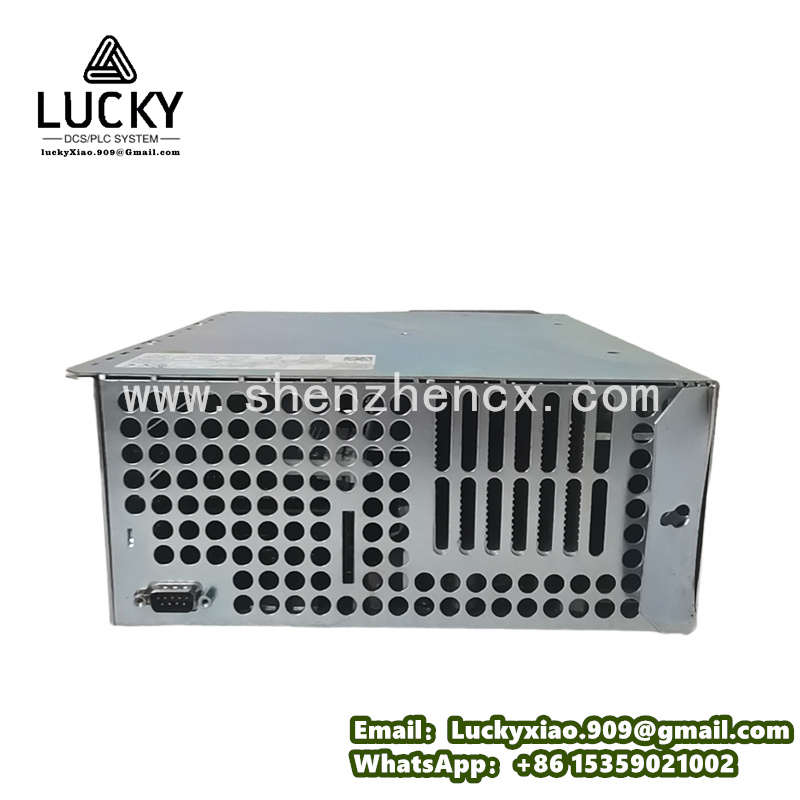

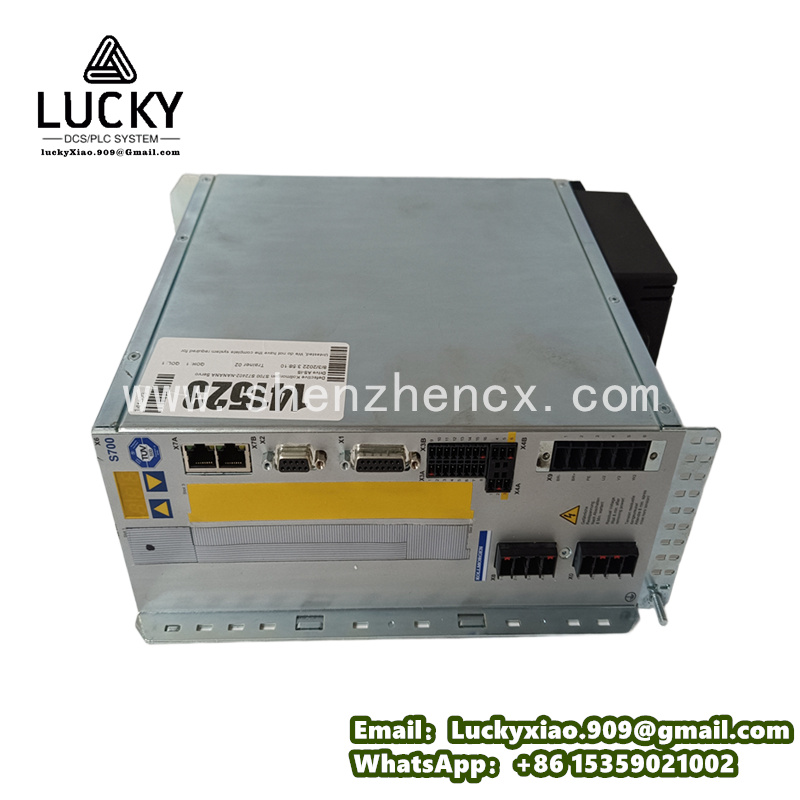

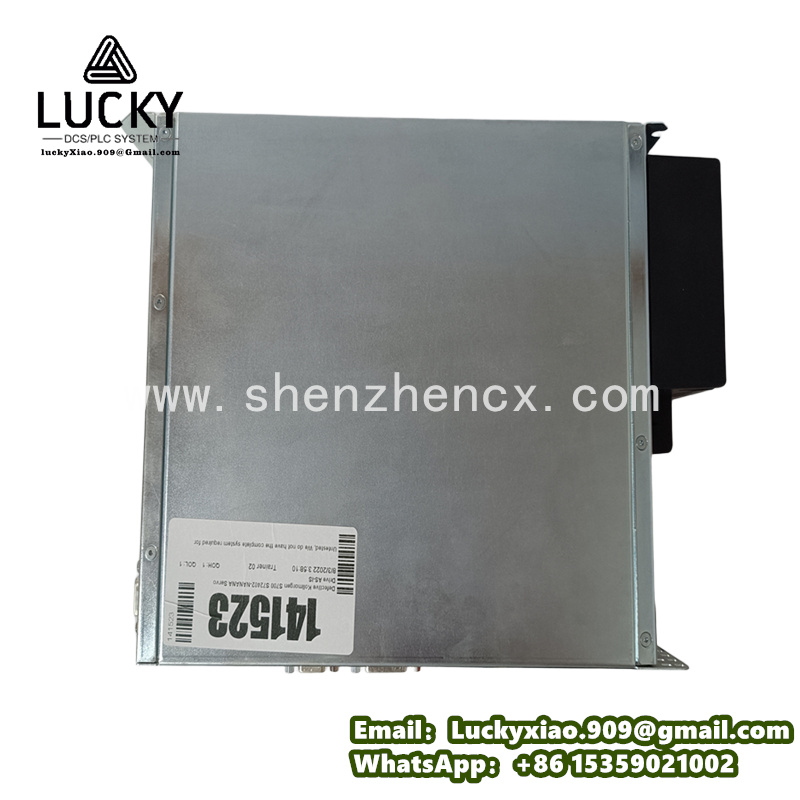

KOLLMORGEN S72402-NANANA-NA-030 Servo Drive
1. Product Description
The KOLLMORGEN S72402-NANANA-NA-030 is a high-performance servo drive designed for precise control of servo motors in industrial automation applications. It’s mainly used to power and regulate servo motors in equipment like robotic arms, precision machine tools, packaging machines, and conveyor systems—common in automotive manufacturing, electronics production, and aerospace component machining.
With a compact, rugged design, it fits easily into standard control cabinets and withstands typical industrial conditions (such as mild vibration and temperature changes). It enables smooth, accurate motor speed and position control, which is critical for tasks requiring high precision (e.g., assembling small electronic parts or cutting complex metal components). It also supports simple integration with common industrial controllers, making it easy for technicians to set up and operate.
2. Technical Specifications
- Input Voltage: 230 V AC (single-phase, compatible with standard industrial power supplies)
- Output Current: 3.0 A (continuous) – suitable for mid-sized servo motors (typical in precision machinery)
- Control Modes: Supports position control, speed control, and torque control (adapts to different automation tasks)
- Communication Interfaces: RS-485 and Ethernet (for connecting to controllers or HMI systems)
- Operating Temperature: 0°C to +50°C (works in standard factory environments)
- Dimensions: Compact size (approx. 150 mm × 100 mm × 60 mm) for space-saving cabinet mounting
- Protection Features: Overcurrent protection, overvoltage protection, and over-temperature protection (prevents drive or motor damage)
- Motor Compatibility: Works with KOLLMORGEN S-series servo motors (and other compatible servo motors with matching ratings)
3. System Introduction
The S72402-NANANA-NA-030 is a key part of KOLLMORGEN’s “S-Series Servo System”—a modular lineup that includes servo drives, servo motors, and configuration software, designed for precision industrial motion control. This system works as a unified unit: the servo drive (like the S72402-NANANA-NA-030) receives control signals from an industrial controller, converts electrical power into precise motor motion, and feeds back motor status data to the controller for real-time adjustment.
In the system, the servo drive acts as a “bridge” between the controller and the motor: it translates the controller’s commands (e.g., “move to position X at speed Y”) into electrical signals that drive the motor, while monitoring motor performance to ensure accuracy. This system is widely used in applications where even small motion errors could ruin products or slow down production, making it a trusted choice for high-precision manufacturing.
4. Recommended Related Models in the Same Series
- KOLLMORGEN S72402-NANANA-NA-020: Lower-output variant (2.0 A continuous current) – for smaller servo motors (e.g., in lightweight robotic arms).
- KOLLMORGEN S72402-NANANA-NA-040: Higher-output model (4.0 A continuous current) – for larger servo motors (e.g., in heavy-duty machine tools).
- KOLLMORGEN S72402-NANANA-NA-030-H: High-temperature variant (operating range -10°C to +60°C) – for use in warm factory areas (e.g., near heating equipment).
- KOLLMORGEN S72402-NANANA-NA-030-R: Redundant servo drive (works in backup pairs) – for critical systems (e.g., aerospace component machining lines where downtime is costly).
- KOLLMORGEN S72402-NANANA-NA-030-E: Enhanced model with additional Ethernet ports – for complex systems needing multiple controller connections (e.g., multi-axis robotic cells).
- KOLLMORGEN S72402-NANANA-NA-030-L: Low-power variant (reduced energy consumption) – for battery-powered or energy-efficient automation (e.g., portable precision test equipment).
- KOLLMORGEN S73402-NANANA-NA-030: 3-phase input version (instead of single-phase) – for high-power applications (e.g., large conveyor systems or heavy-duty packaging machines).
- KOLLMORGEN S72402-NANANA-NA-030-KIT: Drive bundled with a matching S-series servo motor and cables – ready-to-use kit for quick system setup (e.g., small-scale automation projects).
