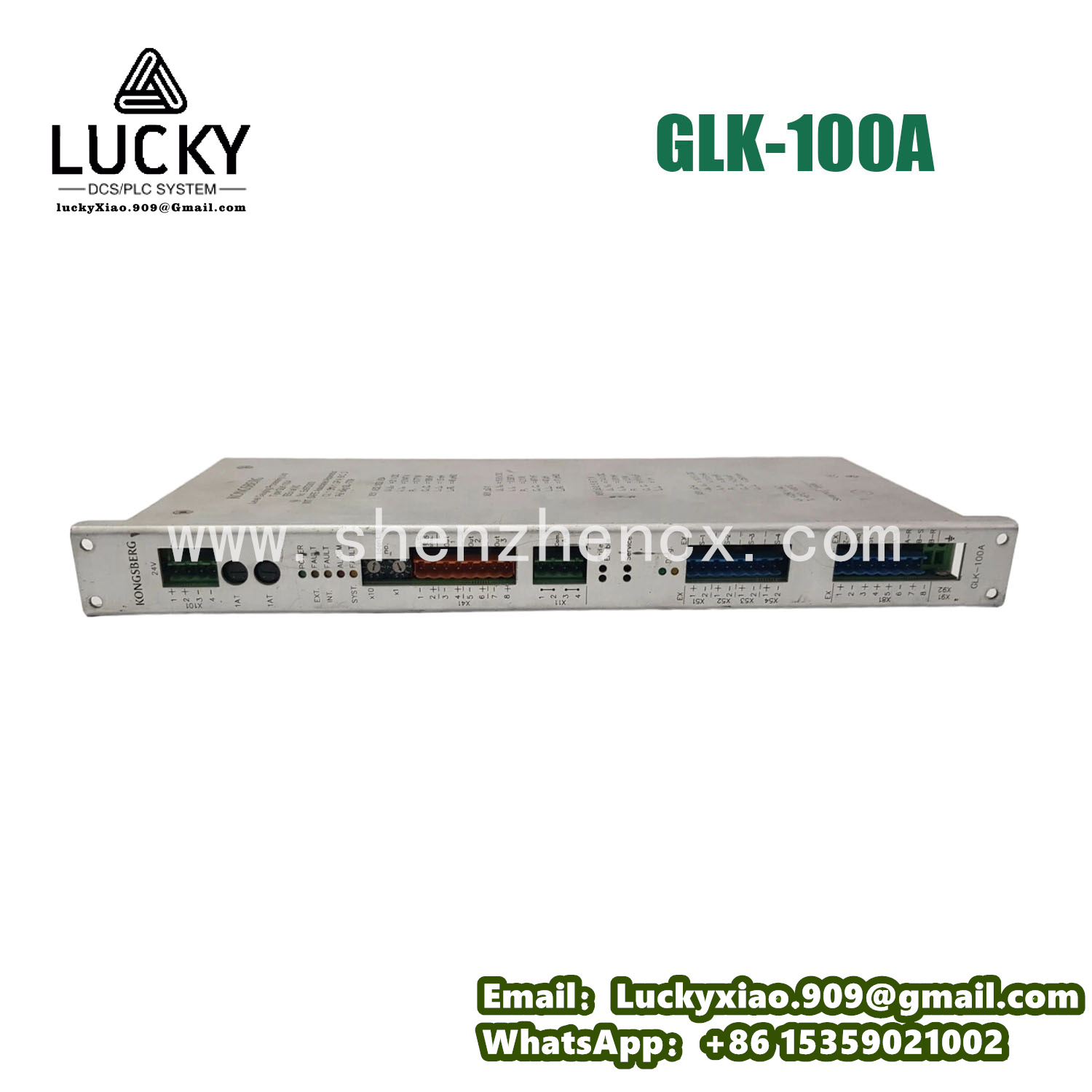

KONGSBERG GLK-100A Product Details
1. Product Overview
The KONGSBERG GLK-100A is a high-precision GNSS (Global Navigation Satellite System) receiver module tailored for marine navigation, offshore operations, and maritime surveillance systems. It serves critical roles in commercial shipping, offshore oil & gas, and coastal patrol applications—focusing on providing real-time, reliable positioning, velocity, and timing (PVT) data to support vessel navigation, dynamic positioning (DP), and route planning. These capabilities are essential for ensuring maritime safety, optimizing voyage efficiency, and complying with international maritime navigation standards (e.g., IMO SOLAS).
Integrating multi-constellation GNSS reception and advanced anti-jamming technology, the module maintains stable performance even in harsh marine environments (e.g., signal obstruction from offshore structures, electromagnetic interference). Compatibility with Kongsberg’s K-Nav and K-Pos automation platforms ensures seamless integration into existing maritime control systems, making it a core component for modern maritime navigation solutions.
2. Technical Parameters (Table)
|
Category
|
Specification
|
|---|---|
|
Device Type
|
Marine GNSS receiver module (multi-constellation)
|
|
GNSS Constellations
|
GPS, GLONASS, BeiDou, Galileo, QZSS
|
|
Positioning Accuracy
|
Horizontal: ±1.2 m (RTK); ±2.5 m (DGNSS); ±5 m (SBAS); Vertical: ±2.5 m (RTK)
|
|
Update Rate
|
10 Hz (standard); Up to 100 Hz (optional for dynamic applications)
|
|
Signal Channels
|
120+ multi-frequency channels (L1/L2/L5 for GPS/Galileo; B1/B2/B3 for BeiDou)
|
|
Communication Interfaces
|
1×Ethernet (NMEA 0183/NMEA 2000); 2×RS422/RS232; 1×CAN bus
|
|
Power Supply
|
12–24 V DC; Power consumption: ≤8 W (operating), ≤1 W (standby)
|
|
Environmental Ratings
|
Operating temp: -30°C to +70°C (-22°F to +158°F); Storage temp: -40°C to +85°C (-40°F to +185°F); Humidity: 0%–100% (condensing); Protection class: IP67; Salt spray resistance: EN ISO 9227 (2000 hours)
|
|
Mechanical Design
|
Mounting: Flange (marine-grade); Housing: 316L stainless steel; Dimensions: 100 mm (W) × 80 mm (H) × 45 mm (D); Weight: ~500 g (1.1 lbs)
|
|
Certifications
|
Marine: DNV GL, ABS, Lloyd’s Register; CE; IEC 60945; RoHS compliant
|
3. Product Specifications & Features
3.1 Core Specifications
The KONGSBERG GLK-100A is optimized for maritime positioning diversity, supporting five major GNSS constellations to ensure signal availability even in challenging environments (e.g., near high-rise coastal buildings or offshore wind farms). Its RTK (Real-Time Kinematic) positioning accuracy of ±1.2 m meets the strict requirements of dynamic positioning systems for offshore vessels, while the optional 100 Hz update rate enables precise tracking of fast-moving maritime assets (e.g., patrol boats).
The module’s multi-interface design (Ethernet, RS422, CAN bus) allows seamless connection to shipboard navigation displays, DP controllers, and voyage data recorders (VDRs). The 316L stainless steel housing and IP67 protection ensure resistance to corrosion from saltwater and harsh weather, aligning with the durability demands of long-term marine operations.
3.2 Key Features
-
Multi-Constellation Reliability: Simultaneous reception of GPS, GLONASS, BeiDou, Galileo, and QZSS eliminates signal dependency, ensuring positioning continuity in GNSS-challenged areas.
-
High-Precision Dynamic Positioning: RTK accuracy and optional 100 Hz update rate support offshore DP systems and fast-vessel navigation, critical for safe berthing and offshore construction.
-
Maritime-Grade Durability: IP67 protection, 316L stainless steel housing, and 2000-hour salt spray resistance withstand extreme marine conditions, reducing maintenance costs.
-
Seamless System Integration: Compliance with NMEA 0183/NMEA 2000 protocols ensures plug-and-play compatibility with Kongsberg and third-party maritime automation systems.
-
Anti-Jamming Capability: Built-in signal filtering technology mitigates electromagnetic interference from shipboard equipment, maintaining positioning stability.
4. Other Kongsberg GNSS & Navigation Products
Kongsberg offers a range of complementary navigation modules for diverse maritime needs:
-
KONGSBERG GLK-200A: Advanced variant with dual-antenna heading (±0.1° accuracy) for vessels requiring precise orientation (e.g., offshore drillships).
-
KONGSBERG GLK-50A: Compact GNSS receiver (50 mm × 50 mm footprint) for small vessels (e.g., fishing boats, recreational yachts).
-
KONGSBERG K-Nav 3000: Integrated navigation system combining GLK-100A receiver with radar and sonar data fusion.
-
KONGSBERG GLK-100B: Ruggedized variant (-40°C to +80°C operating temp) for polar or extreme-temperature maritime operations.
-
KONGSBERG K-Pos 500: Dynamic positioning controller paired with GLK-100A for offshore oil & gas platform supply vessels.
