Introduction to ProSoft MVI46-MNET
MVI46-MNET Product Overview

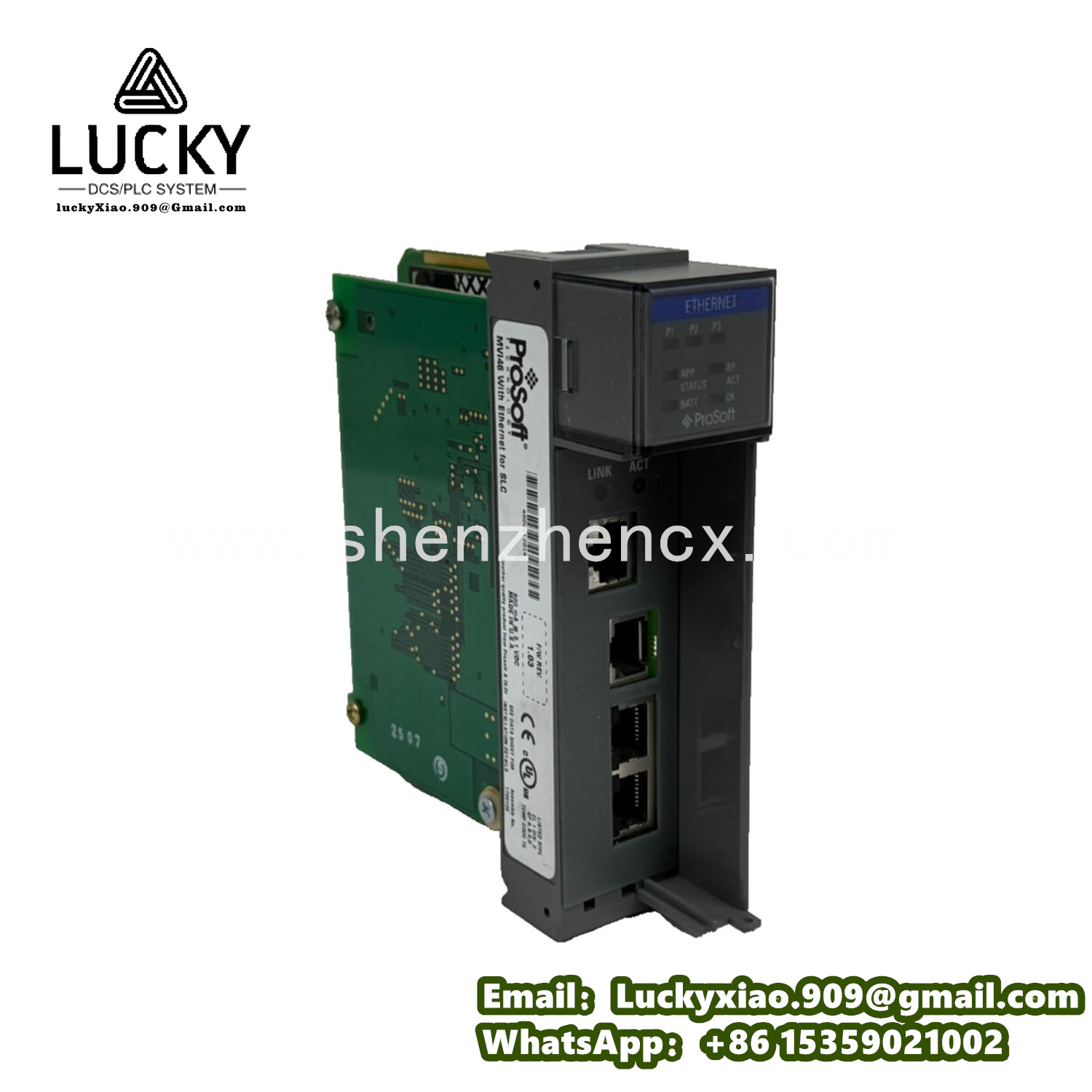

The ProSoft MVI46-MNET is a dedicated Ethernet communication module developed by ProSoft Technology, a leading provider of industrial connectivity solutions. Specifically engineered to bridge the compatibility gap between Allen-Bradley SLC 500 and MicroLogix 1500 programmable logic controllers (PLCs) and Modbus TCP/IP-based industrial networks, it serves as a critical communication hub in small-to-medium manufacturing cells, water treatment facilities, and food processing lines. A key value proposition is its ability to extend the lifespan of legacy serial-centric PLCs by enabling them to interact with modern Modbus TCP devices—such as remote sensors, SCADA systems, and third-party VFDs—without requiring costly PLC replacements. Operating as both Modbus client and server, it supports asynchronous data transfer between the PLC backplane and Ethernet network, with a 5000-word register space facilitating efficient data exchange.
MVI46-MNET Technical Specifications
-
Product Model: MVI46-MNET
-
Product Type: Industrial Ethernet Communication Module (Modbus TCP/IP)
-
Core Functions: Modbus TCP/IP client/server communication, PLC backplane data transfer, legacy-new network bridging
-
PLC Compatibility: Allen-Bradley SLC 500 (SLC 5/02+ with M0/M1 data file support), MicroLogix 1500; 1746 chassis compatible
-
Network Protocol: Modbus TCP/IP; Supports client polling and server data provision
-
Data Capacity: 5000-word register space for backplane-network data exchange; Floating point data support
-
Communication Interface: 10/100 Mbps Ethernet (RJ45 port); RS-232 debug/configuration port (RJ45 to DB-9 included)
-
Power Consumption: 800 mA @ 5V DC (supplied by PLC backplane); No external power required
-
Operating Environment: Temperature 0°C to 60°C (32°F to 140°F); Storage temperature -40°C to 85°C (-40°F to 185°F); Humidity 5-95% (non-condensing)
-
Mechanical Durability: Shock resistance 30g (operational), 50g (non-operational); Vibration resistance 5g (10-150 Hz)
-
Status Indicators: LED lights for module status, backplane transfer, application activity, Ethernet link/activity, and errors
-
Configuration: Via text configuration file; Sample ladder logic and configuration files provided
-
Installation: Single-slot 1746 chassis mount (local/extended I/O racks only); No external enclosure needed
-
Certifications: Compliant with industrial communication standards; CE, UL recognized
Recommended ProSoft Products
-
ProSoft MVI46-HART: HART multi-drop master module for SLC 500, connecting PLCs to 15 HART instruments per channel in process control.
-
ProSoft MVI56E-MNET: ControlLogix-compatible Modbus TCP module, offering gigabit Ethernet for high-speed data transfer in large systems.
-
ProSoft MVI46-DFNT: Data highway plus-to-Ethernet module, enabling SLC 500 communication with modern IP-based networks.
-
ProSoft PLX31-EIP-MBTCP: Universal gateway, bridging Ethernet/IP and Modbus TCP for mixed-vendor automation environments.
-
ProSoft MVI46-MCM: Modbus RTU/ASCII master module, extending SLC 500 connectivity to serial Modbus devices in remote locations.
-
ProSoft MVI56-GSC: ControlLogix module for GE SRTP protocol, facilitating cross-brand communication with GE PLCs.
-
ProSoft MVI46-ADM: Analog input module with Modbus integration, converting sensor data for SLC 500 processing.
-
ProSoft ILX56-ENET: Compact Ethernet module for Allen-Bradley Micro800 PLCs, enabling Modbus TCP connectivity in small applications.
