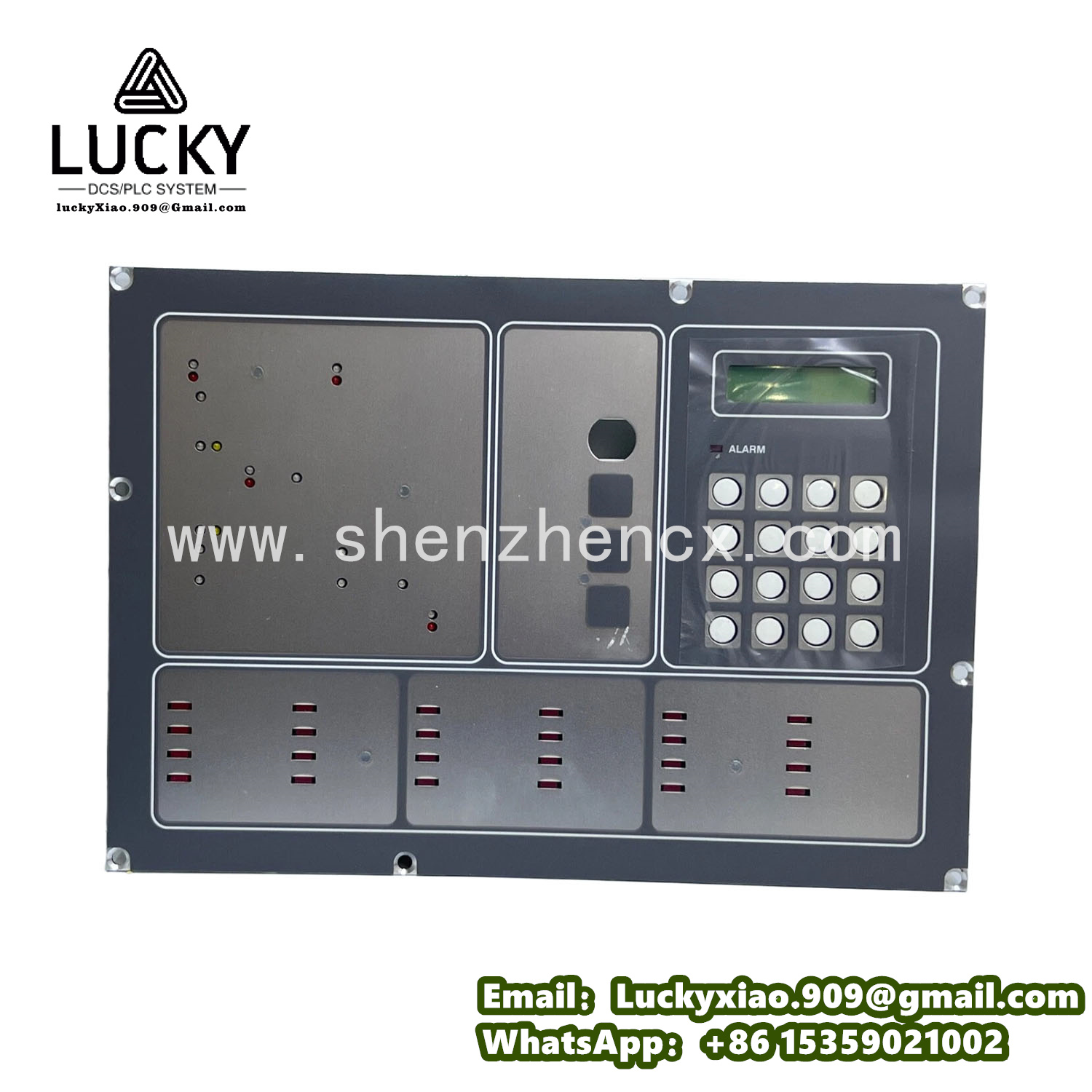

Introduction to GUTOR OM-94035A
OM-94035A Product Overview
The GUTOR OM-94035A is an intelligent power management and monitoring control module, developed by GUTOR Electric Ltd—a Switzerland-based leader in industrial power solutions under the APC Group. Specifically engineered for integration with UPS systems, battery banks, and power distribution units (PDUs), it serves as a central “brain” for real-time power parameter monitoring, fault diagnosis, and remote control in data centers, industrial plants, and critical infrastructure like hospitals and telecommunication hubs. A key strength lies in its multi-channel signal acquisition capability, supporting simultaneous monitoring of voltage, current, frequency, power factor, and battery state of charge (SoC)—providing comprehensive visibility into power system health. Unlike basic monitoring devices, it features built-in logic programming functions, enabling automatic execution of predefined actions such as UPS mode switching, battery equalization charging, and alarm triggering when abnormal conditions occur. Equipped with a user-friendly LCD interface and support for multiple industrial communication protocols, it facilitates seamless integration with SCADA systems and building management platforms (BMS).
OM-94035A Technical Specifications
-
Product Model: OM-94035A
-
Product Type: Intelligent Power Management & Monitoring Control Module
-
Core Functions: Power parameter monitoring, battery management, fault diagnosis, remote control, automatic logic execution
-
Monitoring Parameters: AC voltage (0-500V), AC current (0-50A), frequency (45-65Hz), power factor (0-1.0), DC voltage (0-300V), battery SoC (0-100%)
-
Input Channels: 8 analog input channels (4-20mA/0-10V), 16 digital input channels (24V DC) for sensor and device status signals
-
Output Channels: 6 relay output channels (5A/250V AC) for control actions, 2 analog output channels (4-20mA) for signal feedback
-
Measurement Accuracy: Voltage ±0.2% F.S, current ±0.2% F.S, frequency ±0.01Hz, SoC ±1%
-
Communication Capability: RS-485, Ethernet (RJ45); Supports Modbus RTU/TCP, SNMP, and BACnet protocols
-
Power Supply: 24V DC ±15% (18V-30V); Power consumption ≤8W
-
Display & Operation: 128×64 dot matrix LCD with backlight, 4 tactile buttons for on-site configuration
-
Protection Features: Overvoltage protection (30V DC), reverse polarity protection, ESD protection (±15kV contact)
-
Operating Environment: Temperature range 0°C to +55°C; Relative humidity 5~95% (non-condensing); Protection rating IP20
-
Mechanical Dimensions: 144mm (W) × 90mm (H) × 60mm (D); Net weight approximately 250g; DIN rail mount (35mm)
-
Certifications: CE, UL, IEC 61010-1, ISO 9001 compliant
Recommended GUTOR Products
-
GUTOR PXC1010: 10kVA extreme environment UPS that pairs with OM-94035A for integrated power protection and monitoring in harsh sites.
-
GUTOR SDC1500: 150A battery charger/rectifier whose operating status is monitored and controlled by OM-94035A.
-
GUTOR BMM-2000: Battery monitoring module that works with OM-94035A to provide precise SoC and cell voltage data for large battery banks.
-
GUTOR PDU-80A: 80A power distribution unit with built-in OM-94035A integration for real-time load monitoring and overload protection.
-
GUTOR RMS-3000: Remote monitoring system that receives data from OM-94035A for centralized management of multiple power sites.
-
GUTOR ECO1005: 5kVA energy-saving UPS whose eco-mode activation is controlled by OM-94035A based on load conditions.
-
GUTOR PLC-100: Compact logic controller that supplements OM-94035A for complex power system control logic.
-
GUTOR HMI-700: 7-inch industrial touchscreen HMI that displays real-time data and allows configuration of OM-94035A.
-
GUTOR PDW1020: 20kVA modular UPS with hot-swappable modules, supporting capacity expansion for growing manufacturing needs.
-
GUTOR SDC1500: 150A battery charger/rectifier, perfectly matching 0P0581 to extend battery lifespan and charging speed.
-
GUTOR PLG-10KVA: UPS bypass transformer, isolating 0P0581 from grid interference in petrochemical control systems.
-
GUTOR WXW1030: 30kVA marine-grade UPS with anti-vibration design, suitable for shipboard navigation and communication equipment.
-
GUTOR M30 Modular UPS: Scalable platform from 5kVA to 150kVA, compatible with 0P0581 for redundant power configurations.
-
GUTOR PEW1040-240: 40kVA nuclear-grade UPS, providing fail-safe power for reactor auxiliary control systems.
-
GUTOR ECO1005: 5kVA energy-saving UPS with eco-mode, reducing power consumption for non-critical industrial loads.
