Introduction to METSO PDP603
PDP603 Product Overview

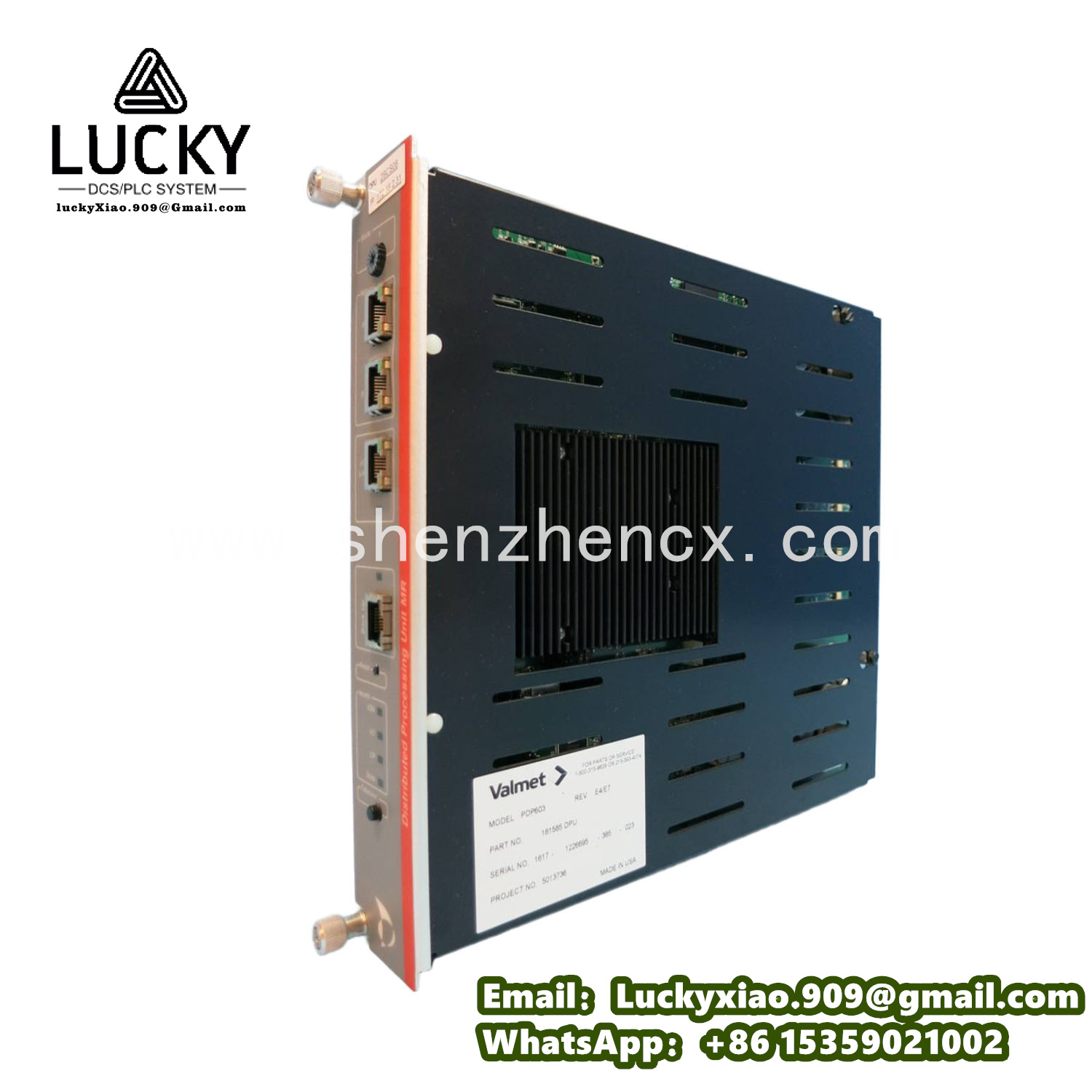

The METSO PDP603 is a rugged industrial digital I/O module specifically engineered for process automation systems in harsh industrial environments, such as mineral processing, metallurgy, and chemical manufacturing. As a key component of METSO’s industrial control product lineup, it serves as a reliable interface for bidirectional signal transmission between field devices (including sensors, actuators, and switches) and upper-level control systems. Characterized by its robust modular design, the module exhibits excellent resistance to vibration, impact, humidity, and dirty air, ensuring stable operation in challenging on-site conditions. It supports advanced digital communication via fieldbus protocols, enabling seamless integration with METSO’s process control systems without the need for additional supplementary modules for position feedback. Widely applied in valve control, process monitoring, and distributed control loops, the PDP603 enhances the reliability and maintainability of industrial automation systems with its maintenance-free operation and easy upgrade capability.
PDP603 Technical Specifications
-
Product Model: PDP603
-
Product Type: Industrial Digital I/O Module
-
Core Functions: Bidirectional digital signal transmission, fieldbus communication, position feedback signal processing, advanced communication diagnostics, open/close status detection, maintenance-free operation
-
Power Supply: 24 VDC wide voltage input (typical); Built-in protection against voltage fluctuations
-
Communication Protocols: Foundation Fieldbus ITK Version 6.1.2 certified; PROFIBUS PA Profile Version 3.0 PNO certified; Support for HART communication (upgradeable via communication board replacement)
-
Protection Features: Sealed and wear-resistant components; Protection against humidity and dirty air; Overcurrent and short-circuit protection
-
Environmental Ratings: Operating temperature range: -25°C to +70°C; Storage temperature range: -40°C to +85°C; Protection class: IP66
-
Mechanical & Installation: Rugged modular design; Weight: 0.40 kg; Panel-mounted installation; Easy upgrade and firmware download capability
-
Functional Features: Backup LAS functionality in Foundation Fieldbus environment; Input selector and output splitter blocks for advanced distributed control; Support for continuous and on-off control applications
-
Certifications: Compliant with industrial control equipment safety standards; Fieldbus protocol certifications
Recommended METSO Same-Series Models
-
METSO PDP401: Distributed processing unit, providing data acquisition, process control, monitoring and alarm functions for industrial automation systems
-
METSO D200533: 8-channel digital I/O module, enabling flexible signal interaction between field devices and controllers
-
METSO D200535: 16-channel configurable digital I/O module, suitable for large-scale control system signal transmission
-
METSO A413140 (BIU 8): 8-channel intelligent input module with specialized signal conditioning for high-precision sensor data acquisition
-
METSO A413162: Process control module, facilitating integration of I/O systems into mineral processing control loops
-
METSO D201189L: 16-channel high-speed digital input module, ideal for large-scale industrial process monitoring
-
METSO D201466: 8-channel configurable digital I/O module with IO-Link support, realizing intelligent device diagnosis
-
METSO DP-100: Distributed processing unit, serving as the core engine of METSO MAX DNA distributed control system
-
METSO PDP604: Enhanced digital I/O module with extended communication protocol support for complex distributed control scenarios
-
METSO MLCP-SIE-S: Local control panel, integrating I/O modules for mill control in standard ambient environments
-
METSO MLCP-SIE-E: Local control panel, designed for mill control in extreme harsh ambient conditions
-
METSO A413240: 8-channel configurable input module, supporting multi-type signal acquisition for diverse monitoring scenarios
