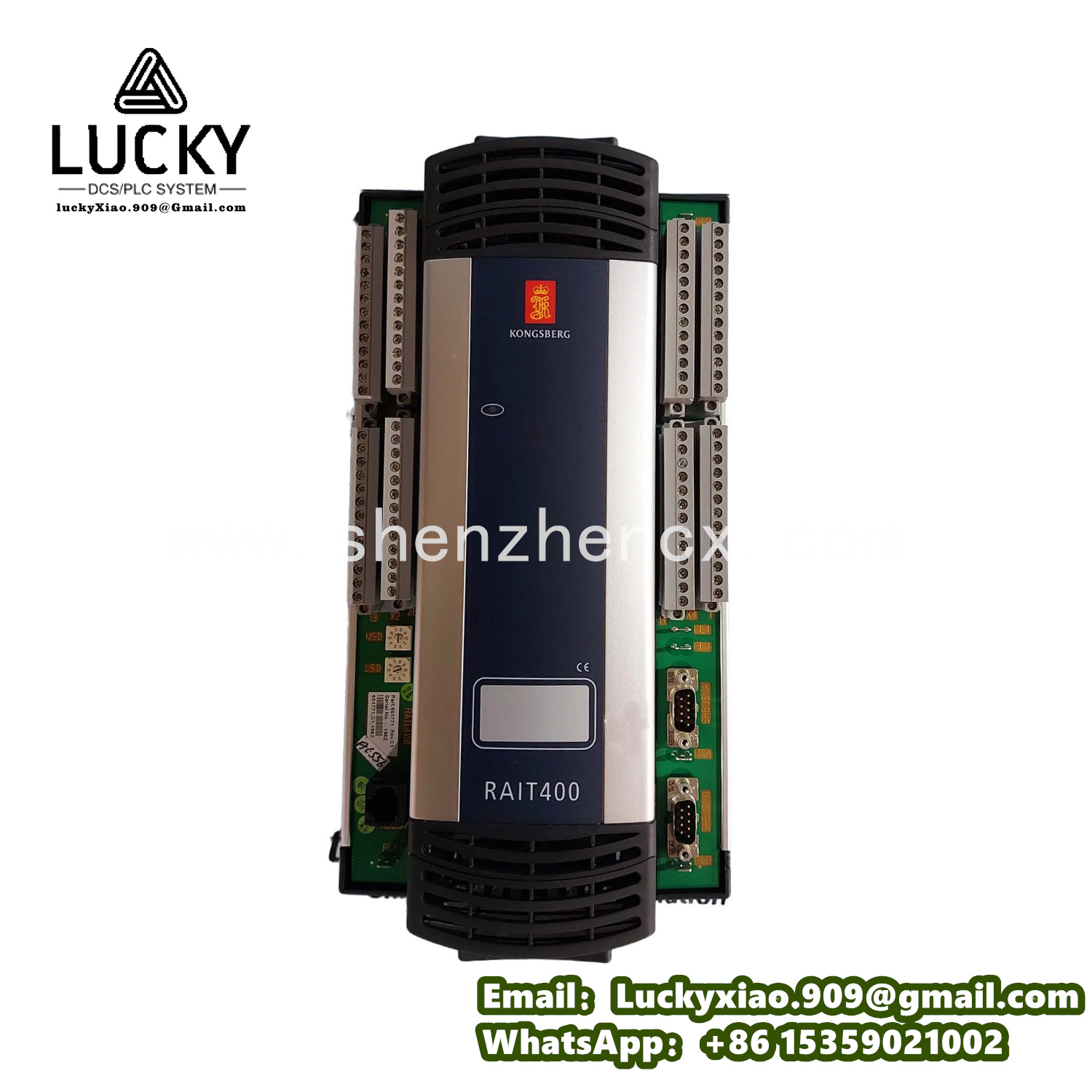

Introduction to KONGSBERG RAIT400
The KONGSBERG RAIT400 is an advanced marine integrated communication and data processing terminal, acclaimed as the “information hub” for ocean-going vessels, offshore platforms, and marine survey ships. As a pivotal product in KONGSBERG’s maritime data management portfolio, it integrates multi-protocol data conversion, real-time information fusion, and remote communication capabilities, specializing in interconnecting navigation systems, sonar equipment, and upper-level monitoring platforms to ensure seamless data flow in complex marine environments. This terminal is widely applied in scenarios such as offshore oil exploration, deep-sea hydrographic survey, and naval vessel operations—for example, integrating data from KONGSBERG EM2040 multi-beam echo sounders to generate high-precision seabed topographic maps, relaying navigation data between K-Pos dynamic positioning systems and satellite communication networks, or supporting real-time status monitoring of HUGIN autonomous underwater vehicles (AUVs).
RAIT400 Key Technical Specifications
-
Device Type: Marine integrated communication and data processing terminal
-
Core Functions: Multi-protocol data conversion, real-time information fusion, remote communication relay, data logging
-
Application Compatibility: Matches KONGSBERG EM2040 multi-beam system, K-Pos DP system, and HUGIN AUV control platforms
-
I/O & Communication Ports: 4×Ethernet/IP ports; 2×RS485/Modbus RTU; 1×NMEA 2000; 1×Satellite communication interface; 2×USB 3.0
-
Data Processing Performance: Supports simultaneous processing of 8 data streams; maximum data throughput 1Gbps; latency ≤ 3ms
-
Power Supply: 24V DC (redundant dual input); input range 18-36V DC; typical power consumption ≤ 20W
-
Supported Protocols: IEC 61162-450, Modbus RTU/TCP, Ethernet/IP, UDP/TCP; compatible with maritime satellite communication protocols
-
Operating Environment: Temperature -30°C to +70°C; humidity 0-100% (condensing allowed); vibration resistance 5-200Hz (2.5g)
-
Physical Specifications: 210mm×150mm×70mm (W×H×D); weight ~1.5kg; DIN rail or panel mounting (marine control cabinet compatible)
-
Protection Features: Overvoltage/overcurrent protection; reverse polarity protection; salt spray corrosion protection (ASTM B117)
-
Mechanical Protection: IP67 front panel; flame-retardant housing (UL94 V-0); shock resistance 30g (11ms)
-
Certifications: CE, DNV GL, ABS certified; RoHS compliant; meets IMO SOLAS and IEC 60945 maritime standards
