Introduction to KONGSBERG RAOC400

Name: RAOC400 KONGSBERG communication integration terminal
SKU: 19999
Price: 1399.00 USD
Availability: InStock

The KONGSBERG RAOC400 is an intelligent marine operation and communication integration terminal, acclaimed as the “integrated control hub” for ocean-going vessels, offshore engineering ships, and naval support fleets. As a flagship product in KONGSBERG’s maritime operation management portfolio, it integrates multi-functional operation control, real-time communication relay, and cross-system data fusion capabilities, specializing in linking bridge control systems, propulsion equipment, and onshore monitoring platforms to realize streamlined navigation operation and efficient information interaction. This terminal is widely applied in scenarios such as large container ships, offshore wind power installation vessels, and rescue ships—for example, serving as the operation core of KONGSBERG K-Pos dynamic positioning systems to coordinate thruster movements for precise berthing, integrating navigation data from inertial navigation systems with satellite communication to transmit voyage status to onshore command centers, or providing one-key emergency operation functions for rescue ships to accelerate distress response.

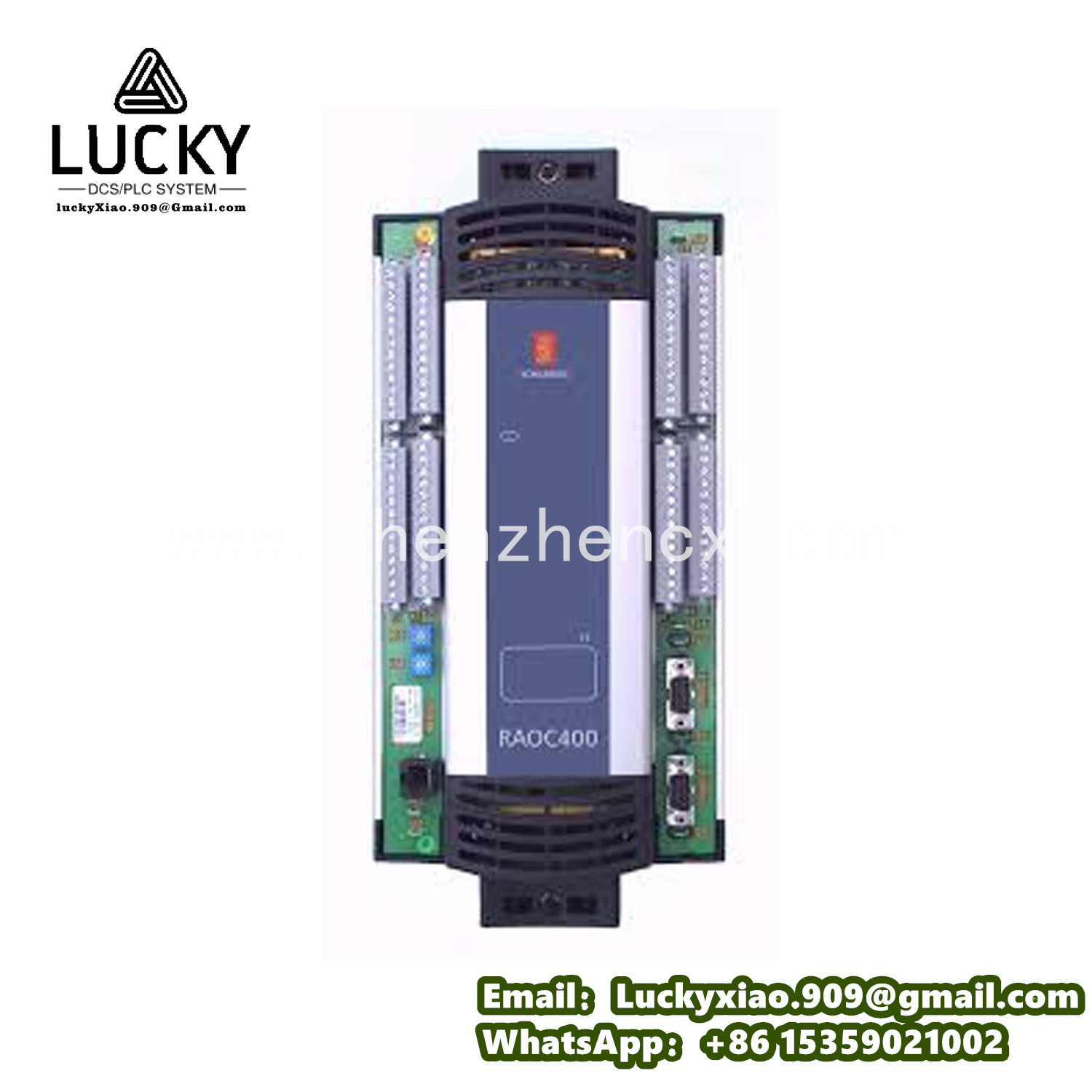

RAOC400

Key Technical Specifications

Device Type: Marine intelligent operation and communication integration terminal
Core Functions: Bridge operation control, multi-system data fusion, real-time communication relay, emergency operation management
Application Compatibility: Matches KONGSBERG K-Pos DP system, AC-4 main engine control, RAIT400 data terminal, and HUGIN AUV support platform
Interface Configuration: 3×Ethernet/IP ports; 2×RS485/Modbus RTU; 1×NMEA 2000; 1×VHF communication port; 1×USB 3.0; 8-channel digital I/O
Control Performance: Operation response time ≤ 8ms; supports 16-channel concurrent control signals; positioning control accuracy ±0.3m (when paired with DP system)
Power Supply: 24V DC (dual redundant input); input range 18-36V DC; typical power consumption ≤ 18W; backup battery support (6-hour standby)
Supported Protocols: IEC 61162-450, Modbus RTU/TCP, Ethernet/IP, NMEA 0183, ITU-R M.493 (DSC)
Operating Environment: Temperature -30°C to +75°C; humidity 0-100% (condensing allowed); vibration resistance 5-200Hz (2.5g); altitude ≤ 2000m
Physical Specifications: 200mm×150mm×70mm (W×H×D); weight ~1.4kg; DIN rail or panel mounting (marine control cabinet compatible)
Protection Features: Overvoltage/overcurrent protection; reverse polarity protection; salt spray corrosion protection (ASTM B117, 1000 hours)
Mechanical Protection: IP67 front panel; flame-retardant housing (UL94 V-0); shock resistance 30g (11ms)
Certifications: CE, DNV GL, ABS, CCS certified; RoHS compliant; meets IMO SOLAS and IEC 60945 maritime standards
