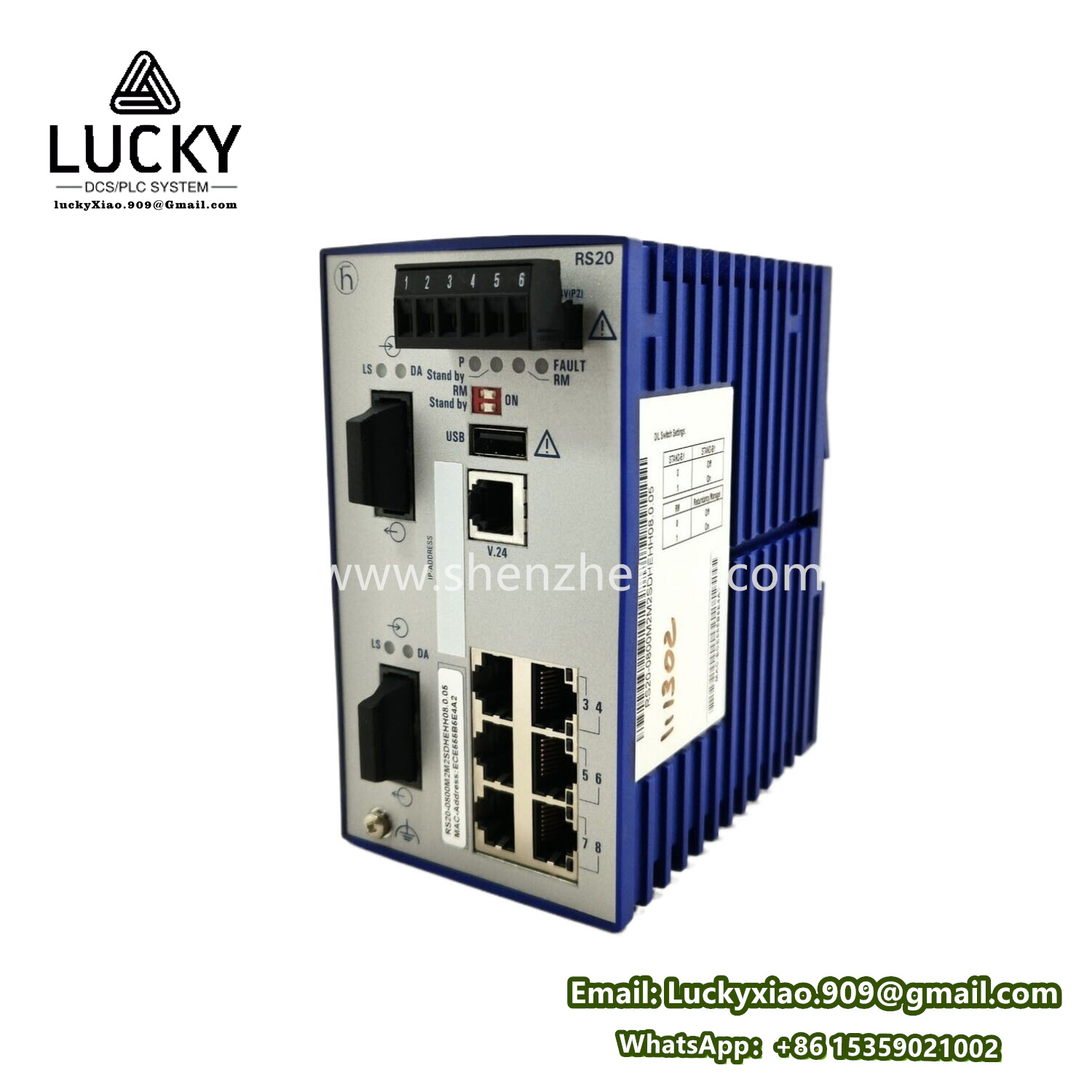

Hirschmann RS20-0800M2M2SDAE Industrial Ethernet Switch
Designed for Rugged Environments and High-Performance Networking
Key Features
- Ultra-Robust Design: Built to withstand extreme industrial conditions (vibration, shock, temperature fluctuations).
- Advanced Connectivity: 8 × 10/100 Mbps Fast Ethernet ports + 2 × Gigabit uplinks (M12 connectors).
- Layer 2 Managed Switch: Supports VLANs, QoS, RSTP, and SNMP for optimized network control.
- Dual Power Inputs: 24 V DC (12–60 V DC range) with redundancy for uninterrupted operation.
- Enhanced Security: Port security, MAC filtering, and HTTPS/SSH encryption.
Technical Specifications
|
Category
|
Parameters
|
|---|---|
|
Port Configuration
|
8 × 10/100Base-TX (M12 X-coded), 2 × 1000Base-T (M12 D-coded)
|
|
Data Rate
|
10/100 Mbps (ports 1–8), 1 Gbps (ports 9–10)
|
|
Power Supply
|
24 V DC (12–60 V DC), redundant inputs
|
|
Power Consumption
|
≤ 8 W (typical)
|
|
Operating Temp.
|
-40°C to +70°C (-40°F to +158°F)
|
|
Protection Rating
|
IP67 (housing), IP20 (connectors)
|
|
Certifications
|
CE, UL, EN 50155 (railway), DNV GL, IEC 61850-3
|
|
Dimensions
|
135 × 110 × 65 mm (W × H × D)
|
|
Weight
|
1.2 kg
|
Applications
- Railway Systems: Compatible with EN 50155 standards for onboard train networks.
- Factory Automation: Reliable backbone for harsh manufacturing environments.
- Smart Transportation: Traffic control, roadside communication, and ITS infrastructure.
- Energy & Utilities: Substation automation and grid monitoring.
Why Choose RS20-0800M2M2M2SDAE?
✅ Future-Proof: Gigabit uplinks ensure scalability for bandwidth-intensive applications.
✅ Zero Downtime: Redundant power and RSTP guarantee network resilience.
✅ Easy Integration: DIN-rail mounting and tool-free M12 connectors reduce installation time.
Warranty: 5-year manufacturer warranty.
Compliance: Meets global industrial and transportation standards.
