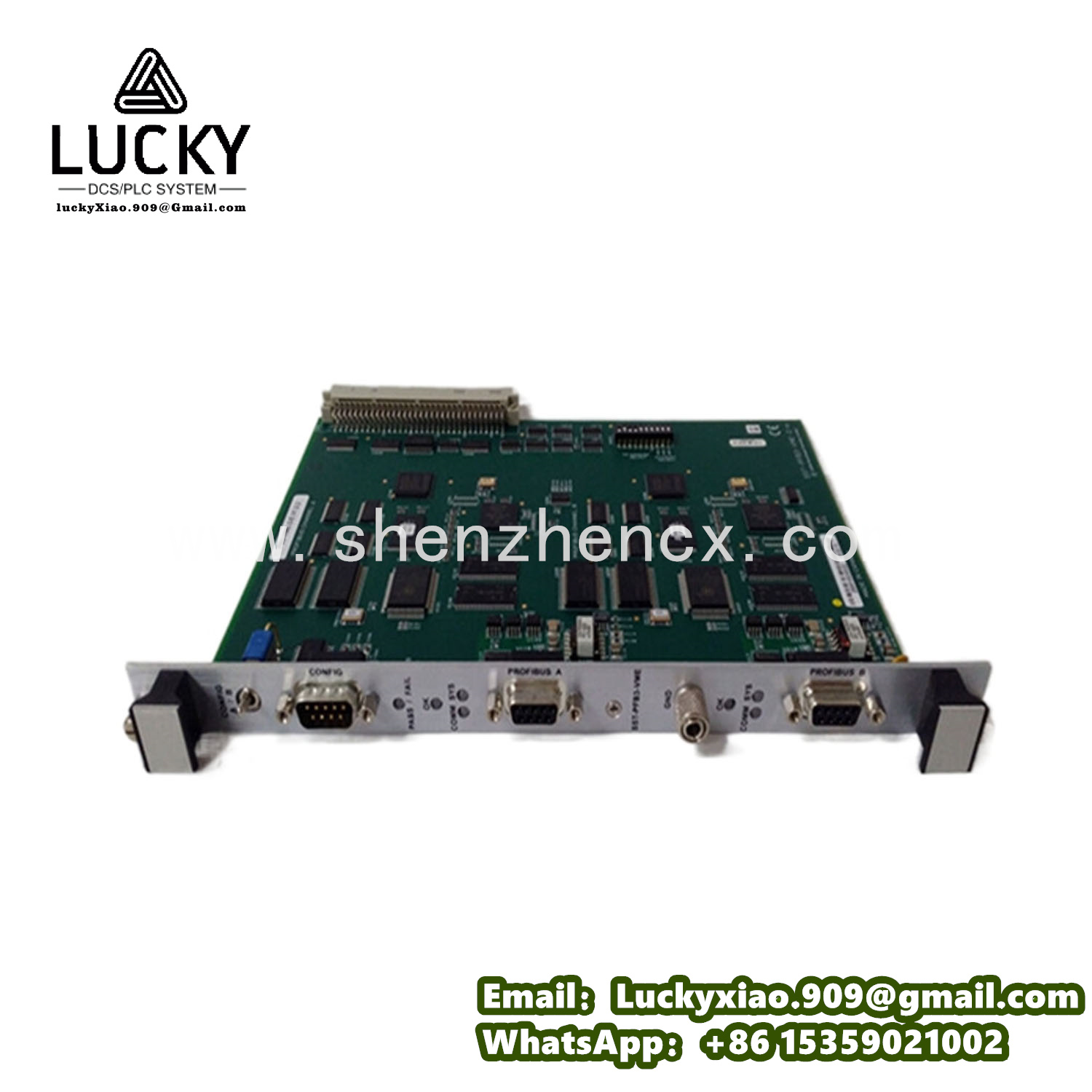

Introduction to BRAD COMMUNICATIONS SST-PB3-VME-2
SST-PB3-VME-2 Product Introduction
BRAD COMMUNICATIONS SST-PB3-VME-2 is a high-performance PROFIBUS-DP communication module, a core product in the brand’s SST series industrial network interface lineup. Specifically designed for industrial automation systems, it serves as a key bridge for data exchange between field devices and central control units. The module supports both PROFIBUS-DP master and slave modes, enabling seamless integration with sensors, actuators, PLCs and HMIs. Adopting VME bus interface technology, it ensures high-speed and stable data transmission, while its industrial-grade rugged design enhances anti-electromagnetic interference capability and environmental adaptability. It can operate reliably in harsh industrial environments with temperature fluctuations and vibration, widely applied in factory automation, process control, mechanical manufacturing and other fields requiring real-time communication.
SST-PB3-VME-2 Technical Specifications
-
Product Model: SST-PB3-VME-2
-
Product Type: PROFIBUS-DP Communication Module (BRAD COMMUNICATIONS SST Series)
-
Core Functions: PROFIBUS-DP master/slave mode support; High-speed data transmission; Real-time system monitoring; Seamless integration with industrial devices; Built-in diagnostic functions.
-
Connection & Installation: VME bus interface compliant with industrial standards; Rack-mounted installation for standard industrial enclosures; Easy wiring with standard connectors.
-
Electrical Parameters: Communication Protocol: PROFIBUS-DP; Baud Rate: Up to 12 Mbps; Node Support: Up to 126 devices; Isolation Voltage: 1000 V; Power Supply: Powered via VME slot.
-
Environmental Parameters: Operating Temperature: -40°C to 70°C; Storage Temperature: -40°C to 85°C; Relative Humidity: 5%~95% (non-condensing); Anti-vibration and anti-electromagnetic interference (EMI) capabilities.
-
Mechanical & Software Parameters: Housing Material: Industrial-grade high-strength metal; Weight: Approximately 1 kg; Supported OS & Drivers: Compatible with mainstream industrial control system software.
Recommended BRAD COMMUNICATIONS Same-Series Models
-
SST-PB3-PCU: Universal PCI bus PROFIBUS card, compatible with 3.3V/5V power supply.
-
SST-PB3-PCU-2: Dual-channel PCI bus model, supporting simultaneous multi-device communication.
-
SST-PB3-PCIE-2: PCI Express interface module, optimized for high-speed data transmission.
-
SST-PB3-104: PC/104 form factor module, space-saving for embedded control systems.
-
SST-PB3-ISA: ISA bus compatible model, suitable for legacy industrial control platforms.
-
SST-PFB3-VME-2: Enhanced PROFIBUS PCI controller, ideal for nuclear power plant applications.
-
SST-PB3-CNF-P: Parallel key configuration console, facilitating module parameter setting.
-
SST-PB3-CNF-U: USB key configuration console, supporting flexible on-site configuration.
-
SST-PB3-OPC: OPC server module, enabling data interaction with upper monitoring systems.
-
SST-PB3-VME: Single-channel VME bus model, cost-effective for basic communication needs.
-
SST-PB3-HSC: High-speed communication module, supporting baud rates up to 12 Mbps stably.
-
SST-PB3-RT: Real-time optimized model, reducing data transmission latency for critical control scenarios.
-
SST-PB3-RED: Redundant design module, ensuring uninterrupted communication in key systems.
-
SST-PB3-DIAG: Diagnostic-focused module, providing real-time fault monitoring and alarm functions.
-
SST-PB3-MUX: Multi-channel multiplexing module, expanding device connection capacity.
