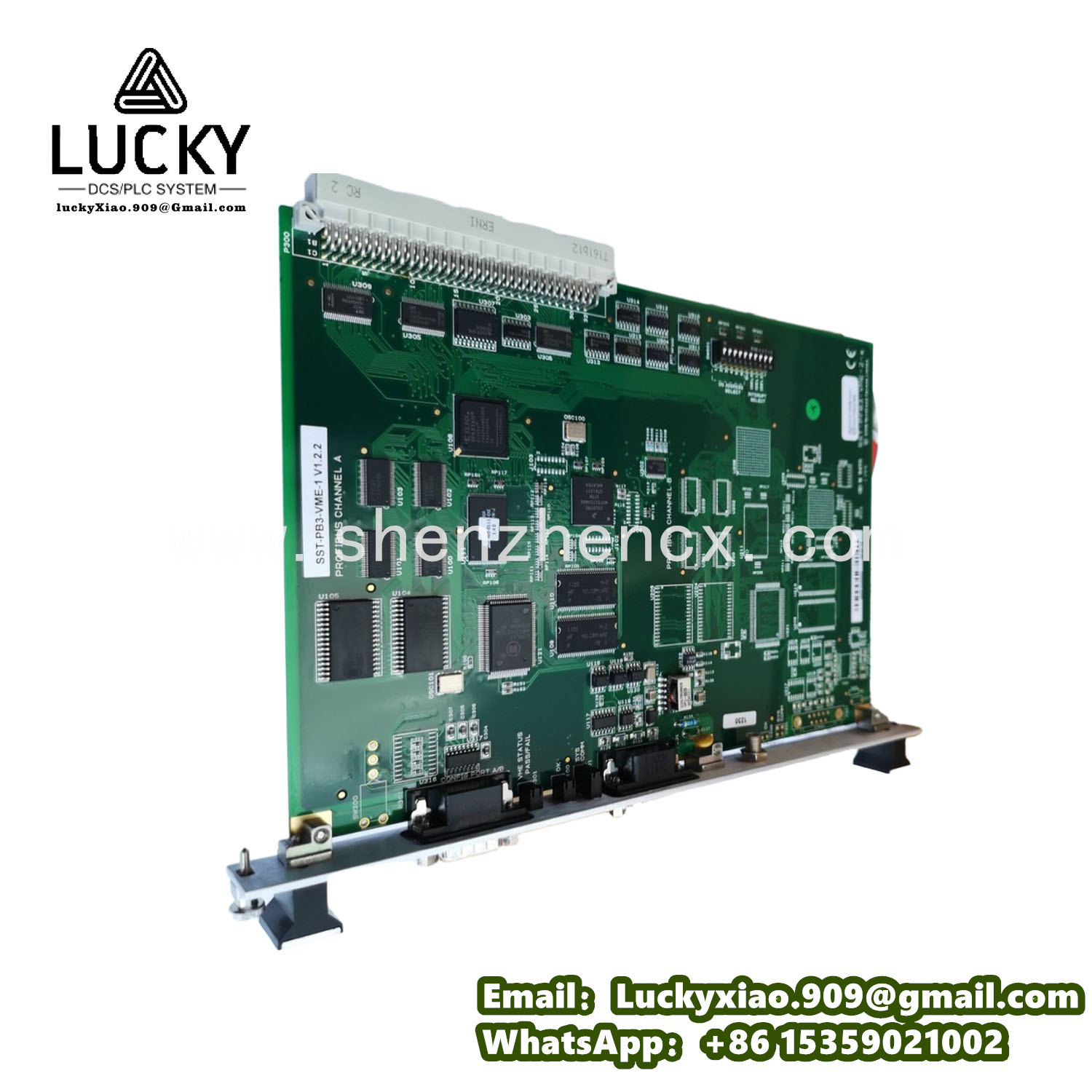

Introduction to Molex SST-PFB3-VME-1-E
SST-PFB3-VME-1-E Product Introduction
Molex SST-PFB3-VME-1-E is a high-reliability PROFIBUS DP communication module, a core offering of the brand’s SST-PFB3 series. Tailored for VMEbus-based industrial control systems, it acts as a stable bridge for data transmission between central control units and PROFIBUS DP field networks. Supporting both master and slave modes, the module integrates seamlessly with field devices like sensors, actuators and PLCs. Equipped with a high-performance 32-bit processor and built-in flash memory, it guarantees stable cyclic and acyclic data transfer at baud rates up to 12 Mbps. Its industrial-grade rugged construction enhances anti-electromagnetic interference capability and environmental adaptability, enabling reliable operation in harsh industrial conditions with temperature fluctuations and vibration. It is widely applied in factory automation, process control and manufacturing test systems.
SST-PFB3-VME-1-E Technical Specifications
-
Product Model: SST-PFB3-VME-1-E
-
Product Type: PROFIBUS DP Communication Module (Molex SST-PFB3 Series)
-
Core Functions: Supports PROFIBUS DP master/slave modes; Enables cyclic and acyclic data transfer; Compatible with VMEbus; Built-in self-diagnostic function; RoHS compliant; Ensures stable industrial data transmission.
-
Connection & Installation: VMEbus interface (compliant with revision 2.0/3.0); 6U VME standard form factor; Single PROFIBUS DP channel; Equipped with standard industrial connectors for easy wiring and maintenance.
-
Electrical Parameters: Baud Rate: 9.6 kbaud ~ 12 Mbps; Power Consumption: Approximately 5 W (powered via VME slot); EMC Compliance: Meets EN 50081-1 and EN 50082-2 standards.
-
Environmental Parameters: Operating Temperature: 0°C ~ 60°C; Storage Temperature: -40°C ~ 85°C; Relative Humidity: 5% ~ 95% (non-condensing); Vibration: 5 g RMS (10-500 Hz); Shock: 30 g (11 ms half-sine).
-
Mechanical & Software: Housing made of industrial-grade high-strength metal; Compatible with mainstream industrial control system software.
Recommended Molex Same-Series Models
-
SST-PFB3-VME-2: Dual-channel module optimized for high-density VMEbus deployment scenarios.
-
SST-PFB3-PCI: PCI bus-compatible card supporting master/slave operation and FMS communication.
-
SST-PFB3-104: Compact PC/104 form factor for embedded control system integration.
-
SST-PFB3-PCIE: PCI Express interface enabling high-speed PROFIBUS data transmission.
-
SST-PFB3-CNF-U: USB configuration console for on-site parameter setting and debugging.
-
SST-PFB3-OPC: OPC server module for data interaction with upper monitoring systems.
-
SST-PFB3-RT: Real-time optimized model reducing data transmission latency for critical applications.
-
SST-PFB3-RED: Redundant design ensuring uninterrupted communication in key systems.
-
SST-PFB3-DIAG: Diagnostic-focused module providing real-time fault monitoring and alarm.
-
SST-PFB3-MUX: Multi-channel multiplexing expanding field device connection capacity.
-
SST-PFB3-EP: Enhanced protection with reinforced anti-interference and anti-vibration performance.
-
SST-PFB3-S: Cost-effective simplex version for basic communication needs.
-
SST-PFB3-HW: Hardware-optimized module improving data processing efficiency.
-
SST-PFB3-SW: Software-customizable model adapting to diverse application requirements.
-
SST-PFB3-LP: Low-power consumption module suitable for energy-saving industrial systems.
