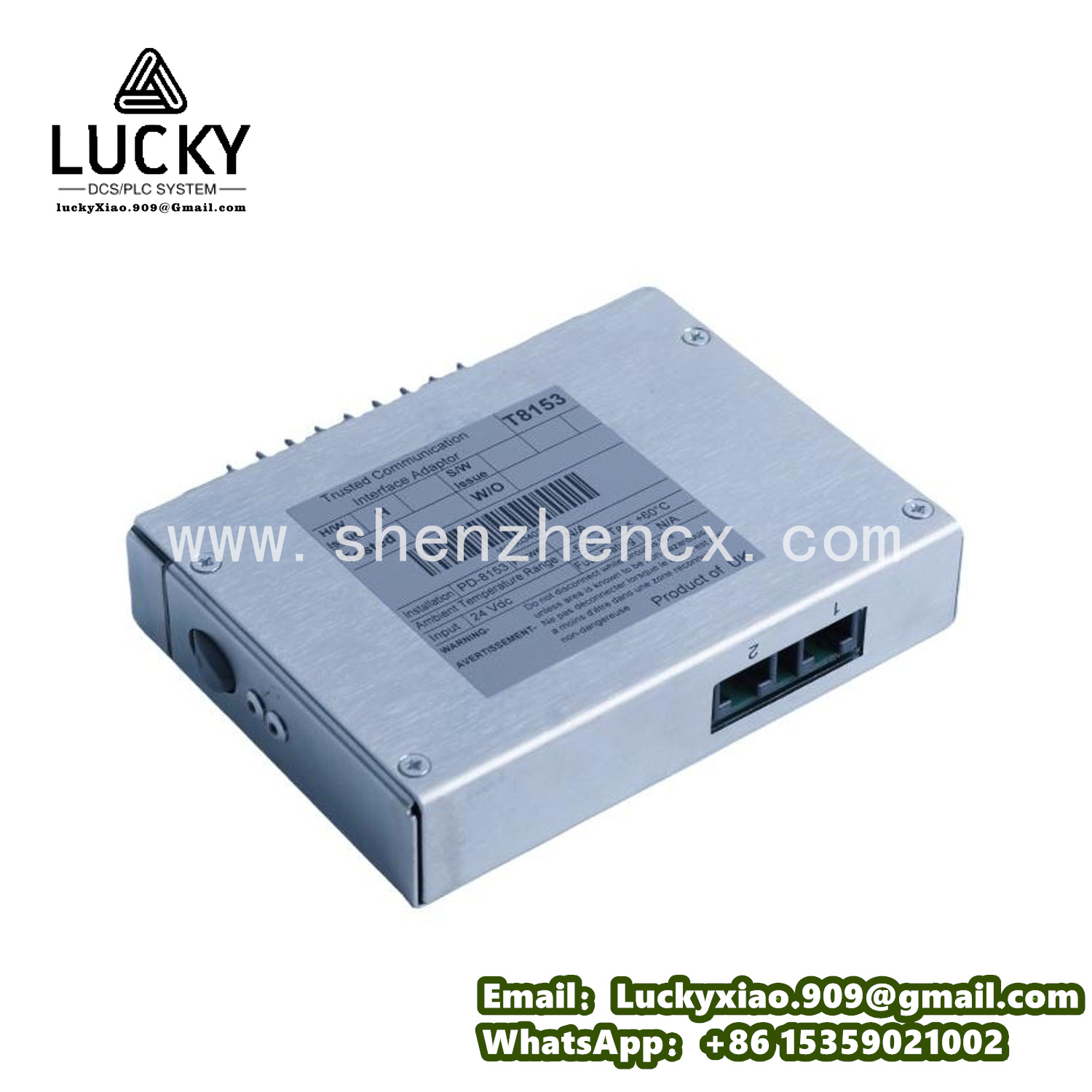

ICS TRIPLEX T8153 Safety Controller Module
1. Product Overview
ICS TRIPLEX T8153 is a compact yet powerful safety controller designed for mid-scale industrial safety systems. As a key member of the T8000 series, the T8153 acts as the “decision-maker”—it collects data from input modules (like temperature or pressure sensors), analyzes it against safety rules, and sends precise commands to output modules to prevent hazards. Widely used in chemical plants, pharmaceutical facilities, and power plant auxiliaries, the T8153 ensures reliable safety control without the complexity of larger controllers.
Key advantages of the T8153:
-
Multi-Loop Control: The T8153 handles up to 16 independent safety loops, eliminating the need for multiple small controllers.
-
SIL 3 Compliance: Qualified for safety-critical applications where failure could lead to personnel injury or process downtime.
-
Fast Response: Processes data in ≤1ms, ensuring timely actions to avoid hazards.
-
Easy Programming: Works with TRISTATION 1131 software, using intuitive logic blocks that reduce setup time.
2. Key Technical Specifications
|
Specification Category
|
Details (T8153)
|
|---|---|
|
Typical Applications
|
Batch reactor control, conveyor safety, pharmaceutical process safety, power plant auxiliary systems
|
|
Safety Rating
|
IEC 61508 SIL 3; IEC 61511 SIL 3; Compatible with T8000 series I/O modules
|
|
Processing Capacity
|
Up to 16 safety loops; 10,000 logic instructions; Supports 512 I/O points max
|
|
Communication
|
Backplane communication with T8000 I/O modules; RS485 for external devices; Ethernet (Modbus TCP/IP optional)
|
|
Performance
|
Processing speed: ≤1ms per loop; Logic execution time: 0.1µs per instruction; Data update rate: 1ms
|
|
Diagnostic Features
|
Module self-test; I/O fault detection; Communication error alerts; Fault logging with time stamp
|
|
Power Supply
|
24V DC ±20% (redundant input support); Power consumption: ≤15W (full load)
|
|
Environmental Conditions
|
Operating temperature: -40℃–+75℃; Relative humidity: 5%–95% (no condensation); Vibration resistance: 10G (11ms)
|
|
Physical Specifications
|
Dimensions: 160mm×100mm×35mm (L×W×H); Weight: ~350g; Mounting: T8000 standard rack (1 slot)
|
3. System Integration Guide for T8153
Integrating the T8153 into your safety system is straightforward, thanks to its plug-and-play design and compatibility with ICS TRIPLEX T8000 components. Follow these steps to get the T8153 up and running quickly.
3.1 Step-by-Step Integration
-
Safety Preparation: Implement Lockout/Tagout (LOTO) on the T8000 rack and all connected I/O modules. Never work on the T8153 while the system is powered.
-
Mount: Insert the T8153 into the controller slot of the T8000 rack. Push firmly until it clicks, then secure with screws to resist vibration.
-
Connect I/O Modules: Install input modules (e.g., T8314 for temperature) and output modules (e.g., T8403C for valves) in adjacent I/O slots.
-
The T8153 automatically detects T8000 modules via the backplane—no extra wiring needed for communication.
-
Wire Power & External Devices: Connect 24V DC power to the T8153’s redundant power inputs (for reliability).
-
Link external HMI or DCS to the T8153’s Ethernet/RS485 port for monitoring.
-
Configure : Launch TRISTATION 1131 software and detect the T8153 via the rack backplane.
-
Define safety logic (e.g., “If T8314 temperature > 150℃, trigger T8403C to close valve”).
-
Set up fault alerts (e.g., email notification if the T8153 detects an I/O error).
-
Test the T8153: Power on the system—confirm the T8153’s “Power OK” and “Com OK” LEDs are green.
-
Simulate a fault (e.g., heat a sensor above the limit) and verify the T8153 triggers the correct action.
-
Check the fault log to ensure events are recorded accurately.
4. Recommended ICS TRIPLEX Related Models
Pair the T8153 with these complementary products to build a complete, reliable safety system:
|
Model
|
Series
|
Key Features & Synergy with T8153
|
|---|---|---|
|
ICS TRIPLEX T8314
|
T8000 I/O Series
|
16-channel analog input module. Collects temperature/pressure data and sends it to the T8153 for analysis.
|
|
ICS TRIPLEX T8403C
|
T8000 I/O Series
|
8-channel analog output module. Executes commands from the T8153 (e.g., adjusting valves or pumps).
|
|
ICS TRIPLEX T8850
|
T8000 I/O Series
|
16-channel digital I/O module. Handles emergency stops and alarms for the T8153 in mixed safety loops.
|
|
ICS TRIPLEX T9400
|
T9000 Controller Series
|
High-performance controller. For large systems, the T9400 coordinates multiple T8153 units for centralized control.
|
|
ICS TRIPLEX T7100
|
T7000 Gateway Series
|
Communication gateway. Enables the T8153 to connect with third-party DCS (e.g., Siemens PCS 7) via Profinet.
|
|
ICS TRIPLEX T8461C
|
T8000 I/O Series
|
16-channel analog output module. Expands the T8153’s output capacity for systems with multiple actuators.
|
|
ICS TRIPLEX TRISTATION 1131
|
Software Series
|
Configuration tool. Essential for programming the T8153’s logic, monitoring performance, and troubleshooting.
|
|
ICS TRIPLEX T8000 Rack
|
T8000 Hardware Series
|
Standard rack for the T8153 and T8000 I/O modules. Provides secure mounting and backplane communication.View more.
|
