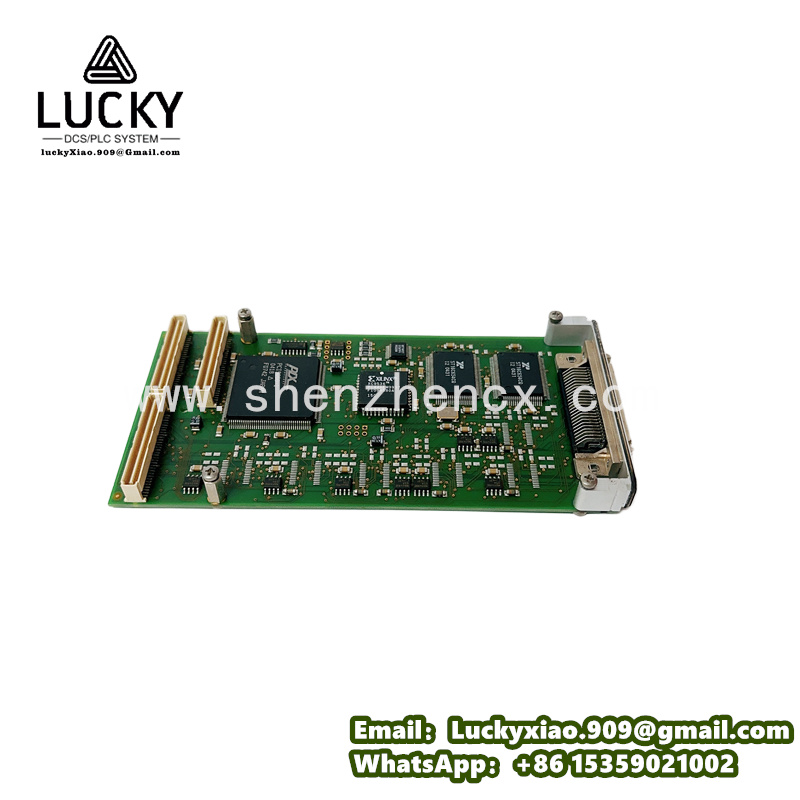

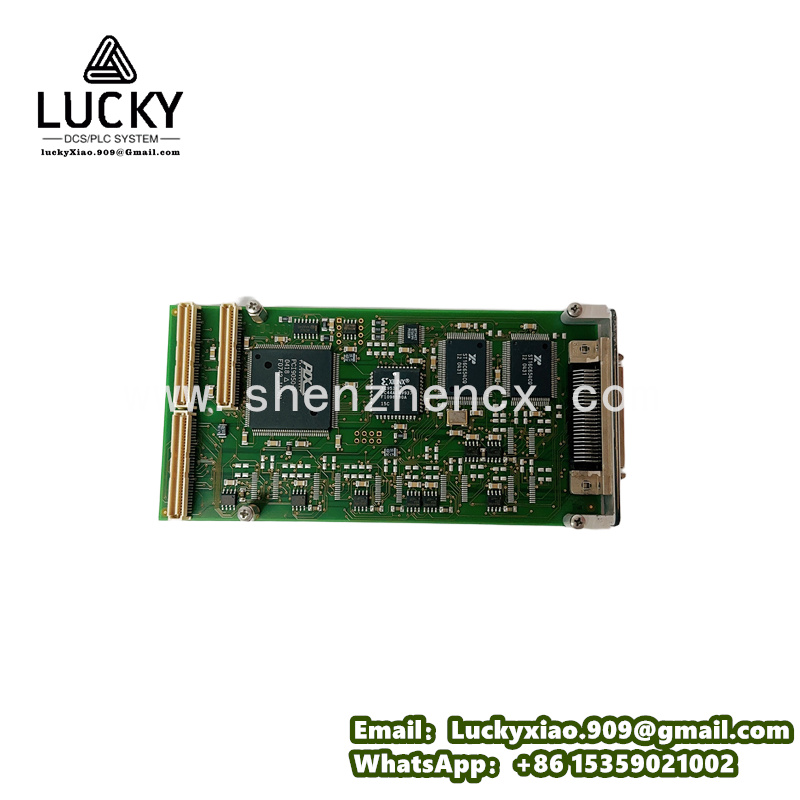

TEWS TPMC866-11 Product Specification
1. Product Overview
The TEWS TPMC866-11 is a high-performance PCI Express (PCIe) Gen 2 x1 synchronous serial communication module engineered for industrial embedded and real-time systems. Specialized in reliable, deterministic data exchange via industry-standard serial protocols, it serves as a critical connectivity solution for applications such as aerospace telemetry, industrial process control, and defense electronics. By combining multi-protocol support with rugged design and precise synchronization, this module ensures stable communication in mission-critical environments where data integrity and timing accuracy are paramount.
Compliant with international standards including PCIe Base Specification 2.0, EN 61000-6-2 (industrial EMC), and IEC 61508 (SIL 2), the TPMC866-11 features galvanic isolation, wide temperature adaptability, and seamless OS integration. It supports major real-time operating systems (RTOS) and provides a comprehensive software development kit (SDK), offering engineers a flexible and cost-effective solution for complex serial communication tasks.
2. Technical Parameters & Specifications
|
Category
|
Details
|
|
Product Model
|
TEWS TPMC866-11
|
|
Product Type
|
PCIe Gen 2 x1 Synchronous Serial Communication Module
|
|
PCIe Compliance
|
PCIe Base Specification 2.0; Gen 2 x1 Lane Configuration
|
|
Serial Ports
|
4 Channels; RS-422/RS-485; Full-Duplex/Half-Duplex Configurable
|
|
Data Rate
|
Up to 10 Mbps per Channel
|
|
Synchronization
|
External Clock Input (0–10 MHz); Internal Clock (±50 ppm Accuracy)
|
|
Data Buffering
|
16 KB FIFO per Channel (Tx/Rx Separate)
|
|
Isolation
|
2.5 kV DC (Port-to-Ground); 1 kV DC (Channel-to-Channel)
|
|
Signal Levels
|
RS-422/RS-485; Differential Voltage ±2 V to ±6 V
|
|
Power Consumption
|
Typical: 6 W; Maximum: 8 W (12 V DC from PCIe Slot)
|
|
Environmental Ratings
|
Operating Temp: -40°C–85°C; Humidity: 5%–95% (Non-Condensing); Vibration: 10–2000 Hz, 10 g
|
|
Certifications
|
PCIe 2.0; IEC 61508 (SIL 2); EN 61000-6-2; UL 60950-1; CE; RoHS
|
3. Key Features
3.1 Multi-Protocol Serial Communication
The module features 4 configurable RS-422/RS-485 channels, supporting both full-duplex and half-duplex operation to adapt to diverse industrial communication needs. With a maximum data rate of 10 Mbps per channel, it enables high-speed data transmission for applications like real-time sensor data collection and remote equipment control.
3.2 Precise Synchronization Capability
Equipped with external clock input (0–10 MHz) and high-accuracy internal clock (±50 ppm), the TPMC866-11 ensures precise synchronization across multiple serial channels and distributed modules. This is critical for applications like aerospace telemetry and industrial process control, where timing consistency directly impacts data integrity.
3.3 Robust Data Integrity
Each channel is equipped with 16 KB separate Tx/Rx FIFO buffers, preventing data loss during peak traffic periods. The module also integrates error detection mechanisms (parity check, frame error detection) to ensure reliable data transmission, reducing the risk of communication failures in harsh industrial environments.
3.4 Rugged Design & Safety Compliance
With 2.5 kV DC galvanic isolation and enhanced EMC performance, the module resists electromagnetic interference and voltage surges common in industrial settings. Its ruggedized design withstands extreme temperatures (-40°C–85°C) and high vibration, while SIL 2 certification ensures compliance with safety standards for critical control systems.
4. Related TEWS Products
-
TEWS TPMC866-21: 8-channel synchronous serial module with extended temperature range (-55°C–125°C) for aerospace applications.
-
TEWS TPMC867-11: Asynchronous serial module (RS-232/RS-422/RS-485) with 8 channels, ideal for legacy equipment communication.
-
TEWS TIP810-10R: Redundant PCIe interface module, perfect for pairing with TPMC866-11 in fault-tolerant systems.
-
TEWS TPM100-01: Timing and synchronization module, enhancing clock accuracy for TPMC866-11-based distributed systems.
-
TEWS SDK-Serial: Software development kit, providing drivers and APIs for configuring TPMC866 series modules on Linux, VxWorks, and Windows Embedded.
