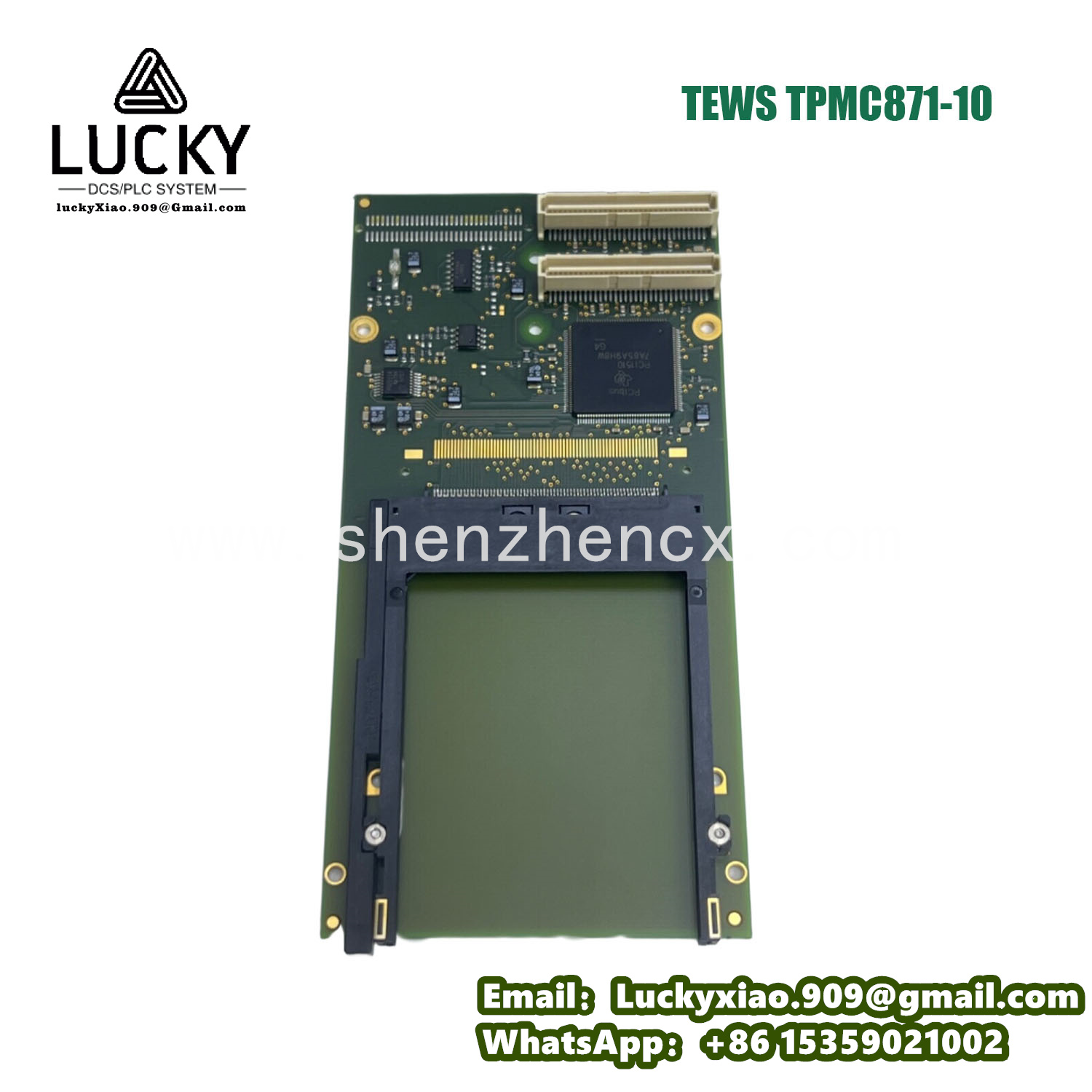

TEWS TPMC871-10 Product Specification
1. Product Overview
The TEWS TPMC871-10 is a highly integrated PCI Express (PCIe) Gen 2 x1 multifunctional I/O module designed for industrial embedded and real-time systems. It consolidates analog input (AI), analog output (AO), digital I/O (DIO), and counter/timer functions in a single board, serving as a versatile data acquisition and control solution. Widely applied in aerospace testing, industrial process monitoring, and automotive electronics, this module simplifies system architecture while ensuring reliable performance in mission-critical environments.
Compliant with international standards including PCIe Base Specification 2.0, IEC 61508 (SIL 2), and EN 61000-6-2 (industrial EMC), the TPMC871-10 features high measurement accuracy, galvanic isolation, and wide environmental adaptability. It seamlessly integrates with major embedded operating systems (Linux, VxWorks, Windows Embedded) via a dedicated SDK, offering engineers a cost-effective and flexible I/O solution.
2. Technical Parameters & Specifications
|
Category
|
Details
|
|
Product Model
|
TEWS TPMC871-10
|
|
Product Type
|
PCIe Gen 2 x1 Multifunctional I/O Module (SIL 2 Certified)
|
|
PCIe Compliance
|
PCIe Base Specification 2.0; Gen 2 x1 Lane Configuration
|
|
Analog Input (AI)
|
8 Channels, 16-bit Resolution; ±10 V DC Range; Accuracy ±0.01% FS
|
|
Analog Output (AO)
|
4 Channels, 16-bit Resolution; 0–10 V DC Range; Load ≤1 kΩ
|
|
Digital I/O (DIO)
|
16 Channels (Configurable Input/Output); 24 V DC; 200 mA per Channel
|
|
Counter/Timer
|
2 Channels; 32-bit; Frequency Range 0–1 MHz
|
|
Isolation
|
AI/AO: 2.5 kV DC; DIO: 500 V DC (Channel-to-Ground)
|
|
Power Consumption
|
Typical: 8 W; Maximum: 12 W (12 V DC from PCIe Slot)
|
|
Environmental Ratings
|
Operating Temp: -40°C–85°C; Humidity: 5%–95% (Non-Condensing); Vibration: 10–2000 Hz, 10 g
|
|
Certifications
|
PCIe 2.0; IEC 61508 (SIL 2); EN 61000-6-2; UL 60950-1; CE; RoHS
|
3. Key Features
3.1 Integrated Multifunctional Design
Combining 8 AI, 4 AO, 16 DIO, and 2 counter/timer channels eliminates the need for multiple single-function boards. This integration reduces PCIe slot usage, lowers system power consumption, and simplifies wiring—critical for compact embedded systems like portable test equipment and onboard controllers.
3.2 High-Precision Measurement & Control
16-bit analog channels deliver ±0.01% full-scale accuracy for AI measurements, ensuring precise capture of temperature, pressure, and flow variables. AO channels provide stable output with low noise (≤10 mVpp), enabling fine control of valves, motors, and other actuators in precision manufacturing.
3.3 SIL 2 Safety & Isolation
SIL 2 certification and built-in fault detection (e.g., AI open-circuit monitoring) ensure compliance with industrial safety standards. 2.5 kV DC isolation for analog channels prevents electrical interference, protecting the host system from voltage surges caused by faulty field devices.
3.4 Rugged Industrial Reliability
Engineered to withstand extreme temperatures (-40°C–85°C) and high vibration, the module operates reliably in harsh environments like oilfield monitoring and aerospace ground support. Industrial-grade components and rugged PCB design ensure a mean time between failures (MTBF) of over 500,000 hours.
4. Related TEWS Products
-
TEWS TPMC871-20: Enhanced model with 16 AI/8 AO channels and 32 DIO, for high-channel-count applications.
-
TEWS TPMC831-10: 32-channel analog input module, specialized for high-density data acquisition systems.
-
TEWS TPMC841-10: 64-channel digital I/O module with 1 A per channel, for heavy-duty industrial control.
-
TEWS TIP866-10: High-speed serial communication module, ideal for pairing with TPMC871-10 in distributed systems.
-
TEWS SDK-IO: Comprehensive software kit with drivers and APIs for configuring TPMC series modules on major OS.
