Brief Introduction to Woodward 5466-1035 Control Module
1. Product Description

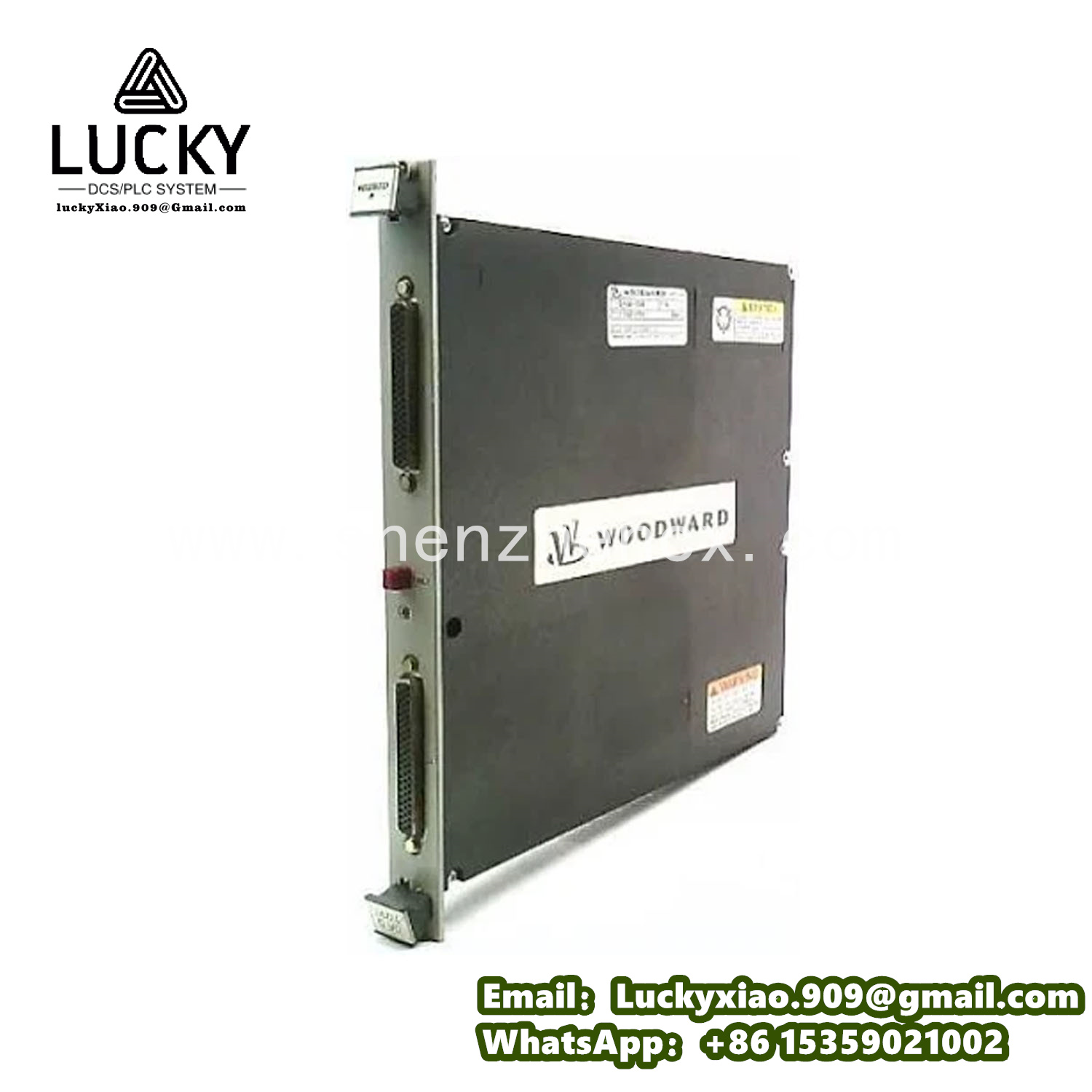

The Woodward 5466-1035 is a compact, reliable control module designed for engine and turbine speed control in industrial applications. It mainly regulates the speed of engines, turbines, and other rotating equipment to keep them running at a stable setpoint—critical for safe and efficient operation in power generation, oil & gas, and marine sectors. With a user-friendly design, it’s easy to install and configure, and built to withstand tough industrial environments (like high temperature or vibration). It works seamlessly with sensors and actuators, making it a practical choice for both new installations and equipment upgrades.
2. Technical Specifications
- Power Supply: 24 V DC (18–32 V DC, wide input range for industrial stability)
- Control Function: Primary speed control for engines/turbines
- Speed Input: Accepts magnetic pickup (MPU) signals (typical 60 Hz at rated speed)
- Output Signal: 4–20 mA analog output (for actuator control, e.g., fuel valve)
- Operating Temperature: -40°C to +70°C (suitable for harsh on-site conditions)
- Dimensions: Compact size (approx. 100 mm × 80 mm × 40 mm) for easy cabinet mounting
- Protection Features: Short-circuit protection for inputs/outputs
- Accuracy: ±0.1% speed regulation (ensures stable equipment operation)
3. System Introduction
The 5466-1035 is part of Woodward’s “Industrial Control Series”—a lineup focused on simple, effective control of rotating machinery. This system typically includes the control module, speed sensors (MPUs), actuators (fuel valves), and basic configuration tools. It’s designed for small to medium-sized engines/turbines (e.g., diesel generators, small gas turbines) where precise speed control is needed without complex programming. The module collects speed data from sensors, compares it to the setpoint, and adjusts the actuator (e.g., fuel supply) to maintain stable speed. It’s widely used in backup power generators, industrial pumps, and marine auxiliary engines, where downtime must be minimized.
4. Recommended Related Models in the Same Series
- Woodward 5466-1036: Similar speed control module with dual speed setpoints (for switchable operation modes, e.g., high/low speed).
- Woodward 5466-1037: Adds load sharing capability (for parallel operation of multiple generators).
- Woodward 5466-1038: Enhanced version with digital communication (Modbus RTU) for remote monitoring and configuration.
- Woodward 5466-1039: Ruggedized model with IP65 protection (for outdoor or dusty environments like construction sites).
- Woodward 5466-1040: Higher output current (1 A) to drive larger actuators (e.g., heavy-duty fuel valves).
- Woodward 5466-1041: Combines speed control and overspeed protection (adds safety shutdown function for critical equipment).
- Woodward 5466-1042: Low-voltage version (12 V DC power supply) for marine or mobile equipment (e.g., boat engines, portable generators).
- Woodward 5466-1043: Analog + digital input module (accepts both MPU and 4–20 mA speed signals) for flexible system integration.
