Introduction to WOODWARD 5466-409
5466-409 Product Overview

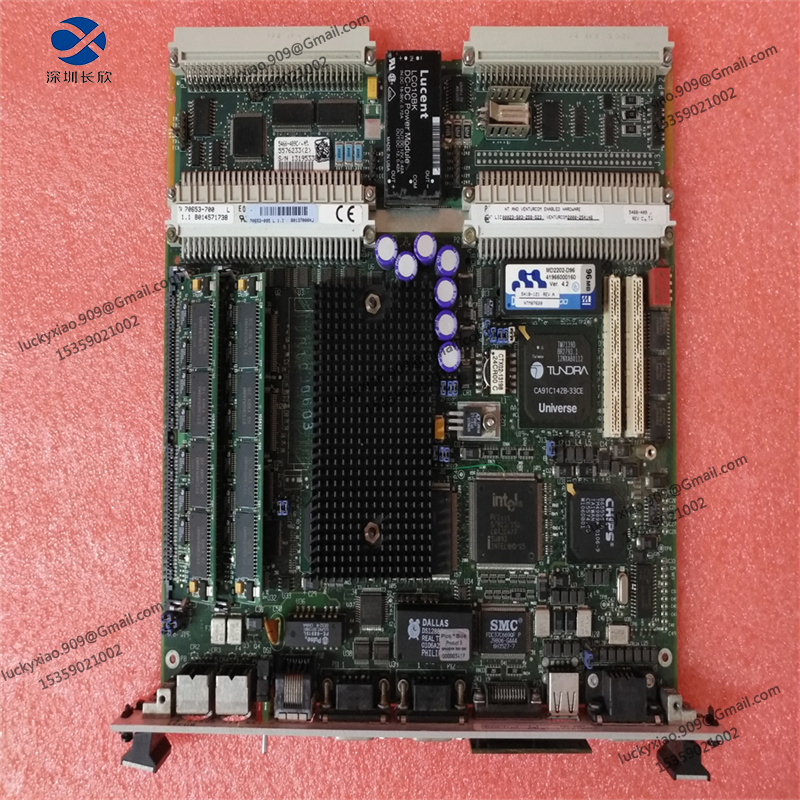

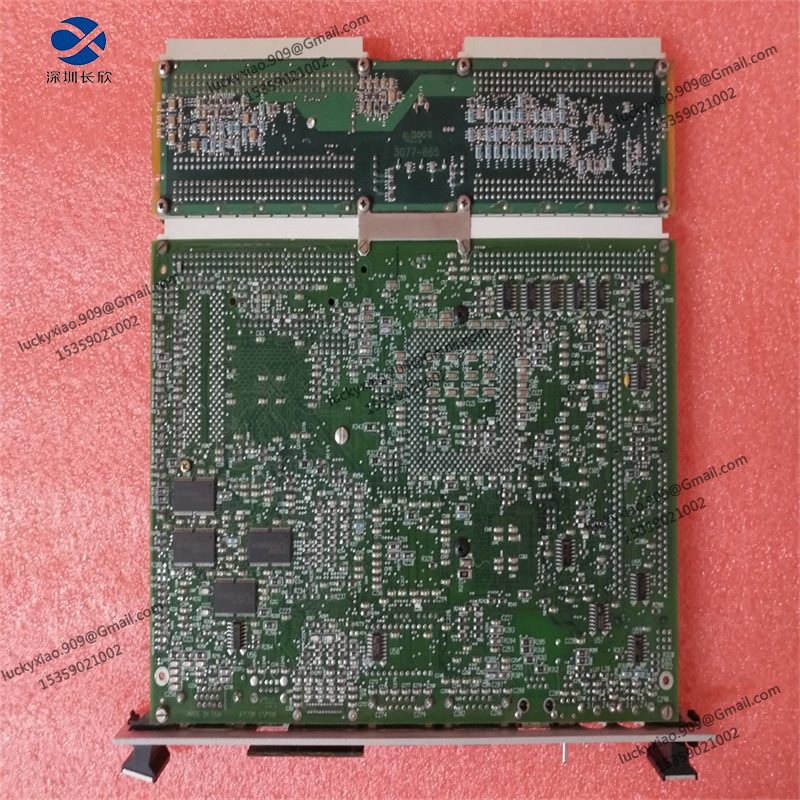

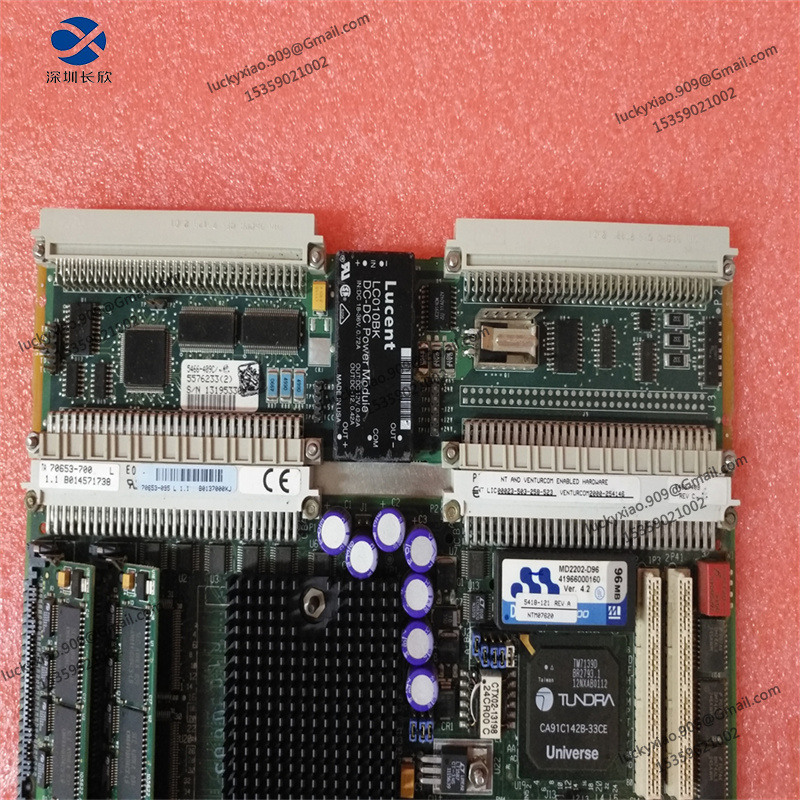

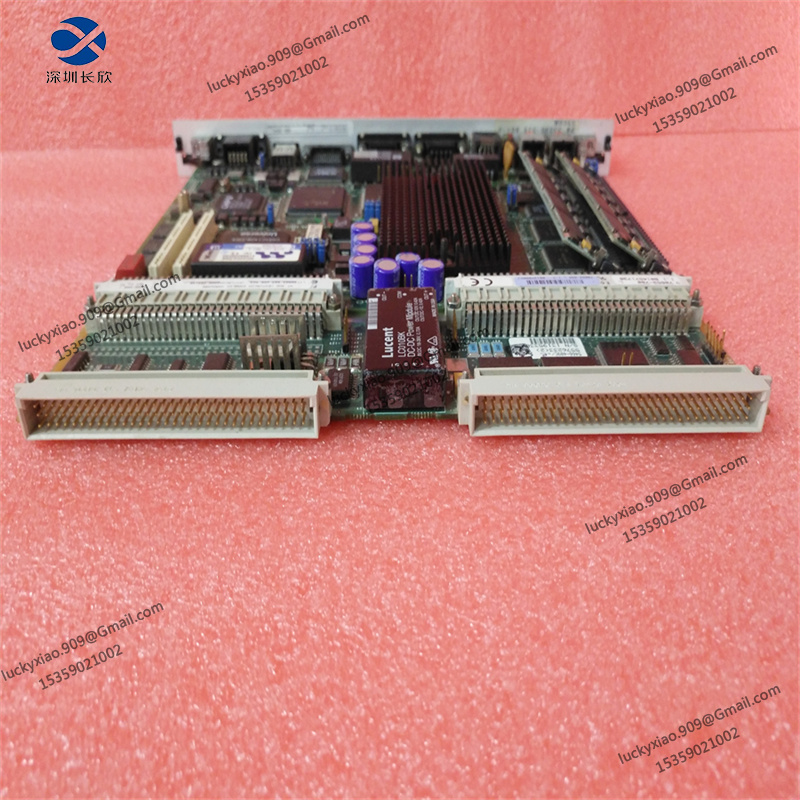

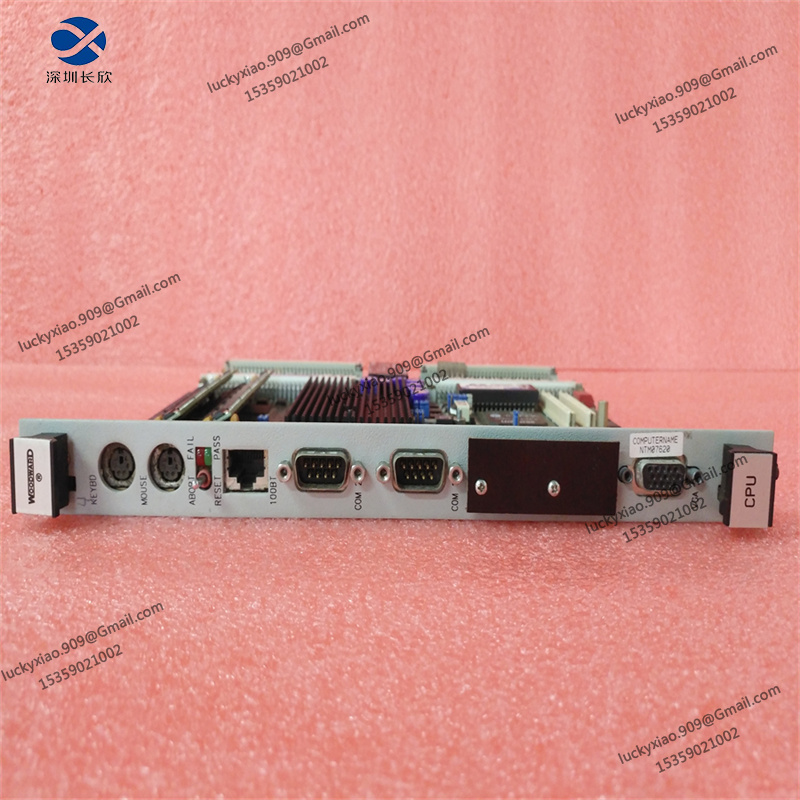

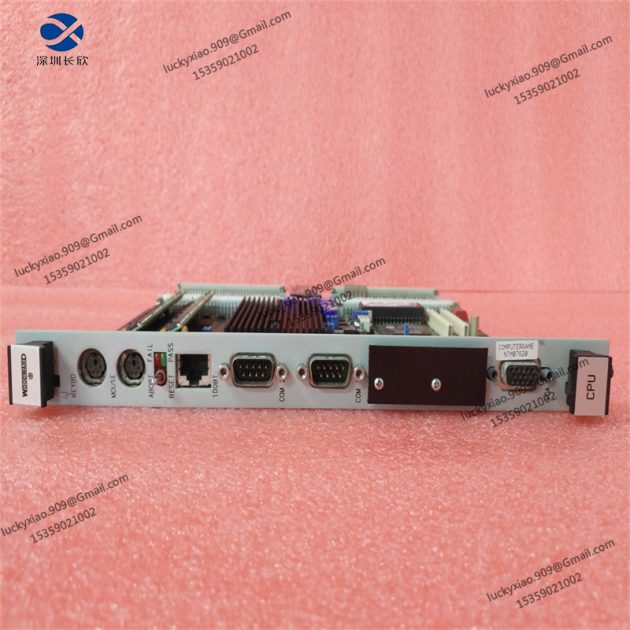

The WOODWARD 5466-409 is a high-reliability speed control motherboard, a key component of the brand’s MicroNet digital control series tailored for industrial turbine and generator systems. It integrates advanced PID control algorithms, high-sensitivity signal processing, and built-in overspeed protection to deliver precise speed regulation for gas/diesel engines, steam turbines, and turbogenerators. Widely applied in power plants, oil & gas fields, and marine propulsion systems, it stabilizes generator speeds in thermal power units, controls compressor rotation rates in oil pipelines, and ensures steady operation of ship engines. Its robust design features military-grade components, optical electrical isolation, and resistance to 200V common-mode voltage, effectively reducing noise interference and adapting to high-vibration industrial environments. Fully compatible with WOODWARD 505E governors, it supports Modbus communication for seamless integration into DCS/PLC systems, enabling remote setpoint adjustment and real-time fault diagnosis to enhance operational reliability.
5466-409 Technical Specifications
-
Product Type: Industrial speed control motherboard (MicroNet series)
-
Core Functions: PID-based speed regulation, electronic overspeed trip, local/remote setpoint control, fault self-diagnosis
-
Application Compatibility: Gas/diesel engines, steam turbines, turbogenerators, oil pipeline compressors, marine propulsion systems
-
Input Configuration: 2-22mA remote setpoint signal; multiple monitoring channels for speed and status parameters
-
Output Configuration: Actuator control signals; real-time status feedback; fault alarm relay outputs
-
Control Performance: Speed regulation accuracy ±0.1%; remote setpoint response time <50ms; automatic RSS inhibition on signal faults
-
User Interface: Front-panel keypad for parameter setting; status indicator lights for operational modes
-
Communication Interface: Modbus protocol; supports data exchange with DCS/PLC systems
-
Power Supply: Isolated +24VDC (from PLC power supply); stable power conversion design
-
Operating Environment: Temperature -20°C to +70°C; humidity 0-95% (non-condensing); NEMA 4X environmental rating
-
Physical Traits: DIN rail mountable; multi-channel design; optical isolation for on-site wiring
-
Certifications: Industrial control safety certified; compliant with relevant IEC standards
Recommended WOODWARD Related Models
-
WOODWARD 505E: Advanced turbine governor that pairs with the 5466-409 for comprehensive speed and load control.
-
WOODWARD 9907-164: 505 series control module that coordinates with the motherboard for turbine speed regulation.
-
WOODWARD ProTech TPS: Turbine protection system that works with the 5466-409 to enhance overspeed safety redundancy.
-
WOODWARD Varistroke-DX: Electro-hydraulic actuator that executes speed control signals from the motherboard.
-
WOODWARD 2301A: Cost-effective governor that complements the 5466-409 in small-scale generator sets.
-
WOODWARD 5466-355: Remote transceiver module that transmits the motherboard’s data in distributed control systems.
-
WOODWARD 8237-1597: Digital signal regulator that optimizes input signals for the 5466-409.
-
WOODWARD APECS® 4500: Engine control module that integrates the motherboard’s speed data for CHP system optimization.
-
WOODWARD DPG 2200: Generator paralleling controller that uses the 5466-409’s signals to balance grid load.
-
WOODWARD K-Series Actuators: Electric throttle units that respond to the motherboard’s speed control commands.
-
WOODWARD 1712 EPG: All-in-one governing system that incorporates speed control functions similar to the 5466-409.
-
WOODWARD 5009 TMR: Triple-redundant controller that monitors the motherboard’s output for critical turbine safety.
-
WOODWARD LinkNet-HT: Distributed I/O module that expands the 5466-409’s monitoring range.
-
WOODWARD 9907-1200: Current-pressure converter that translates the motherboard’s signals to hydraulic valve control.
-
WOODWARD 8200-1312: Digital control module that pairs with the 5466-409 for multi-loop speed regulation.
