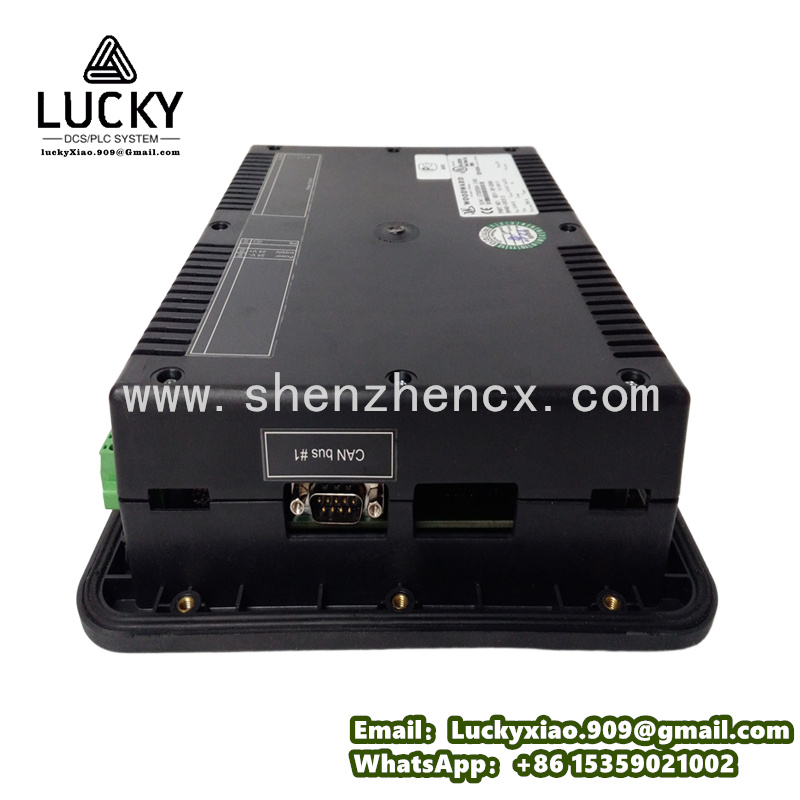

Detailed Introduction to WOODWARD 8446-1019 Digital Control Module
1. Product Description
The WOODWARD 8446-1019 is a high-precision, modular digital control module belonging to Woodward Inc.’s renowned 8400 Series—a flagship product line specialized in precision speed regulation and process control for industrial rotating machinery. Engineered as a versatile “control core” for gas turbines, steam turbines, compressors, and marine propulsion systems, this module integrates advanced microprocessor-based algorithms to deliver real-time speed control, load sharing, and critical safety protection across power generation, oil & gas, petrochemical, and maritime sectors .
Distinguished by its dual-function design (combining speed governing with expandable I/O capabilities), the 8446-1019 resolves the industry challenge of balancing precision and flexibility. Unlike fixed-function regulators, its modular architecture supports seamless integration with Woodward’s 505 Series turbine controllers or third-party DCS systems, while its IP65-rated aluminum/magnesium enclosure ensures reliability in harsh environments—from desert oil fields to offshore drilling platforms . A key advantage is its multi-protocol compatibility: with built-in Modbus and CANbus communication, it enables remote monitoring via SCADA systems, reducing on-site maintenance costs for geographically dispersed assets .
The module also excels in adaptive control: its ±0.1% speed regulation accuracy and <10ms response time ensure stable operation even amid fluctuating loads (e.g., sudden changes in power grid demand or compressor pressure). Integrated fault diagnostics and user-configurable alarms further minimize downtime by enabling predictive maintenance . Certified to UL and CE standards, it is a trusted component in both standalone machinery and large-scale industrial control networks.
2. Product Technical Specifications
|
Specification Category
|
Details
|
|
Core Control Capabilities
|
– Primary Functions: Speed regulation (PID-based), power output control, multi-unit load sharing, process cascade control- Protection Features: Overspeed trip (programmable setpoint), overload protection, stall detection, under/overvoltage shutdown- Control Resolution: 0.01 RPM for speed adjustment; 0.1% full-scale for power control
|
|
Electrical Parameters
|
– Power Supply: 12/24 VDC (wide input range: 8-40 VDC) for flexible deployment- Power Consumption: Typical 9-12 W; 120 mA current draw at 24 VDC
|
|
Input/Output (I/O) Interfaces
|
– Analog Inputs: Pulse signal inputs (for speed sensors); configurable 4-20 mA/0-10 V channels for process feedback- Analog Outputs: 0-10 V DC and 4-20 mA signals for actuator control (e.g., fuel valves, governors)- Digital I/O: Expandable discrete channels for start/stop commands, emergency trips, and status indicators- Communication: Modbus RTU, CANbus; supports integration with PLC/DCS/SCADA systems
|
|
Performance Metrics
|
– Speed Regulation Accuracy: ±0.1% of rated speed (steady-state)- Response Time: <10 ms to load/speed disturbances- Insulation: 40 VDC continuous; 100 VDC test voltage (1 second)- Overvoltage Tolerance: 80 VDC for up to 2 minutes
|
|
Physical & Environmental
|
– Dimensions: 229 mm (W) × 178 mm (H) × 45 mm (D) (chassis-mountable)- Weight: 1.0 kg- Operating Temperature: -40°C to 85°C (extreme temperature adaptation)- Humidity: 5%-95% RH (non-condensing)- Protection Rating: IP65 (dust/water ingress resistance)- Elevation Limit: Up to 2,000 m above sea level
|
|
Reliability & Compliance
|
– Certifications: UL Listed, CE (EMC compliance)- Component Grade: Industrial-grade components (extended lifecycle)- Fault Logging: Built-in diagnostic memory for event tracking
|
3. Usage Instructions
3.1 Installation & Setup
- Pre-Installation Checks
-
- Verify compatibility with target machinery (e.g., gas turbine speed range, actuator signal type) and confirm part number 8446-1019 matches the system BOM.
-
- Inspect for shipping damage (e.g., cracked enclosure, bent pins) and ensure all labeling (voltage rating, serial number) is intact.
-
- Prepare tools: Torque screwdriver (0.5-1.5 N·m), ESD wristband, shielded sensor cables (22 AWG), and Woodward-approved wiring harness.
- Mechanical Mounting
-
- Location: Install in a chassis slot (compatible with Woodward control cabinets) or panel-mount in a dry, dust-free environment. Maintain 50 mm clearance for ventilation.
-
- Securing: Fasten via chassis rails or M4 screws torqued to 1.0 N·m; ensure the front interface is accessible for wiring and configuration .
- Wiring Connections
-
- Power Wiring: Connect 12/24 VDC (positive to terminal V+) and ground (to terminal GND); install a 2 A inline fuse for overcurrent protection .
-
- Sensor/Feedback Wiring:
-
-
- Connect speed pulse sensor (e.g., magnetic pickup) to input terminal S1/S2; use shielded twisted-pair cable, ground shield at sensor end.
-
-
-
- Connect process transducers (pressure/temperature, 4-20 mA) to analog input channels AI1/AI2 .
-
-
- Actuator/Control Wiring:
-
-
- Connect 4-20 mA output (AO1) to fuel valve actuator; ensure polarity matches device markings.
-
-
-
- Wire digital input DI1 to emergency stop button; DI2 to remote start command .
-
-
- Communication Wiring: Connect RS-485 port to Modbus network; terminate bus with 120 Ω resistor at endpoints.
- Post-Installation Verification
-
- Power on the module; check LED indicator (green = normal, red = fault).
-
- Use a multimeter to verify 24 VDC at power terminals and continuity of sensor/actuator circuits.
3.2 Configuration & Operation
- Initial Configuration
-
- Software Setup: Use Woodward’s Control Assistant software (via USB or Modbus) to connect to the module.
-
- Basic Parameters:
-
-
- Enter rated speed (e.g., 3000 RPM) and speed sensor pulse count (e.g., 60 pulses/rev).
-
-
-
- Set overspeed trip point (typically 115% of rated speed) and load sharing ratio (for multi-unit systems) .
-
-
- I/O Mapping: Assign digital outputs (DO1/DO2) to alarm indicators (e.g., overspeed pre-alarm, low oil pressure).
- Normal Operation
-
- Local Control: Use optional keypad interface to adjust speed setpoints (0.01 RPM increments); monitor actual speed via software dashboard.
-
- Remote Control: Activate Modbus mode; send setpoints from DCS (e.g., 4-20 mA corresponding to 0-100% speed) .
-
- Status Monitoring: Track real-time data (speed, current output, fault codes) via SCADA; configure email alerts for critical faults.
- Maintenance & Troubleshooting
-
- Routine Checks: Monthly inspect wiring terminals for tightness; clean enclosure with dry cloth.
-
- Common Faults:
-
-
- Overspeed Trip: Reset via software after verifying sensor alignment; check for load loss.
-
-
-
- Communication Failure: Verify Modbus baud rate (9600 default) and wiring; reboot module .
-
-
-
- No Output Signal: Test actuator with external 4-20 mA source; replace faulty output channel if needed.
-
-
- Firmware Update: Use Control Assistant to install latest firmware for enhanced algorithm support.
4. System Introduction
The 8446-1019 is a foundational component of Woodward’s Integrated Rotating Machinery Control System—a scalable ecosystem designed to optimize performance, safety, and connectivity for industrial turbomachinery. This system is widely deployed in power plants (turbogenerators), oil refineries (compressors), and maritime vessels (propulsion systems) .
4.1 System Architecture
- Sensing Layer: Comprises speed sensors, pressure transducers, and temperature probes that feed real-time data to the 8446-1019. Redundant sensors are supported for mission-critical applications.
- Control Layer: The module processes input data, executes PID control algorithms, and sends commands to actuators (e.g., fuel injectors, steam valves). It also coordinates load sharing between parallel units .
- Communication Layer: Enables data exchange with DCS/SCADA via Modbus/CANbus, facilitating remote monitoring and centralized control. In maritime systems, it integrates with vessel automation networks .
- Safety Layer: Embeds independent overspeed detection and emergency shutdown logic, complying with IEC 61508 functional safety standards.
4.2 Key System Features
- Modular Scalability: Add I/O expansion cards or link multiple 8446-1019 modules for complex multi-machine setups (e.g., refinery compressor trains) .
- Energy Efficiency: Optimizes fuel/steam consumption via adaptive control, reducing operational costs by up to 15% in continuous-duty applications.
- Predictive Maintenance: Logs sensor drift and actuator response times, enabling proactive replacement of deteriorating components .
- Cross-Industry Adaptability: Configurable parameters support gas turbines, steam turbines, and reciprocating engines without hardware modifications.
5. Recommended Related Models in the Same Series
For applications requiring specialized capabilities (e.g., enhanced I/O, hazardous area compliance), the following 8400 Series models are recommended:
- WOODWARD 8446-1020: Enhanced with 8 additional digital I/O channels and dual Ethernet ports (Modbus TCP) for large-scale industrial networks (e.g., power plant DCS integration) .
- WOODWARD 8446-1035: Explosion-proof variant (ATEX Zone 2) with intrinsic safety barriers. Ideal for oil & gas upstream operations (e.g., offshore platform compressors) .
- WOODWARD 8446-1050: High-power model with 0-20 mA output and extended temperature range (-50°C to 90°C) for arctic or desert power generation facilities .

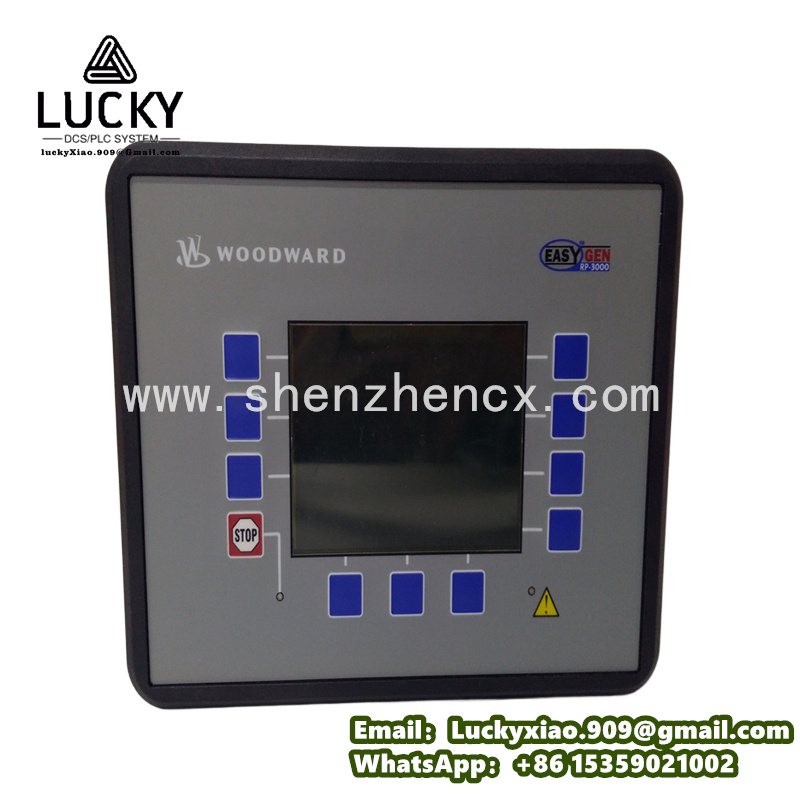

- WOODWARD 8446-1080: RP-3000 Remote Panel-compatible variant with integrated HMI (4.3-inch touchscreen) for on-site configuration in marine propulsion systems .
