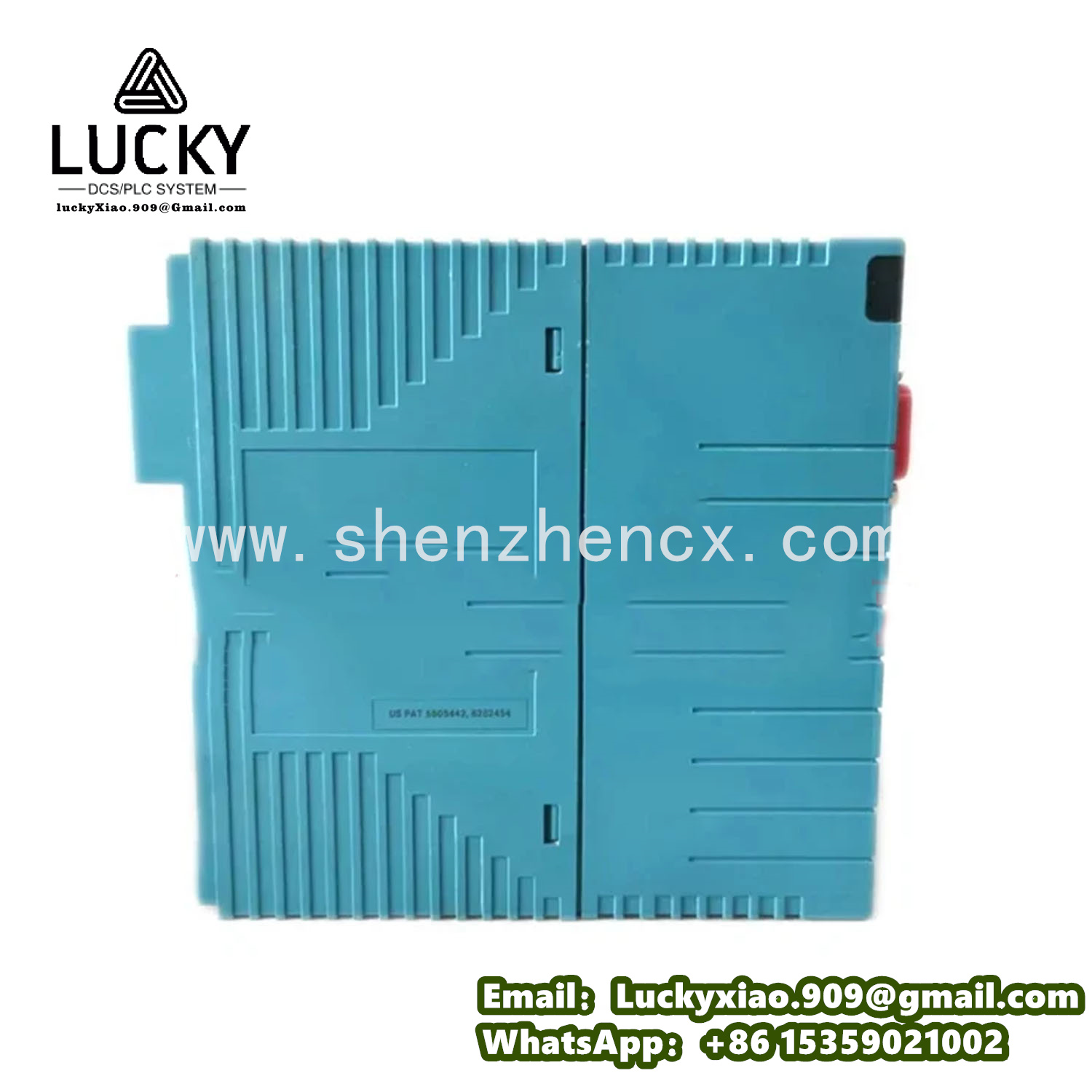

Yokogawa NFCP502-W15 Product Specification
1. Product Overview
The Yokogawa NFCP502-W15 is a high-performance industrial communication module engineered for Yokogawa’s CENTUM VP and ProSafe-RS distributed control systems (DCS). Serving as a critical connectivity hub in process automation, it enables seamless data exchange between DCS controllers, field devices, and upper-level monitoring systems. Widely deployed in oil & gas, petrochemical, and pharmaceutical industries, this module ensures reliable and real-time transmission of process data and control signals, supporting efficient operation and safety management of industrial facilities.
Compliant with international standards including IEC 61010 and ISA 100.11a, the NFCP502-W15 features redundant communication paths, robust anti-interference design, and wide environmental adaptability. It maintains stable performance in harsh industrial conditions with electromagnetic noise, temperature fluctuations, and vibration, meeting the stringent reliability requirements of critical process control.
2. Technical Parameters & Specifications
|
Category
|
Details
|
|
Product Model
|
Yokogawa NFCP502-W15
|
|
Product Type
|
Industrial Ethernet Communication Module
|
|
Compatible Systems
|
Yokogawa CENTUM VP DCS, ProSafe-RS SIS
|
|
Communication Protocols
|
EtherNet/IP; Modbus TCP/IP; Yokogawa Vnet/IP
|
|
Communication Ports
|
2×Gigabit Ethernet (Redundant); 1×RS-485 (Backup)
|
|
Data Transfer Rate
|
1 Gbps (Ethernet); 115.2 kbps (RS-485)
|
|
Latency
|
|
|
Isolation
|
Port-to-Port: 1500 V DC; Port-to-System: 1500 V DC
|
|
Power Supply
|
24 V DC ±15% (Redundant Input); Power Consumption: ≤20 W
|
|
Environmental Ratings
|
Operating Temp: -10°C–60°C; Humidity: 5%–95% (Non-Condensing); Vibration: ≤2 g
|
|
Certifications
|
IEC 61010; ISA 100.11a; UL 508; CE; ATEX Zone 2
|
3. Key Features
3.1 Redundant & Reliable Communication
Equipped with dual redundant Gigabit Ethernet ports and backup RS-485 interface, the module eliminates single points of failure in communication links. Automatic failover (≤100 ms) ensures uninterrupted data transmission, critical for safety-related applications like emergency shutdown systems in petrochemical plants.
3.2 Multi-Protocol Compatibility
Support for EtherNet/IP, Modbus TCP/IP, and Yokogawa’s proprietary Vnet/IP enables seamless integration with Yokogawa DCS and third-party automation devices (e.g., Rockwell PLCs, Emerson transmitters). This multi-protocol capability simplifies system expansion and retrofitting in mixed-brand industrial environments.
3.3 Deterministic & Low-Latency Transmission
With a data transfer rate of 1 Gbps and latency ≤2 ms, the module ensures real-time transmission of process control signals. The deterministic communication mechanism guarantees consistent data delays, avoiding unpredictable responses in time-sensitive applications like batch processing in pharmaceutical facilities.
3.4 Robust Environmental Adaptability
The module operates reliably over a wide temperature range (-10°C–60°C) and features IP40-rated housing, making it suitable for both control room and field-mounted applications. Enhanced EMC performance (compliant with IEC 61000-4) resists interference from industrial electrical noise, ensuring stable operation in refineries and power plants.
4. Related Yokogawa Products
-
Yokogawa NFCP501-W10: Entry-level communication module with 1×Gigabit Ethernet port, cost-effective for small-scale automation projects.
-
Yokogawa AI800: 8-channel analog input module, transmitting process data to CENTUM VP DCS via NFCP502-W15.
-
Yokogawa AO800: 8-channel analog output module, receiving control commands from DCS through NFCP502-W15.
-
Yokogawa CENTUM VP Controller (FCS): Core controller of Yokogawa DCS, relying on NFCP502-W15 for external communication.
-
Yokogawa STARDOM FCN-RTU: Remote terminal unit, communicating with central DCS via NFCP502-W15 in distributed process sites.
