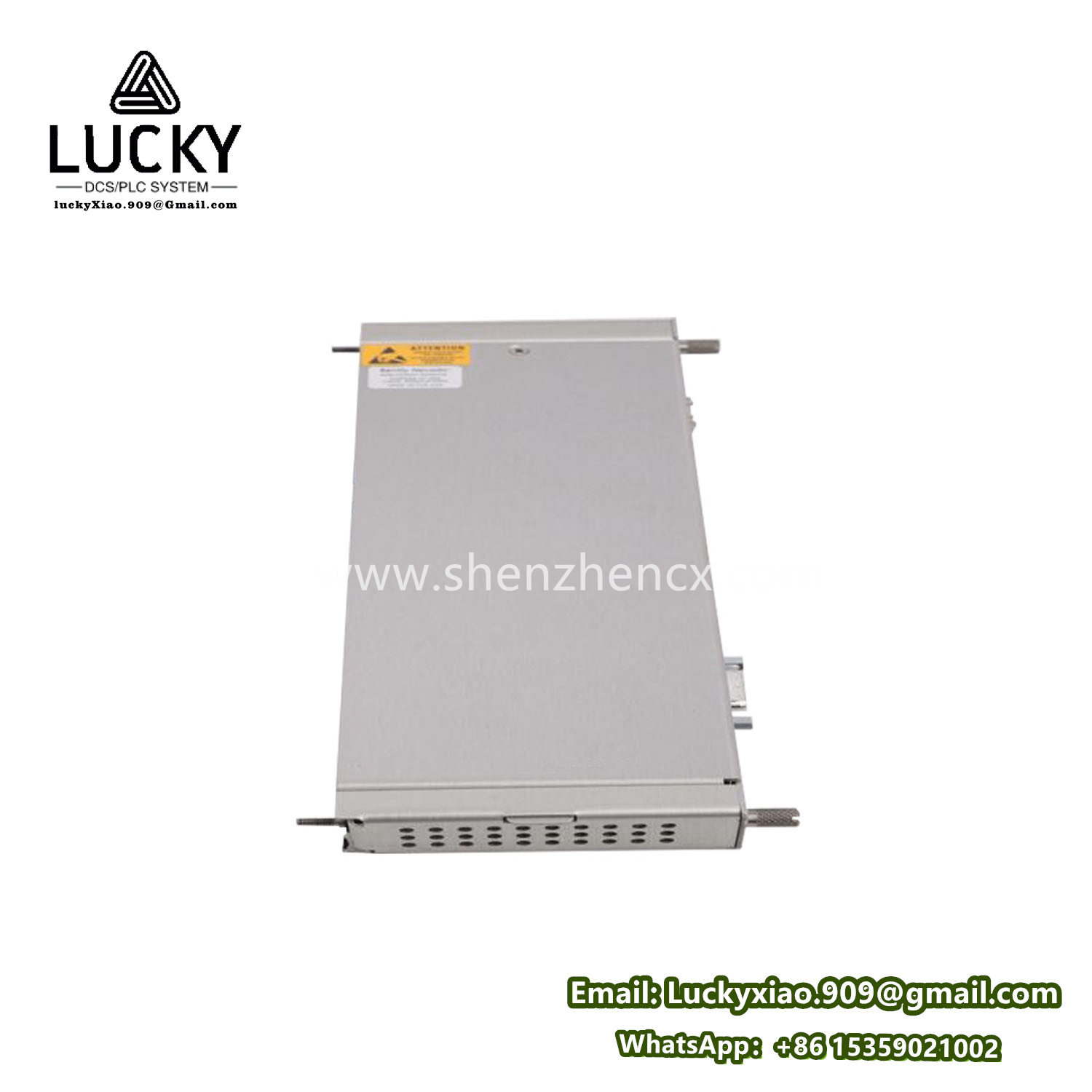

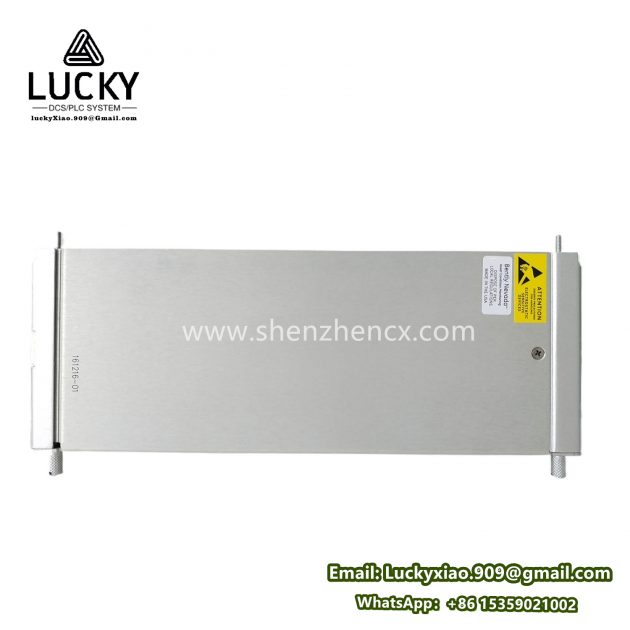

Bently Nevada 161216-01: Ethernet 10BASE-T/100BASE-TX I/O Module for Machinery Monitoring Systems
Product Description
The Bently Nevada 161216-01 is a high-performance Ethernet 10BASE-T/100BASE-TX I/O module, serving as a vital link in industrial communication networks, especially within the context of the Bently Nevada 3500 Machinery Protection and Condition Monitoring System. This module is engineered to enable seamless data transfer of monitored values and status information across a network, ensuring that critical machinery data reaches its intended destinations in a timely and reliable manner. By supporting multiple Ethernet standards and protocols, it adapts to various industrial network setups, making it an ideal choice for facilities seeking to enhance their machinery monitoring capabilities.
Product Parameters
- Ethernet Standards: Complies with IEEE 802.3 for 10BASE-T (twisted pair, supporting speeds of 10 Mbps) and 100BASE-TX (twisted pair, for 100 Mbps), as well as IEEE 802.3u for 100BASE-FX (fiber optic, also for 100 Mbps). This broad compatibility allows for flexible network connections, whether in copper-based or fiber optic – dominated network infrastructures.
- Protocols Supported: Facilitates data transfer using protocols such as EGD (version 2.01) and Ethernet UDP/IP. EGD (Enhanced Goodness of Service) ensures reliable and efficient data delivery of machinery status information, while UDP/IP provides a lightweight and fast data transfer mechanism, suitable for real-time monitoring applications where speed is crucial.
- Input/Output Signals: Designed to interface with a variety of sensors and actuators within the 3500 system. It can receive analog and digital signals from proximity probes, vibration sensors, and other monitoring devices, and output control signals or status updates to relevant components in the monitoring loop.
- Data Transfer Rate: Capable of operating at speeds of up to 100 Mbps for 100BASE-TX and 100BASE-FX, and 10 Mbps for 10BASE-T, ensuring rapid transmission of large volumes of machinery data, including real-time vibration, position, and temperature readings.
Product Specifications
- Operating Temperature: Can function optimally within a wide temperature range of -30 °C to +65 °C (-22 °F to +150 °F). This makes it suitable for deployment in diverse industrial environments, from cold storage facilities to hot industrial processing plants.
- Storage Temperature: Maintains its integrity during storage in temperatures ranging from -40 °C to +85 °C (-40 °F to +185 °F), ensuring durability during transportation and long – term storage.
- Humidity Resistance: Withstands humidity levels of up to 95% non – condensing. This resistance to high humidity environments makes it suitable for use in areas such as coastal industrial facilities, paper mills, and water treatment plants.
- Dimensions: Compact in size, with dimensions of 88.9 mm (width) × 266.7 mm (height) × 165.1 mm (depth) (equivalent to 3.5 inches × 10.5 inches × 6.5 inches). Its small footprint allows for easy installation in crowded control cabinets or equipment racks.
- Weight: Approximately 2.5 kg (5.5 lbs), which is lightweight enough for easy handling during installation and maintenance procedures.
- Power Requirements: Operates on a nominal 24 V DC power supply, with a typical power consumption of 2 – 5 watts, depending on the operating conditions. This power efficiency helps in reducing overall energy consumption within the monitoring system.
- Mounting: Features a standard 19 – inch rack – mounting design, enabling seamless integration with existing industrial control systems and equipment racks.
- Certifications: Meets various EMC (Electromagnetic Compatibility) and electrical safety standards, such as compliance with IEC 61010 – 1 and IEC 61010 – 2 standards for industrial control systems. This ensures that the module can operate without interference in electrically noisy environments and adheres to strict safety guidelines.
Series
The 161216 – 01 is an integral part of the Bently Nevada 3500 series. The 3500 series is a comprehensive suite of machinery protection and condition monitoring solutions, renowned for its modular design and high reliability. It includes a wide array of modules such as vibration monitors, position monitors, power supplies, and communication gateways. All components in the 3500 series are engineered to work in harmony, providing a complete and scalable solution for safeguarding critical rotating machinery across various industries. The 161216 – 01, with its network – enabling capabilities, enhances the series’ functionality by enabling efficient data communication between different modules and external systems.
Features
Robust Network Connectivity
By supporting multiple Ethernet standards and protocols, the module offers versatile network connection options. It can be easily integrated into existing industrial Ethernet networks, whether they are based on copper or fiber optic cables, ensuring seamless data flow between the 3500 system and other devices such as SCADA (Supervisory Control and Data Acquisition) systems, PLCs (Programmable Logic Controllers), or data logging software.
Real – Time Data Transfer
With data transfer rates of up to 100 Mbps, it enables real – time transmission of machinery data. This is crucial for applications where immediate access to vibration, position, or temperature data is necessary for timely decision – making. For example, in power generation plants, real – time data can help operators detect and respond to potential turbine failures before they occur.
Compact and Easy – to – Install Design
Its compact dimensions and standard 19 – inch rack – mounting design make installation straightforward. This reduces the time and effort required for system integration, whether in new installations or retrofitting existing monitoring systems.
High Environmental Tolerance
The ability to operate in a wide range of temperatures and high humidity levels, along with resistance to electromagnetic interference, ensures reliable performance in harsh industrial environments. This makes it suitable for use in oil and gas refineries, mining operations, and chemical plants, where equipment must withstand challenging conditions.
Function
The primary function of the 161216 – 01 is to act as a communication bridge within the Bently Nevada 3500 Machinery Protection System. It receives data from various monitoring modules in the 3500 system, such as vibration monitors and position monitors. This data, which includes real – time measurements of machinery parameters like vibration amplitudes, shaft positions, and bearing temperatures, is then converted into a format suitable for network transmission. Using the supported Ethernet standards and protocols, the module transmits this data across the network to other components, such as system controllers, HMIs (Human – Machine Interfaces), or external data storage devices. Conversely, it can also receive control commands or configuration updates from these external systems and relay them to the appropriate modules within the 3500 system.
Use
In industrial settings, the 161216 – 01 is installed in a 19 – inch equipment rack, typically as part of a Bently Nevada 3500 system installation. It is connected to the network infrastructure of the facility, which may include switches, routers, and other network devices. Sensors and other monitoring devices are connected to the input ports of the module, while output ports are linked to components that require the machinery data, such as control systems or data acquisition units. Maintenance personnel can use the module’s diagnostic features, often accessible through network – based interfaces, to monitor the health of the module and ensure proper data transfer. In a power plant, for instance, the module may be used to transfer vibration data from turbine monitoring sensors to a central control room, where operators can analyze the data to detect early signs of equipment malfunction.
Application Fields
Power Generation
In coal – fired, gas – fired, and nuclear power plants, the 161216 – 01 is used to transfer data from turbine, generator, and pump monitoring systems. It enables real – time monitoring of equipment health, allowing operators to detect and address issues such as unbalanced rotors or bearing wear promptly. This helps in maintaining grid stability and preventing costly power outages.
Oil and Gas
For upstream drilling operations, midstream pipeline compression stations, and downstream refineries, the module plays a crucial role in transmitting data from various rotating equipment, including pumps, compressors, and gas turbines. By providing real – time data on equipment performance, it supports safe and efficient hydrocarbon production, transportation, and refining processes.
Manufacturing
In manufacturing plants, especially those with high – speed machinery such as in automotive production or metalworking industries, the 161216 – 01 is used to monitor vibration and position data of motors, conveyors, and machine tools. This data is used for predictive maintenance, reducing unplanned downtime and improving overall production efficiency.
Water and Wastewater Treatment
In water treatment plants and wastewater treatment facilities, the module helps in monitoring the performance of pumps, blowers, and mixers. By ensuring continuous and reliable data transfer, it enables operators to optimize the operation of these critical components, safeguarding the quality of water supply and the proper treatment of wastewater.
In summary, the Bently Nevada 161216 – 01 is a versatile and reliable Ethernet I/O module that plays a crucial role in enhancing the communication capabilities of the Bently Nevada 3500 Machinery Protection System. Its wide range of features, robust design, and compatibility with various industrial networks make it an essential component for industries where reliable machinery monitoring and data transfer are paramount.
