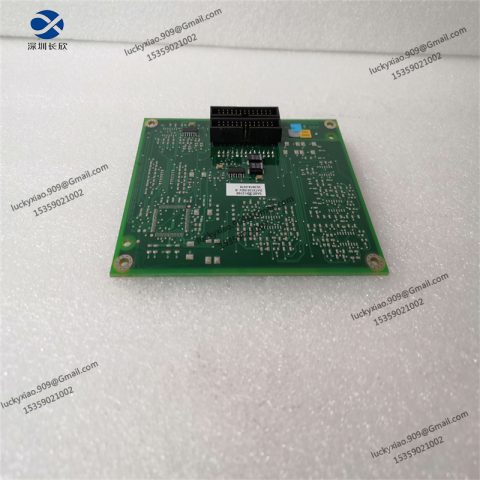

Introduction to ABB 3ASC25H204 DAPU100

3ASC25H204 DAPU100 Product Overview

3ASC25H204 DAPU100 Technical Parameters

• Product Model: 3ASC25H204 DAPU100
• Product Type: Signal Acquisition and Processing Module (DAPU Series)
• Core Functions: Multi-channel signal acquisition, analog-to-digital conversion, digital signal filtering, signal amplification, fault detection, real-time data transmission, signal isolation
• Power Supply: 24V DC input (19.2V-28.8V DC range); Power consumption: ≤6W; Overcurrent and reverse polarity protection
• Signal Specifications: Analog input: 4-20mA, 0-10V DC (12 channels); Digital input: 16 channels (24V DC); Conversion accuracy: ≤±0.1% of full scale; Sampling frequency: 1kHz per channel
• Interface Type: Backplane interface for ABB controller connection; RS485 communication port (supports Modbus RTU protocol); Plug-in spring terminals for field wiring
• Environmental Ratings: Operating temperature: -25°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Vibration resistance: 2G (10-150Hz); Shock resistance: 15G
• Mechanical & Installation: DIN rail-mounted (35mm); Dimensions (approx.): 105mm × 90mm × 45mm; Net weight: approx. 0.35kg; LED indicators for power, signal status, and fault alarms; Flame-retardant housing (UL94 V-0)
• Protection Features: Signal isolation (2500V AC/DC); Anti-EMI design (complies with EN 55011); Overvoltage and short-circuit protection for input terminals; Fault self-diagnosis and alarm output
• Compatibility: ABB AC800M controllers, ABB System 800xA DCS, other DAPU series modules, standard industrial sensors and actuators
• Certifications: CE certified; Complies with IEC 61131-2 and IEC 61000-6-2 standards; Passes EMC and industrial safety testing
• Applications: Thermal power plants, petrochemical refineries, metallurgical workshops, water treatment facilities, manufacturing production lines; Field signal acquisition, industrial automation control systems, controller-field device data interaction

Recommended ABB Same-Series Models

1. ABB 3ASC25H205 DAPU101: 16 analog input channels, enhanced signal filtering capability
2. ABB 3ASC25H206 DAPU102: Integrated analog output (8 channels), support for closed-loop control
3. ABB 3ASC25H207 DAPU103: High-speed sampling (5kHz), suitable for fast-response control systems
4. ABB 3ASC25H208 DAPU104: Dual RS485 ports, redundant communication design
5. ABB 3ASC25H209 DAPU105: Digital I/O expansion (32 channels), focused on digital signal processing
6. ABB 3ASC25H210 DAPU106: Ethernet interface (100Mbps), support for Modbus TCP/IP
7. ABB 3ASC25H211 DAPU107: High-temperature resistant design, operating temperature up to +85°C
8. ABB 3ASC25H212 DAPU108: Low-power consumption, suitable for battery-powered monitoring systems
9. ABB 3ASC25H213 DAPU109: Compact size, space-saving for narrow installation areas
10. ABB 3ASC25H214 DAPU110: Fault recording function, automatic data logging for maintenance analysis
11. ABB 3ASC25H215 DAPU111: High-precision conversion (≤±0.05%), for high-accuracy measurement scenarios
12. ABB 3ASC25H216 DAPU112: Isolated power supply, enhanced anti-interference performance
13. ABB 3ASC25H217 DAPU113: Marine-grade protection, anti-corrosion and moisture-proof
14. ABB 3ASC25H218 DAPU114: Wireless communication support, integrated Bluetooth module
15. ABB 3ASC25H219 DAPU115: ABB Ability™ cloud connectivity, remote monitoring and diagnosis
