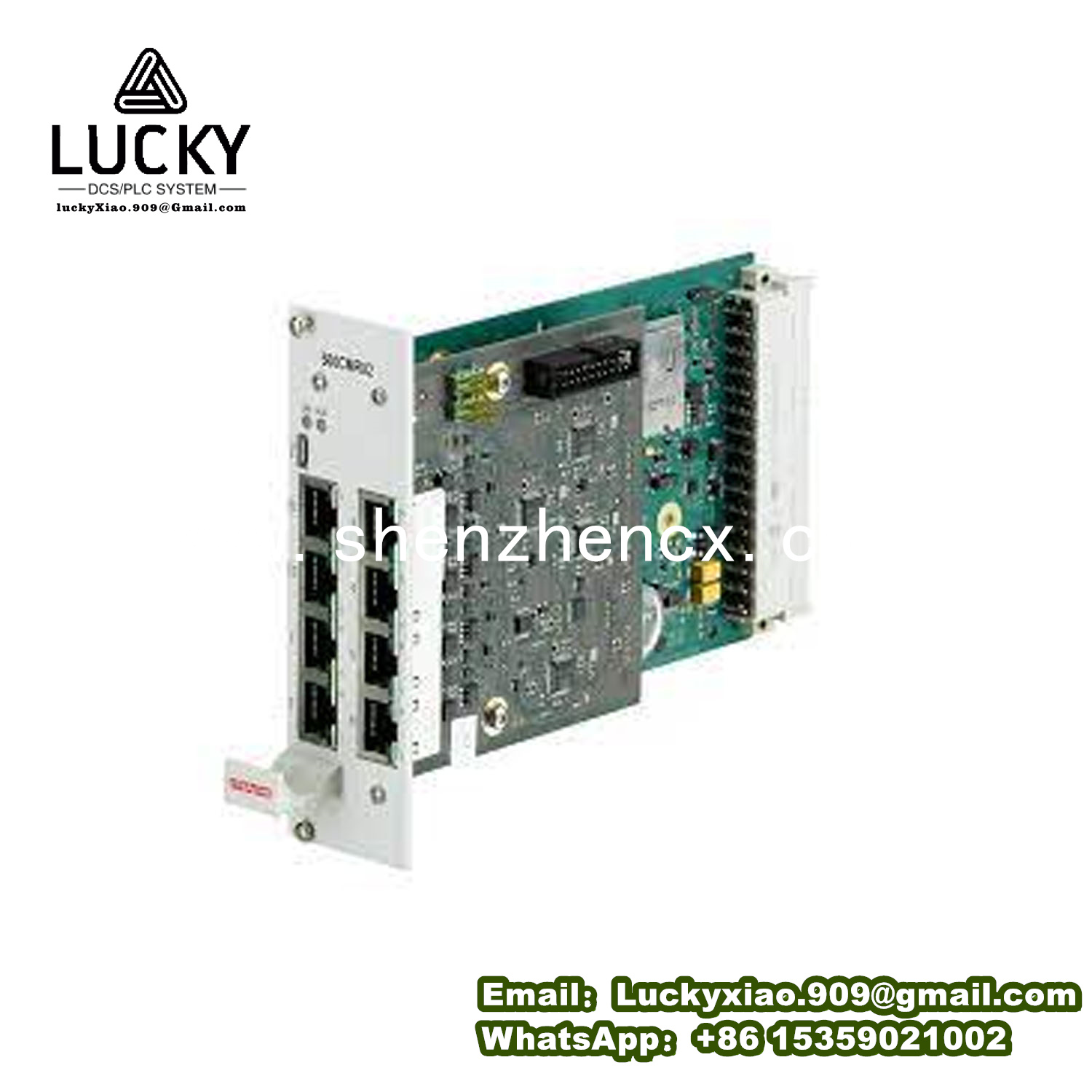

ABB 560CMR02 Product Introduction
1. Product Description
The ABB 560CMR02 is a communication unit module within the RTU560 product family. It is designed to play a pivotal role in industrial automation, remote monitoring, and data acquisition (SCADA) systems. This module serves as a vital link for data communication and interaction among various devices within the system, ensuring the stable operation and efficient control of the overall system.
2. Function Introduction
2.1 I/O Module Management
The 560CMR02 manages and controls I/O modules precisely through the serial I/O bus interface. It can read process event information from input modules in real-time and send commands to output modules accurately. For example, in an industrial production line, it can control the actions of actuators promptly according to the input signals from sensors, ensuring the seamless operation of the production process.
2.2 Multi-system Communication
- It supports communication with control systems and local HMI systems via serial interfaces (RS232) and Ethernet 10/100BaseT interfaces. This enables operators to monitor and operate the system intuitively. For instance, in a factory control room, operators can easily access system status and make adjustments through the HMI connected to the 560CMR02.
- With interfaces (RS485) and Ethernet interfaces, it can communicate with sub-RTUs, IEDs, or multimeter devices. This expands the communication scope of the system, facilitating the construction of more extensive and complex industrial networks. In a large – scale industrial park with multiple distributed sub – systems, the 560CMR02 can effectively connect these subsystems for unified management.
2.3 Time – base Management and Synchronization
This module manages the time – base of the RTU560 product line stations and synchronizes I/O modules. By ensuring consistent time across all devices in the system, it improves the accuracy of data collection and processing. In industrial processes where time – sensitive operations are involved, such as in chemical reactions with strict timing requirements, the time – base synchronization function of the 560CMR02 is crucial for maintaining the quality and efficiency of production.
2.4 Web Interaction Processing
The 560CMR02 handles the dialogue between the RTU560 product line and web browsers through the LAN interface. This allows users to remotely access and monitor the system via web browsers without the need to install specific software. It significantly lowers the usage threshold and enhances operational convenience. For example, engineers can monitor the system status and make adjustments while on – the – go, as long as they have access to a web browser and the appropriate network connection.
3. Technical Parameters
3.1 CPU
It is equipped with a communication module featuring a 32 – bit CPU, specifically the ARM cortex A8 controller AM3352. This enables a real – time operating system, ensuring high – efficiency and stable operation of the system. It can meet the requirements for high – speed data processing and real – time response in complex industrial environments.
3.2 Communication Interfaces
- There are 6 serial communication interfaces (RS – 232 or RS – 485) with RJ45 connectors. These interfaces are highly flexible and can be adapted to different communication – required devices, such as sensors and actuators. Among them, CP1 and CP2 can be independently configured as front – end SPB I/O bus interfaces.
- It has 2 Ethernet interfaces (10/100BaseT) with RJ45 connectors for high – speed network communication. This allows for rapid data transfer with upper – level computers, servers, and other devices. In modern industrial settings where large amounts of data need to be transmitted in real – time, these Ethernet interfaces play a vital role in ensuring data flow.
- It is equipped with 1 USB port for diagnosis and maintenance purposes. This port provides convenience for engineers to debug and troubleshoot device problems.
- There is 1x serial peripheral bus (SPB) for connecting to the backplane connector, facilitating data interaction with other modules within the system.
3.3 Other Parameters
- The device is equipped with a battery – buffered real – time clock (RTC), which can maintain accurate time even during power outages. This ensures the continuity of system time, providing an accurate time reference for data recording and event tracing.
- System – related configuration files are stored in a non – volatile flash memory card (removable SD card™). This ensures the effectiveness of system configuration after power – on reset (PoR), preventing the loss of configuration due to power outages or other unexpected events.
- There are two versions of the device: R0001 with standard network security features; R0002 with a security chip, providing advanced network security functions to meet different users’ requirements for network security levels.
4. Application Areas
4.1 Industrial Automation
In industrial production lines, the ABB 560CMR02 is widely used to connect various industrial devices, such as programmable logic controllers (PLCs), sensors, and actuators. It enables seamless data communication and control, improving production efficiency and product quality. For example, in an automotive manufacturing plant, it can coordinate the operation of assembly robots, conveyor belts, and quality inspection sensors, ensuring the smooth progress of the production process.
4.2 Power Generation and Distribution
In power plants and power distribution systems, the 560CMR02 is used for monitoring and controlling electrical equipment. It can collect data from power meters, circuit breakers, and transformers, and transmit this information to the central control system for real – time monitoring and management. In a large – scale power grid, it helps in ensuring the stable operation of the power generation, transmission, and distribution processes, and in quickly detecting and handling any potential faults.
4.3 Water and Wastewater Treatment
In water treatment plants and wastewater treatment facilities, the 560CMR02 is used to manage the operation of pumps, valves, and water quality monitoring sensors. It can adjust the operation parameters of these devices in real – time according to the water quality and flow rate data, ensuring the efficient treatment of water and the compliance of wastewater discharge. This helps in providing clean water resources and protecting the environment.
4.4 Oil and Gas Industry
In the oil and gas exploration, production, and transportation processes, the 560CMR02 plays an important role. It can be used to monitor and control oil wells, pipelines, and gas processing equipment. For example, in an oil pipeline transportation system, it can monitor the oil flow rate, pressure, and temperature in real – time, and adjust the operation of pumps and valves to ensure the safe and stable transportation of oil and gas.
