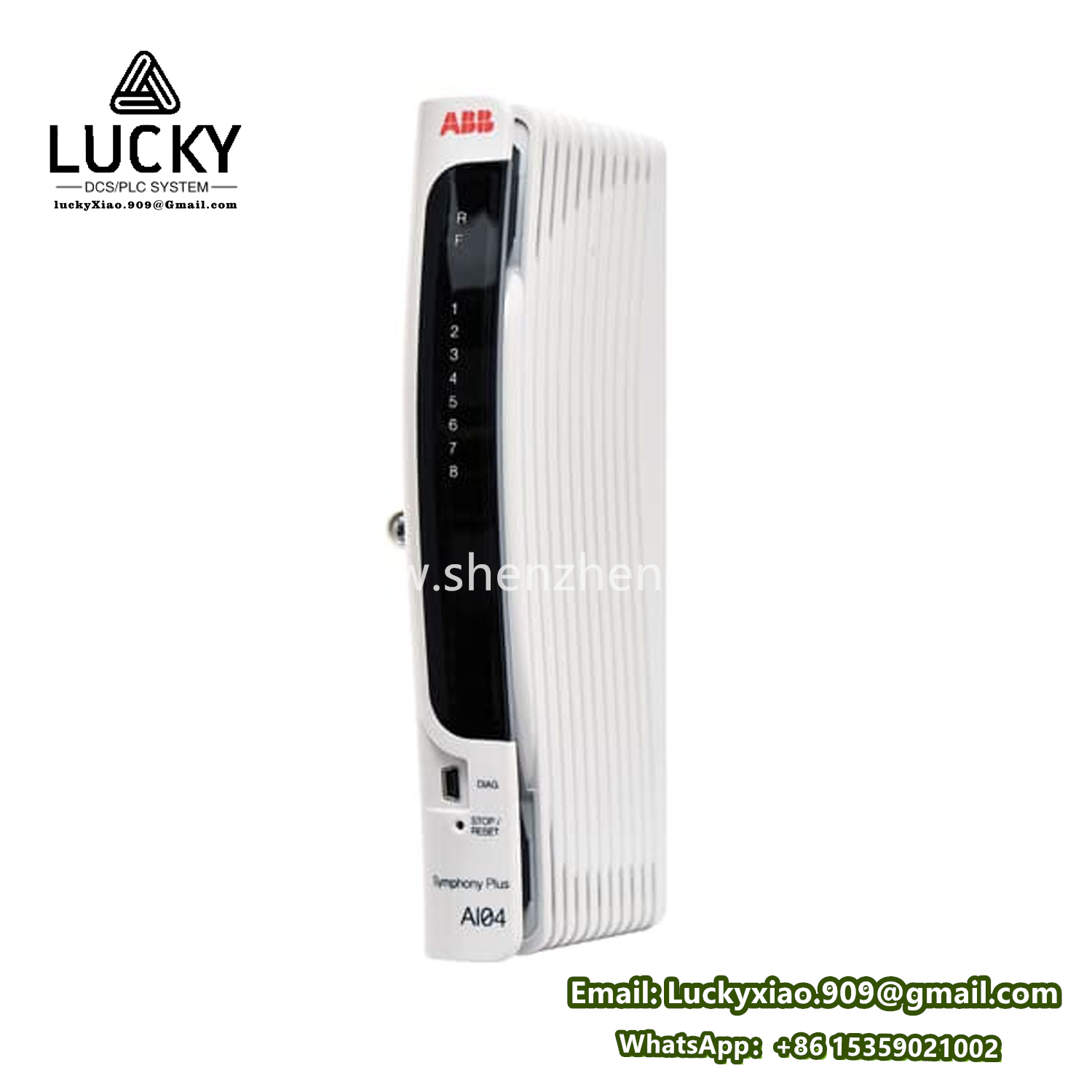

ABB AI04 High precision analog input module

ABB AI04 Module Overview

The ABB AI04 is a high-precision analog input module designed for industrial automation systems. It is part of ABB’s S800 I/O family, a modular and flexible I/O system widely used in distributed control systems (DCS) and process automation applications. The AI04 module specializes in acquiring analog signals from sensors or field devices, converting them into digital data for processing by control systems like ABB’s AC 800M or Advant Controller. Its robust design and accuracy make it ideal for critical industrial environments.

Key Features

1. Functionality:
   • 4-channel analog input for voltage, current, or resistance signals (e.g., 0–20 mA, 4–20 mA, ±10 V, RTD, or thermocouples, depending on configuration).
   • High-resolution 16-bit A/D conversion ensures precise measurement of process variables (e.g., temperature, pressure, flow).
   • Supports HART communication (if applicable) for advanced device diagnostics and configuration.
2. Design & Compatibility:
   • Modular design for easy integration into ABB’s S800 I/O rack or other compatible systems.
   • Hot-swappable (with redundancy support in some configurations) to minimize downtime during maintenance.
   • Electrically isolated channels to prevent signal interference and enhance noise immunity.
3. Technical Specifications:
   • Input Types: Configurable for various analog signals (e.g., mA, V, RTD, TC).
   • Resolution: 16-bit, ensuring high accuracy (±0.05% of full scale typical).
   • Isolation: Channel-to-channel and channel-to-system isolation for safety and signal integrity.
   • Operating Temperature: -25°C to +70°C, suitable for harsh industrial environments.
   • Certifications: Compliant with international standards (e.g., IEC, UL, ATEX for hazardous areas).
4. Applications:
   • Process Control: Monitoring and controlling variables like temperature, pressure, or level in industries such as oil & gas, chemical, and power generation.
   • Environmental Monitoring: Measuring emissions, humidity, or gas concentrations.
   • Equipment Health Monitoring: Collecting data from vibration sensors or motor currents for predictive maintenance.
5. Reliability & Diagnostics:
   • Built-in diagnostics for detecting open circuits, short circuits, or signal drift.
   • Redundant power supply options (in some setups) for fault-tolerant operations.

Advantages

• Versatility: Supports multiple signal types and ranges, reducing the need for external signal conditioning.
• High Accuracy: 16-bit resolution ensures precise data acquisition for critical processes.
• Robust Construction: Designed to operate reliably in extreme temperatures and electrically noisy environments.
• Scalability: Easily integrates with ABB’s automation ecosystem (e.g., AC 800M controllers, Control Builder software).
• Easy Configuration: Configured via ABB’s Automation Builder or Control Builder M tools for seamless setup.

Typical Use Cases

1. Temperature Monitoring:
   • Connects to RTD (Pt100) or thermocouples (Type J/K) to monitor furnace or reactor temperatures in chemical plants.
2. Pressure & Flow Control:
   • Interfaces with 4–20 mA pressure transmitters to regulate pipeline flows in oil & gas applications.
3. Safety Systems:
   • Integrates into safety instrumented systems (SIS) to detect abnormal process conditions and trigger alarms.

Ordering & Compatibility

• Model Number: AI04 (specific variants may include suffixes, e.g., AI04-A for HART support).
• Compatible Systems: ABB S800 I/O, AC 800M, Advant OCS, and third-party DCS via protocol converters.
• Manufacturer: ABB Ltd.
