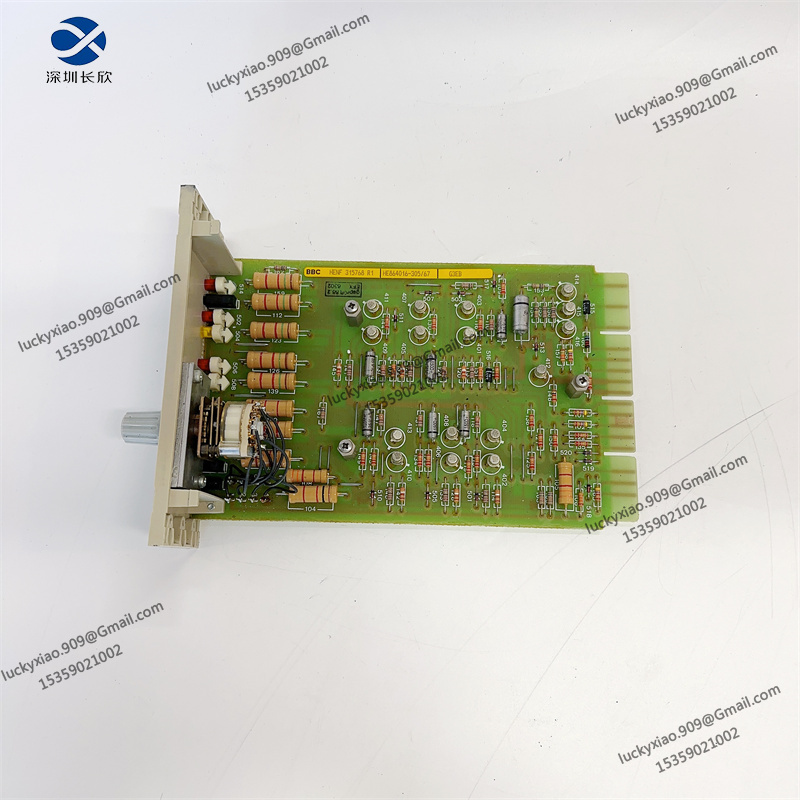

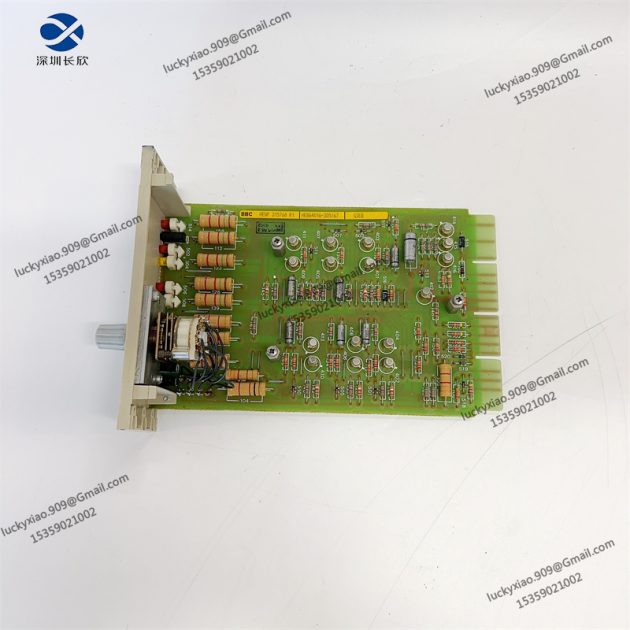

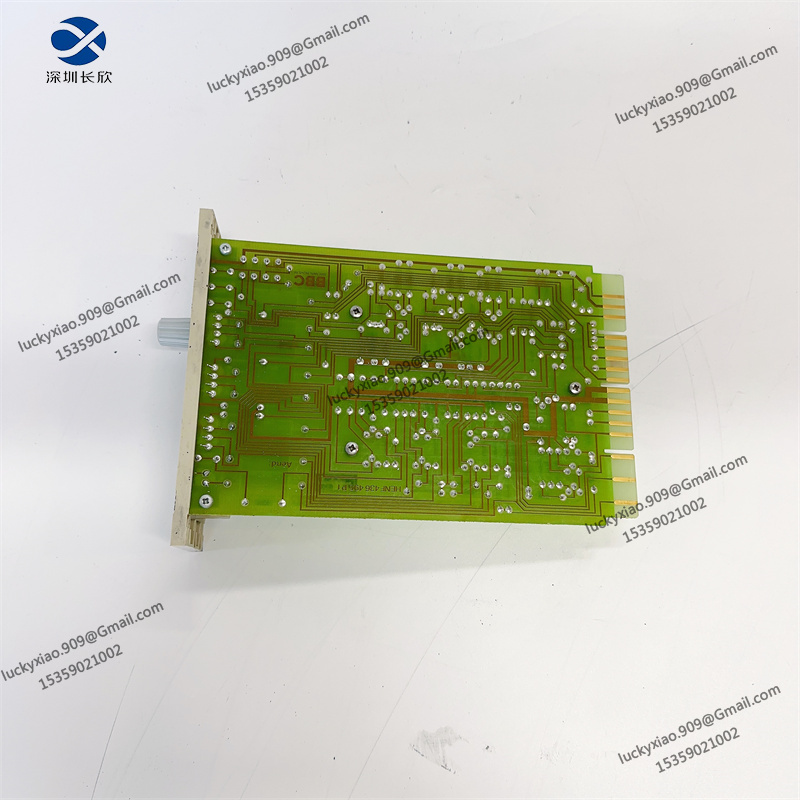

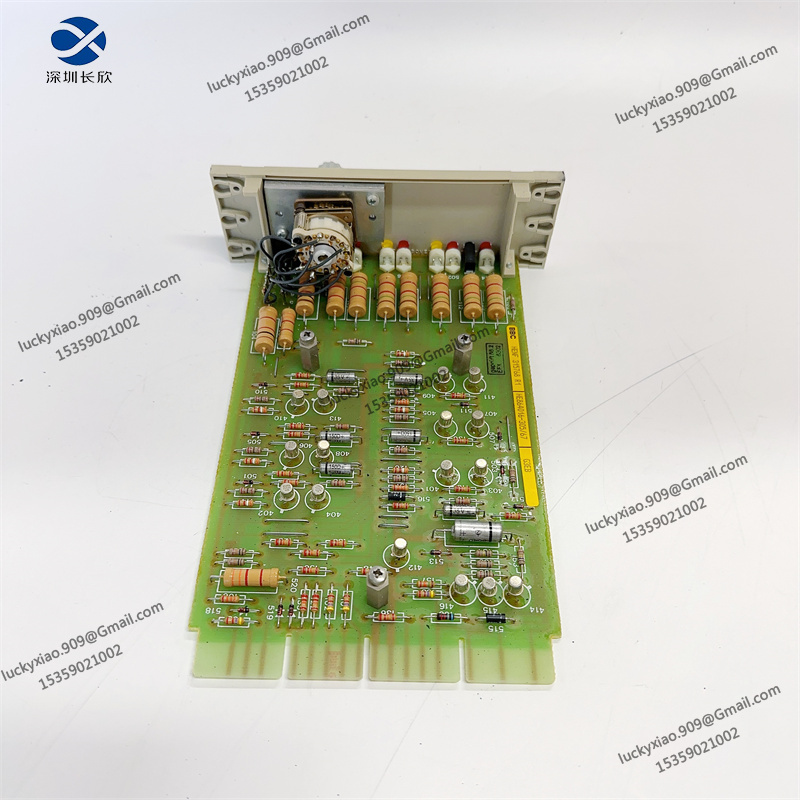

Introduction to ABB G3EB HENF315768R1
HENF315768R1 Product Overview
The ABB G3EB HENF315768R1 is a reliable digital input/output (I/O) module under ABB’s industrial control product line, specifically designed for industrial automation and distributed control systems (DCS). It acts as a key interface between field devices and central controllers, responsible for collecting digital status signals from sensors, switches, and other equipment, as well as outputting digital control signals to drive relays, contactors, and other executive components. Equipped with industrial-grade isolation technology, it effectively resists electromagnetic interference and voltage fluctuations, ensuring stable operation in harsh industrial environments such as petrochemical plants, power stations, and manufacturing workshops. Featuring a compact and modular design, it supports flexible system expansion and easy installation, which helps simplify cabinet layout and reduce maintenance costs.
HENF315768R1 Technical Specifications
-
Product Model: G3EB HENF315768R1
-
Product Type: Industrial Digital Input/Output (I/O) Module
-
Core Functions: Digital signal acquisition, digital control signal output, signal isolation processing, fault self-diagnosis, system communication
-
I/O Configuration: 16 digital input channels; 16 digital output channels; Output type: Relay
-
Communication Capability: Supports industrial communication protocols such as Modbus and PROFINET; Seamless integration with ABB DCS and PLC systems
-
Power Supply: Input voltage: 24V DC ±10%; Power consumption: ≤15W
-
Operating Environment: Temperature range: -20°C to +65°C; Humidity: 5-95% (non-condensing); Anti-electromagnetic interference: Complies with IEC 61000-6-2/4 standards
-
Isolation Performance: Channel-to-channel isolation voltage: ≥500V AC; Isolation between channels and power supply: ≥1000V AC
-
Mechanical Dimensions: 110mm × 85mm × 32mm; Weight: Approximately 0.25kg
-
Safety Features: Overvoltage protection, short-circuit protection, reverse polarity protection
-
Installation Method: DIN rail mounting; Compatible with standard 35mm DIN rails
-
Certifications: CE, UL, IEC 61131-2 compliant; Suitable for global industrial applications
