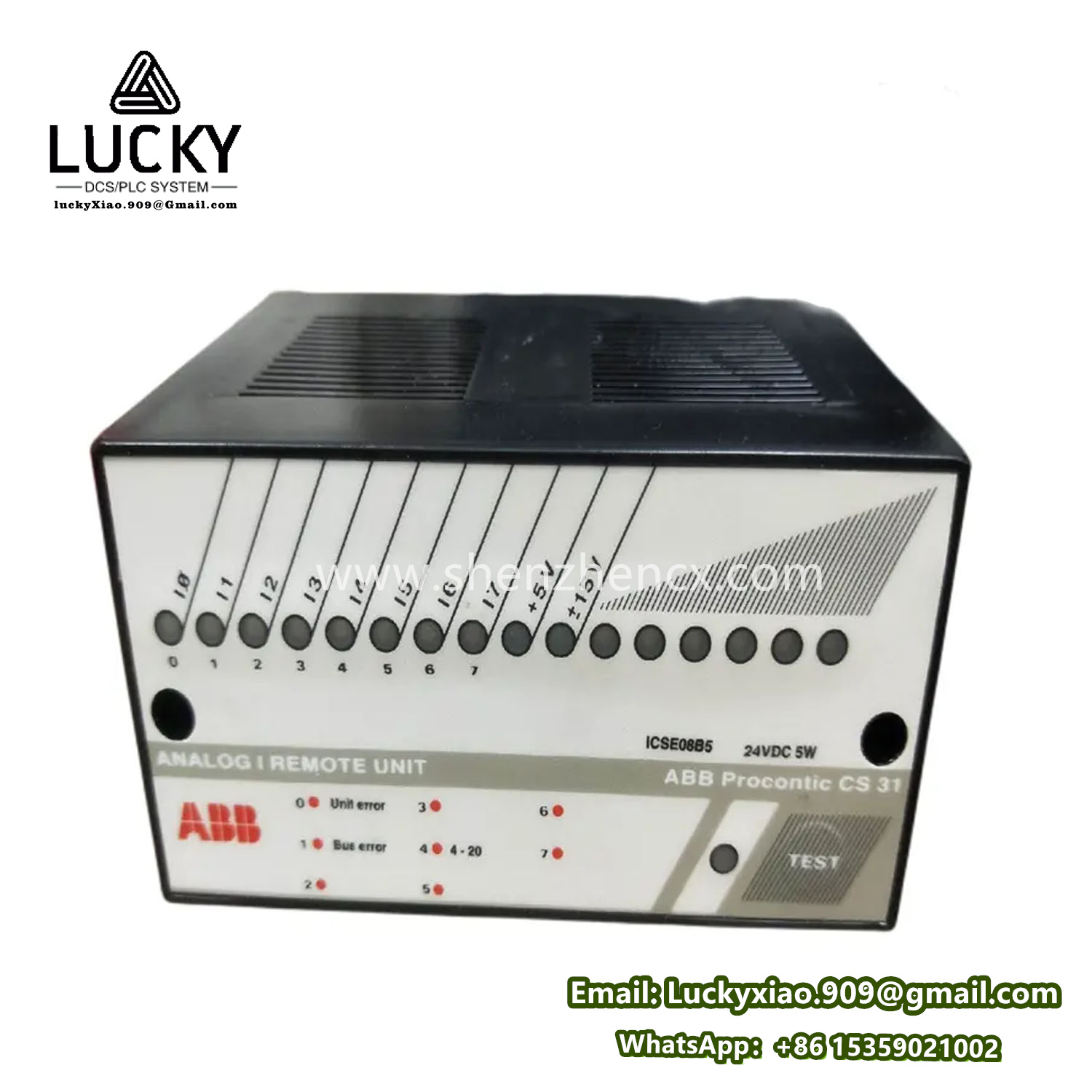

ABB ICSE08B5 FPR3346501R1012: Industrial Control and Signal Conditioning Module

Product Overview
The ABB ICSE08B5 FPR3346501R1012 is a specialized control and signal conditioning module designed for industrial automation and process control applications. Part of ABB’s extensive portfolio of industrial electronics, this module is engineered to enhance signal integrity, provide isolation, and interface between field devices and control systems in harsh environments. Its precise functionality depends on the specific configuration denoted by the FPR3346501R1012 identifier, which may indicate a variant tailored for particular voltage ranges, communication protocols, or industry standards.

Key Features

1. Signal Conditioning and Isolation
   • Converts and conditions analog or digital signals from field sensors (e.g., temperature, pressure, flow) to ensure compatibility with control systems.
   • Provides galvanic isolation between field-side inputs/outputs and system-side electronics to protect against noise, surges, and ground loops.
2. Multi-Channel Support
   • Typically includes multiple input/output channels (e.g., 8 channels) for simultaneous processing of signals.
   • Configurable for voltage (0–10 V, ±10 V) or current (4–20 mA) signals, depending on the variant.
3. Robust Communication Interfaces
   • Supports integration with industrial networks via protocols such as PROFIBUS, Modbus RTU/TCP, or ABB’s proprietary communication standards.
   • May include terminal blocks or connectors for easy wiring and field device connectivity.
4. High Accuracy and Reliability
   • High-resolution signal conversion (e.g., 16-bit) for precise measurement and control.
   • Engineered for stability in extreme conditions, with operating temperatures ranging from -40°C to +85°C (industrial-grade components).
5. Diagnostics and Status Monitoring
   • Onboard diagnostics for fault detection (e.g., open circuit, short circuit, overvoltage).
   • LED indicators for real-time status monitoring of channels and communication links.
6. Compact and Modular Design
   • Designed for DIN rail mounting, enabling easy installation in control cabinets or junction boxes.
   • Modular architecture allows scalability within ABB’s automation ecosystems (e.g., System 800xA, AC500 PLCs).

Technical Specifications

• Power Supply: 24 V DC (±15%), with reverse polarity protection.
• Isolation Voltage: Up to 1500 V AC between field and system sides.
• Input/Output Channels: Configurable as analog inputs (AI), analog outputs (AO), digital inputs (DI), or digital outputs (DO), depending on variant.
• EMC Compliance: Meets IEC 61326 (industrial EMC standards) for immunity to electromagnetic interference.
• Certifications: CE, UL, RoHS, and IECEx/ATEX (for hazardous area applications, if applicable).

Applications

The ICSE08B5 FPR3346501R1012 is ideal for industries requiring robust signal interfacing and isolation, including:

• Oil & Gas: Monitoring and control of pressure, temperature, and flow in pipelines or refining processes.
• Power Generation: Signal conditioning for turbine control, grid stability, and energy management systems.
• Manufacturing: Integration with PLCs for machine automation, quality control, and safety interlocks.
• Water Treatment: Interface with pH sensors, flow meters, and pump control systems.
• Mining and Heavy Industry: Harsh-environment signal processing for conveyor systems or motor control.

Advantages

• Versatility: Flexible configuration for mixed signal types (analog/digital) on a single module.
• Durability: Built to withstand vibration, humidity, and temperature extremes.
• Seamless Integration: Compatible with ABB’s automation platforms (e.g., 800xA, AC500) and third-party systems via open protocols.
• Reduced Downtime: Diagnostics and fail-safe modes (e.g., predefined fallback values) ensure continuous operation.

Compatibility

• Control Systems: Integrates with ABB’s PLCs (e.g., AC500 series), DCS (System 800xA), and legacy systems.
• Field Devices: Works with sensors, actuators, transmitters, and drives from ABB and third-party manufacturers.
• Software Tools: Configured via ABB Automation Builder or other engineering tools for parameterization and diagnostics.

Note on Variants

The FPR3346501R1012 suffix likely denotes a specific hardware revision, firmware version, or regional customization. For example:

• FPR3346501: May indicate a base part number for ordering.
• R1012: Could represent a revision code or customization for a particular voltage range (e.g., 120 VAC vs. 24 VDC).
