Introduction to ABB PFTL201C 50KN 3BSE007913R50
PFTL201C 50KN 3BSE007913R50 Product Overview

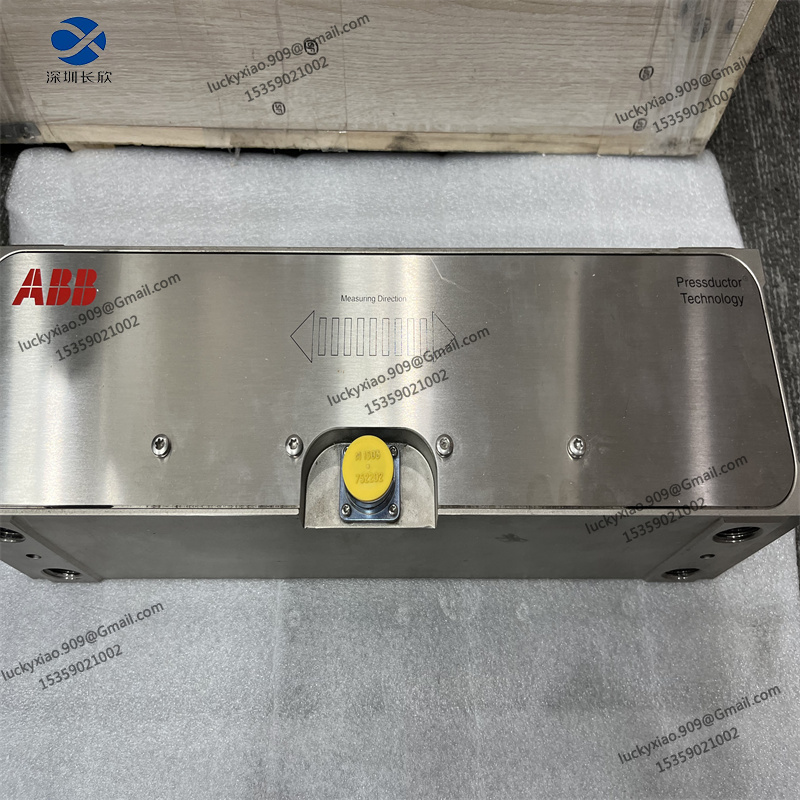

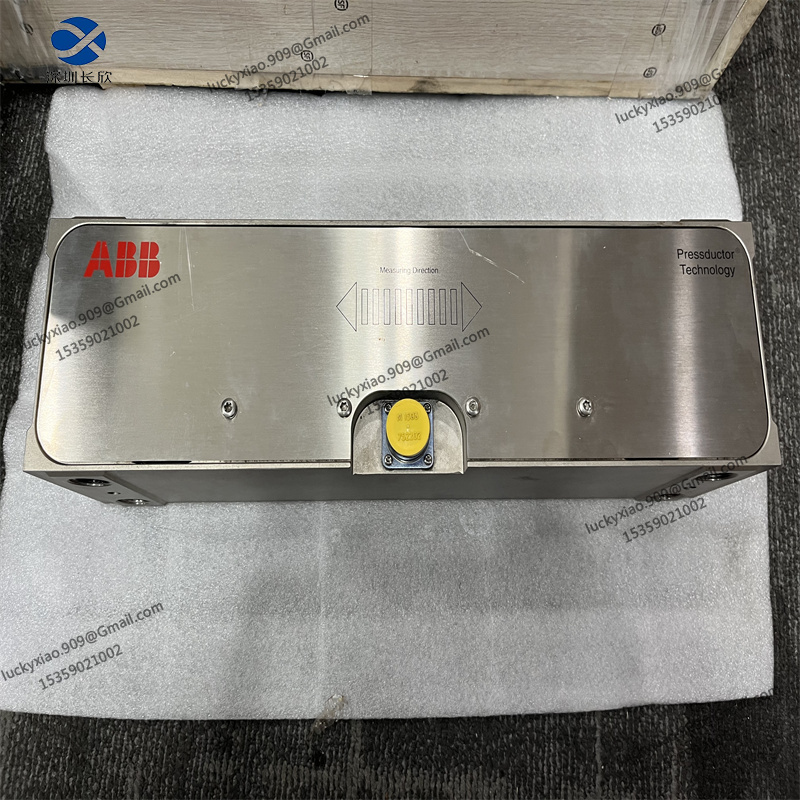

The ABB PFTL201C 50KN 3BSE007913R50 is a high-precision Pressductor pillowblock load cell, specifically designed for horizontal force measurement in industrial tension control systems. Based on ABB’s proprietary Pressductor® magnetoelastic technology, it converts mechanical tension into stable electrical signals without physical movement or deformation, ensuring excellent measurement accuracy and long-term reliability. This load cell is ideal for applications with low tension levels, heavy rolls, and high operating speeds, such as paper machines, calenders, coaters, winders, and metal processing lines. Equipped with an IP65 protection class, it can withstand harsh industrial environments including dust, moisture, and emulsions. Its robust construction and high overload tolerance make it a core component in tension control systems, widely used in steel, non-ferrous metals, papermaking, and metal deep processing industries to ensure precise and stable tension control of web or strip materials.
PFTL201C 50KN 3BSE007913R50 Technical Specifications
-
Product Model: PFTL201C 50KN 3BSE007913R50
-
Product Type: Pressductor Pillowblock Load Cell (Horizontal Force Measurement)
-
Core Functions: Horizontal force/tension measurement, high-precision signal conversion, overload tolerance, anti-electromagnetic interference, stable signal output, long-term reliable operation
-
Measurement Specifications: Nominal load (rated capacity): 50 kN; Measurement range: 10-50 kN; Measurement accuracy: ±0.2% FS; Signal type: High-power, low-impedance AC signal
-
Technology Principle: Adopts ABB proprietary Pressductor® magnetoelastic technology, no physical movement required for measurement
-
Environmental Ratings: Operating temperature: -20°C to +70°C; Storage temperature: -40°C to +85°C; Relative humidity: 5%-95% (non-condensing); Protection class: IP65
-
Mechanical & Installation: Pillowblock design; Bolt-mounted installation; Connection type: Cylindrical plug; Dimensions: Customized for industrial standard installation; High structural stiffness for heavy roll applications
-
Performance Indicators: Overload capacity: 200% of nominal load; Deflection: 0.015 mm; Spring constant: 650 kN/mm; MTBF (Mean Time Between Failures): ≥ 100,000 hours
-
Compatibility: Fully compatible with ABB Millmate Controller series tension control systems; Suitable for integration with various DCS and PLC systems
-
Certifications & Compliance: Complies with international industrial measurement standards; Passes strict EMC (Electromagnetic Compatibility) testing; Factory calibrated for immediate use
-
Application Adaptability: Suitable for tension measurement and control of web/strip materials in papermaking, steel, non-ferrous metals, and metal deep processing industries; Ideal for paper machines, calenders, coaters, winders, and cold rolling lines
Recommended ABB Same-Series & Related Models
-
ABB PFTL201CE 50KN: Pillowblock load cell with fixed cable connection, IP65 protection for harsh industrial environments
-
ABB PFTL201D 100KN: High-capacity horizontal force load cell, measurement range 50-100 kN for heavy-duty applications
-
ABB PFTL201DE 100KN: Heavy-duty load cell with fixed cable, suitable for high-speed and heavy-roll tension control systems
-
ABB PFCL201C 50KN: Vertical force measurement pillowblock load cell, cylindrical plug connection for vertical tension applications
-
ABB PFCL201CD 50KN: Vertical load cell with cable gland connection, measurement range 5-50 kN
-
ABB PFCL201CE 50KN: Vertical tension load cell with fixed cable and protective hose, IP65 protection
-
ABB PFTL101A 2KN: Small-capacity horizontal load cell, measurement range 0.2-2 kN for low-tension applications
-
ABB PFTL101AE 2KN: Low-tension load cell with fixed cable, IP66 protection for paper machine dryer sections
-
ABB PFTL101AER 2KN: Acid-resistant horizontal load cell, IP66/67 protection for papermaking wet ends
-
ABB PFTL101B 20KN: Medium-capacity horizontal load cell, measurement range 2-20 kN for general industrial tension control
-
ABB PFTL101BE 20KN: Medium-capacity load cell with fixed cable, suitable for metal processing lines with emulsions
-
ABB PFTL101BER 20KN: Acid-resistant medium-capacity load cell, IP66/67 protection for pickling lines
-
ABB PFVL141V: Rectangular load cell, measurement range 0.63-56 MN for large-scale tension applications
-
ABB PFVL141C: Circular load cell, 1.6-60 MN capacity for heavy industrial tension measurement
-
ABB Millmate Controller 400 M00: Tension controller, provides power for load cells and processes measurement signals
