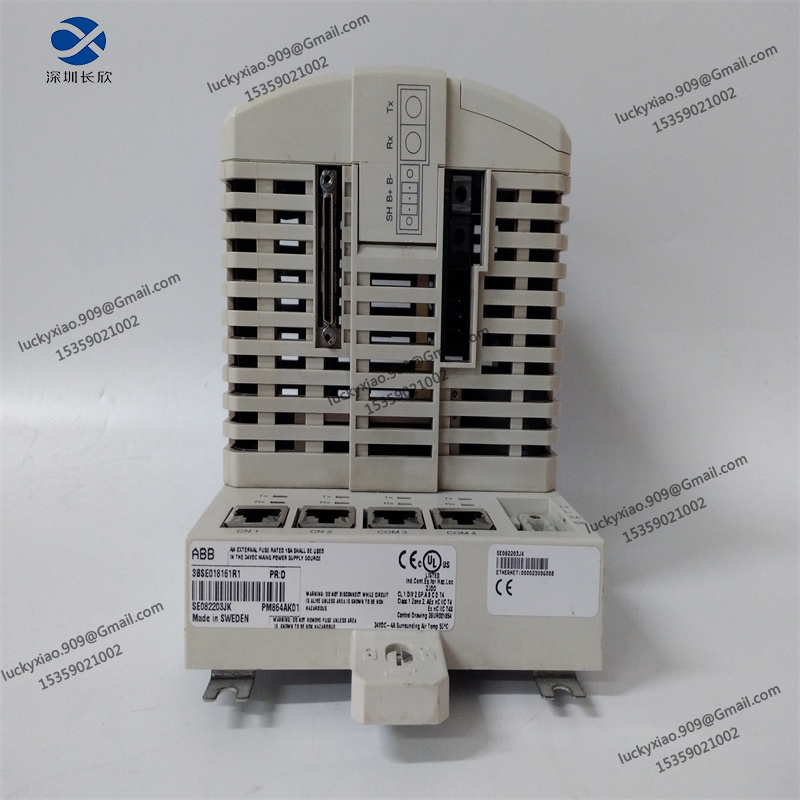

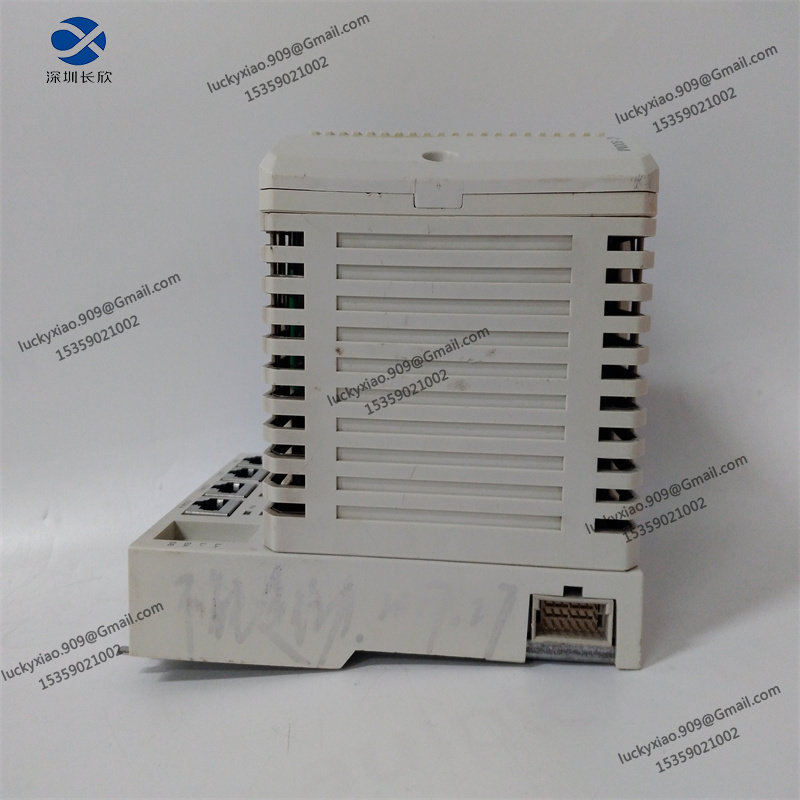

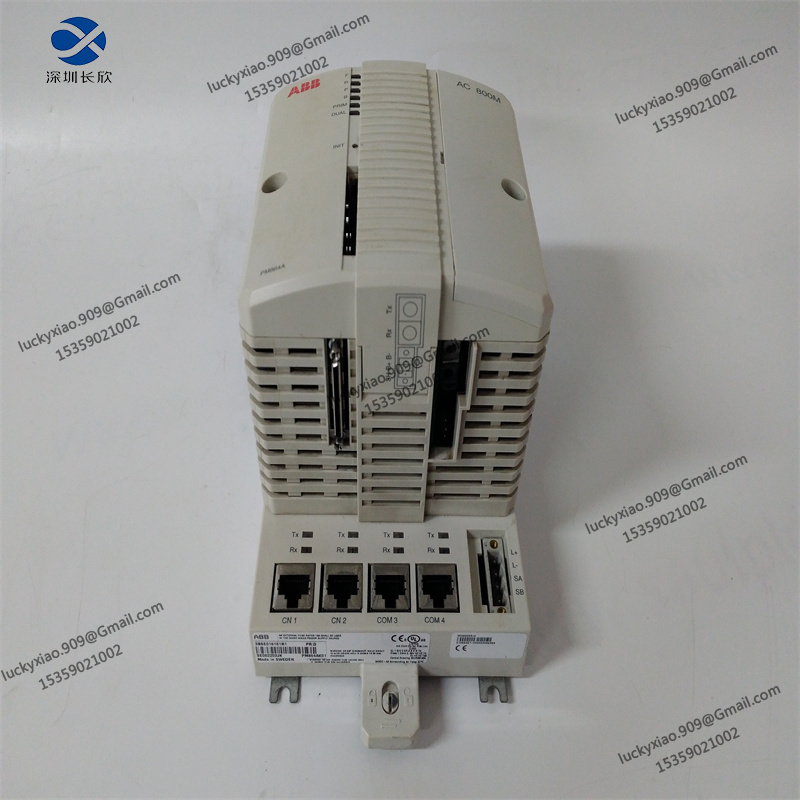

Introduction to ABB PM864AK01 3BSE018161R1
The ABB PM864AK01 (order number: 3BSE018161R1) is a high-performance central processing unit (CPU) module, recognized as the “intelligent core” of ABB AC 800M and 800xA distributed control systems (DCS). As a flagship processor in the AC 800M series, it adopts a dual-core PowerPC architecture with 1.2 GHz operating frequency, delivering 18K DMIPS computing power to handle complex industrial control tasks such as process regulation, motion control, and multi-device coordination. This module is widely applied in key industries including petrochemicals, power generation, metallurgy, and water treatment, serving as the core control unit for reactor systems, automated production lines, and energy management platforms. Its robust design supports CPU redundancy configuration with switchover time less than 10ms, ensuring uninterrupted system operation, while the built-in error detection and correction (EDAC) technology enhances data reliability.
3BSE018161R1 Key Technical Specifications
-
Device Type: High-performance CPU module for AC 800M/800xA distributed control systems
-
Processor Architecture: Dual-core PowerPC; operating frequency 1.2 GHz; computing power 18K DMIPS
-
Memory Configuration: 256 MB RAM (with EDAC); 128 MB Flash; 16 KB EEPROM for configuration storage
-
Control Performance: Minimum task cycle ≤ 1 ms; SOE (Sequence of Events) resolution < 1 ms
-
Expansion Capability: Supports up to 12 S800 I/O modules via ModuleBus; maximum 192 I/O points
-
Power Supply: 24V DC (nominal); input range 18-36V DC; typical power consumption ≤ 30W
-
Communication Interface: 2 redundant Ethernet ports (10/100/1000 Mbps); 2 RS-232C serial ports; supports PROFINET, Modbus TCP
-
Redundancy Feature: CPU redundancy support; automatic switchover time < 10 ms
-
Operating Environment: Temperature -25°C to +70°C; humidity 5-95% (non-condensing); storage temp -40°C to +85°C
-
Physical Specifications: 100mm × 160mm × 220mm; weight ~2.8kg; rack-mounted (compatible with AC 800M chassis)
-
Protection Features: Overcurrent, overvoltage protection; supercapacitor backup (8-year lifespan); watchdog timer
-
Certifications: CE, UL compliant; RoHS certified; meets IEC 61131-2 and IEC 61508 SIL 2 standards
Recommended ABB Related Models
-
ABB PM866K01 3BSE050200R1: High-end AC 800M CPU, 4-core processor for large-scale petrochemical DCS systems
-
ABB PM891K01: Next-generation CPU with quad-core ARM (1.9 GHz), supports MicroSD expansion and TLS 1.3 encryption
-
ABB CI858K01 3BSE018135R1: Multi-protocol communication module, connects PM864AK01 to remote SCADA systems
-
ABB AI810 3BSE032456R1: 8-channel analog input module, expands PM864AK01’s sensor signal collection capability
-
ABB DO810 3BSE032452R1: 16-channel digital output module, executes control actions based on PM864AK01’s commands
-
ABB TB850: Terminal base for S800 I/O modules, ensures stable connection with PM864AK01
-
ABB TP854 3BSE025349R1: 7-inch HMI, visualizes PM864AK01’s operating status and process parameters
-
ABB CI871AK01 3BSE092693R1: High-speed PROFIBUS module, enables real-time data interaction for PM864AK01
-
ABB UFC762AE101 3BHE006412R0101: High-precision analog input module, suitable for PM864AK01-based power parameter monitoring
-
ABB PCD235B1101 3BHE032025R1101: Excitation control module, integrates with PM864AK01 in generator control systems
-
ABB REF620: Digital relay protector, collaborates with PM864AK01 to safeguard power equipment
-
ABB ACS880-07: Medium-voltage frequency converter, receives control signals from PM864AK01
-
ABB DSQC639 3HAC025097-001: Motion control module, pairs with PM864AK01 in robotic automation systems
-
ABB AC500 PLC: Compact controller, cost-effective complement to PM864AK01 in small-scale control scenarios
-
ABB BC810: ModuleBus interconnection unit, enhances PM864AK01’s I/O expansion reliability View more …..
