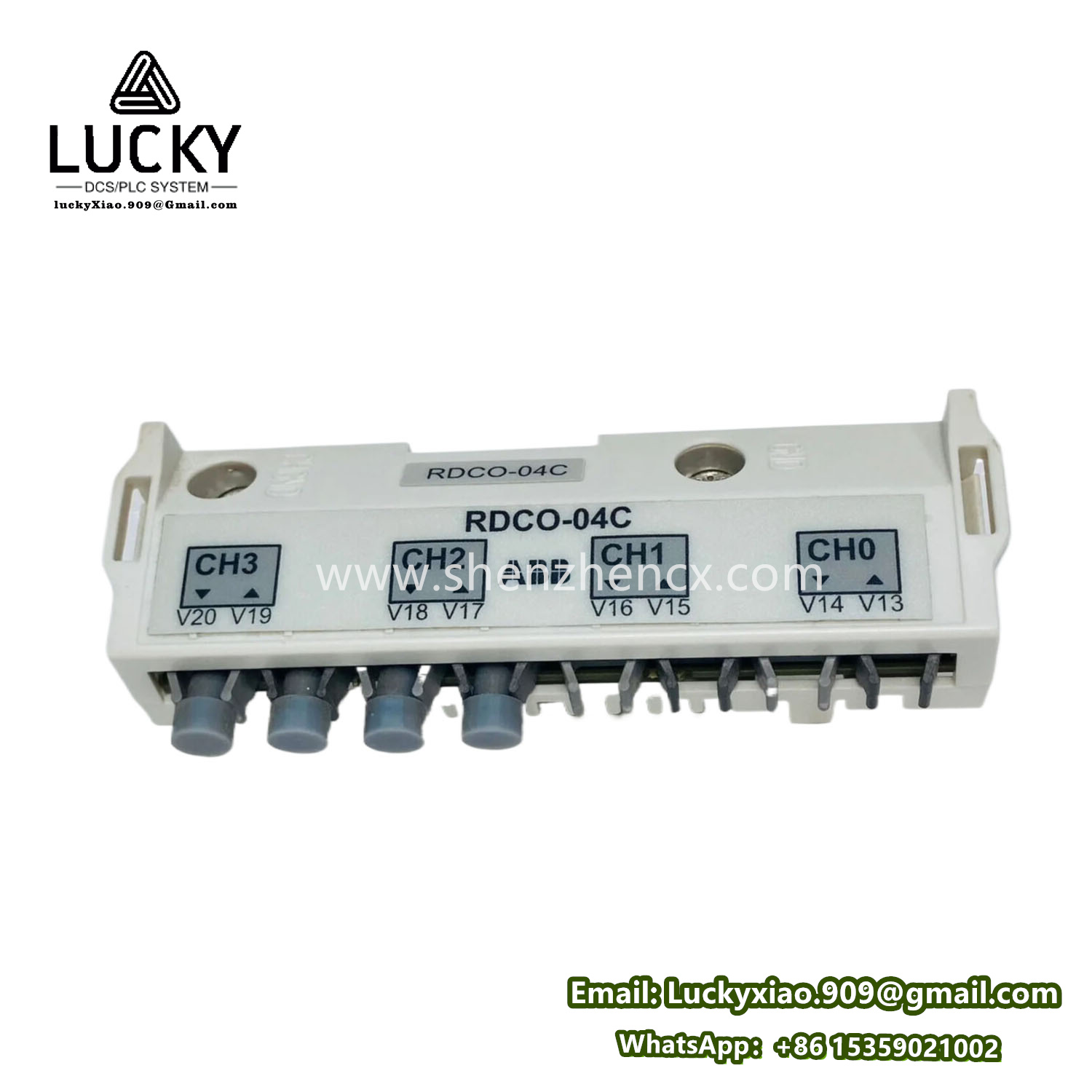

ABB RDCO-04C Remote I/O (input/output) control relay module

ABB RDCO-04C: Remote I/O Control Relay Module

The ABB RDCO-04C is a versatile and compact remote I/O (Input/Output) control relay module designed for industrial automation and control systems. It forms part of ABB’s renowned Relion® Protection and Control product line, optimized for seamless integration into complex electrical networks and machinery. This module is engineered to provide reliable signal conditioning, isolation, and control in demanding environments.

Key Features

1. Input/Output Flexibility
   • Digital Inputs: Supports multiple dry/wet contact inputs for monitoring sensors, switches, or other binary signals.
   • Relay Outputs: Includes configurable relay contacts (e.g., NO/NC) for controlling external devices such as motors, valves, or alarms.
2. Communication Capabilities
   • Fieldbus Integration: Compatible with industrial communication protocols (e.g., Modbus RTU, Profibus, or IEC 60870-5-101/104) for connectivity with PLCs, SCADA systems, or ABB’s proprietary control devices.
   • LED Indicators: Visual status indicators for power, communication, and I/O activity.
3. Robust Design
   • Industrial Durability: Built to withstand harsh conditions, including wide temperature ranges (-25°C to +70°C), humidity, and vibration.
   • Compact Size: DIN rail-mounted design (typical width: 72 mm) for space-efficient installation in control panels or cabinets.
4. Easy Configuration
   • Plug-and-Play Setup: Pre-configured modules simplify installation.
   • Programmable Logic: Optional logic functions enable basic automation tasks without requiring a central controller.

Applications

The RDCO-04C is ideal for:

• Industrial Automation: Machine control, process monitoring, and safety interlocks.
• Building Management: HVAC control, lighting systems, and energy management.
• Infrastructure: Remote control of pumps, fans, and substations.
• Renewable Energy: Integration into solar/wind power systems for equipment control.

Technical Specifications

• Power Supply: 24 V DC/AC (±20%) or 110–240 V AC/DC (dependent on model).
• Input Channels: Typically 4 digital inputs.
• Output Channels: 4 relay outputs (e.g., 8 A @ 250 V AC).
• Isolation: Galvanic isolation between inputs, outputs, and communication.
• Certifications: Compliant with IEC/EN standards, CE marked, RoHS compliant.

Advantages

• Scalability: Easily expandable with additional modules for larger systems.
• Cost-Effective: Reduces wiring complexity and central controller dependency.
• Reliability: ABB’s industrial-grade quality ensures long-term performance.

Typical Use Cases

• Monitoring and controlling remote equipment in water treatment plants.
• Automating conveyor systems in manufacturing lines.
• Providing fail-safe controls for critical infrastructure.

The ABB RDCO-04C combines simplicity, durability, and adaptability, making it a trusted solution for decentralized control in industrial and commercial applications.
