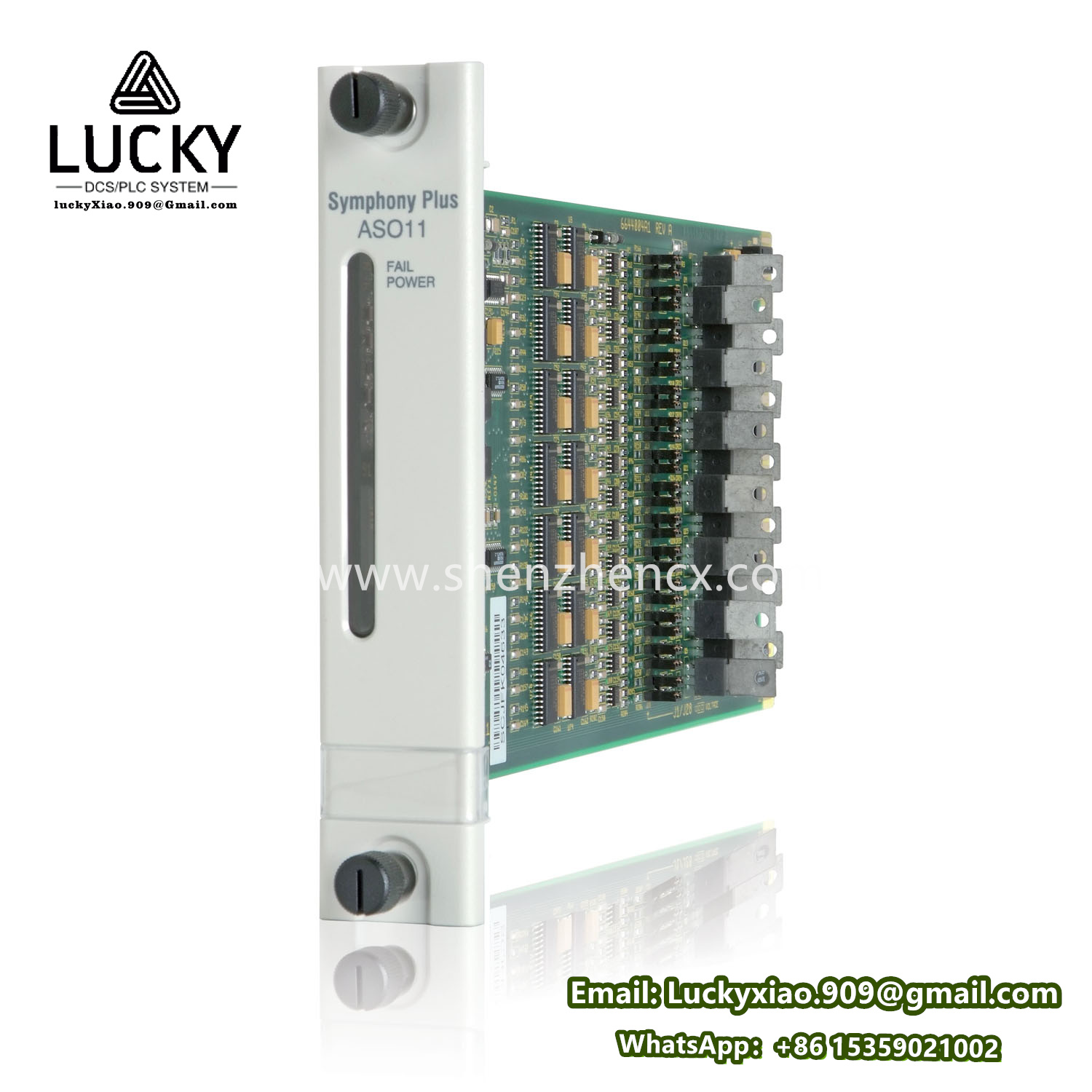

ABB SPASO11 Signal conditioning and protection relay module

The ABB SPASO11 is a specialized signal conditioning and protection relay module designed for use in power systems and industrial automation applications. It is part of ABB’s SPA (Switchgear Protection and Automation) product family, which focuses on ensuring reliable protection, monitoring, and control of electrical networks. Below is a detailed overview of its features, functionality, and applications:

Key Features

1. Signal Conditioning
   • Converts analog signals (e.g., voltage, current) from sensors or transformers into standardized outputs for precise measurement and control.
   • Supports filtering and isolation to eliminate noise and ensure signal integrity in electrically harsh environments.
2. Protection Functions
   • Implements advanced protection algorithms for overcurrent, undervoltage, overvoltage, and frequency deviations.
   • Configurable thresholds and time delays to tailor protection schemes to specific system requirements.
3. Versatile I/O Configuration
   • Multiple input channels for AC/DC voltage, current, and binary signals.
   • Relay outputs for tripping circuit breakers, alarms, or activating backup systems.
4. Communication and Integration
   • Equipped with communication interfaces (e.g., RS-485, Modbus RTU) for integration with SCADA systems, PLCs, or ABB’s Relion® protection relays.
   • Compatible with ABB’s PCM600 software for configuration, testing, and real-time diagnostics.
5. Robust Design
   • Built to withstand industrial conditions, including high humidity, temperature extremes (-25°C to +70°C), and electromagnetic interference (EMI).
   • Compact, DIN-rail-mountable form factor for easy installation in control panels.

Technical Specifications

• Inputs:
  • Voltage: 0–300V AC/DC (configurable).
  • Current: 0–1A or 0–5A AC (via external CTs).
  • Binary: Dry contact or 24–250V DC.
• Outputs:
  • Relay contacts (SPDT): 5A @ 250V AC/30V DC.
  • Analog outputs: 4–20mA or 0–10V DC (optional).
• Power Supply: 24–48V DC or 100–240V AC/DC (universal input).
• Certifications: Complies with IEC 60255, IEC 61000 (EMC), and UL standards.

Typical Applications

• Power Distribution: Monitoring and protection of transformers, motors, and feeders in substations or industrial grids.
• Renewable Energy Systems: Signal conditioning for solar inverters, wind turbines, or battery storage systems.
• Industrial Automation: Integration into process control systems for machinery protection and load management.
• Building Management: Voltage/current monitoring in critical infrastructure (e.g., data centers, hospitals).

Advantages

• Flexibility: Configurable for diverse input types and protection scenarios.
• Interoperability: Seamless integration with ABB’s protection relays (e.g., REF615, REL670) and third-party devices.
• Diagnostics: Real-time fault recording and event logging for quick troubleshooting.
• Cost-Effective: Reduces the need for external signal converters and simplifies system design.

Configuration and Compatibility

• Configured via PCM600 software, which provides a user-friendly interface for setting parameters, testing logic, and generating reports.
• Compatible with ABB’s Relion® series and other SPA/ZMU modules for expanded system functionality.
• Ensure compatibility with existing CTs (current transformers) and VTs (voltage transformers) during installation.
