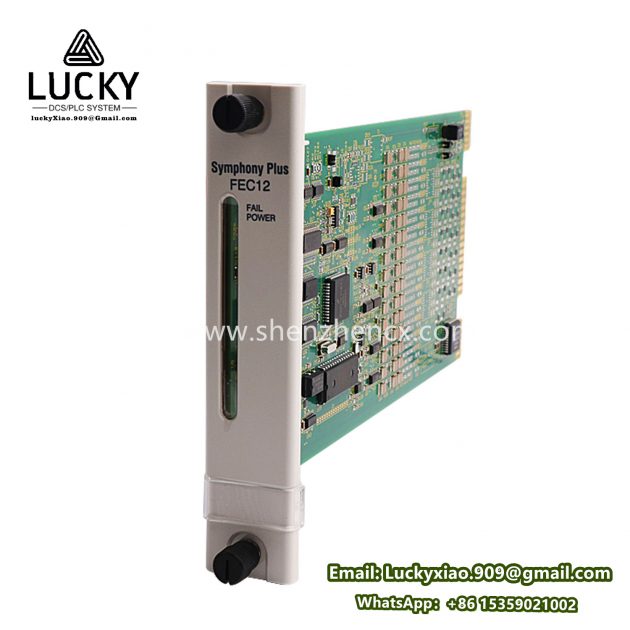

ABB SPFEC12 Signal conditioning and isolation module

Overview
The ABB SPFEC12 is a specialized signal conditioning and isolation module designed for industrial automation and control systems. It plays a critical role in ensuring reliable signal transmission between field devices (e.g., sensors, transmitters) and control systems (e.g., PLCs, DCS). This module is engineered to enhance system integrity by mitigating electrical noise, ground loops, and voltage spikes, making it ideal for harsh industrial environments such as power plants, manufacturing facilities, and oil & gas installations.

Key Functions

1. Signal Isolation: Provides galvanic isolation between input and output circuits to prevent ground loops and protect sensitive control systems from voltage surges.
2. Signal Conversion: Converts analog signals (e.g., 4–20 mA, 0–10 V) to standardized outputs compatible with control systems.
3. Noise Suppression: Filters electromagnetic interference (EMI) and radio frequency interference (RFI) for accurate signal transmission.
4. Redundancy Support: Optional redundancy configurations for critical applications requiring fail-safe operation.
5. Diagnostics: Built-in status indicators (LEDs) for real-time monitoring of signal health and module functionality.

Technical Specifications

• Input/Output Channels: Typically 1:1 isolation with configurable input/output ranges (e.g., 4–20 mA to 4–20 mA, 0–10 V to 0–10 V).
• Isolation Voltage: High isolation voltage (e.g., 1500 V DC) between input, output, and power supply.
• Accuracy: High precision (±0.1% full scale) for critical measurement applications.
• Power Supply: 24V DC (standard industrial voltage).
• Operating Temperature: -25°C to +70°C, suitable for extreme environments.
• Certifications: Complies with IEC 61000 (EMC), IEC 61131 (industrial control), and ATEX for hazardous areas (if applicable).

Applications

• Process Control: Isolation and conditioning of sensor signals (temperature, pressure, flow) in chemical plants or refineries.
• Power Systems: Signal management in substations, transformers, or renewable energy systems (solar/wind).
• Safety Systems: Integration into safety instrumented systems (SIS) to ensure reliable emergency shutdown signals.
• Motor Control: Signal conditioning for motor current/voltage feedback in drive systems.
• Hazardous Areas: ATEX-certified versions for use in explosive atmospheres (oil & gas, mining).

Key Features

• Modular Design: Compact form factor for easy installation in DIN rail-mounted cabinets.
• Configurable Ranges: Field-configurable input/output ranges via DIP switches or software.
• Robust Construction: High-quality materials for resistance to vibration, humidity, and corrosion.
• Hot-Swappable: Allows replacement without shutting down the entire system (if supported).
• Low Power Consumption: Energy-efficient operation for sustainable industrial setups.

Software & Compatibility

• Configuration Tools: Compatible with ABB’s Control Builder or third-party PLC/DCS software for parameter setup.
• Integration: Works seamlessly with ABB’s AC 800M controllers, S800 I/O systems, and third-party automation platforms.
• Firmware Management: Supports firmware updates to enhance functionality or address compatibility issues.

Why Choose the SPFEC12?
The ABB SPFEC12 ensures signal integrity and system reliability in mission-critical applications. Its robust isolation, noise immunity, and flexibility make it a cornerstone of modern industrial automation. By minimizing downtime and improving measurement accuracy, it delivers long-term cost savings and operational efficiency.
