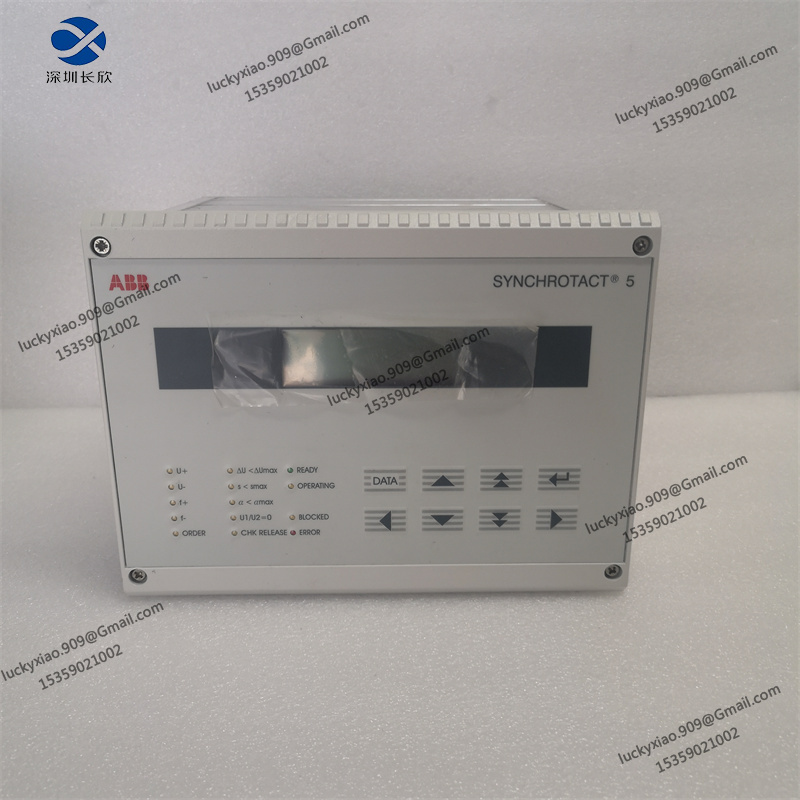

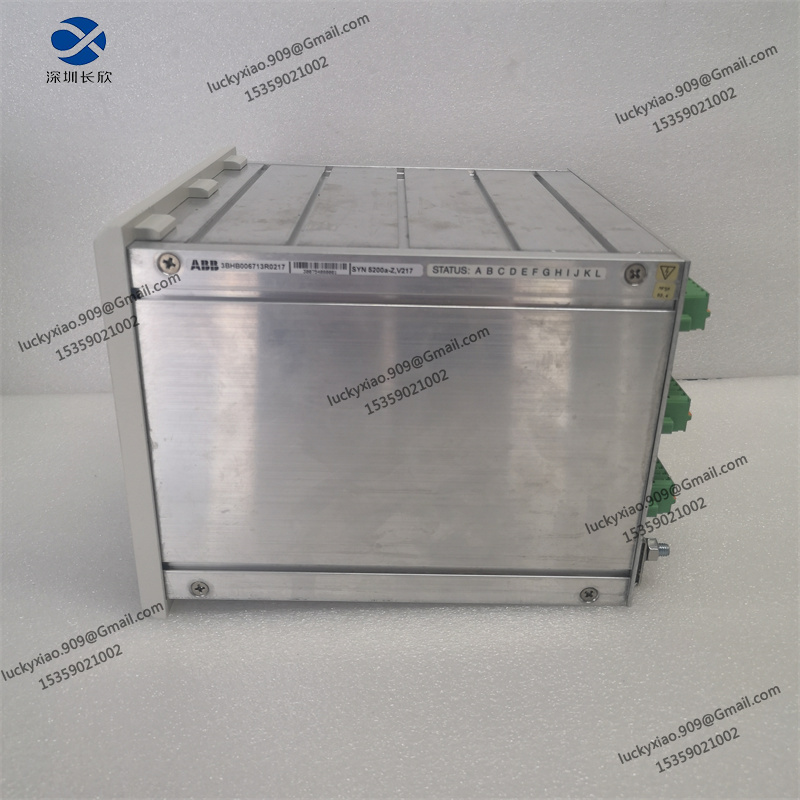

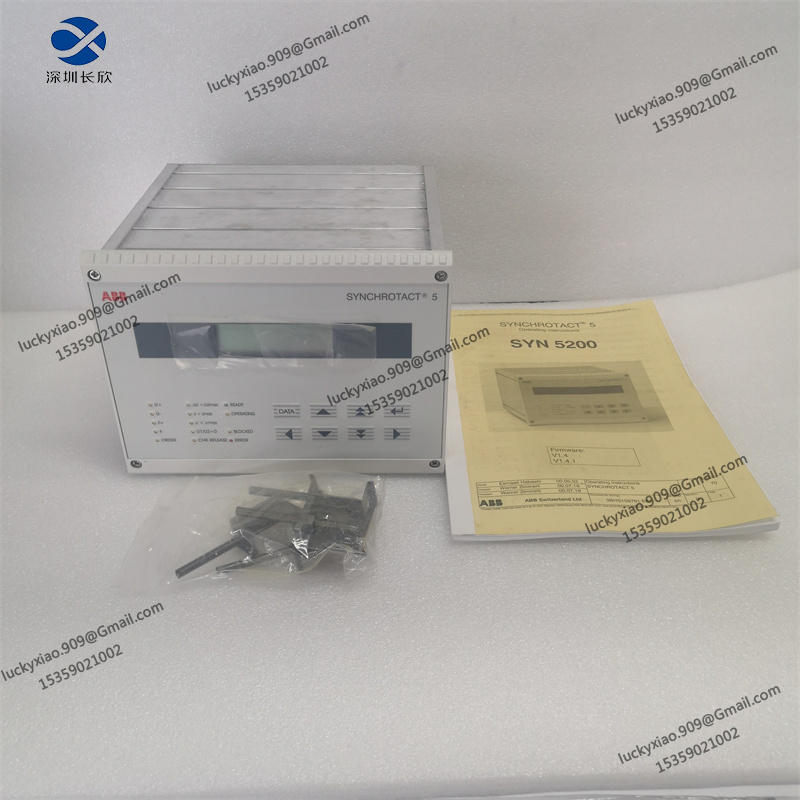

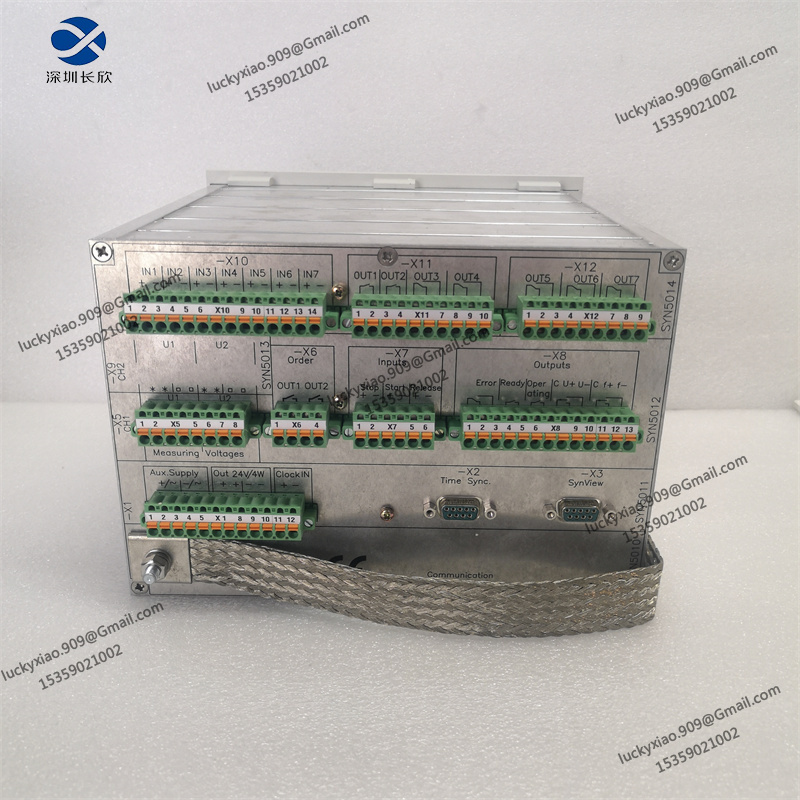

Introduction to ABB SYN5200a-Z 3BHB006713R0217
The ABB SYN5200a-Z (order number: 3BHB006713R0217) is a high-precision synchronous control module, renowned as the “synchronization core” for industrial multi-drive systems and power generation equipment. As a flagship product in ABB’s SYN series, it integrates advanced phase-locked loop (PLL) technology and multi-axis coordination capabilities, specializing in achieving precise speed and phase synchronization between multiple motors or generators. This module is widely applied in scenarios such as rolling mill production lines, paper machine drives, and generator parallel operation systems, perfectly matching ABB ACS880 series frequency converters and AC 800M DCS. Its robust industrial-grade design features 2000Vrms galvanic isolation, effectively resisting electromagnetic interference from high-power equipment, while the built-in adaptive control algorithm ensures stable synchronization even with load fluctuations.
3BHB006713R0217 Key Technical Specifications
-
Device Type: High-precision synchronous control module for multi-drive and power generation systems
-
Core Functions: Multi-axis synchronization control, phase-locked loop regulation, speed feedback processing, fault diagnosis
-
Compatible Systems: ABB ACS880 frequency converters, AC 800M DCS, Symphony®Plus distributed control systems
-
Control Performance: Synchronization accuracy ±0.01 rad; speed regulation range 0-3000 rpm; response time ≤ 3ms
-
Input/Output Configuration: 8 analog input channels (4-20mA); 6 analog output channels (4-20mA); 16 digital I/O points; 4 encoder input ports
-
Power Supply: 24V DC (nominal); input range 18-36V DC; typical power consumption ≤ 20W
-
Communication Interface: PROFINET, EtherNet/IP, Modbus TCP; dual Ethernet ports for redundancy
-
Isolation Performance: 2000Vrms between control circuit and power circuit; 1500Vrms between I/O channels
-
Operating Environment: Temperature -25°C to +70°C; humidity 5-95% (non-condensing); storage temp -40°C to +85°C
-
Physical Specifications: 145mm × 95mm × 48mm; weight ~0.6kg; 35mm DIN rail mounting
-
Protection Features: Overcurrent, overvoltage, undervoltage protection; overtemperature alarm; EMC compliant with IEC 61000-4
-
Certifications: CE, UL, RoHS compliant; meets IEC 61131-2 industrial standards; ATEX Zone 2 certified
Recommended ABB Related Models
-
ABB SYN5100a 3BHB006712R0101: Compact synchronous control module, ideal for small-scale multi-pump systems in water treatment
-
ABB ACS880-07: Medium-voltage frequency converter, core drive platform integrating SYN5200a-Z for rolling mill control
-
ABB PM866 3BSE050200R1: AC 800M CPU controller, processes real-time synchronization data from SYN5200a-Z
-
ABB CI858K01 3BSE018135R1: Multi-protocol communication module, transmits SYN5200a-Z’s data to remote SCADA systems
-
ABB TP854 3BSE025349R1: 7-inch HMI, visualizes SYN5200a-Z’s synchronization parameters and fault status on-site
-
ABB AI845 3BSE023675R1: High-precision analog input module, expands SYN5200a-Z’s sensor signal collection capability
-
ABB AO810 3BSE032453R1: 8-channel analog output module, executes control actions based on SYN5200a-Z’s commands
-
ABB CI871AK01 3BSE092693R1: High-speed PROFIBUS module, ensures 2ms real-time interaction with SYN5200a-Z
-
ABB PCD235B1101 3BHE032025R1101: Excitation control module, integrates SYN5200a-Z’s data for generator synchronization
-
ABB REF620: Digital relay protector, safeguards SYN5200a-Z and associated drive systems
-
ABB AC500 PLC: Compact controller, pairs with SYN5200a-Z for small-scale paper machine drive systems
-
ABB GVC736BE101 3BHE019719R0101: Gate driver module, complements SYN5200a-Z in high-power conversion systems
-
ABB UFC762AE101 3BHE006412R0101: High-precision analog input module, collects sensor data for SYN5200a-Z’s synchronization control
-
ABB DSQC639 3HAC025097-001: Motion control module, collaborates with SYN5200a-Z in robotic coordination systems
-
ABB PM632 3BSE005831R1: Compact controller, cost-effective option for SYN5200a-Z-based small-scale automation
