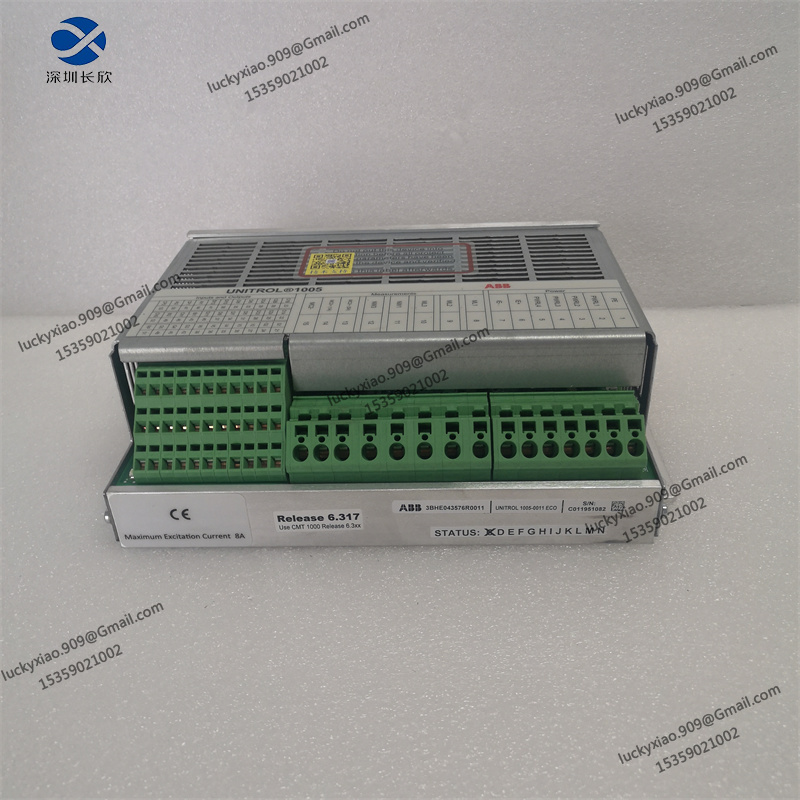

Introduction to ABB UNITROL 1005-0011 ECO 3BHE043576R0011
The ABB UNITROL 1005-0011 ECO (order number: 3BHE043576R0011) is a high-efficiency, compact automatic voltage regulator (AVR), hailed as the “voltage stability guardian” for medium-power synchronous generators and industrial motors. As a cost-effective yet high-performance model in ABB’s UNITROL 1000 series, it specializes in precise voltage regulation for indirectly excited synchronous machines up to 80 MVA, supporting multiple operational modes including voltage regulation, reactive power control, and power factor adjustment. This module finds wide application in gas turbines, steam turbines, emergency power systems, and industrial generator sets, ensuring stable power output amid load fluctuations. Its eco-friendly design achieves a 97% efficiency rating, significantly reducing operational energy consumption, while the robust industrial enclosure with IP20 protection enables reliable operation in harsh environments with temperature ranges from -25°C to +60°C.
3BHE043576R0011 Key Technical Specifications
-
Device Type: High-efficiency automatic voltage regulator (AVR) for synchronous machines
-
Application Scope: Synchronous generators/motors up to 80 MVA; indirectly excited systems
-
Core Functions: Voltage regulation, reactive power control, power factor regulation, field current control
-
Regulation Performance: Voltage regulation accuracy ±1% (nominal); response time ≤ 10ms
-
Input Voltage Range: AC 16-250V (25-600Hz); DC 18-300V; minimum start voltage 6V AC/16V DC
-
Output Parameters: Continuous excitation current 5A; ceiling current 10A @ 70°C ambient temperature
-
Power Supply: AC 90-264V; power rating 500VA; efficiency 97%
-
Communication Interface: RS-485 with Modbus protocol; supports remote monitoring and control
-
Operating Environment: Temperature -25°C to +60°C; humidity 5-95% (non-condensing)
-
Physical Specifications: 120mm × 100mm × 80mm; weight ~2.5kg; panel-mounted
-
Protection Features: Overcurrent, overvoltage, undervoltage protection; overtemperature alarm
-
Certifications: CE, UL compliant; RoHS certified; meets industrial grid code standards
Recommended ABB Related Models
-
ABB UNITROL 1010 3BHE043577R0001: Mid-range AVR for 10-50 MVA generators, ideal for industrial cogeneration systems
-
ABB UNITROL 1020: High-performance excitation regulator, suitable for large-scale power plant generators up to 200 MVA
-

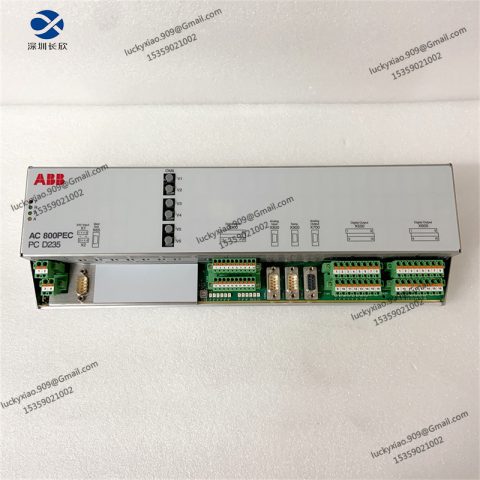

ABB PCD235B1101 3BHE032025R1101: Excitation control module, pairs with UNITROL 1005-0011 ECO for closed-loop control
-
ABB PM866 3BSE050200R1: AC 800M CPU controller, processes real-time voltage data from the AVR in integrated DCS
-
ABB CI858K01 3BSE018135R1: Multi-protocol communication module, transmits AVR data to remote SCADA systems
-
ABB TP854 3BSE025349R1: 7-inch HMI, visualizes voltage, current, and fault status of UNITROL 1005-0011 ECO
-
ABB AI810 3BSE032456R1: 8-channel analog input module, expands sensor signal collection for the AVR system
-
ABB DO810 3BSE032452R1: 16-channel digital output module, executes emergency actions based on AVR fault signals
-
ABB REF620: Digital relay protector, safeguards generators and AVR from grid voltage fluctuations
-
ABB ACS 580: Low-voltage frequency converter, receives control signals derived from AVR voltage data
-
ABB CI871AK01 3BSE092693R1: High-speed PROFIBUS module, ensures real-time data interaction with the AVR
-
ABB AC500 PLC: Compact controller, pairs with UNITROL 1005-0011 ECO for small-scale emergency power systems
-
ABB GVC736BE101 3BHE019719R0101: Gate driver module, complements the AVR in hybrid power conversion systems
-
ABB CMT 1000: Commissioning and maintenance tool, simplifies setup and troubleshooting of UNITROL 1000 series AVRs
