Introduction to ABB XO08R2 1SBP260109R1001
XO08R2 Product Overview

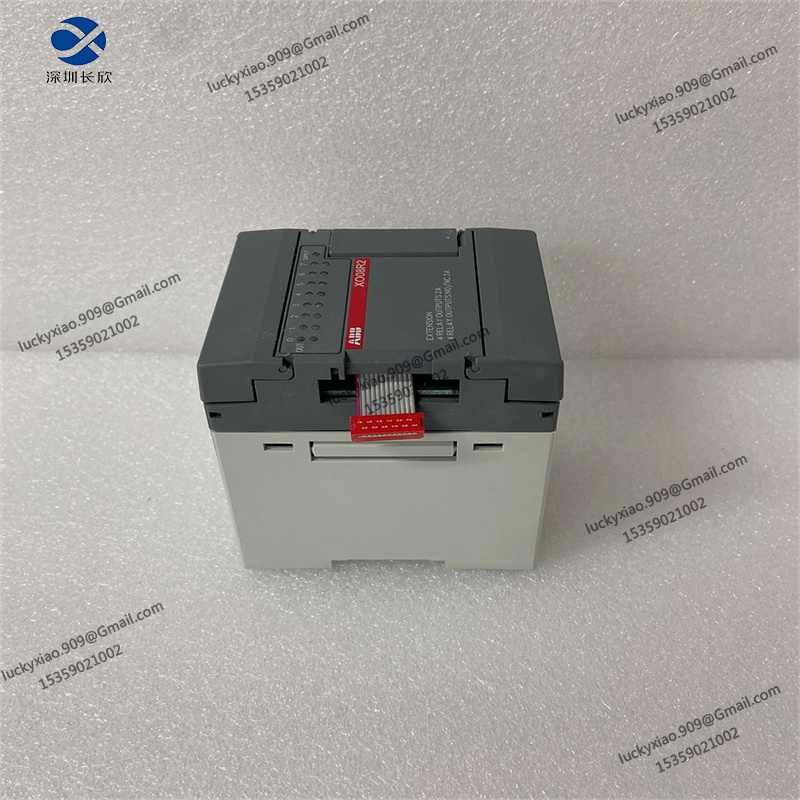

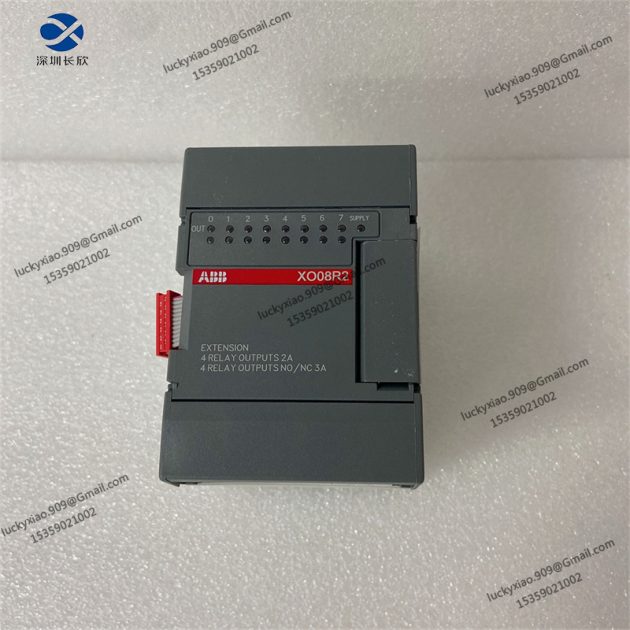

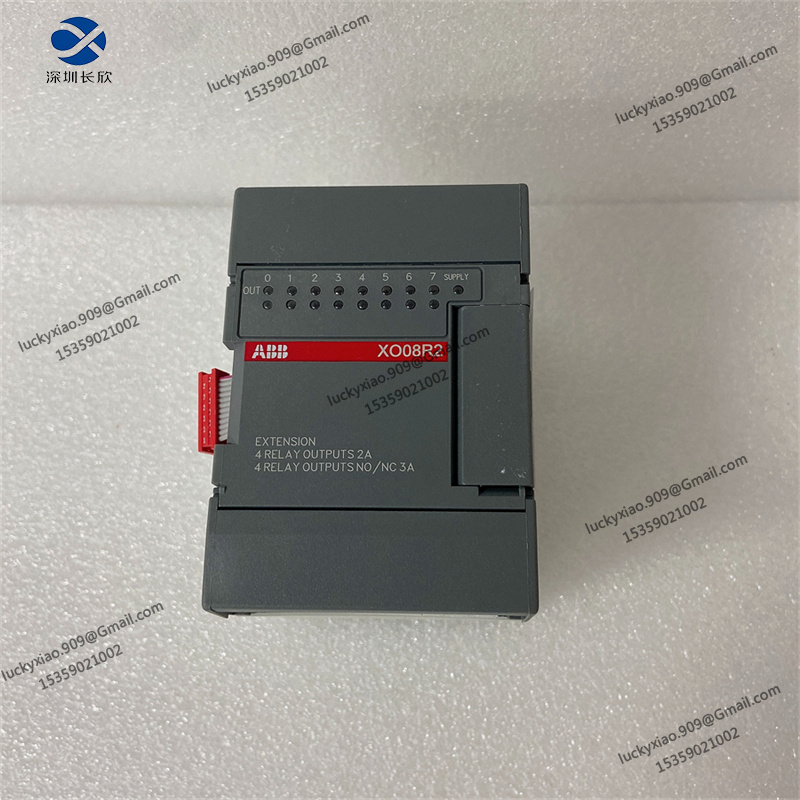

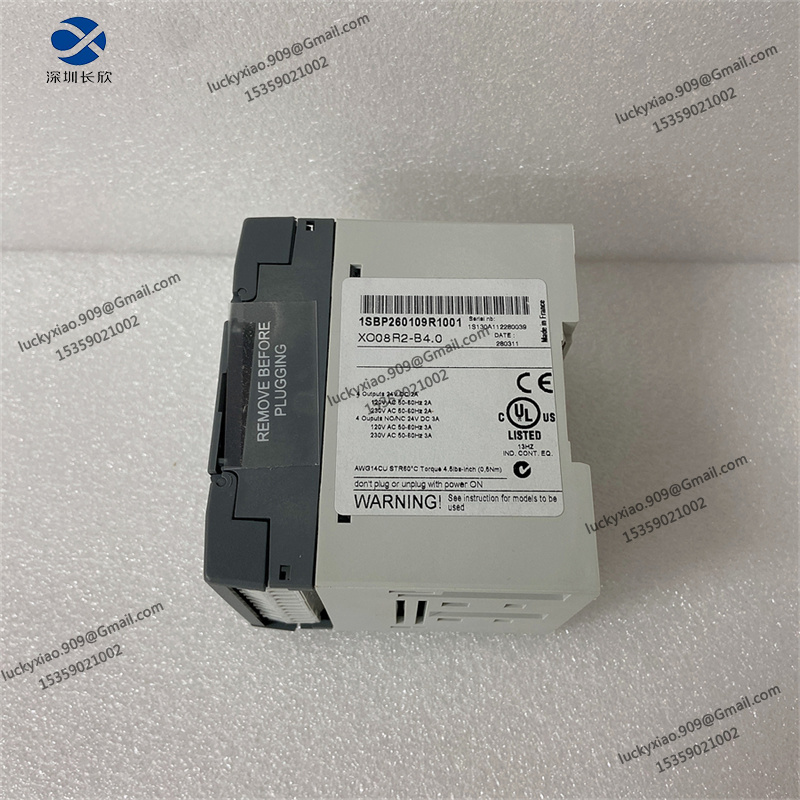

The ABB XO08R2 (order code: 1SBP260109R1001) is a compact and high-reliability digital output module, specifically designed for space-constrained industrial control cabinets in automation systems. Featuring 8 independent digital output channels, it excels in driving low-to-medium power field devices such as solenoid valves, indicator lights, and small relays—making it a key component in automotive assembly lines, electronic component testing stations, and food packaging machinery. What distinguishes it from standard modules is its ultra-slim design (only 12mm wide) and high channel density, which allows installation in narrow cabinet spaces without sacrificing performance. Equipped with channel-level short-circuit protection and optical isolation (2500Vrms), it effectively resists electromagnetic interference in industrial environments and prevents module damage from abnormal loads. Compatible with ABB’s AC 800M DCS and Compact Product Line controllers, it supports hot-swappable maintenance and real-time status feedback via LED indicators, ensuring efficient operation and quick troubleshooting for on-site engineers.
XO08R2 Technical Specifications
-
Product Model: XO08R2 (Order Code: 1SBP260109R1001)
-
Product Type: Compact Digital Output Module
-
Series Affiliation: ABB XO Series I/O Modules
-
Core Functions: Field device driving, short-circuit protection, status feedback, anti-interference signal transmission
-
Output Configuration: 8 digital output channels; Relay output type
-
Electrical Ratings: Each channel rated current 2A; Maximum switching voltage 250V AC/30V DC
-
Isolation Performance: Channel-to-channel isolation 2500Vrms; Module-to-ground isolation 1kVrms
-
Response Performance: Output switching time ≤10ms; Status feedback delay ≤5ms
-
Protection Features: Channel-level short-circuit protection, overvoltage protection, surge protection (1kV)
-
Power Supply: 24V DC ±10%; Power consumption ≤3W
-
Operating Environment: Temperature -25°C to +60°C; Humidity 5-95% (non-condensing); IP20 protection rating
-
Mechanical Features: 12mm width; DIN rail mount; Weight ~80g; LED status indicators per channel
-
Communication Compatibility: Supports ABB AC 800M backplane communication; Compatible with PROFINET via adapter
-
Certifications: CE, UL certified; Compliant with IEC 61131-2 industrial standards
Recommended ABB Products
-
ABB DI081 1SBP260108R1001: Digital input module that pairs with XO08R2 to form a complete I/O solution for small control systems.
-
ABB PP846 3BSE042238R1: AC 800M CPU module that sends control commands to XO08R2 for field device operation.
-
ABB AI835 3BDH000055R1: Analog input module that provides sensor data for XO08R2’s control logic execution.
-
ABB CI854A 3BSE022363R1: Profibus DP module that expands XO08R2’s connectivity to fieldbus networks.
-
ABB DSQC1030: Robot-specific I/O module that coordinates with XO08R2 in robotic workstation control.
-
ABB PS860 3BSE008545R1: Redundant power supply that ensures stable 24V DC input for XO08R2.
-
ABB AO835 3BDH000056R1: Analog output module that complements XO08R2 in mixed-signal control systems.
-
ABB VBX01BA: Digital signal processing module that enhances XO08R2’s on-site logic processing capability.
-
ABB REF615 1MRK504153-BEN: Protection relay that uses XO08R2’s status signals to trigger safety alarms.
-
ABB ACS580: Frequency converter that works with XO08R2 for energy-efficient motor control in production lines.
