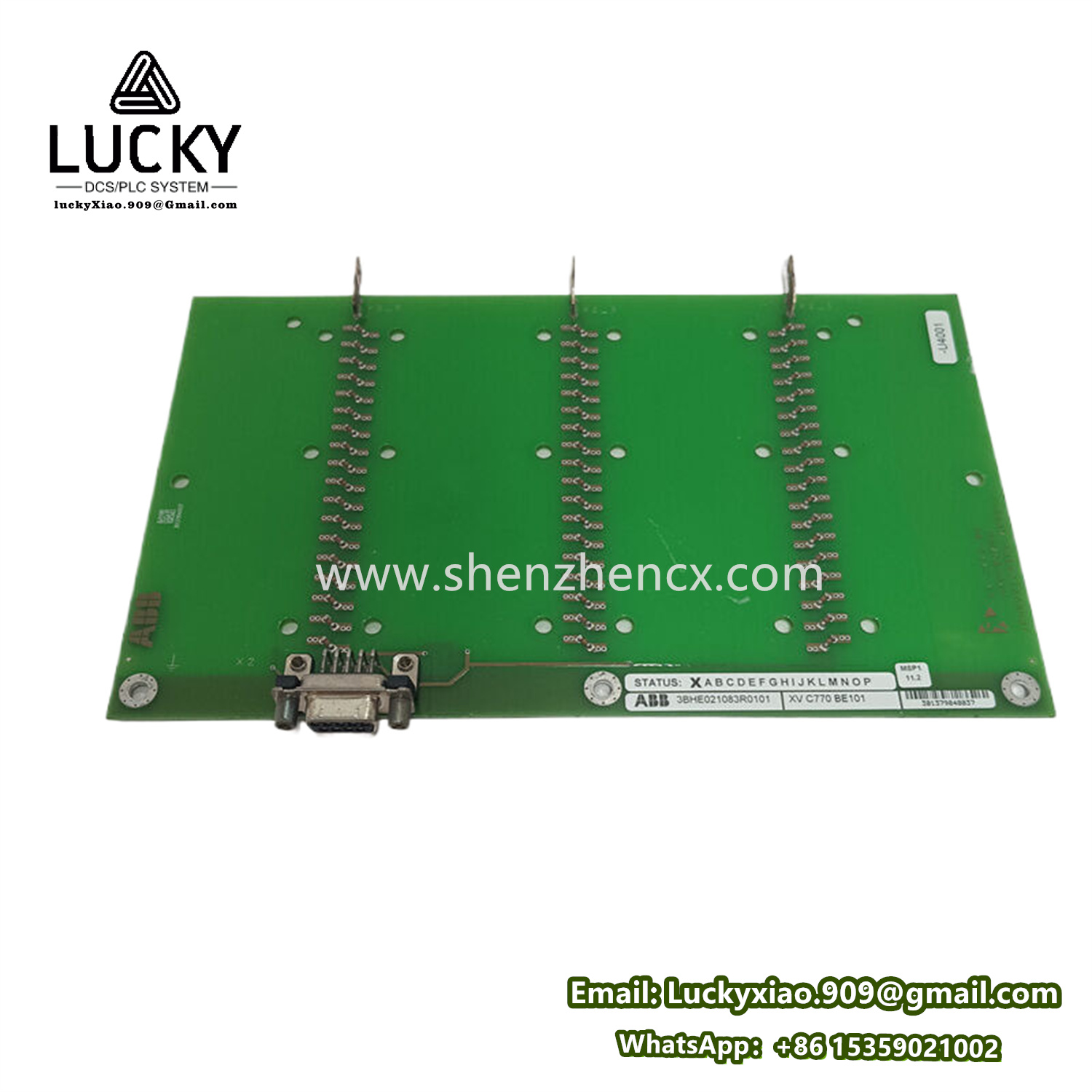

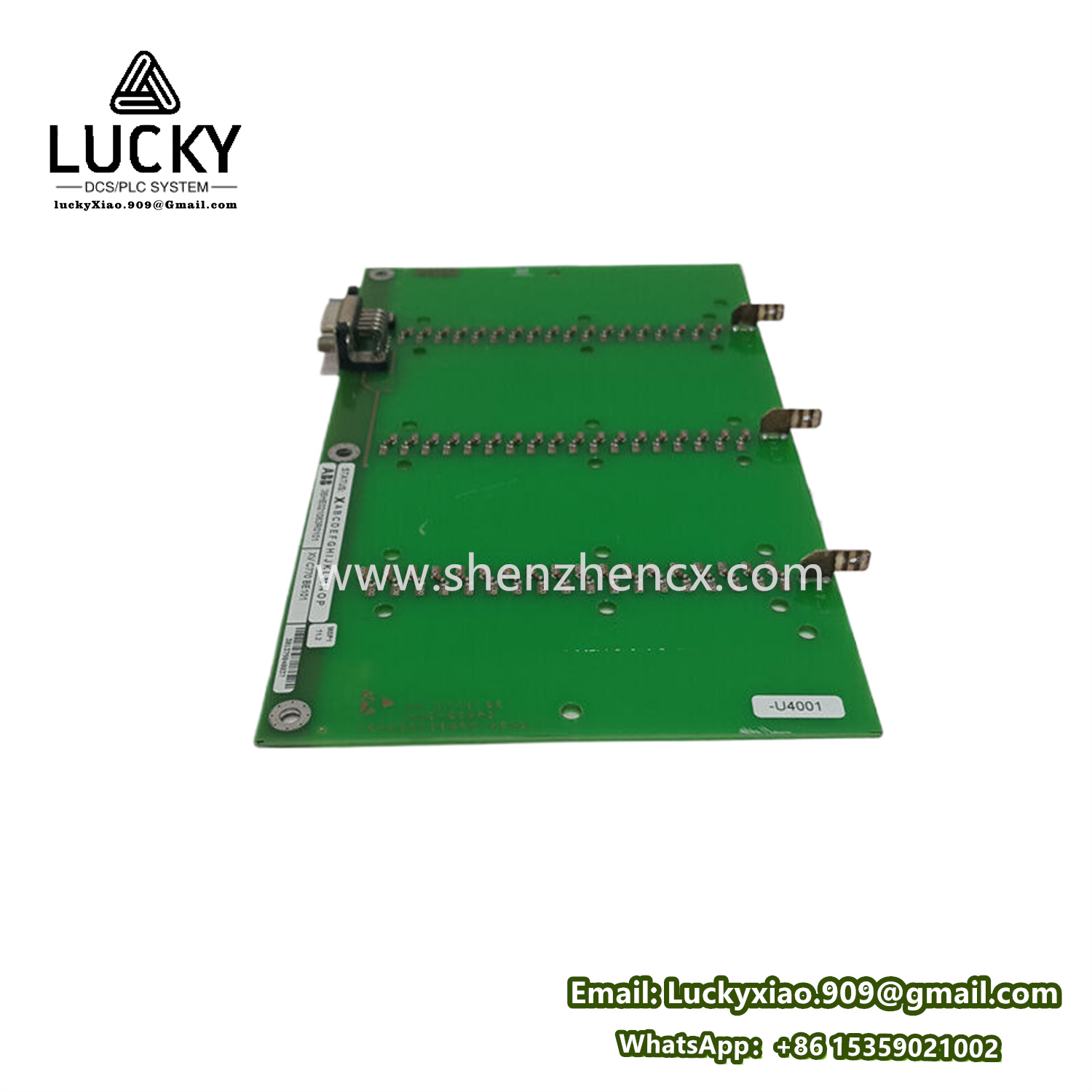

ABB XVC770BE101 3BHE021083R0101 System Expansion Unit

ABB XVC770BE101 3BHE021083R0101

The ABB XVC770BE101 3BHE021083R0101 is a redundant control processor module or system extension unit designed for ABB’s AC 800M programmable logic controller (PLC) family. As part of ABB’s System 800xA automation platform, this module ensures high availability, fault tolerance, and seamless integration in mission-critical industrial automation systems. It is engineered to deliver unmatched reliability and performance in industries where operational continuity and precision are paramount.

Key Features:

1. Redundant Control Architecture:
   • Supports hot-swappable redundancy for uninterrupted operation during maintenance or component failure.
   • Synchronizes data between primary and backup modules to ensure seamless failover.
2. High-Speed Processing:
   • Equipped with powerful processors to handle complex control algorithms, logic execution, and real-time data processing.
3. Communication Interfaces:
   • Integrates with Profibus DP, Modbus TCP, Ethernet/IP, or other industrial protocols for connectivity with I/O modules, drives, and SCADA systems.
   • Supports OPC UA or ABB Advant Fieldbus 100/400 for legacy system integration.
4. Modular and Scalable Design:
   • Plug-and-play installation into AC 800M controller racks for easy system expansion.
   • Compatible with additional I/O and communication modules to meet growing automation needs.
5. Robust Environmental Performance:
   • Operates in harsh conditions with -25°C to +70°C temperature tolerance, high immunity to EMI, and resistance to vibrations.
   • Compliant with IEC 61131, UL, and CE standards for industrial safety.
6. Diagnostics and Monitoring:
   • Built-in LEDs and software tools for real-time status monitoring, fault detection, and predictive maintenance.
   • Event logging and diagnostics via ABB’s Control Builder engineering suite.

Technical Specifications:

• Model: XVC770BE101 (3BHE021083R0101)
• Processor: High-performance CPU for deterministic control tasks.
• Memory: Flash and RAM for program storage and runtime execution.
• Redundancy: Synchronization via fiber-optic or Ethernet links.
• Power Supply: 24V DC (typical for AC 800M systems).
• Mounting: Rack-mounted within AC 800M controller chassis.
• Certifications: UL, CE, ATEX (for hazardous areas if applicable).

Applications:

The XVC770BE101 module is ideal for industries requiring 24/7 operational reliability and precision control:

• Oil & Gas: Offshore platforms, refinery process control, and pipeline monitoring.
• Power Generation: Turbine control, grid stability, and substation automation.
• Chemical & Pharmaceutical: Batch processing, reactor control, and safety systems.
• Water/Wastewater: Pump station automation and distribution network management.
• Manufacturing: High-speed production lines and robotics coordination.

Benefits:

• Zero Downtime: Redundant architecture eliminates single points of failure.
• Scalability: Expandable I/O capacity and communication options for future upgrades.
• Interoperability: Integrates seamlessly with ABB’s System 800xA and third-party devices.
• Cost Efficiency: Reduces maintenance costs through predictive diagnostics and modular replacement.

Configuration Notes:

• Software: Configured using ABB’s Control Builder or Automation Builder tools for programming, parameterization, and redundancy setup.
• Redundancy Setup: Requires matching redundant modules and proper synchronization cabling.
• Firmware Updates: Regular updates ensure compatibility with evolving system requirements.
