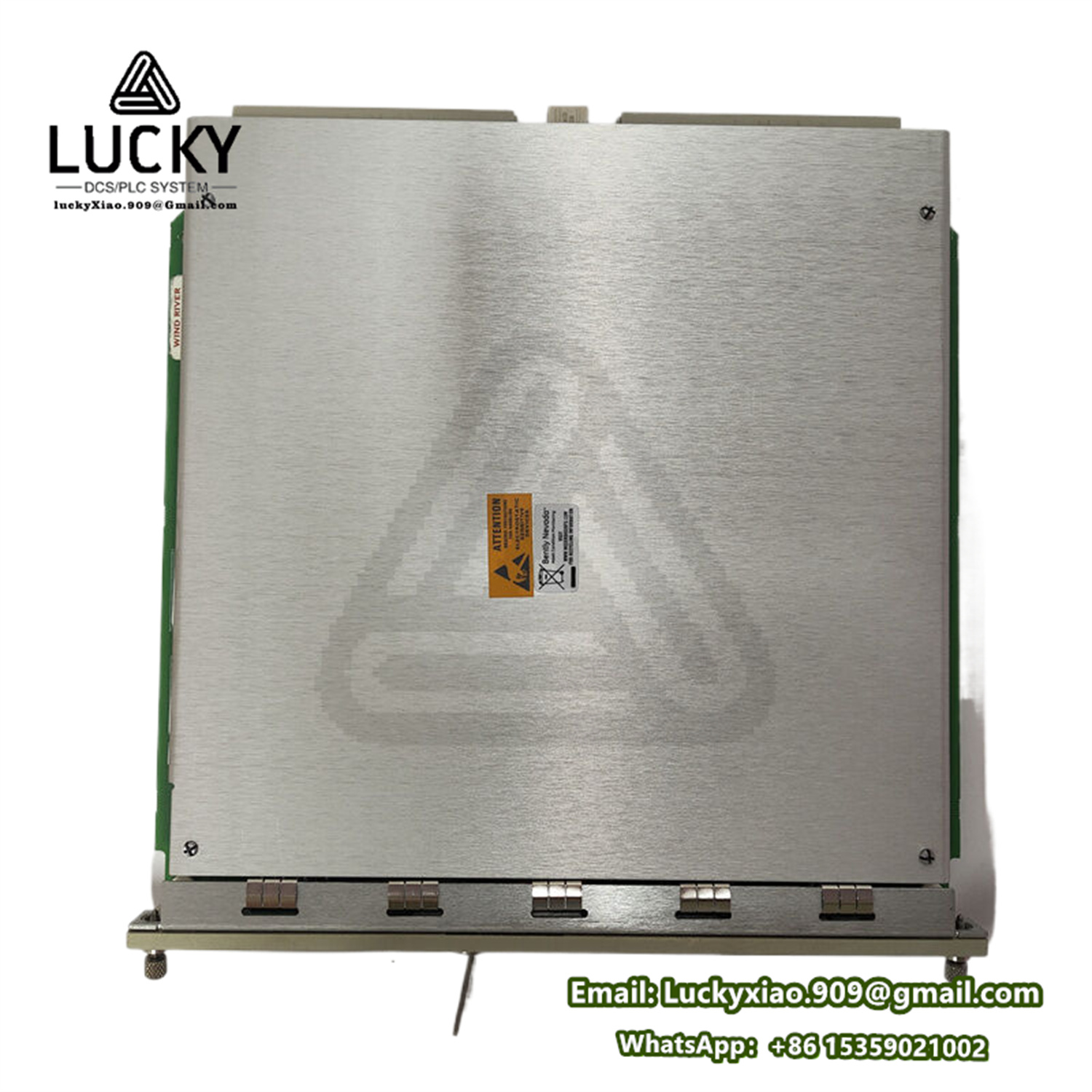

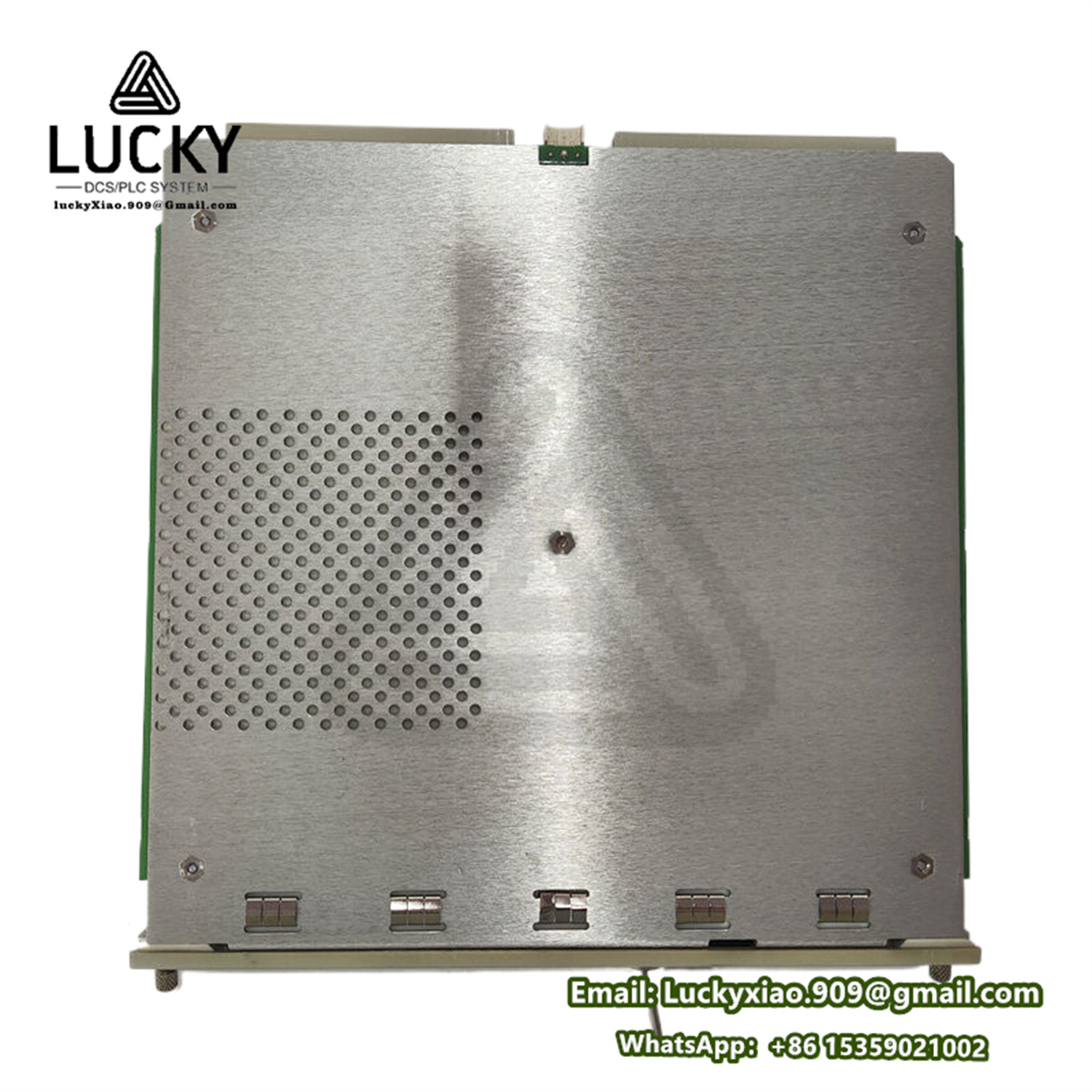

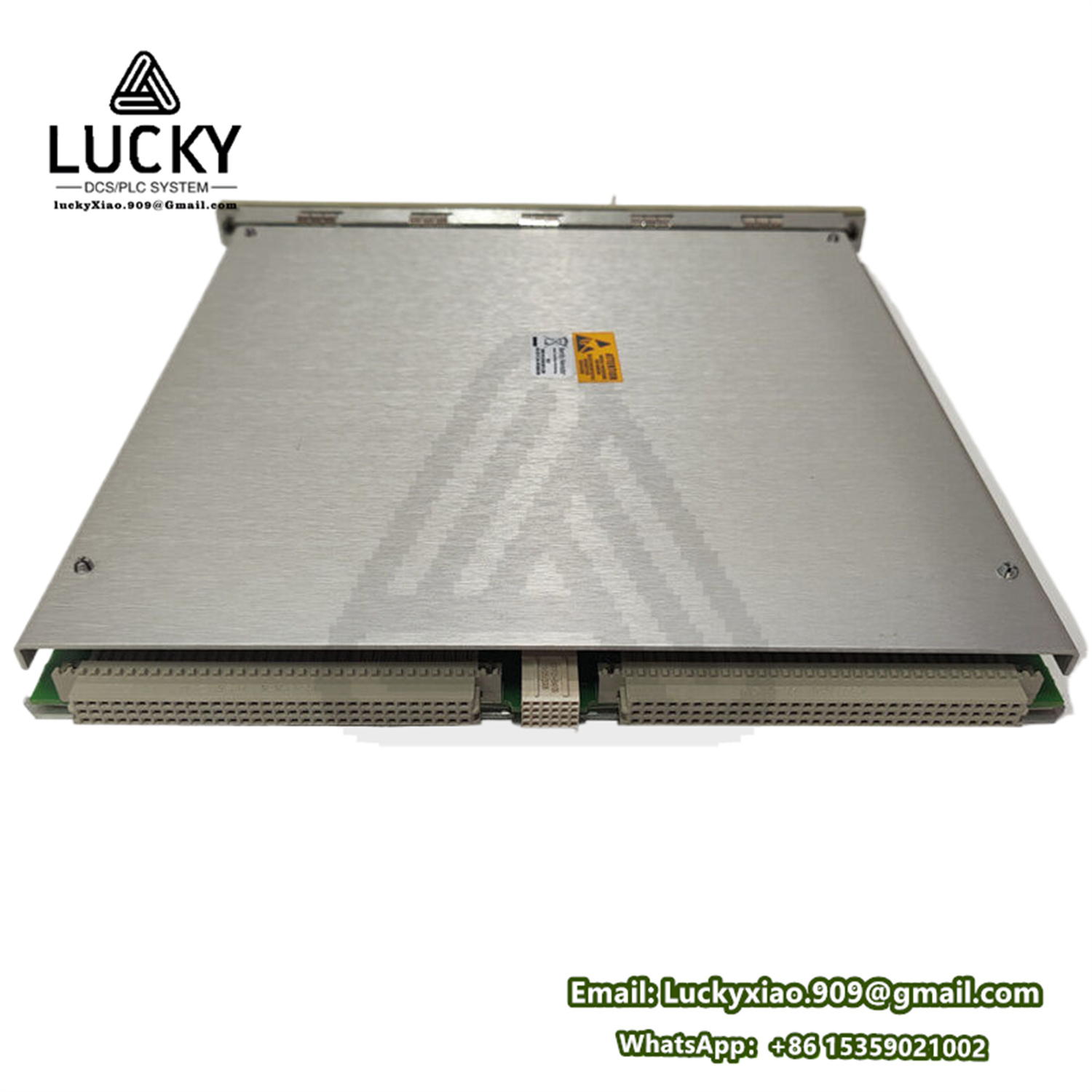

BENTLY 3500/22-01-01-00 Product Introduction
1. 3500/22-01-01-00 Product Description
BENTLY 3500/22-01-01-00 is a standard transient data interface module for the BENTLY 3500 machinery protection and condition monitoring system. It combines rack interface and high-speed data transmission functions in a single compact unit. This module acts as the main communication gateway connecting the 3500 rack internal modules and external monitoring software and control systems. It continuously collects steady-state operation data and transient waveform data from all monitoring channels. Built with industrial-grade hardware, it features stable running performance, automatic self-test function and strong anti-interference capability. It supports long-term uninterrupted operation and requires simple configuration, which is suitable for various industrial mechanical monitoring scenarios.
2. System Introduction
The 3500/22-01-01-00 module is a core communication component of the BENTLY 3500 rack monitoring system. It is installed in the standard slot of the 3500 rack to manage internal data transmission of the whole rack. It receives vibration, displacement, speed and other mechanical status data from different monitoring modules, then uploads valid data to System 1 diagnostic software and 3500 configuration tools for real-time analysis and fault judgment. It supports stable data docking with DCS, PLC and SCADA systems. It ensures accurate data synchronization and reliable signal transmission, and works with other functional modules to build a complete machinery monitoring and protection system.
3. 3500/22-01-01-00 Product Technical Parameters
Product Type: Industrial Transient Data Interface (TDI) Module Model Number: 3500/22-01-01-00 Applicable System: BENTLY 3500 machinery monitoring rack system Core Function: Real-time data acquisition, transient waveform recording and system communication Communication Interface: Standard Ethernet and industrial bus interface Supported Protocol: BN Host high-speed communication protocol Rated Power Consumption: 10.5W maximum working power Self-Diagnosis: Built-in automatic fault detection and status indication Operating Temperature: -20°C to +70°C Storage Temperature: -40°C to +85°C Working Humidity: 5% to 95% non-condensing Installation Method: Standard 3500 rack slot mounting Working Mode: 24-hour continuous stable operation Environmental Design: Anti-vibration and anti-electromagnetic interference structure
4. Application Fields
This module is widely used in industrial fields that require precise mechanical condition monitoring and equipment protection. It is mainly applied in thermal power plants for turbine and generator set monitoring. It is used in petrochemical and gas industries for compressor, pump and rotating equipment status tracking. It also serves metallurgy, mining and manufacturing industries to monitor various high-speed rotating machinery. It provides accurate and real-time operating data for equipment health analysis, early fault warning and safe industrial production.
5. BENTLY Other Series Model Recommendations
3500/20: Basic rack interface module for internal rack signal transmission and system management.
3500/25: Keyphasor monitoring module for rotating machinery speed and phase signal collection.
3500/40: Proximity monitor module for shaft displacement and position monitoring of rotating equipment.
3500/42: High-sensitivity vibration monitor module for mechanical vibration detection and alarm output.
3500/50: Speed monitor module for real-time speed detection and overspeed protection control.
60M100-00: Compact condition monitoring module for general industrial machinery health monitoring.
1900/65: Mini intelligent machinery monitor for small-scale equipment protection and status monitoring.
