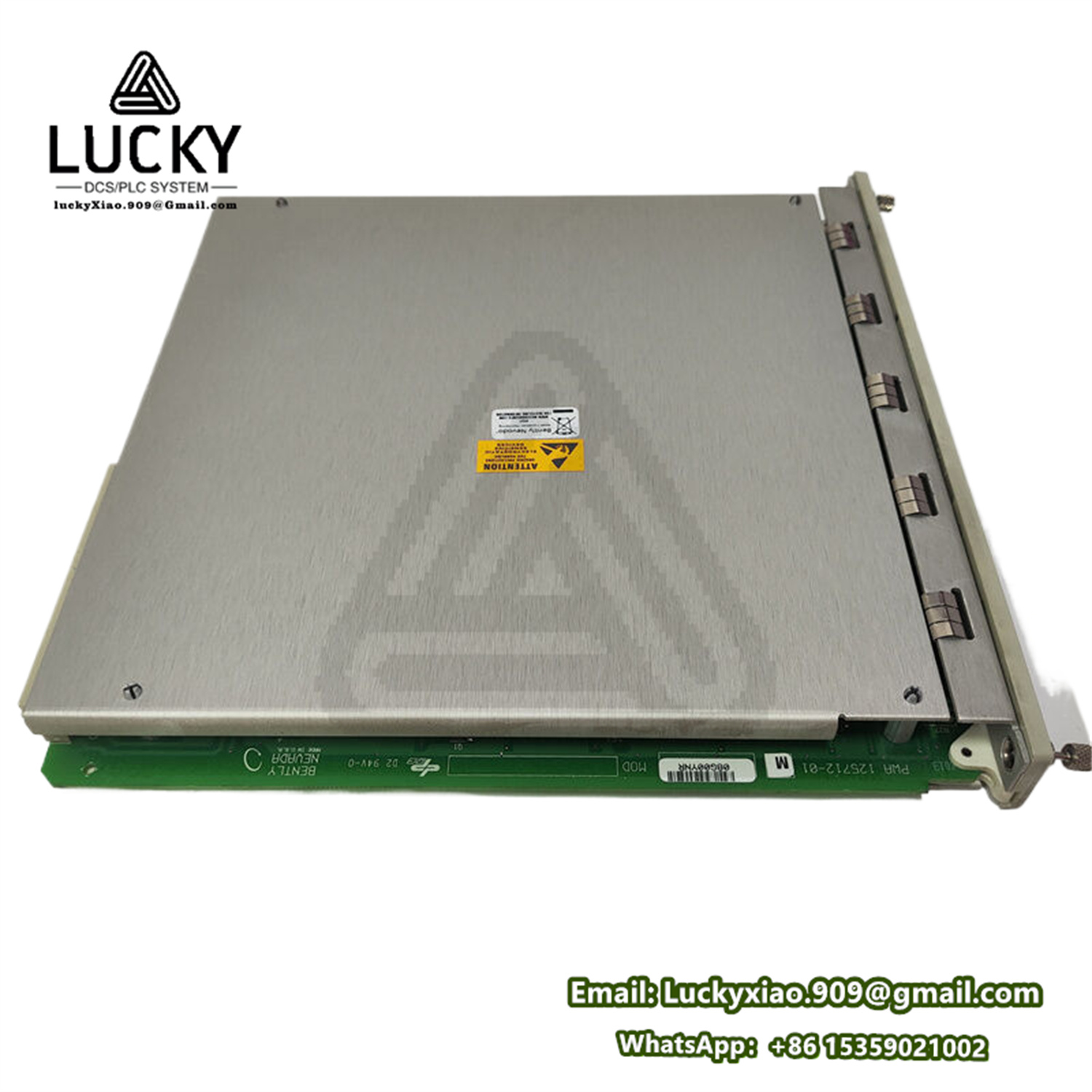

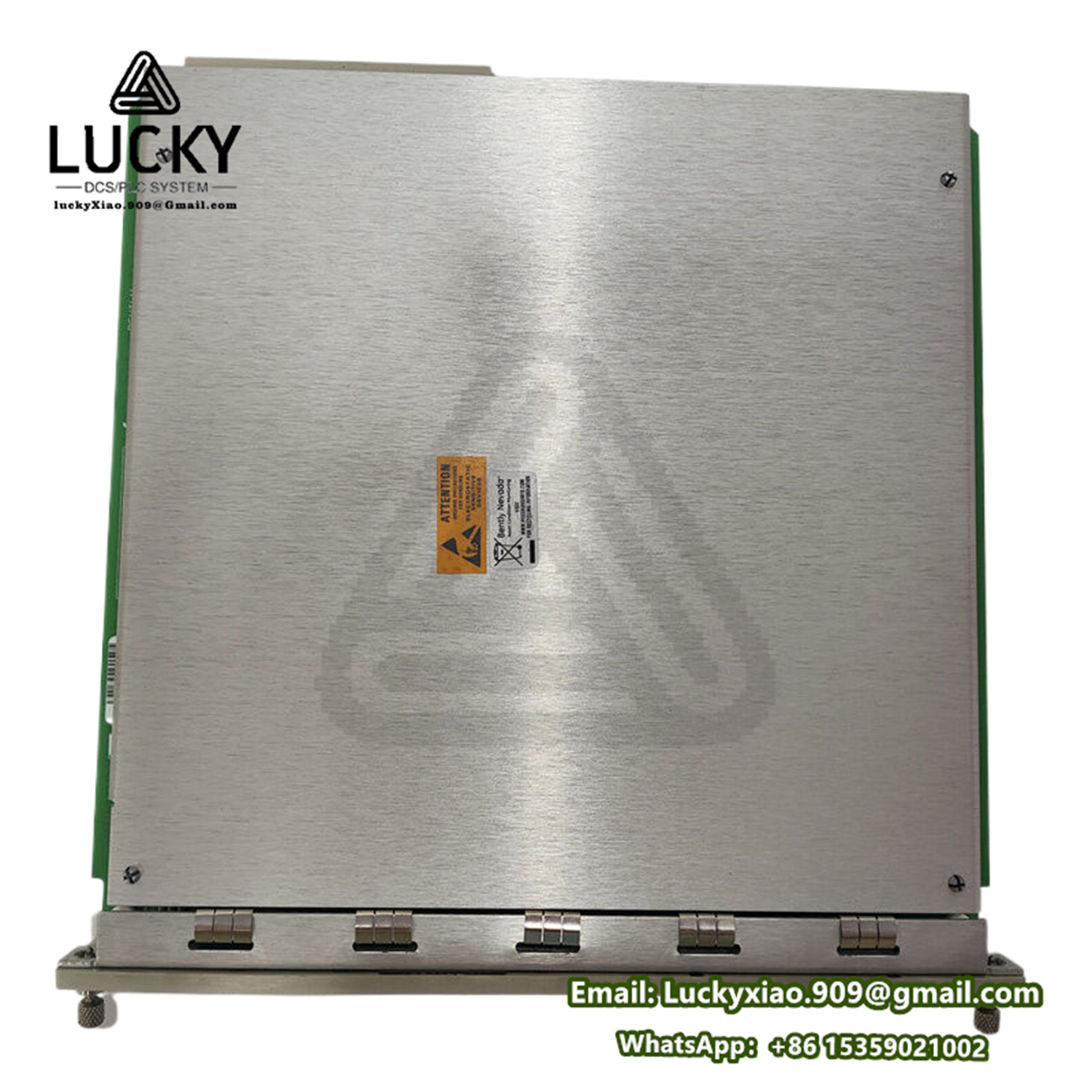

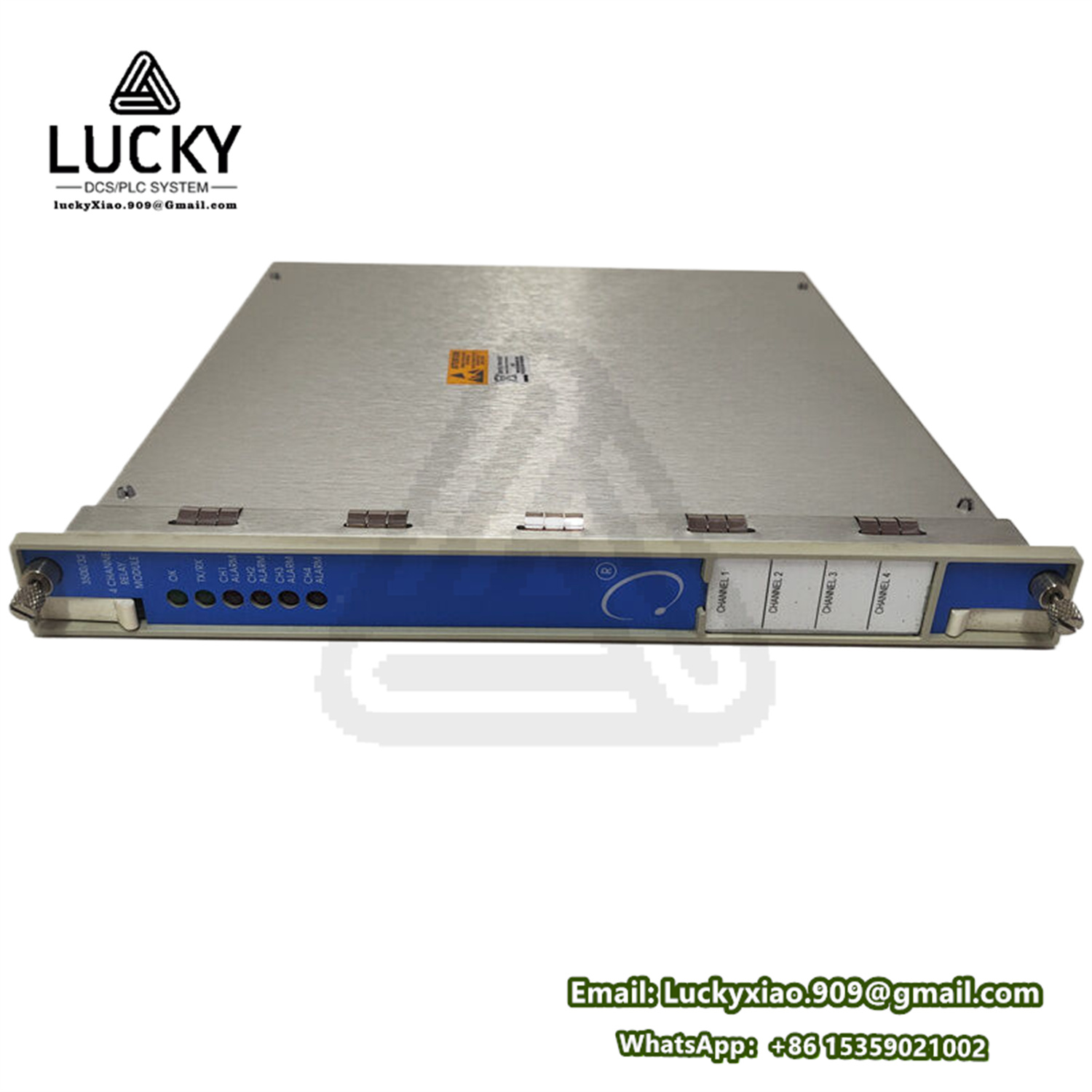

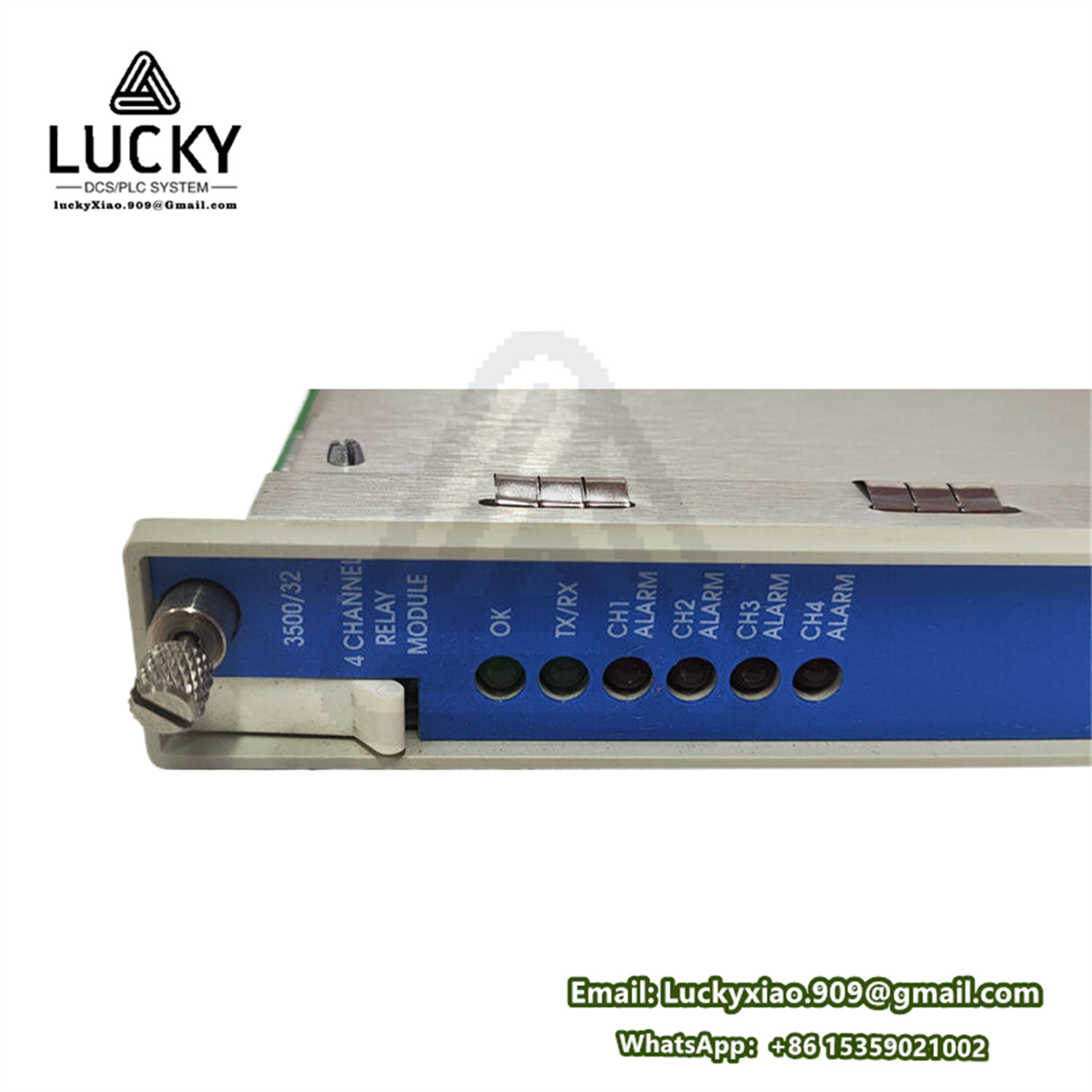

Bently Nevada 3500/32 125712-01 Product Overview
3500/32 125712-01 Product Introduction
Bently Nevada 3500/32 125712-01 is a high-performance four-channel relay output module tailored for the 3500 series machinery protection systems. Serving as the core execution unit for safety logic control, it converts digital alarm and protection signals generated by monitoring modules into physical relay switching actions. Each channel supports independent configuration and flexible voting logic settings, adapting to diverse on-site alarm linkage and equipment interlock requirements. Built with industrial-grade sealed circuits and arc suppression design, it delivers stable switching performance and long service life under harsh industrial conditions. Widely deployed in turbines, compressors and other key rotating machinery, it provides reliable safety response to prevent abnormal operating conditions from causing equipment damage or unplanned production outages.
3500/32 125712-01 Technical Specifications
-
Product Model: 3500/32, Part Number 125712-01 (4-Channel Relay Output Module)
-
Module Structure: Full-height rack-mounted design compatible with standard 3500 system racks
-
Channel Configuration: Four fully independent programmable relay output channels
-
Logic Function: Supports customizable AND/OR voting logic and alarm trigger modes
-
Relay Status: Switchable normally energized or de-energized working mode
-
Contact Rating: Standard industrial contact load capacity for field circuit control
-
Protection Design: Built-in arc suppression and surge protection for operational stability
-
Operating Temperature: -30°C to +65°C for standard industrial cabinet environments
-
Humidity Resistance: 5%–95% non-condensing relative humidity tolerance
-
System Compatibility: Fully compatible with all modules and configuration software of the 3500 series
Recommended Bently Nevada Same-Series Models
-
3500/15: Redundant power supply module providing stable continuous power for system racks
-
3500/20: Rack interface module responsible for system configuration and internal resource management
-
3500/22: Transient data module for high-speed waveform acquisition and network data transmission
-
3500/25: Keyphasor module for shaft phase reference and rotational timing signal collection
-
3500/34: High-density 16-channel relay module for large-scale multi-point protection signal expansion
-
3500/40M: Multi-functional module for real-time vibration and displacement condition monitoring
-
3500/42M: High-precision seismic module for mechanical vibration fault analysis and early warning
-
3500/45: Position monitoring module for shaft displacement and thermal expansion parameter measurement
-
3500/50: Speed monitoring module for rotational speed detection and overspeed safety protection
-
3500/92: Communication gateway module for system data aggregation and remote transmission
-
133300-01: Power input interface board for stable power access and circuit filtering
-
136188-01: Communication interface module for industrial protocol conversion and network expansion
