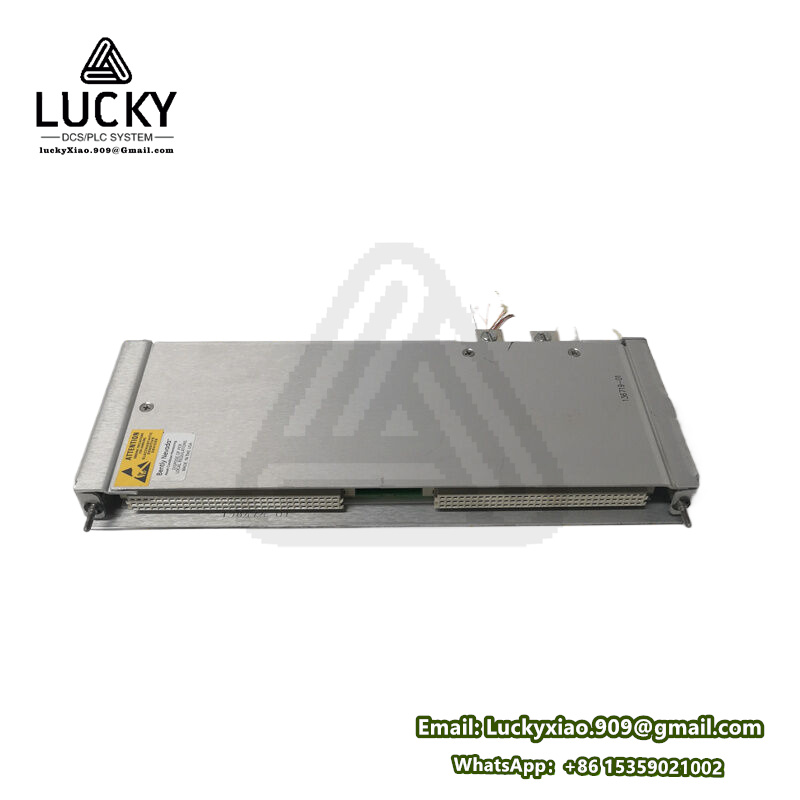

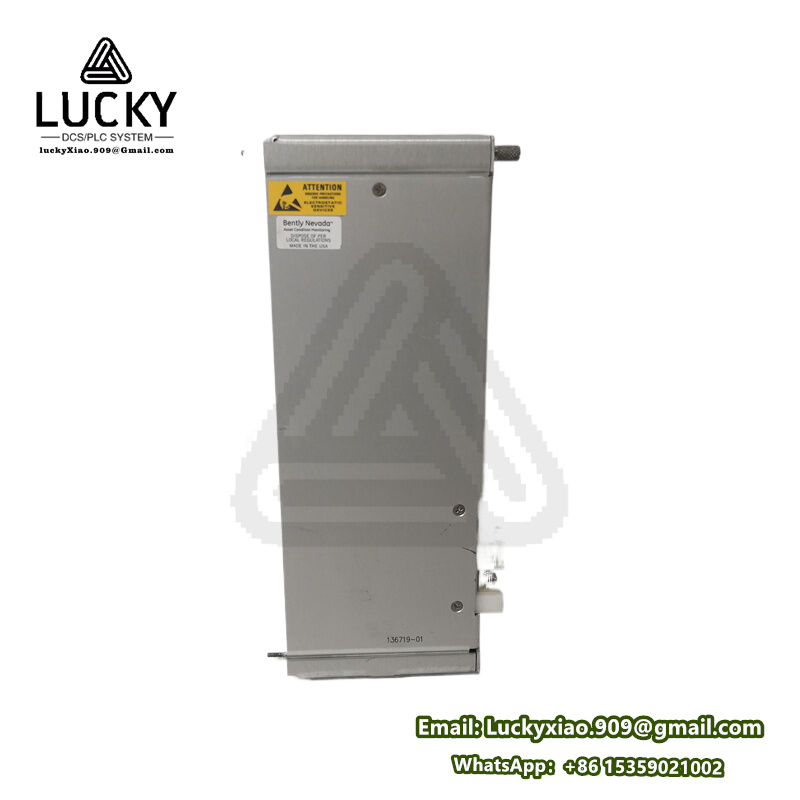

Bently Nevada 136719 – 01: Seismic Monitor Module for Machinery Protection

Product Description

The Bently Nevada 136719-01 is a highly specialized seismic monitor module, playing a crucial role in machinery protection systems. Engineered to offer real – time monitoring and in – depth diagnostics, it significantly enhances the operational safety of industrial machinery. As a key component within the Bently Nevada product portfolio, it is designed to integrate flawlessly with specific machinery protection setups, providing essential monitoring functions.

Product Parameters

Parameter	Specification
Product Type	Seismic I/O Module
Input Signal Types	Compatible with proximity and seismic transducers
Input Voltage Range	10 – 30 VDC
Input Current Range	0 – 20 mA
Output Relay Type	SPST NO
Output Relay Contact Rating	10 A at 240 VAC
Operating Temperature Range	– 40 °C to +85 °C
Storage Temperature Range	– 55 °C to + 125 °C

Product Specifications

Series

The 136719-01 is part of the esteemed Bently Nevada 3500 series. The 3500 series is well – known for its comprehensive machinery protection and condition monitoring solutions. It encompasses a wide range of modular components like vibration monitors, communication gateways, power supplies, and various I/O modules. All components in the 3500 series are engineered for seamless integration, offering scalability, reliability, and compliance with global industry standards. The 136719 – 01 module further enriches the series by adding seismic monitoring capabilities, contributing to a more holistic view of machinery health.

Features

Intrinsic Safety Interfaces

The internal barriers in the 136719-01 module create intrinsically safe interfaces. This means it can be used in hazardous areas where electrical sparks could potentially ignite explosive atmospheres. By providing electrical isolation between the field wiring and the system electronics, it protects the system from electrical noise, interference, and high – voltage transients.

Proximity and Seismic Transducer Compatibility

It can accept input from both proximity and seismic transducers. This versatility allows for comprehensive monitoring of machinery vibrations and movements. Proximity transducers can detect the position and movement of machine parts, while seismic transducers can sense vibrations, enabling early detection of potential failures or damages.

Compact and Robust Design

Despite its small size, the module is robustly constructed. The compact dimensions make it suitable for installation in tight spaces, and the durable build ensures it can withstand harsh industrial conditions, including extreme temperatures, vibrations, and mechanical stress.

Advanced Diagnostic Capabilities

The module is designed to support advanced diagnostic functions. It continuously assesses the data received from transducers and can identify abnormal vibrations or movements. This enables operators to perform proactive maintenance, reducing unplanned downtime and extending the lifespan of industrial equipment.

Function

The primary function of the Bently Nevada 136719-01 is to monitor the seismic activity and proximity – related parameters of industrial machinery. It receives signals from proximity and seismic transducers installed on or near the machinery. These signals are then processed to analyze the vibration patterns, movements, and relative positions of machine components. If any abnormal behavior is detected, such as excessive vibration or misalignment, the module can trigger alarms or send signals to other parts of the machinery protection system. This allows for timely intervention to prevent major failures and ensure the safe and efficient operation of the machinery.

Use

In industrial settings, the 136719-01 module is installed as part of a comprehensive machinery protection system. Proximity and seismic transducers are strategically placed on critical machinery components, such as bearings, shafts, and casings. The module is then connected to these transducers, and it starts collecting and processing data. Operators can access the data through a control panel or a monitoring software interface. They can use this data to monitor the real – time health of the machinery, set alarm thresholds, and analyze historical trends to predict maintenance needs. Maintenance teams can also use the diagnostic information provided by the module to plan and execute preventive maintenance tasks.

Application Fields

Petrochemical Industry

In petrochemical plants, where the risk of explosion is high due to the presence of flammable gases and liquids, the 136719-01 module’s explosion – protection features are invaluable. It can monitor the vibrations and positions of pumps, compressors, and reactors, ensuring their safe operation and preventing potential disasters.

Manufacturing

In manufacturing facilities, the module can be used to monitor the performance of heavy – duty machinery such as lathes, milling machines, and large – scale assembly equipment. By detecting early signs of wear, misalignment, or vibration issues, it helps maintain product quality and prevent production disruptions.

Power Generation

For power plants, whether they are coal – fired, gas – fired, or nuclear, the 136719-01 module can monitor the health of turbines, generators, and other critical equipment. Monitoring the vibrations of turbine blades or the alignment of generator shafts is essential for ensuring efficient power generation and preventing costly breakdowns.

Mining

In mining operations, where machinery is often subjected to harsh conditions, the module can be used to monitor crushers, conveyor systems, and drilling equipment. Detecting abnormal vibrations in crushers or misalignment in conveyor belts can prevent equipment failures and improve the overall efficiency of the mining process.

In summary, the Bently Nevada 136719-01 seismic monitor module is a sophisticated and reliable solution for enhancing machinery protection in a variety of industrial applications. Its unique features, such as intrinsic safety interfaces and advanced diagnostic capabilities, make it a preferred choice for industries where the safety and reliability of machinery are of utmost importance.
